Operation instructions
Bedieningshandleiding

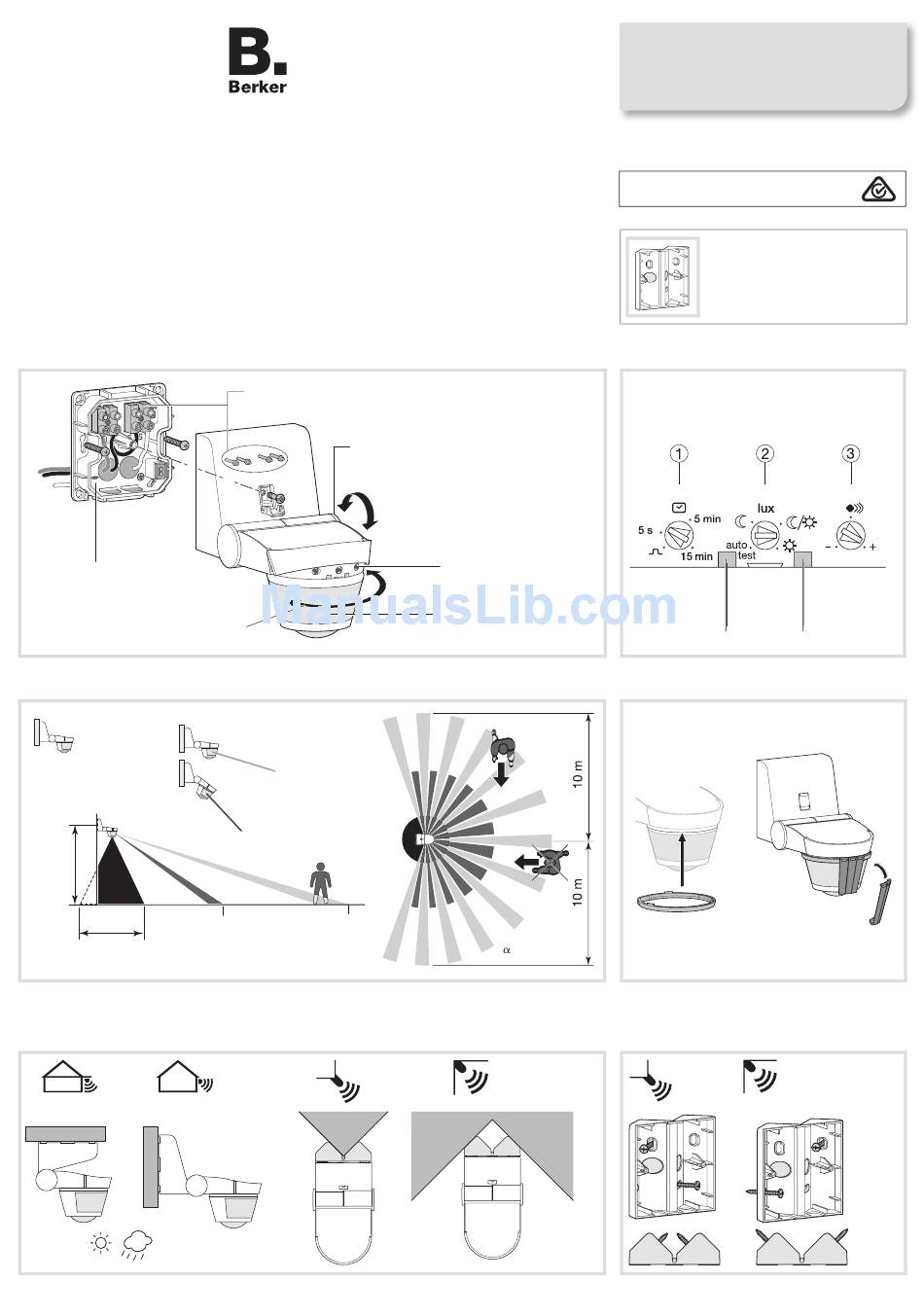

Motion detector comfort 220/360°
Order no / Ref. num.191
z
i
Description
Plate for wall fi xing
Detection zone
2,5 m
Ø 6 m
The optimal height of installation is 2.5 m.
The detection field must remain free.
Installation
q
1
Connection by PIN system
(4 plug-in pins)
Vertical adjustment
+ 90°/- 30°
+/-80°
16 m
4 m
8 m
16 m
Berker GmbH & Co. KG
Klagebach 38
58579 Schalksmühle/Germany
Telefon: + 49 (0) 23 55/90 5-0
Telefax: + 49 (0) 23 55/90 5-111
www.berker.com
6LE000801A
Setting potentiometers
Swivelling detection head
= 220/360°
Caution!
This device is to be installed only by a professional
electrician fi tter according to local applicable
installation standards.
Do not plug in or unplug this product when it is live.
For use in Australia and New Zealand
ACCESSORY FOR
CORNER FIXING
8590 02 00
08/2014
Setting
Fixed time
(length of time
of lighting)
LED A
Shutters
1
Accessories for corner fi xing
M
Luminosity Sensitivity
(modification
of the range)
LED B
2
ech40%
6LE000801A
Advertisement
Table of Contents
Related Manuals for Berker 191
Summary of Contents for Berker 191
- Page 1 58579 Schalksmühle/Germany Telefon: + 49 (0) 23 55/90 5-0 For use in Australia and New Zealand Telefax: + 49 (0) 23 55/90 5-111 www.berker.com ACCESSORY FOR Order no / Ref. num.191 CORNER FIXING 8590 02 00 08/2014 6LE000801A Description Setting...
- Page 2 Product presentation Montage and operating principles Surface-mounting or ceiling-mounted : - fix the wall plate using the screws provided This detector allows automatic control of a - connect the wall plate terminal block (see cabling plans in annex) light source for a defined length of time when a - fully insert the detector on the wall plate movement is detected in the surveillance zone.
- Page 3 De contactpennen van het product niet vast- of loskoppelen wanneer het onder spanning staat. Bewegingsmelder comfort Berker GmbH & Co. KG 220/360° Klagebach 38 58579 Schalksmühle/Germany Telefon: + 49 (0) 23 55/90 5-0 Telefax: + 49 (0) 23 55/90 5-111 www.berker.com...
- Page 4 Beschrijving van het product en Montage werkingsprincipe Opbouwmontage of plafondmontage: - bevestig de wandplaat met behulp van de meegeleverde schroeven Deze bewegingsmelder dient voor het - de klemmenstrook aansluiten op de muurplaat (zie bedradingsschema’s in de bijlage) automatisch aansturen van een lichtbron - de melder volledig in de muurplaat steken gedurende een ingestelde tijd als een beweging - vastschroeven totdat de afdichting van het product gegarandeerd is.
