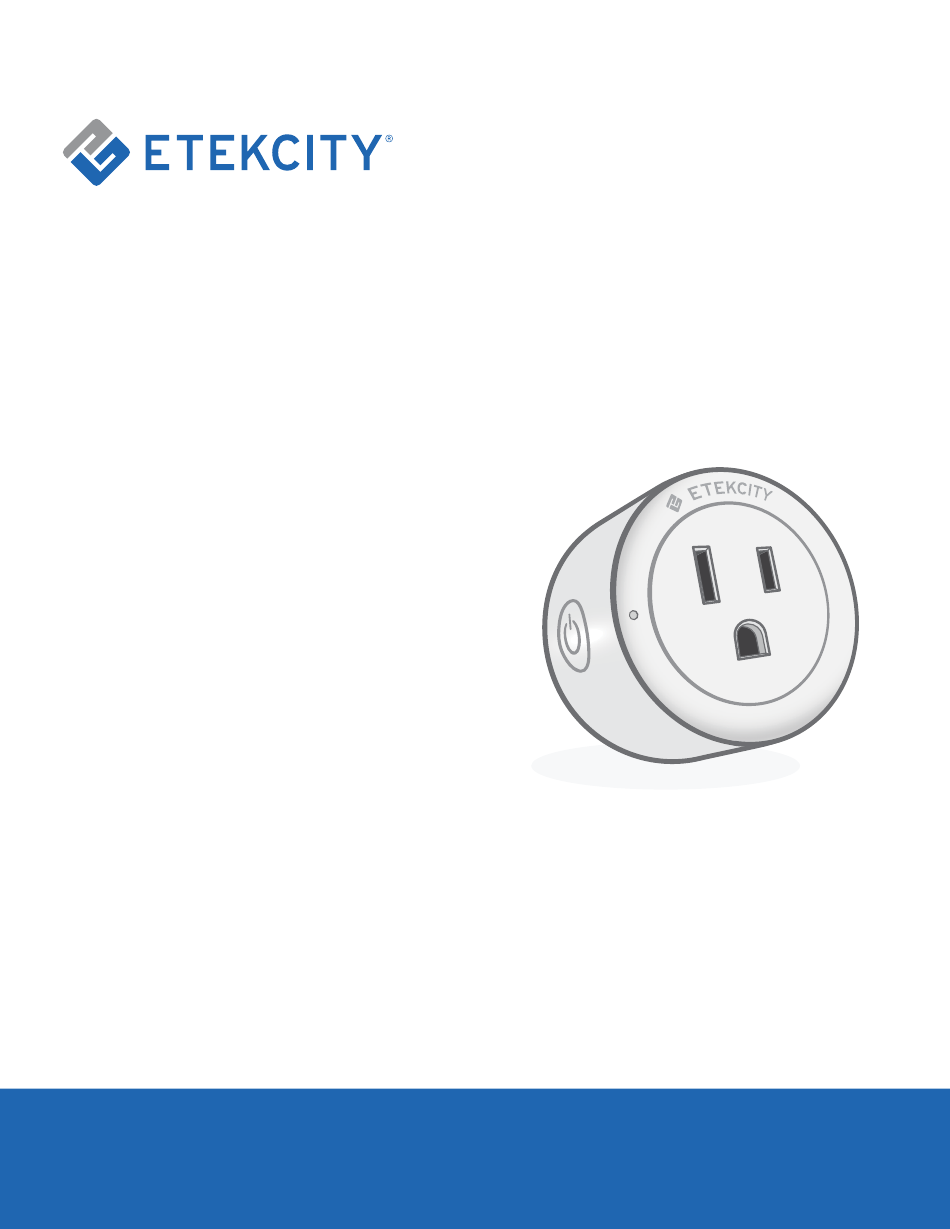

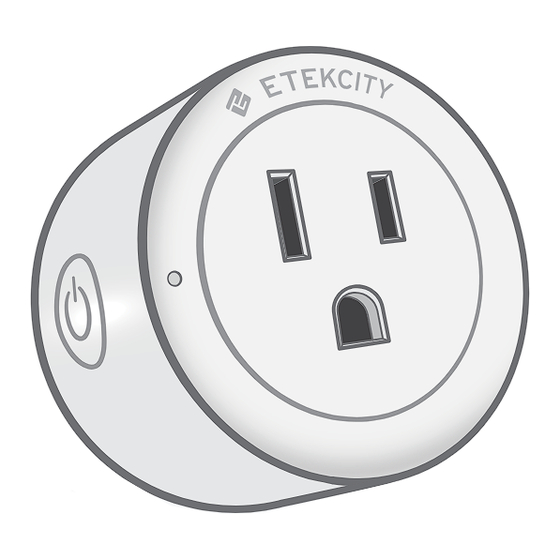

- Page 1 User Manual Voltson Mini Smart WiFi Outlet Model: ESW10-USA2 Questions or Concerns? Mon–Fri, 9:00 am–5:00 pm PST/PDT support@etekcity.com • (855) 686-3835...
- Page 2 Thank you for purchasing the Voltson Mini Smart WiFi Outlet by Etekcity. Your smart outlet allows you to control electrical appliances, such as lights, fans, and kitchen appliances with your Android or iOS ™ ™ devices. With the free VeSync app, turn your appliances on and off from anywhere, at any time.
-
Page 3: Table Of Contents
Table of Contents Specifications Safety Information Product Requirements • Features Light Chart VeSync App Setup Configuration Functions • Turning the Smart Outlet On/Off Schedules Timer Away Mode Settings • Device Info • Share Your Smart Outlet • Delete Your Smart Outlet •... -
Page 4: Specifications
Specifications Maximum Switch Current Power Supply AC 100–130V, 60Hz ＜1W Power Consumption Wireless Distance 98–164 ft / 30–50 m (max visible range) (Outlet to Router) Communication Mode IEEE802.11b/g/n (WiFi) Communication Frequency 2400–2483.5MHz Compatible Systems Android 4.3 or higher / iOS 8.0 or higher ™... -
Page 5: Safety Information
Safety Information To reduce the risk of injury and/or damage to this outlet, please read and follow all instructions and safety guidelines in this manual. • Do not exceed the outlet’s maximum load current of 10A (approximately 1200W) by plugging in appliances that require a higher load current. -
Page 6: Product Requirements
Product Requirements • A smartphone running on iOS 8.0 / Android 4.3 or higher. • A secure 2.4GHz WiFi connection (supports 802.11b/g/n standard) that is connected to the internet. • AC input voltage should be between 100V–130V. The smart outlet is compatible with electrical appliances that use 10A current. -
Page 7: Light Chart
Light Chart Light Status Description Color Yellow Solid Outlet is on Blinks quickly Outlet is trying to connect to WiFi (4 blinks per second) Blue Blinks slowly Outlet is connected to WiFi, but is (once every 5 seconds) trying to connect to server Blue and yellow lights blink Outlet is in Configuration Mode alternately... -
Page 8: Vesync App Setup
VeSync App Setup Note: Due to continuing updates and improvements, the VeSync app and IFTTT app user interfaces may appear slightly different. In case of ™ any differences, follow the in-app instructions. To download the VeSync app, scan the QR code or search “VeSync” in the Apple App Store or Google Play Store. -
Page 9: Configuration
Configuration Set up your smart outlet with the VeSync app. Note: The smart outlet can only be set up on a secure 2.4GHz network. After plugging in your smart outlet, open the VeSync app. to add your smart outlet. - Page 10 Wi-Fi Outlets, then tap Etekcity 10A WiFi Outlet USA. Follow the in-app instructions to add your smart outlet. Note: After setup is complete, you can change the name and icon at any time by going to the smart outlet screen and tapping...
-
Page 11: Functions
Functions Turning the Smart Outlet On/Off To turn the outlet on/off: • Press the outlet’s power button. • Tap on the “My Home” screen or the smart outlet screen in the VeSync app. Note: The outlet will remain connected to the internet even when it is turned off. -
Page 12: Schedules
Schedules Create a schedule to set a scheduled time for the smart outlet to turn on/off. From the My Home screen, tap on the name of your smart outlet to open the smart outlet screen. Tap Schedule, then tap +. - Page 13 Scroll up and down to set the time and tap or Off. The smart outlet will turn on/off at the time you set. Note: When selecting a time, you can also select Sunrise or Sunset . Allow the VeSync app to access your location to determine when sunrise and sunset are for your area.
- Page 14 Optionally, select the days you would like the schedule to repeat. The smart outlet will turn on/off on the selected days at the time you set. to save the schedule and return to the list of schedules. Tap the toggle to turn the schedule on or off. Delete Note: To remove a schedule, tap on the entry, then tap...
-
Page 15: Timer
Timer You can set a timer to turn your smart outlet on and off. From the My Home screen, tap on the name of the smart outlet to open the smart outlet screen, then tap Timer. Scroll up and down to set the time and tap or Off. - Page 16 Stop to stop the timer and return to the Timer screen. You can also tap < to return to the smart outlet screen.
-
Page 17: Away Mode
Away Mode Use Away Mode to have your smart outlet turn on and off periodically to give the appearance that someone is home while you’re away. From the My Home screen, tap on the name of the smart outlet to open the smart outlet screen, then tap Away. - Page 18 Scroll to set the start and end times. Optionally, select the days you would like Away Mode to be active. to save the Away Mode. The Away Mode will automatically start at the scheduled start time. Note: The Away Mode will only run once if you do not select a repeat day.
- Page 19 Stop to turn off the Away Mode and return to the Away Mode screen. You can also tap < to return to the smart outlet screen.
-
Page 20: Settings
Settings • From the My Home screen, tap on the name of the smart outlet to open the smart outlet screen, then tap to see Device Settings. • To change any setting, tap on any of the text, icons, or >... -
Page 21: Device Info
Device Info On the “My Home” screen, tap on the name of your smart outlet. Tap in the upper right corner to see Device Settings, then tap Device Info. This will display the time zone your smart outlet is working in, the signal strength of the WiFi connection, the MAC address of the smart outlet, and more. -
Page 22: Delete Your Smart Outlet
Delete Your Smart Outlet You can delete your smart outlet from the VeSync app. On the “My Home” screen, tap on the name of your smart outlet. Tap in the upper right corner, then tap Delete Device. You can also delete your smart outlet from the “My Home” screen in the VeSync app. - Page 23 Log Out • Tap More at the bottom of the screen. • Tap your profile, then tap Out. Contact Customer Support You can contact our friendly Customer Support Team through the VeSync app, in addition to the helpline. • To chat directly with our US office Customer Support Team, tap Inbox at the bottom of the screen.
-
Page 24: Maintaining Your Smart Outlet
Maintaining Your Smart Outlet Firmware Updates To keep the smart outlet up to date with the latest improvements and fixes, you should always update the firmware when available. On the Device Settings screen (see page 20), tap Upgrade Firmware. The red dot lets you know that there is a new firmware version available. -
Page 25: Troubleshooting
Troubleshooting Why isn’t my smart outlet connecting to the VeSync app. • During the setup process, you must be connected to a secure 2.4GHz WiFi network. Confirm that the network is working correctly. • Make sure the WiFi password you entered is correct. ∘... - Page 26 • Press and hold the power button on the outlet for 5 seconds, until the indicator light blinks to trigger Configuration Mode. The “Etekcity” access point will appear in your list of available WiFi connections. • During Configuration Mode, the indicator light on the outlet will alternate blinking blue and yellow.
- Page 27 My outlet is offline. Make sure your router is connected to the internet, and your phone’s network connection is working. Delete the offline outlet from the VeSync app. Swipe left (iOS) or tap and hold (Android), and tap Delete. Reset the outlet (see page 24). When the outlet is reconfigured and online again, go to Device Settings, and tap Upgrade Firmware.
-
Page 28: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 29: Warranty Information
For your own reference, we strongly recommend that you record your order ID and date of purchase. Terms & Policy Etekcity Corporation warrants all products to be of the highest quality in material, craftsmanship, and service, effective from the date of purchase to the end of the warranty period. - Page 30 • Damage in return transit. • Unsupervised use by children under 18 years of age. Etekcity Corporation and its subsidiaries assume no liability for damage caused by the use of the product other than for its intended use or as instructed in the user manual.
-
Page 31: Customer Support
Customer Support If you have any questions or concerns about your new product, please contact our helpful Customer Support Team. CUSTOMER SUPPORT Etekcity Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806 Email: support@etekcity.com Toll-Free: (855) 686-3835 SUPPORT HOURS Mon–Fri, 9:00 am–5:00 pm PST/PDT... - Page 32 Connect with us @Etekcity...
- Page 33 Building on better living. AU0919CC-M2_0919ESW10-USA...
