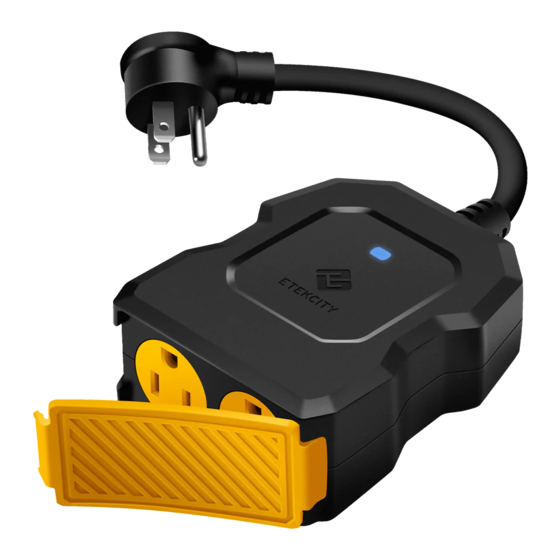

ETEKCITY ESO15-TB User Manual

Smart outdoor wifi outlet
Hide thumbs Also See for ESO15-TB:
Table of Contents

Advertisement

Quick Links

See also: Manual

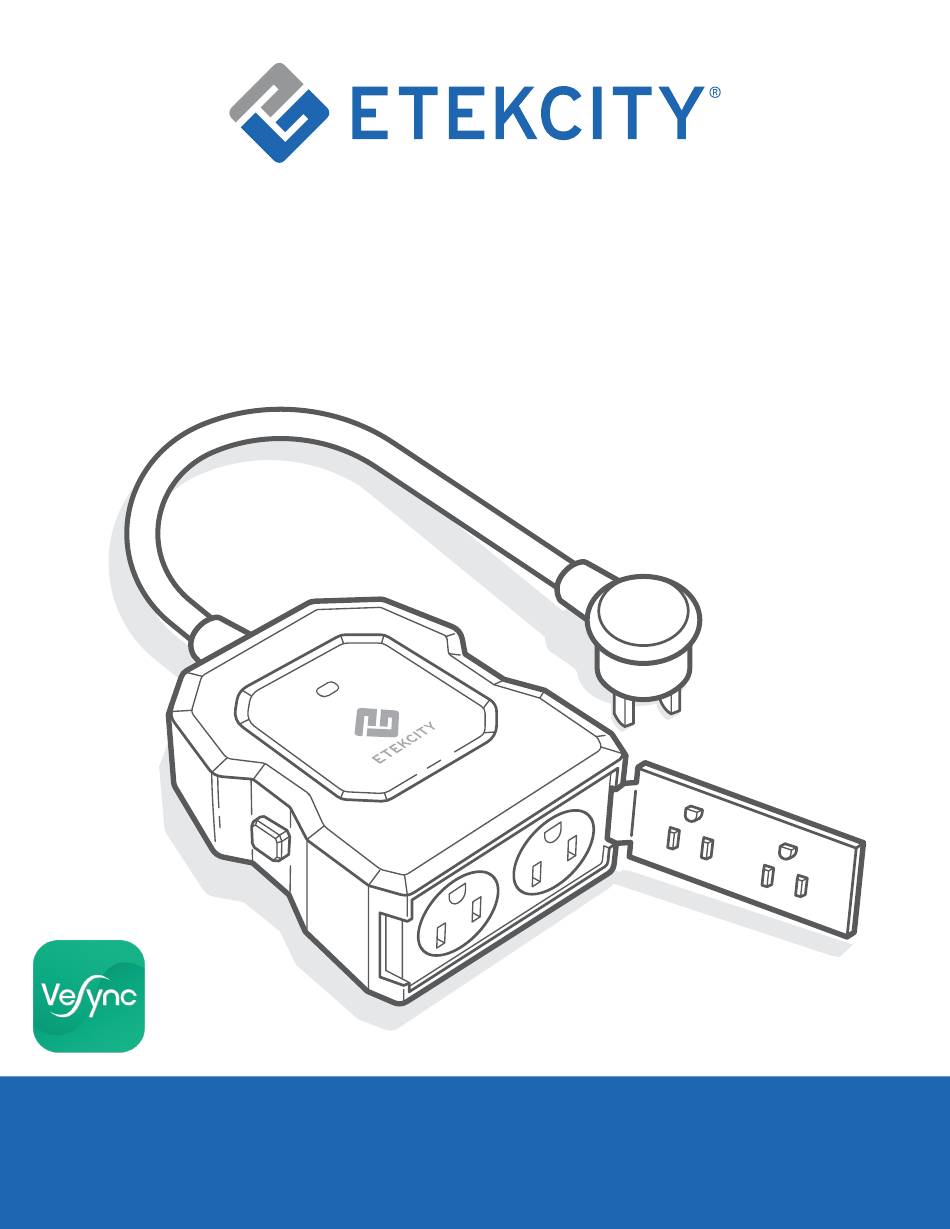

Smart Outdoor WiFi Outlet
Model No.: ESO15-TB
User Manual
Questions or Concerns?
Mon–Fri, 9:00 AM–5:00 PM PST/PDT
support@etekcity.com • (855) 686-3835
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESO15-TB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETEKCITY ESO15-TB

Summary of Contents for ETEKCITY ESO15-TB

  • Page 1 Smart Outdoor WiFi Outlet Model No.: ESO15-TB User Manual Questions or Concerns? Mon–Fri, 9:00 AM–5:00 PM PST/PDT support@etekcity.com • (855) 686-3835...
  • Page 2 If you have any questions or concerns, please reach out to our helpful Customer Support Team at support@etekcity.com. We hope you enjoy your new smart outlet! Become an Etekcitizen Exclusive deals, giveaways, and product registration.

  • Page 3: Table Of Contents

    Table of Contents Package Contents More Features Specifications • Connecting with Amazon Alexa Safety Information • Connecting with Google Home • Log Out Product Diagram • Contact Customer Support Light Chart Maintaining Your Smart Outlet VeSync App Setup • Firmware Updates Configuration •...

  • Page 4: Specifications

    Specifications Communication Mode IEEE802.11b/g/n (WiFi) Communication Frequency 2.4GHz Wireless Distance 98–164 ft / 30–50 m (Outlet to Router) (max visible range) Maximum Outlet Capacity AC Power Supply Range & Supply 120V, 60Hz Frequency 14°F–104°F / -10°C–40C° Operating Environment Storage & Transportation -4°F–158°F / -20°C–70°C.

  • Page 5: Safety Information

    Safety Information To reduce the risk of injury and/or damage to this outlet, please read and follow all instructions and safety guidelines in this manual. • Do not exceed the outlet’s maximum load current of 15A (approximately 1800W) by plugging in appliances that require a higher load current.
  • Page 6 FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following 2 conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 7 FCC Radiation Exposure Notice This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions as documented in this manual.

  • Page 8: Product Diagram

    Product Requirements • A smartphone running on iOS 8.0/Android 4.3 or higher. • A secure 2.4GHz WiFi connection (supports 802.11b/g/n standard). • AC input voltage that is between 100V–125V. The smart outlet is compatible with electrical appliances that use 15A current. Connecting an appliance that uses more than 15A current may cause the outlet fuse to blow.

  • Page 9: Light Chart

    Light Chart Light Color Status Description Outlet is on Yellow Solid Outlet is trying to connect Blinks twice every 5 seconds to WiFi Outlet is connected to WiFi, Blinks once every but is trying to connect to 5 seconds server Blue Purple Outlet is in...

  • Page 10: Vesync App Setup

    VeSync App Setup Note: Due to continuing updates and improvements, the VeSync app may appear slightly different. In case of any differences, follow the in-app instructions. To download the VeSync app, scan the QR code, or search “VeSync” in the Apple App Store or Google Play Store.

  • Page 11: Configuration

    Configuration Set up your outlet with the VeSync app. Connect your smartphone to a secure 2.4GHz WiFi network. Note: The smart outlet can only be set up on a secure 2.4GHz network. to add your smart outlet. Back to Table of Contents...
  • Page 12 WiFi Outlets. Etekcity Outdoor Outlet. Etekcity Outdoor Outlet...
  • Page 13 Start Setup.
  • Page 14 Plug in your smart outlet. The LED indicator light should blink blue (1 blink per second), indicating that your smart outlet is in Configuration Mode. If the LED indicator light is blinking, tap Next. If the LED indicator light is not blinking, tap LED light is not blinking.
  • Page 15 Enter the information for your home WiFi network, then tap Join Network. Note: Configuration requires a secure 2.4GHz WiFi network. Example123...
  • Page 16 Connect and select the WiFi network that starts with “Etekcity”. Wait for the app to connect. Note: The LED light may stop blinking while trying to connect. This is normal.
  • Page 17 Give your outlet a unique name, or use the default name, and tap OK. Note: • Tap to change the outlet icon. • You can change the device name and icon at any time. , then tap Device Settings. Back to Table of Contents...

  • Page 18: Functions

    Functions Turning the Smart Outlet On/Off To turn the outlet on/off: Press the power button on the side of the smart outlet. on the My Home screen or the smart outlet screen in the VeSync app. for each socket to turn the individual sockets on or off.

  • Page 19: Create Schedule

    Create Schedule Create a schedule to set a scheduled time for the smart outlet to turn on/off. On the smart outlet screen, tap Socket A Socket B to see the socket’s settings.
  • Page 20 + Create Schedule. Set a start and end time.
  • Page 21 To set a start time: > next to “Start”. Scroll up and down to select time. Alternatively, < for “Sunrise“ and > for “Sunset“. iii. to confirm. Note: Allow the VeSync app to access your location to determine when sunrise and sunset are for your area.
  • Page 22 Choose under “Start”. 06:30 AM...
  • Page 23 To set an end time (optional): > next to “End“. Scroll up and down to select time. Alternatively, < for “Sunrise“ and > for “Sunset“. iii. to confirm. Note: Allow the VeSync app to access your location to determine when sunrise and sunset are for your area. 06:30 AM...
  • Page 24 Choose under “End”. 06:30 AM 06:30 PM...
  • Page 25 Repeat (Optional) - Select days you want this schedule to repeat.
  • Page 26 Turn the schedule on and off on the smart outlet screen by tapping the toggle next to the scheduled time. Socket A Back to Table of Contents...

  • Page 27: Set Timer

    Set Timer You can create a timer to turn your smart outlet on or off. Tap Timer. Then, + Create Timer. Scroll up and down to set the time and tap or Off. to confirm and start the timer. When the timer finishes, the outlet will turn on or off based on your selection.
  • Page 28 to stop the timer. Tap to restart the timer. Note: To remove the timer entry, tap on it, then tap Delete. Back to Table of Contents...

  • Page 29: Away Mode

    Away Mode Plug in your outdoor appliances (such as lights) and have them turn on and off periodically to give the appearance that someone is home while you’re away. Tap Away, then + Set Away Mode. Select an option from the Away Mode screen.
  • Page 30 Start Choose when to start Away Mode. > next to “Start”. Scroll up and down to select time. to confirm.
  • Page 31 Choose when to end Away Mode. > next to “End”. Scroll up and down to select the time. to confirm.
  • Page 32 Repeat Choose the days you want to repeat Away Mode. > next to “Repeat”. Select the days you want Away Mode to repeat. to confirm.
  • Page 33 You can turn Away Mode on/off at any time by tapping the toggle button. Note: To delete the Away Mode, tap on the Away Mode entry, then tap Delete. Back to Table of Contents...

  • Page 34: Smart Outlet Settings

    Smart Outlet Settings to see Device Settings. The Device Settings menu allows you to: Edit your smart outlet name by tapping on the current name next to “Device Name”. Edit your smart outlet’s icon by tapping on the current Device Name image next to “Icon”.

  • Page 35: Energy Saving Mode

    Energy Saving Mode The VeSync app allows you to program your smart outlet to save on energy costs by turning off your appliance when the maximum cost setting is reached. Tap the toggle switch to turn Energy Saving Mode on and off.

  • Page 36: Abnormal Power Protection

    Abnormal Power Protection Turn on Power Protection to protect your connected appliances from power spike damage. Tap the toggle switch to turn Power Protection on and off. Enter power usage threshold. to confirm.

  • Page 37: Share Your Smart Outlet

    Share Your Smart Outlet Use Share Device to allow someone else to control your smart outlet (such as family, friends, roommates, or anyone you choose). Note: People who you share your smart outlet with cannot edit or delete any of your device settings. on the Share Device screen.

  • Page 38: Delete A Smart Outlet

    You can also delete your smart outlet from the My Home screen in the VeSync app. : Swipe left on the smart outlet’s name to ™ delete. Android : Press and hold for 2 seconds on the ™ smart outlet’s name to delete. Etekcity Outdoor Outlet Etekcity Outdoor Outlet...

  • Page 39: More Features

    More Features Connecting with Amazon Alexa ® ™ To view instructions in the VeSync app, tap More at the bottom of the screen, then tap Link to Alexa. Note: You must create your own VeSync account to connect with Alexa. Connecting with Google Home ™...

  • Page 40: Log Out

    Log Out Note: You do not need to log out if you are not using a VeSync account. More at the bottom of the screen. Tap your profile, then tap Out. example@email.com Example example@email.com...

  • Page 41: Contact Customer Support

    Contact Customer Support You can contact our friendly Customer Support Team through the VeSync app, in addition to the help line. • To chat directly with our US office Customer Support Team, tap Inbox at the bottom of the screen. Then, tap Online support to send a chat message.

  • Page 42: Maintaining Your Smart Outlet

    Maintaining Your Smart Outlet Firmware Updates To keep the smart outlet up to date with the latest improvements and fixes, always update the firmware when available. On the Device Settings screen, tap Upgrade Firmware. Resetting Resetting the smart outlet can help you troubleshoot many issues you may have.

  • Page 43: Troubleshooting

    • If you are unsure, or if the 2.4G and 5G networks do not have separate names, please contact your internet service provider. I can’t find the “Etekcity” access point during configuration. • Press and hold the power button on the smart outlet for 5 seconds to trigger Configuration Mode.
  • Page 44 My smart outlet is offline. 1. Make sure your router is connected to the internet, and your phone’s network connection is working properly. 2. Delete the offline smart outlet from the VeSync app. Swipe left (iOS) or tap and hold (Android), and tap Delete. 3.
  • Page 45 Why isn’t my smart outlet turning on/off as scheduled? • Make sure that the schedule is still turned on. The toggle switch should look like , not • Make sure that your phone’s Location Services are turned on. • Make sure the smart outlet is connected to a working network and is not offline.

  • Page 46: Warranty Information

    Warranty Information Terms & Policy Etekcity warrants all products to be of the highest quality in material, craftsmanship, and service, effective from the date of purchase to the end of the warranty period. Etekcity will replace any product found to be defective due to manufacturer flaws based on eligibility.
  • Page 47 OF THE LIMITED WARRANTY. Additional 1-Year Warranty You can extend your 1-year warranty by an additional year. Log onto www.etekcity.com/warranty and enter your order number (for example, from Amazon or Houzz) to register your new product for the extended warranty.

  • Page 48: Customer Support

    Customer Support If you encounter any issues or have any questions regarding your new product, please contact our helpful Customer Support Team. Your satisfaction is our goal! Etekcity Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806 Email: support@etekcity.com...
