Printer Parts

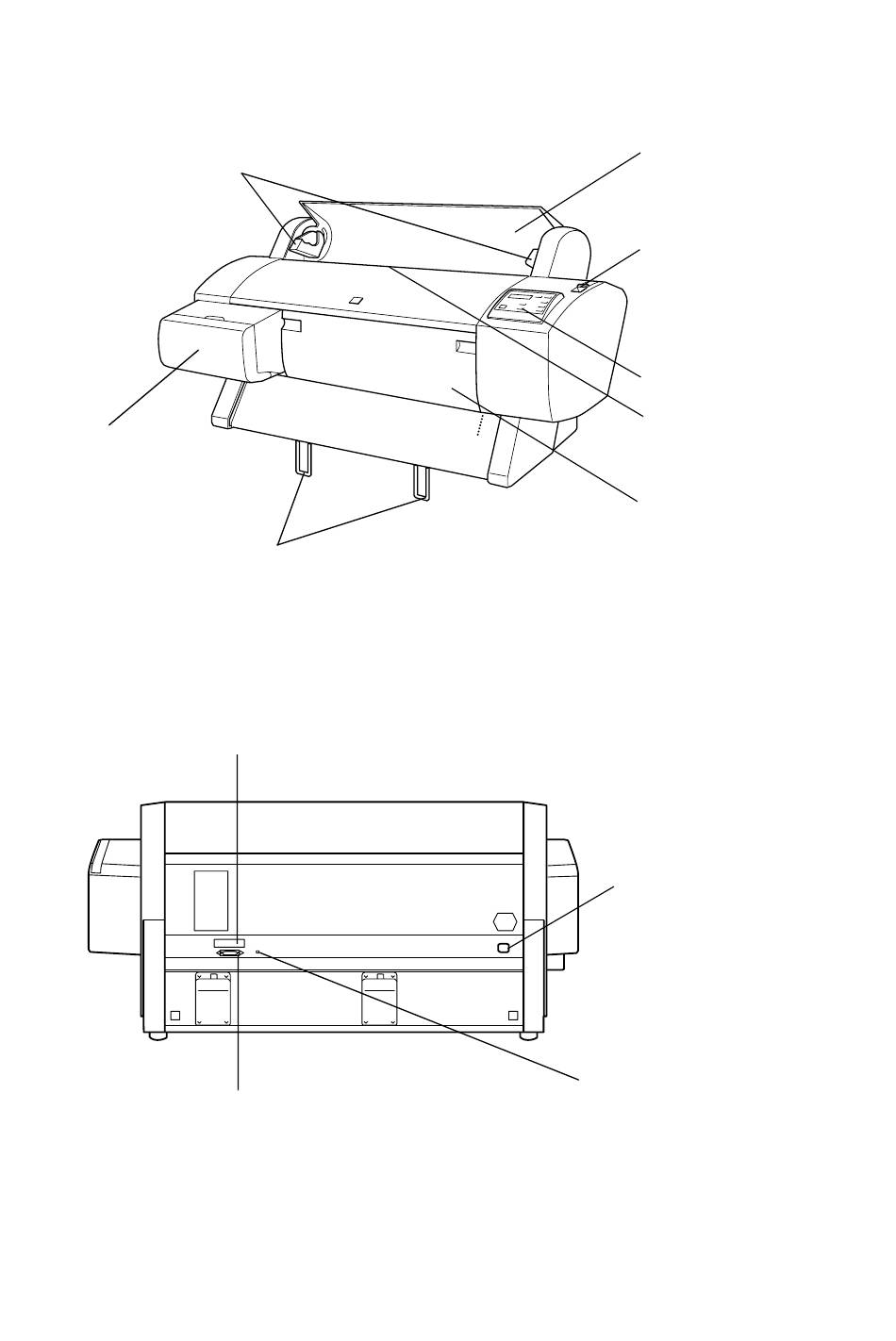

Front view
mounting brackets
ink cartridge
compartment
Rear view
optional interface card slot cover
parallel interface connector
paper guides
roll paper cover
paper set lever
control panel
paper insertion slot
lower cover
AC inlet
USB interface connector
