10.4" LCD Monitor with Aluminum Front Bezel
M 0 D E L :
YPM1040PHB
Please return 1 copy for our confirmation with your signature and comments.
C O M P A N Y
T
L-a_iivii->*i\i
SPECIFICATION
APPROVAL
Tech C o m
Q n
LLC
'
P
y
TOLL FREE: (888) 483-2418 • EMAIL:
FOR
BASE MODEL
Customer's Confirmation
Approved by:
Reviewed by:
Prepared by:
Supplier's Confirmation
Approved by:
Reviewed by:
Prepared by:
hfo@itechlcd.com
1/16
• WEB:
www.iTechLCD.com
Advertisement
Table of Contents
Related Manuals for I-Tech YPM1040PHB
Summary of Contents for I-Tech YPM1040PHB
-

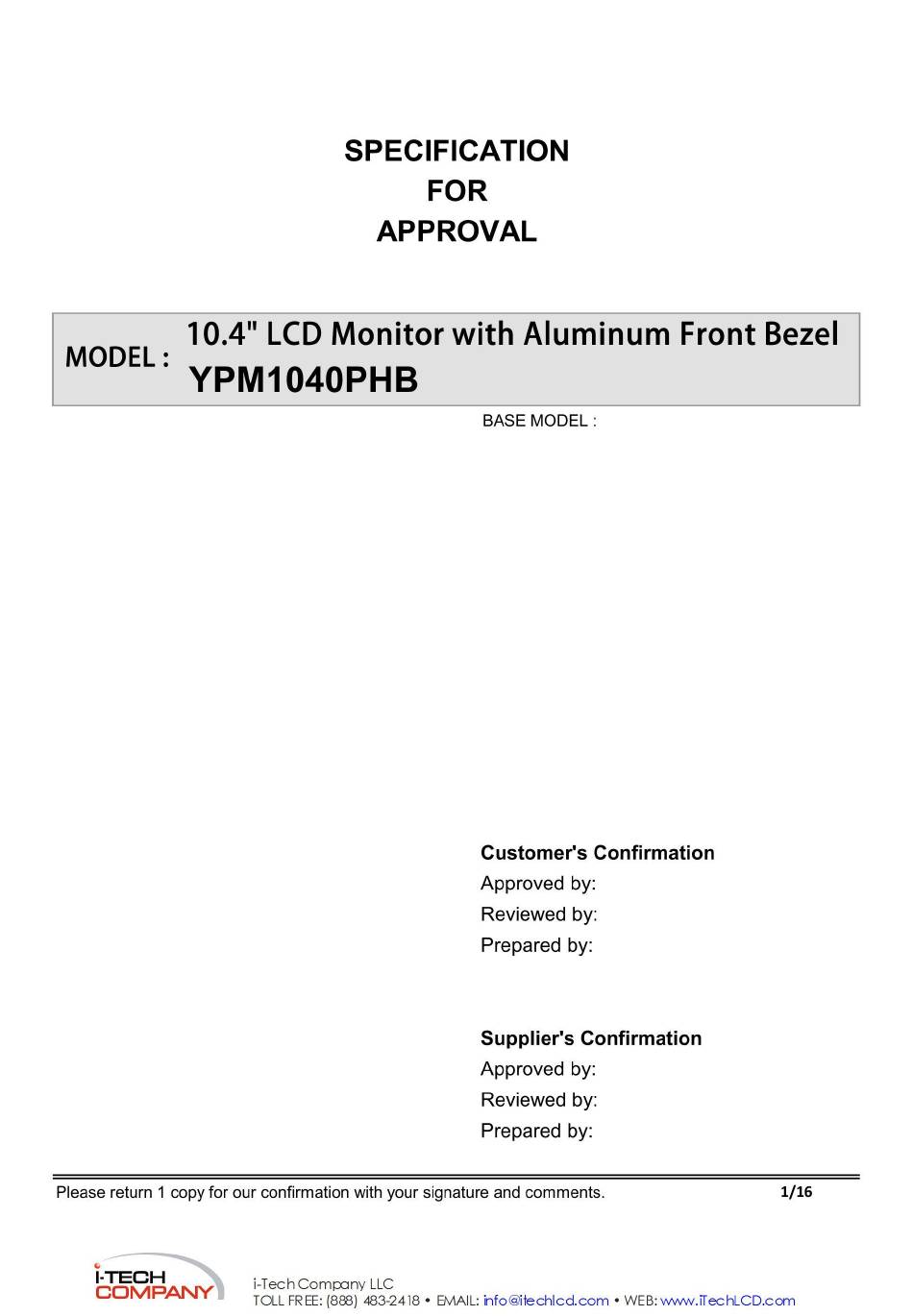

Page 1: Cover
SPECIFICATION APPROVAL 10.4" LCD Monitor with Aluminum Front Bezel M 0 D E L : YPM1040PHB BASE MODEL Customer's Confirmation Approved by: Reviewed by: Prepared by: Supplier's Confirmation Approved by: Reviewed by: Prepared by: Please return 1 copy for our confirmation with your signature and comments. -
Page 2: Important Safety Insturctions
Product Specification Important safety insturctions 01. Please read these instructions carefully before using the product and save for later reference. 02. Follow all warnings and instructions marked on the product. 03. Unplug this product from the wall outlet before cleaning. Clean the product with a damp soft cloth. -
Page 3: Record Of Revision
Product Specification Record of Revision Version & Date Page Old Description New Description 2014/07/14 First Edition for Customer 3/16... -
Page 4: Table Of Contents
Product Specification Contents Item Page Cover Important safety insturctions Record of Revision Contents Introduction (1) Features (2) Notice (3) Check list Installing the monitor (1) Power & Signal connections (2) Optional cable connections (3) Dimensions Using VGA LCD monitor (1) Key definition (2) Setup for Operation Cleaning the monitor Disclaimer... -
Page 5: Introduction
Product Specification 1. Introduction 1.1 Features High contrast color TFT-LCD Monitor support resolution up to 800*600. Power management system conforms to VESA DPMS and EPA Energy Star standards. Full consideration for touch screen installation and application. Universal Power adapter. Support DDC1 & DDC2B for Plug & Play compatibility. Advanced OSD control for picture quality adjustment. -
Page 6: Installing The Monitor
Product Specification 2. Installing the Monitor The procedures for setting up your TFT LCD monitor are as followings: 2.1 Power & Signal connections 2.1.1 Power Switch off the power of your monitor and computer. The Power Switch is located on in the center of the monitor. 2.1.2 Power cable connection Connect the power cord to the AC outlet, and connect the power to the monitor through the AC/DC adapter. -
Page 7: Dimensions
Product Specification 2.3 Dimensions 7/16... -
Page 8: Using Vga Lcd Monitor
Product Specification 3. Using VGA LCD Monitor 3.1 Key Definition OSD KEY FUNCTION Down / value decrease Up / value increase Power Power ON / OFF Menu Menu Select Select Signal Select 8/16... -
Page 9: Setup For Operation
Product Specification 3.2 Setup for Operation The OSD (On Screen Display) menu enables user to manipulate the image and settings OSD Main menu consists of source: OSD MENU Description Contrast Adjust the contrast of the screen. Brightness Adjust the brightness of the screen. Color Temp Choose "User color"... - Page 10 Product Specification CONTRAST BRIGHTNESS COLOR TEMP. > SCALE < CENTER > PICTURE OVERSCAN < > Press “+” to increase or “-” to decrease the CONTRAST brightness, contrast or color temp. Adjust the contrast of the screen. BRIGHTNESS Adjust the brightness of the screen. COLOR TEMP.
- Page 11 Product Specification AUDIO BASS TREBLE BALANCE SOUND MODE < USER > EQUALIZER > < > SOUND EFFECT > AUDIO The setting of audio. BASS Adjust the bass of the audio. TREBLE Adjust the treble of the audio. BALANCE Adjust the balance of the audio. SOUND MODE Set sound mode to STANDARD, USER, MOVIE, MUSIC.
- Page 12 Product Specification SLEEP TIMER < > LANGUAGE < ENGLISH > H-POSITION V-POSITION DURATION HALFTONE BLUE SCREEN < > IMAGE REVERSE < > RESTORE > You can adjust the OSD menu. H-POSITION Adjust the horizontal position of OSD menu screen’s image. V-POSITION Adjust the vertical position of OSD menu screen’s image.
- Page 13 Product Specification GEOMETRY H-POSITION V-POSITION CLOCK PHASE AUTO ADJUST > GEOMETRY You can adjust the value of screen quality H-POSITION automatically. Adjust the horizontal position of the screen’s image. V-POSITION Adjust the vertical position of the screen’s image. CLOCK Use to adjust the value of horizontal image. PHASE Use to adjust the phase control.
-
Page 14: Cleaning The Monitor
Product Specification 4. Cleaning the monitor 1. Make sure the monitor is turned off. 2. Never spray or pour any liquid directly onto the screen or case. 3. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles. 4. -
Page 15: Trouble Shooting
Product Specification 6. Trouble shooting If your monitor fails to operate correctly, consult the following chart for possible solution before calling for repairs: Condition Check Point Check if the signal cable is firmly seated in the socket. Check if the Power is ON at the computer The picture does not appear Check if the brightness control is at the appropriate position, not at the Maximum . -
Page 16: Specifications
Product Specification 7. Specifications Screen Diagonal 10.4-inch Active Display Area (mm) 211.2 (H) x 158.4 (V) Pixel Pitch (mm) 0.264 x 0.264 Number of Pixels 800 * 600 Contrast Ratio 500:1 Color Arrangement R.G.B. Vertical Stripe Brightness (cd/m²) 1000 cd/m² Viewing Angle(Typ.) 80/80/60/70 (R/L/U/D) Signal Connector...
