ODYSSEY – STM32MP157C
Reference Guide

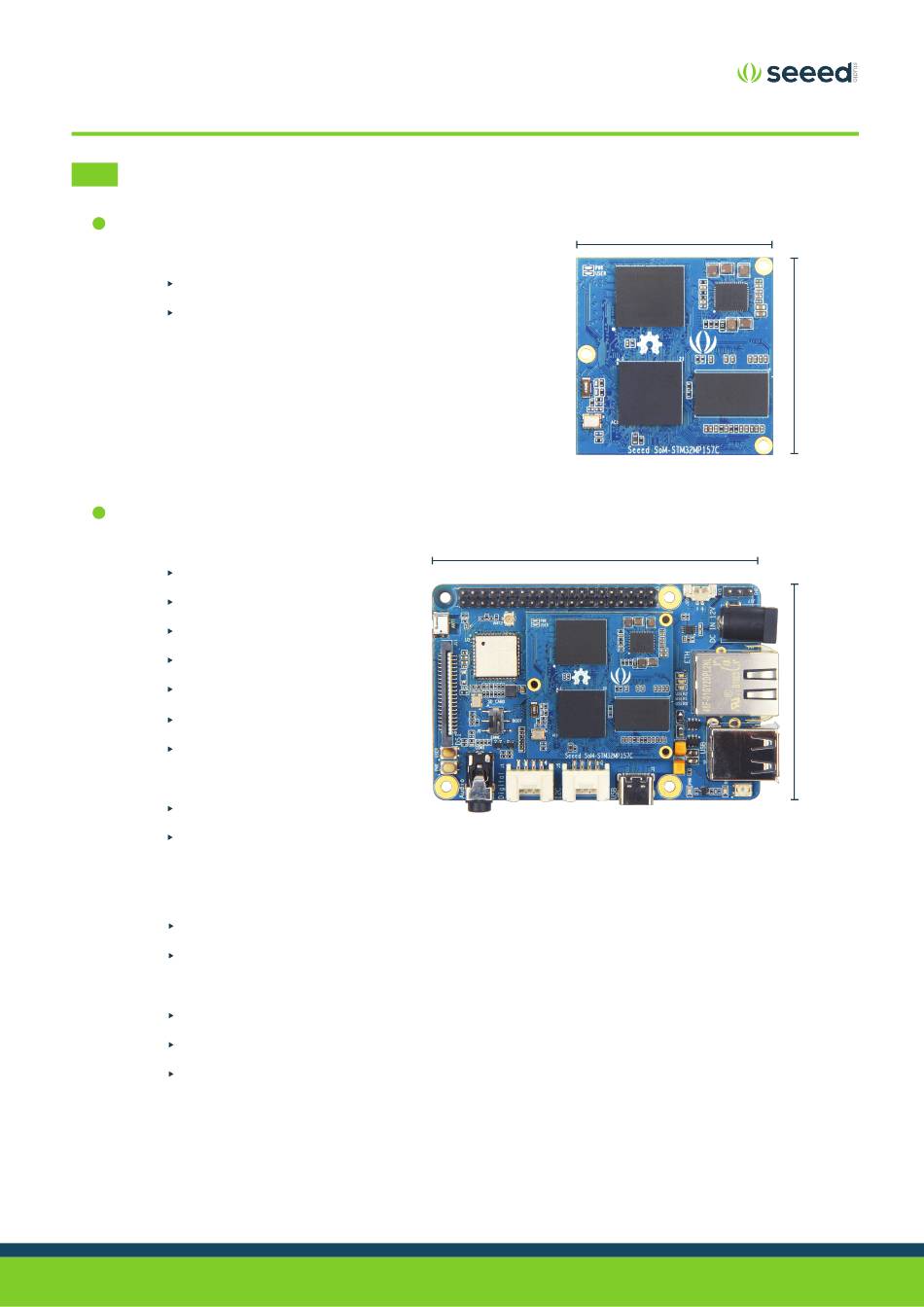

Specifications
SoM – STM32MP157C
• MPU: STM32MP157C
32-bit Dual-Core Arm® Cortex®-A7
32-bit Arm Cortex®-M4 with FPU/MPU
• PMU: ST PMIC STPMIC1A
• RAM: 512MB DDR3 RAM
• Flash: 4GB eMMC
• Peripherals: 3 x Board-to-Board 70-Pin Connectors
• Dimensions: 38mm x 38mm
Carrier Board
• Peripherals
2 x USB Host
1 x Gigabit Ethernet
1 x 3.5mm Audio
1 x MIPI DSI for Screen
1 x DVP for Camera
2 x Grove (GPIO & I2C)
1 x SD Card Slot (on the back)
• WiFi/BLE
WiFi 802.11 b/g/n 2.4GHz
Bluetooth 4.1 with BLE
• On-Board LED: 1 x Reset, 3 x User, 1 x Power
• Power
1 x DC Jack 12V~24V/2A (12V/2A power input is recommended)
1 x USB Type-C
• Button
1 x Reset
1 x User
1 x Switch
• Dimensions: 56mm x 85mm
• Operating Temperature: 0 ~ 75°C
www.seeed.cc
85mm
Page 4
38mm
38mm
56mm
Rev A
