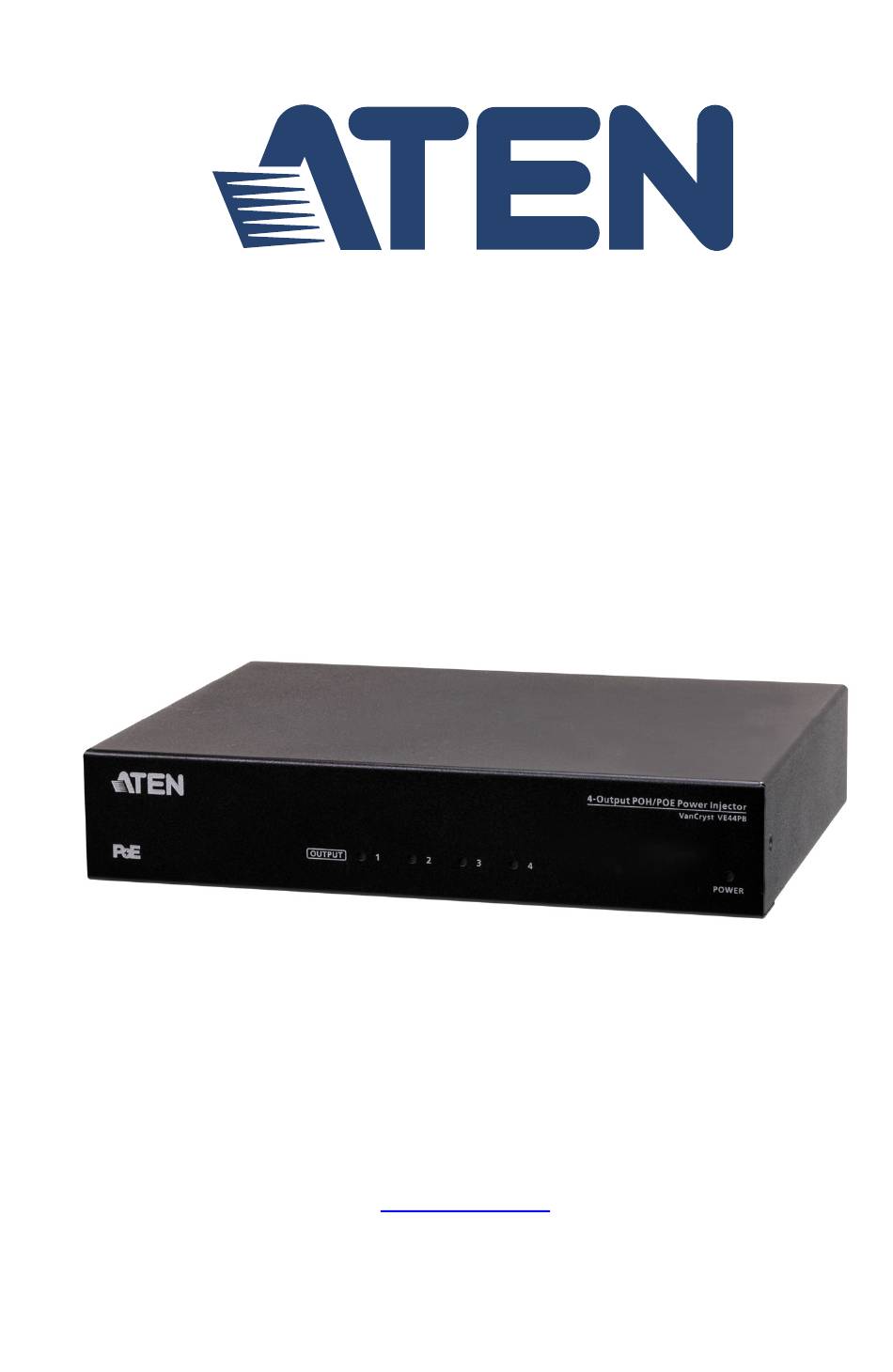

  • Page 1 4-Output PoH/PoE Power Injector VE44PB User Manual www.aten.com...
  • Page 2: Emc Information

    VE44PB User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: User Information

    VE44PB User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...
  • Page 4: Package Contents

    VE44PB User Manual Package Contents  1 VE44PB 4-Output PoH/PoE Power Injector  1 Mounting Kit  1 Power Cord Cable  1 User Instructions Note: 1. Check to make sure that all the components are present and that nothing got damaged in shipping. If you encounter a problem, contact your dealer.
  • Page 5: Table Of Contents

    Single Rack Mount Kit ........11 Connecting the VE44PB Unit ........13 Appendix Safety Instructions .
  • Page 6 VE44PB User Manual North America ......... . 18 Specifications .
  • Page 7: About This Manual

    VE44PB User Manual About this Manual This user manual is provided to help you get the most from the VE44PB unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below.
  • Page 8: Conventions

    VE44PB User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt].
  • Page 9: Product Information

    VE44PB User Manual Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 10 VE44PB User Manual This Page Intentionally Left Blank...
  • Page 11: Introduction

    Introduction Overview The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminate the need for local power supplies of the connected devices.
  • Page 12: Features

    Status LEDs to provide an at-a-glance overview of device status, improving real-time monitoring and troubleshooting  Assured signal quality – usage of the VE44PB power injector does not affect the signal quality of the video, audio, bi-directional RS-232, and Ethernet transmission* Note: The transmission distance maybe reduced to 80% of the original distance.
  • Page 13: Planning The Installation

    Considerations  To ensure video quality, ATEN recommends using a Cat 5e/6/6a cable. Note: For best results, ATEN recommends using the ATEN 2L-2910 Cat 6 cable. Transmission Distance Reduction The transmission distance maybe reduced to 80% of the original distance when connecting the VE44PB unit with ATEN HDBaseT products using cable 2L- 2910.
  • Page 14: Aten Class B Products

    40 m Long Reach Class A (1080p) Compatible ATEN Video Receivers & Transmitters The VE44PB is designed to work with a wide range of ATEN HDBaseT video receivers, transmitters, and other ATEN products. Visit our official web site for more details.
  • Page 15: Components

    VE44PB User Manual Components VE44PB Front View No. LED Indication Description Output Status Lights orange The PoE connection is stable. There is no PoE connection to the connected device. Power LED Lights green The unit is receiving power. There is no power supply to the unit.
  • Page 16: Ve44Pb Rear View

    Chapter 1. Introduction VE44PB Rear View Component Description Grounding The grounding wire used to ground the unit attaches here. Terminal Input Connects to a transmitter using an Ethernet cable. Connectors Note: For the signals to pass through, make sure to connect the transmitter and the receiver to the same Input and Output Connector pairs.
  • Page 17: Hardware Setup

    Hardware Setup 1. Please review the safety information regarding the placement of this device in Safety Instructions, page 15. 2. Do not power on the VE44PB until all the necessary hardware is connected. Mounting the VE44PB Unit You can mount the VE44PB to the wall or on a rack.
  • Page 18: Rack Mounting

    Chapter 2. Hardware Setup Rack Mounting Screw the bracket into any convenient location on the rack. Note: These screws are not provided. We recommend that you use M5 x 12 Philips Type I cross, recessed type screws. Wall Mounting Use the center hole to screw the bracket onto a secure wall surface.
  • Page 19: Optional Rack Mounting

    Dual Rack Mount Kit To install the dual rack mount kit, follow the steps below. 1. Remove four screws from the VE44PB units and then use the same screws to secure the units together with the link bracket. Link Bracket 2.
  • Page 20 Chapter 2. Hardware Setup 3. Use the screws from step 2 to install the left and right mounting brackets. Phillips Head Hex Screw Left Mounting Bracket Right Mounting Bracket Phillips Head Hex Screw 4. Screw the mounting brackets to the rack.
  • Page 21: Single Rack Mount Kit

    Single Rack Mount Kit To install the single rack mount kit, follow the steps below. 1. Remove the bottom and side screw from the VE44PB. 2. Use the screws from step 1 to install the right and left mounting brackets.
  • Page 22 Chapter 2. Hardware Setup 3. Screw the mounting brackets to the rack.
  • Page 23: Connecting The Ve44Pb Unit

    Example: VE802R Example: VE1812R 1. Ground the VE44PB by connecting one end of a grounding wire to the grounding terminal and the other end to a suitable grounded object. Note: Do not omit this step. Proper grounding helps to prevent damage to the unit from power surges or static electricity.
  • Page 24 Chapter 2. Hardware Setup This Page Intentionally Left Blank...
  • Page 25: Appendix

    Appendix Safety Instructions General  This product is for indoor use only.  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 26 Appendix  If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
  • Page 27: Rack Mounting

    VE44PB User Manual Rack Mounting  Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
  • Page 28: Technical Support

    Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand:  Product model number, serial number, and date of purchase  Your computer configuration, including operating system, revision level, expansion cards, and software ...
  • Page 29 VE44PB User Manual Specifications Function VE44PB Connectors Input 4 x RJ-45 Female (Without PoE) Output 4 x RJ-45 Female (PoE) Power 1 x 3-Prong AC Socket Switches Power 1 x On/Off Switch Power Maximum Input Power 100 - 240 VAC; 50 - 60Hz...
  • Page 30 ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
