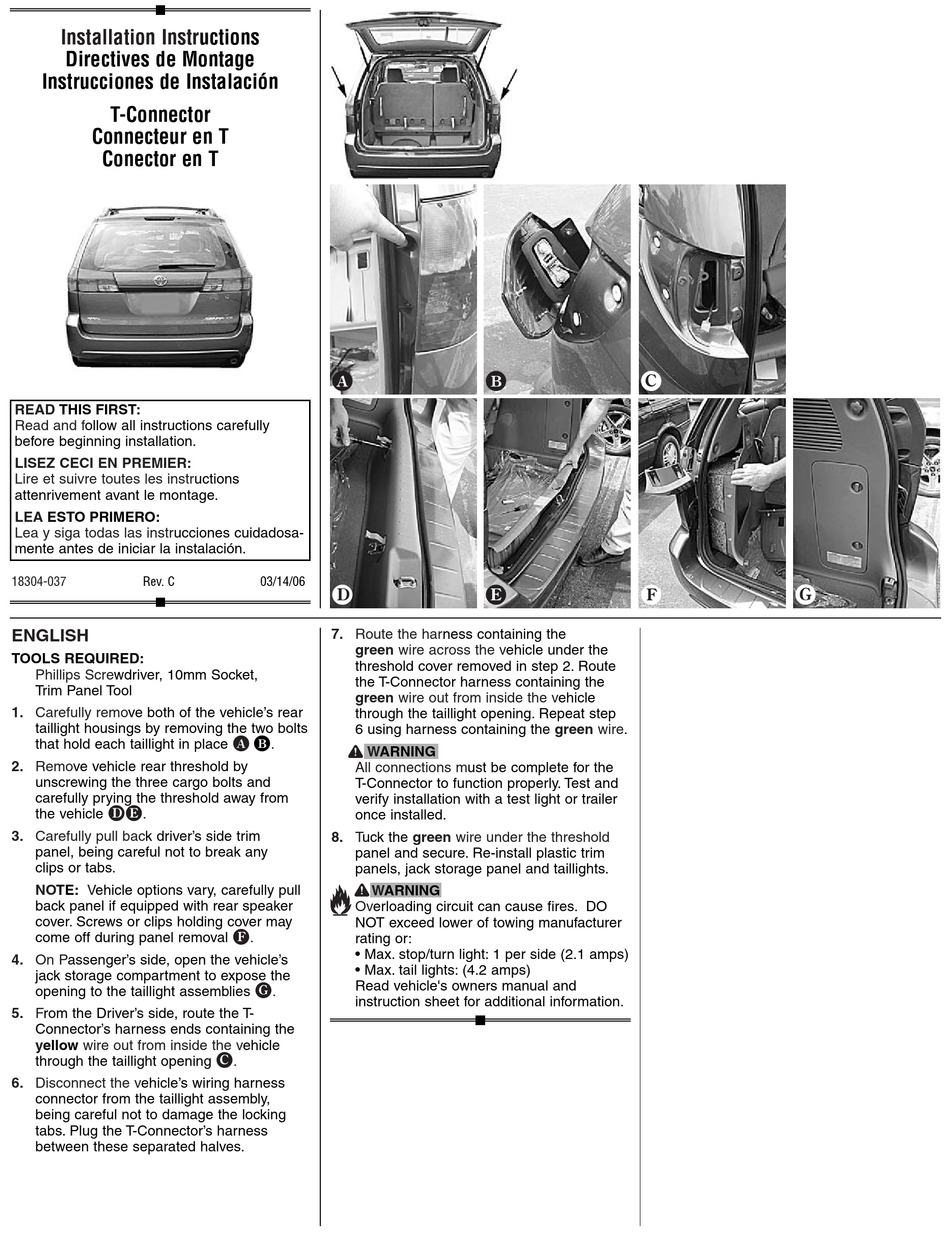

Cequent T-Connector Installation Instructions

Installation Instructions
Directives de Montage
Instrucciones de Instalación
T-Connector
Connecteur en T
Conector en T
READ THIS FIRST:
Read and follow all instructions carefully
before beginning installation.
LISEZ CECI EN PREMIER:
Lire et suivre toutes les instructions
attenrivement avant le montage.
LEA ESTO PRIMERO:
Lea y siga todas las instrucciones cuidadosa-
mente antes de iniciar la instalación.
18304-037 Rev. C
ENGLISH
TOOLS REQUIRED:
Phillips Screwdriver, 10mm Socket,
Trim Panel Tool
1. Carefully remove both of the vehicle's rear
taillight housings by removing the two bolts
that hold each taillight in place
2. Remove vehicle rear threshold by
unscrewing the three cargo bolts and
carefully prying the threshold away from
gh
the vehicle .
3. Carefully pull back driver's side trim
panel, being careful not to break any
clips or tabs.
NOTE: Vehicle options vary, carefully pull
back panel if equipped with rear speaker
cover. Screws or clips holding cover may
come off during panel removal
4. On Passenger's side, open the vehicle's
jack storage compartment to expose the
opening to the taillight assemblies
5. From the Driver's side, route the T-
Connector's harness ends containing the
yellow wire out from inside the
through the taillight opening
6. Disconnect the vehicle's wiring harness
connector from the taillight assembly,
being careful not to damage the locking
tabs. Plug the T-Connector's harness
between these separated halves.
•
d
•
03/14/06
g
7. Route the
green wire across the
threshold cover removed in step 2. Route
the T-Connector harness containing the
green wire out from inside the
through the taillight opening. Repeat step
6 using harness containing the
d e
.
WARNING
All connections
T-Connector to function properly. Test and
verify installation with a test light or trailer
once installed.
8. Tuck the
panel and secure. Re-install plastic trim
panels, jack storage panel and taillights.
WARNING
Overloading circuit can cause fires. DO
NOT exceed lower of towing manufacturer
i
.
rating or:
• Max. stop/turn light: 1 per side (2.1 amps)
• Max. tail lights: (4.2 amps)
Read vehicle's owners manual and
j
.
instruction sheet for additional information.
vehicle
f
.
•
e
•
h
harness containing the
vehicle under the
vehicle
green
must be complete for the
green wire under the threshold
•
f
•
i
wire.
•
j
