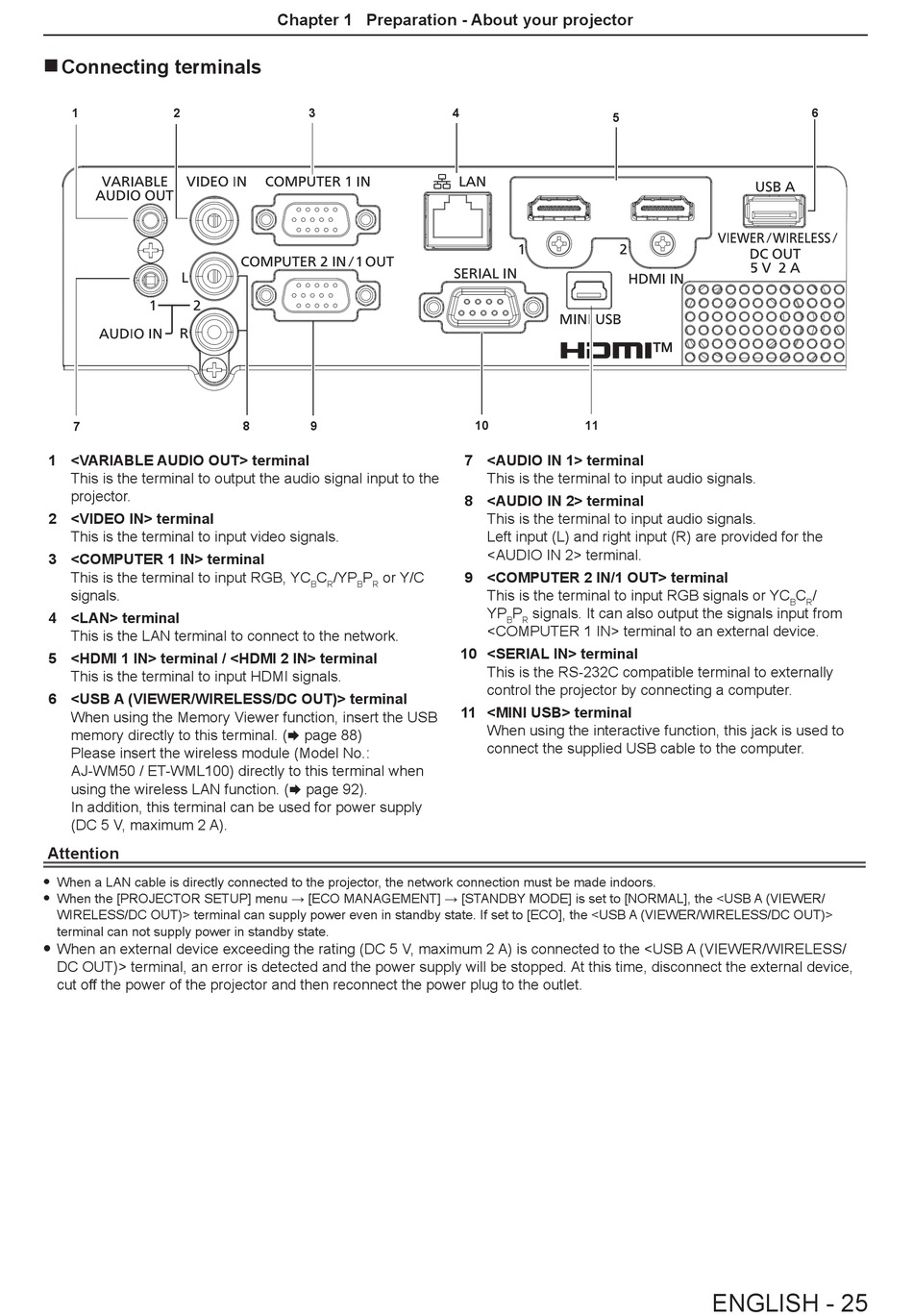

rConnecting terminals
1 2
7
1 <VARIABLE AUDIO OUT> terminal
This is the terminal to output the audio signal input to the
projector.
2 <VIDEO IN> terminal
This is the terminal to input video signals.
3 <COMPUTER 1 IN> terminal
This is the terminal to input RGB, YC
signals.
4 <LAN> terminal
This is the LAN terminal to connect to the network.
5 <HDMI 1 IN> terminal / <HDMI 2 IN> terminal
This is the terminal to input HDMI signals.
6 <USB A (VIEWER/WIRELESS/DC OUT)> terminal
When using the Memory Viewer function, insert the USB
memory directly to this terminal. (x page 88)
Please insert the wireless module (Model No.:
AJ-WM50 / ET-WML100) directly to this terminal when
using the wireless LAN function. (x page 92).
In addition, this terminal can be used for power supply
(DC 5 V, maximum 2 A).
Attention
f When a LAN cable is directly connected to the projector, the network connection must be made indoors.
f When the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [NORMAL], the <USB A (VIEWER/
WIRELESS/DC OUT)> terminal can supply power even in standby state. If set to [ECO], the <USB A (VIEWER/WIRELESS/DC OUT)>
terminal can not supply power in standby state.
f When an external device exceeding the rating (DC 5 V, maximum 2 A) is connected to the <USB A (VIEWER/WIRELESS/
DC OUT)> terminal, an error is detected and the power supply will be stopped. At this time, disconnect the external device,
cut off the power of the projector and then reconnect the power plug to the outlet.
Chapter 1 Preparation - About your projector
3
8 9
C /YP P or Y/C
B R B R
4
5
10 11
7 <AUDIO IN 1> terminal
This is the terminal to input audio signals.
8 <AUDIO IN 2> terminal
This is the terminal to input audio signals.
Left input (L) and right input (R) are provided for the
<AUDIO IN 2> terminal.
9 <COMPUTER 2 IN/1 OUT> terminal
This is the terminal to input RGB signals or YC
YP P signals. It can also output the signals input from
B R
<COMPUTER 1 IN> terminal to an external device.
10 <SERIAL IN> terminal
This is the RS-232C compatible terminal to externally
control the projector by connecting a computer.
11 <MINI USB> terminal
When using the interactive function, this jack is used to
connect the supplied USB cable to the computer.
6
C /
B R
ENGLISH - 25
