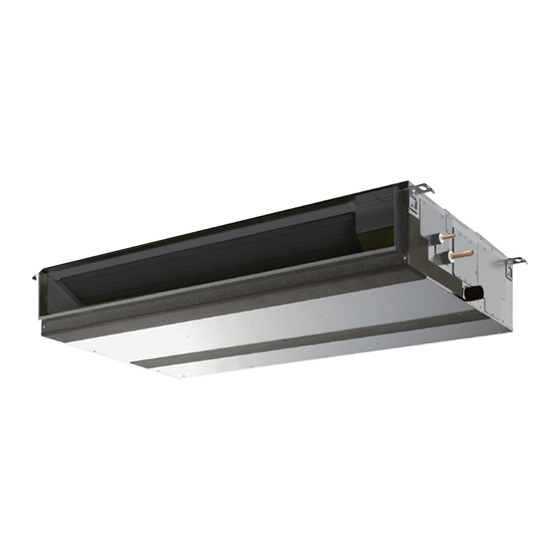

Air-Conditioners
INDOOR UNIT
PEFY-P-VMH-E2, PEFY-P-VMHS-E
PEFY-P-VMS1(L)-E
PFFY-P-VCM-E
OPERATION MANUAL
For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit.
操作手冊
操作手冊
運轉本空調機之前，請仔細閱讀本操作手冊，以便安全正確地使用。
運轉本空調機之前，請仔細閱讀本操作手冊，以便安全正確地使用。
<ORIGINAL>
Advertisement
Table of Contents
Related Manuals for Mitsubishi Electric CITY MULTI PEFY-P-VMH-E2
Summary of Contents for Mitsubishi Electric CITY MULTI PEFY-P-VMH-E2
- Page 1 <ORIGINAL> Air-Conditioners INDOOR UNIT PEFY-P-VMH-E2, PEFY-P-VMHS-E PEFY-P-VMS1(L)-E PFFY-P-VCM-E OPERATION MANUAL For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit. 操作手冊 操作手冊 運轉本空調機之前，請仔細閱讀本操作手冊，以便安全正確地使用。 運轉本空調機之前，請仔細閱讀本操作手冊，以便安全正確地使用。...
- Page 2 Wired remote controller Controller interface ⑤ ⑥ ④ ③ ② ① Function buttons ⑦ ⑧ ⑨ ⑩ ▌① [ON/OFF] button The functions of the function buttons change depending on the screen. Refer to the button function guide that appears at the bottom of the LCD for Press to turn ON/OFF the indoor unit.
- Page 3 Display The main display can be displayed in two different modes: “Full” and “Basic.” The factory setting is “Full.” To switch to the “Basic” mode, change the setting on the Main display setting. ▌ Full mode ▌ Basic mode * All icons are displayed for explanation. ㉓...
-
Page 4: Table Of Contents
Warning: • Use only accessories authorized by Mitsubishi Electric and ask your • Make sure that the unit is powered by a dedicated supply. Other dealer or an authorized company to install them. If accessories are appliances connected to the same supply could cause an overload. -
Page 5: Disposing Of The Unit
• If you detect odd smells, stop using the unit, turn off the power switch and • If the power breaker is frequently activated, get in touch with your dealer. consult your dealer. Otherwise, a breakdown, electric shock or fire may Leaving it as it is can result in fire or failure. -
Page 6: How To Operate
3. How to operate 3.1. Turning ON/OFF Caution: • Never expose your body directly to cool air for a long time. Excessive exposure to cool air is bad for your health, and should therefore be avoided. Press the [ON/OFF] button. • When the air-conditioner is used together with burners, thoroughly The ON/OFF lamp will light up in green, and ventilate the area. -
Page 7: Set Temperature
3.3. Set temperature 3.4. Fan speed <Cool, Dry, Heat, and Auto (single set point)> Press the [F4] button to go through the fan Press the [F2] button to decrease the set speeds in the following order. temperature, and press the [F3] button to increase. -
Page 8: The Smart Way To Use
4. The smart way to use Even minimal steps to care for your air conditioner can help make its use far Prevent intrusion of heat during air-cooling more effective in terms of air-conditioning effect, electricity charges, etc. • To prevent the intrusion of heat during cooling operation, provide a curtain or a Set the right room temperature blind on the window to block out direct sunlight. -
Page 9: Troubleshooting
6. Troubleshooting When an error occurs, the following screen will appear and the operation LED will blink. Check the error status, stop the operation, and consult your dealer. Error code, error unit, refrigerant address, unit model name, and serial number will appear. The model name and serial number will appear only if the information have been registered. -
Page 10: Installation, Transferring Works, And Checking
The following symptoms are not air conditioner failures: • The air conditioner sometimes snaps or clicks at the beginning or end of • The air blown out from the air conditioner can sometimes give off odors. This is cooling/heating operation. This is the sound of friction on the front panel and due to cigarette smoke contained in the air of the room, the smell of cosmetics, other sections due to expansion and contraction caused by temperature the walls, furniture, etc., absorbed in the air conditioner. -
Page 11: Specifications
8. Specifications PEFY-P-VMH-E2 series P40VMH-E2 P50VMH-E2 P63VMH-E2 P71VMH-E2 P80VMH-E2 Power source ~220-240 V 50/60 Hz Cooling capacity /Heating capacity 4.5/5.0 5.6/6.3 7.1/8.0 8.0/9.0 9.0/10.0 Dimension (Height/Width/Depth) 380/745/900 380/745/900 380/745/900 380/1030/900 380/1030/900 Net weight Airflow rate (Low-High) /min 10.0-14.0 10.0-14.0 13.5-19.0 15.5-22.0 18.0-25.0 220 V... - Page 12 PEFY-P-VMHS-E series P40VMHS-E P50VMHS-E P63VMHS-E P71VMHS-E P80VMHS-E Power source ~220-240 V 50/60 Hz Cooling capacity /Heating capacity 4.5/5.0 5.6/6.3 7.1/8.0 8.0/9.0 9.0/10.0 Dimension (Height/Width/Depth) 380/745/900 380/745/900 380/745/900 380/1030/900 380/1030/900 Net weight Airflow rate /min 10.0-12.0-14.0 10.0-12.0-14.0 13.5-16.0-19.0 15.5-18.0-22.0 18.0-21.5-25.0 (Low-Middle-High) External static 50/100/150/200 50/100/150/200...
- Page 13 0.058 Note: Recycle Rating condition Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality Cooling - Indoor: 27ºC DB, 19ºC WB materials and components which can be recycled and reused. Electrical and electronic Outdoor: 35ºC DB, 24ºC WB equipment, at their end-of-life, should be disposed of separately from your household Heating - Indoor: 20ºC DB, 15ºC WB...
- Page 14 sensibel за осезаема топлина tajutav sensible jawna jūtamā waarneembaar sensittiva juntamojo sensible tuntuva osjetni Ⓒ sensibile citelný Fornuftig αισθητή citeľný Duyulur razoável érezhető Явная sensibel občutljivo kännbar sensibilă latent за скрита топлина latentne latente utajona latentā latent latenti slaptojo latente latentti latentni Ⓓ...
- Page 15 MITSUBISHI ELECTRIC, PEFY-P15VMS1-E*, PEFY-P20VMS1-E*, PEFY-P25VMS1-E*, PEFY-P32VMS1-E*, PEFY-P40VMS1-E*, PEFY-P50VMS1-E*, PEFY-P63VMS1-E* PEFY-P15VMS1L-E*, PEFY-P20VMS1L-E*, PEFY-P25VMS1L-E*, PEFY-P32VMS1L-E*, PEFY-P40VMS1L-E*, PEFY-P50VMS1L-E*, PEFY-P63VMS1L-E*...
- Page 16 <ENGLISH> <PORTUGUÊS> English is original. The other languages versions are translation of the original. O idioma original é o inglês. As versões em outros idiomas são traduções do idioma original. CAUTION CUIDADO • Refrigerant leakage may cause suffocation. Provide ventilation in accordance with EN378-1. •...
- Page 17 <MAGYAR> Az eredeti szöveg angol nyelven íródott. A más nyelven írt változatok az eredeti szöveg fordításai. FIGYELMEZTETÉS • A hűtőközeg szivárgása fulladást okozhat. Gondoskodjon a szellőzésről az EN378-1 szerint. • Feltétlenül gondoskodjon a csövek szigeteléséről. A fedetlen csövek közvetlen megérintése égési vagy fagyási sérülést okozhat.
- Page 20 This product is designed and intended for use in the residential, commercial and light-industrial environment. The product at hand is based on the following EU regulations: • Low Voltage Directive 2014/35/EU • Electromagnetic Compatibility Directive 2014/30/EU • Machinery Directive 2006/42/EC Please be sure to put the contact address/telephone number on this manual before handing it to the customer.
