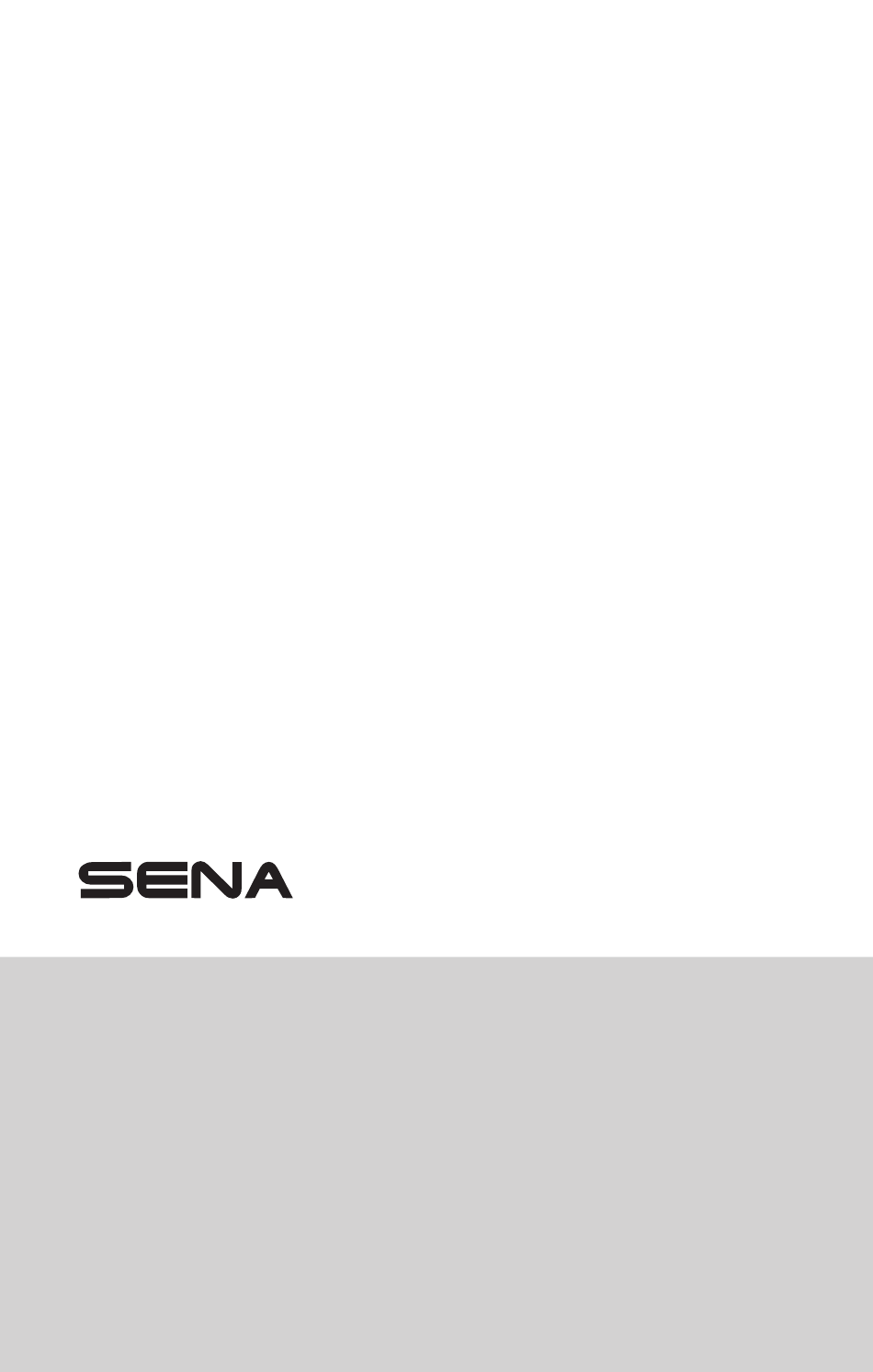

- Page 1 D00122_1.0.0_EN_February2019...
- Page 2 ECONO Bluetooth helmet ® USER’S GUIDE 1.0.0 ENGLISH...
- Page 3 RIDE CONNECTED Blast your favorite tunes, talk over the intercom with your buddies, hear directions from your GPS and more, all through your Econo Bluetooth ® Open-Face Helmet. With built-in Bluetooth ® capabilities, HD Intercom, technology has never felt so minimal or freeing.
- Page 4 Visit sena.com to see how to update your product. 2. Users can follow Sena on Facebook, YouTube, Twitter and Instagram to receive the most up to date information on products, helpful tips and all other announcements regarding Sena products.
-
Page 5: Table Of Contents
TABLE OF CONTENTS ABOUT THE ECONO BLUETOOTH HELMET 1.1 General Information 1.2 Product Details 1.2.1 Bluetooth System Button 1.3 Package Contents 1.4 Wearing the Helmet 1.4.1 Putting on the Helmet 1.4.2 Removing the Helmet 1.4.3 Removing Shield Visor 1.4.4 Installing Shield Visor 1.4.5 Removing Cheek Pad... - Page 6 2.4 Volume Adjustment 2.5 Downloadable Sena Software 2.5.1 Sena Device Manager PAIRING THE BLUETOOTH SYSTEM wITH OTHER BLUETOOTH DEvICES 3.1 Mobile Phone Pairing 3.2 Second Mobile Phone Pairing MOBILE PHONE USAGE 4.1 Making and Answering Calls 4.2 Speed Dialing 4.2.1 Assigning Speed Dial Presets 4.2.2 Using Speed Dial Presets...
- Page 7 GENERAL SETTINGS 8.1 Function Priority 8.2 Configuration Menu 8.2.1 Assigning Speed Dial 8.2.2 VOX Phone (Default: Enable) 8.2.3 Voice Prompts (Default: Enable) 8.2.4 Delete All Pairings 8.3 Firmware Upgrades TROUBLESHOOTING 9.1 Fault Reset 9.2 Factory Reset 10. MAINTENANCE AND CARE 10.1 Outer Shell 10.2 Inner Lining 10.3 Storing the Helmet...
-
Page 8: About The Econo Bluetooth Helmet
The contents of this helmet User’s Guide are subjected to change without notice. Its illustration may differ from the actual product. The copyrights for the User’s Guide belong to Sena Technologies, Inc. Reproduction or copying of the User’s Guide without permission is strictly prohibited. -
Page 9: Product Details
ABOUT THE ECONO BLUETOOTH HELMET 1.2 Product Details Left No. Name Microphone Sun Visor Shield Visor Top Vent Shell Rear Vent Shield Ratchet Sun Visor Lever Rubber Trim No. Name Top Vent Side Vent Right No. Name Chinstrap DC Power Charing &... -
Page 10: Bluetooth System Button
ABOUT THE ECONO BLUETOOTH HELMET 1.2.1 Bluetooth System Button Rotate/Rotate while Pressing Tap/Press and Hold 1.3 Package Contents Econo Helmet USB Power & Reflex Helmet Pouch Data Cable Stickers (4) 1.4 Wearing the Helmet 1.4.1 Putting on the Helmet 1. Unfasten the chinstrap by using the retention system. -
Page 11: Removing The Helmet
ABOUT THE ECONO BLUETOOTH HELMET 1.4.2 Removing the Helmet 1. Fasten the chinstrap by using the retention system. 2. Gently pull the padded chinstrap outward and slide the helmet off your head. Note: Fastening the chinstrap after removing the helmet will help avoid scratching surfaces it’s placed upon. -
Page 12: Installing Shield Visor
ABOUT THE ECONO BLUETOOTH HELMET 1.4.4 Installing Shield visor Hook C Hook A Hook B 1. Open a shield visor to fully opened position, and insert hook C. 2. Pull the trigger down and insert hook A and hook B. -
Page 13: Installing Cheek Pad
ABOUT THE ECONO BLUETOOTH HELMET 1.4.6 Installing Cheek Pad 1. Pass a chinstrap through holes of cheek pad, insert the plastic plate of cheek pad into a space between shell and EPS. 2. Insert the cheek pad plastic plate a bracket. -
Page 14: Installing Inner Pad
ABOUT THE ECONO BLUETOOTH HELMET 1.4.8 Installing Inner Pad 1. Insert a plastic plate to the front center pad. 2. Insert the two snaps of rear neck pad until you hear a click. 1.4.9 Removing Sun visor 1. Slide the sun visor lever in the direction of the arrow so that the sun visor is lowered. -
Page 15: Detachable Inner Parts
ABOUT THE ECONO BLUETOOTH HELMET 1.4.10 Detachable Inner Parts Inner Pad Cheek Pad(R) Cheek Pad(L) 1.5 Pre-Ride Helmet Inspection 1.5.1 Checking the Exterior Check the helmet regularly for damage. Small, superficial scratches will not impair the helmet’s protective qualities. In the case of more serious damage (cracks, dents, flaking and cracking paint, etc.), the... -
Page 16: Getting Started: Bluetooth System
GETTING STARTED: BLUETOOTH SYSTEM 2. To test the chinstrap tension, slip your index finger under the chinstrap and pull. If the chinstrap is loose under the chin, it needs to be tightened. If the chinstrap loosens when you pull on it, the helmet is not properly fitted. -
Page 17: Charging
2.2 Charging The Bluetooth system can be charged using many common methods via the supplied USB power & data cable: the Econo is compatible with 5 V input USB- charged devices only. Depending upon the charging method, the Bluetooth system will be fully charged in about 3 hours. -
Page 18: Checking The Battery Level
Rotate the Jog dial clockwise or counterclockwise. 2.5 Downloadable Sena Software 2.5.1 Sena Device Manager The Sena Device Manager allows you to upgrade the firmware and configure its settings directly from your PC or Apple computer. For more information on downloading the Sena Device Manager, please visit sena.com. -
Page 19: Pairing The Bluetooth System With Other Bluetooth Devices
3. Rotate the Jog dial until you hear the voice prompt, “Phone pairing”. Search for Bluetooth devices on your mobile phone. 4. Select the Econo in the list of the devices detected on the mobile phone. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN. -
Page 20: Second Mobile Phone Pairing
“Second mobile phone pairing”. Search for Bluetooth devices on your mobile phone. 4. Select the Econo in the list of the devices detected on the mobile phone. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN. -
Page 21: Speed Dialing
MOBILE PHONE USAGE 4.2 Speed Dialing 4.2.1 Assigning Speed Dial Presets You need to assign speed dial numbers before using the speed dial. Speed Dial Presets could be assigned in the settings menu. 4.2.2 Using Speed Dial Presets 1. Rotate while pressing the Jog dial counterclockwise. 2. -
Page 22: Stereo Music
6. BLUETOOTH INTERCOM 6.1 Intercom Pairing The Bluetooth system can only have an intercom conversation with Bluetooth system, Sena headset or helmet. Intercom friend B 1. Turn off the two Bluetooth system (A and B) that you would like to pair with each other. -
Page 23: Two-Way Intercom
USING THE FM RADIO 6.2 Two-Way Intercom You can start/end an intercom conversation with one of any intercom friends by tapping the Jog dial. • Staring/Ending Two-way Intercom Tap the Jog dial. USING THE FM RADIO FM Radio Operation • Start or Stop the FM radio Press and hold the Jog dial for 3 seconds. -
Page 24: General Settings
8. GENERAL SETTINGS 8.1 Function Priority The Bluetooth system operates in the following order of priority: (highest) Mobile phone Bluetooth Intercom FM Radio (lowest) Bluetooth stereo music A lower priority function is always interrupted by a higher priority function. 8.2 Configuration Menu You can set the configuration of the Bluetooth system by the voice menu instruction described below. -
Page 25: Assigning Speed Dial
GENERAL SETTINGS 8.2.1 Assigning Speed Dial 1. To assign a phone number as a speed dial, rotate the Jog dial until you hear a voice prompt, “Speed dial”. 2. Tap the Jog dial, and you will hear a voice prompt, “Speed dial one”... -
Page 26: Delete All Pairings
Jog dial to confirm. 8.3 Firmware Upgrades The Bluetooth system supports firmware upgrades. You can update the firmware using the Sena Device Manager. Please visit Sena Bluetooth website at sena.com to check the latest software downloads. -
Page 27: Maintenance And Care
10. MAINTENANCE AND CARE 10.1 Outer Shell Use a soft cloth and a small amount of water to remove bugs from the exterior. Note: Never use gasoline, diesel fuel, thinners or solvents to clean the helmet. These substances can cause serious damage to the helmet, even though the resulting damage may not be visible. -
Page 28: Quick Reference
QUICK REFERENCE Type Operation Button Command Rotate while pressing the Jog dial Power on clockwise for 1 second Basic Press and hold the Jog dial for Power off Function 5 seconds Volume Rotate the Jog dial adjustment Answer & end Tap the Jog dial phone call Rotate while pressing the Jog dial... - Page 29 Hero3 and Hero4 ® allowing for Bluetooth capabilities. The Bluetooth word mark and logos are owned by the ® Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone and iPod touch are registered ® ®...
