Summary of Contents for Spinfire Pro 2

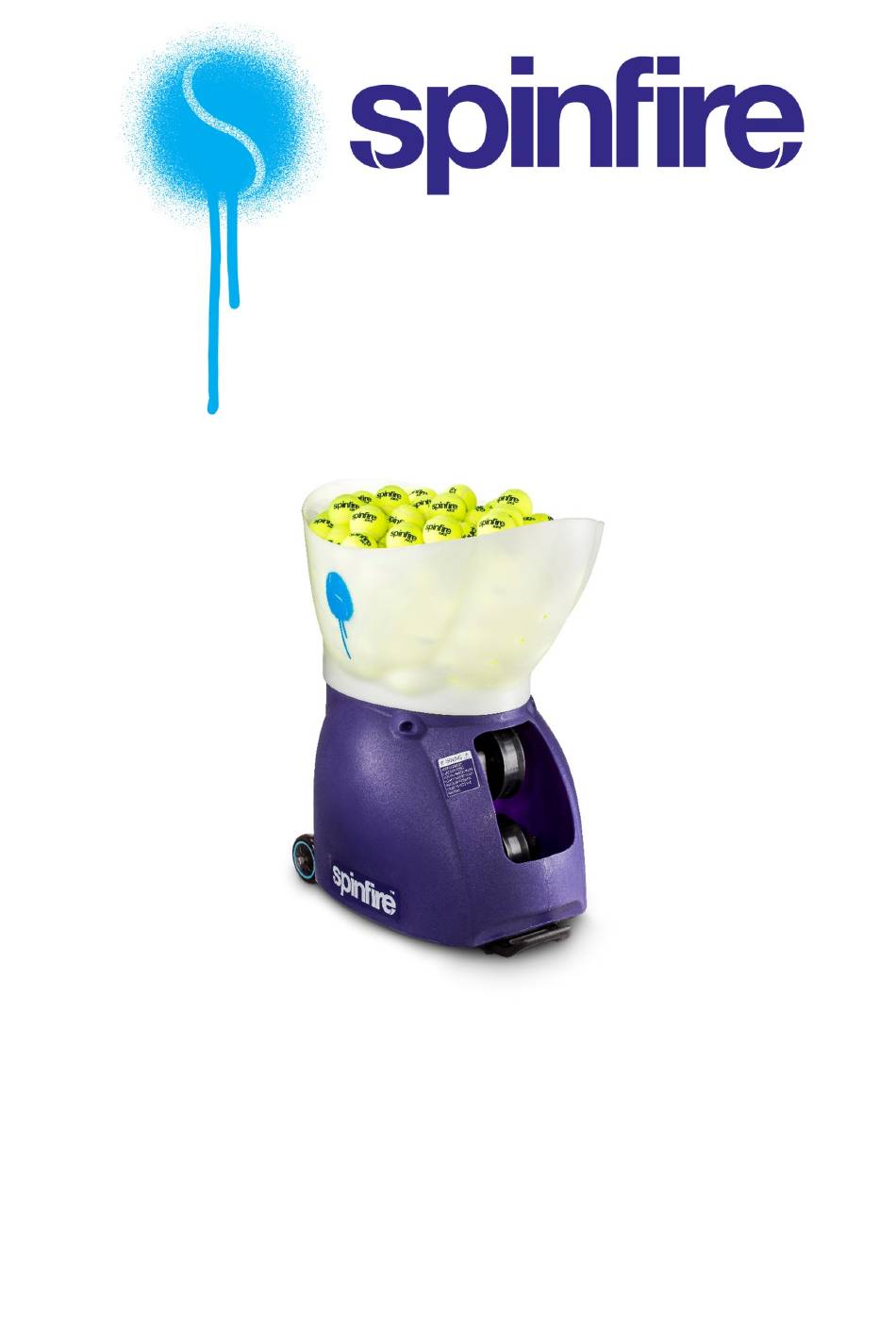

- Page 1 Pro 2 Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY WARNINGS ..................3 BEFORE FIRST USE ..................6 ASSEMBLY...................... 6 Packaging ......................... 7 BATTERY AND CHARGING................7 Internal Battery ......................7 External Battery ......................8 Standard Charger ..................... 8 Optional Fast Charger ....................9 AC ADAPTOR ....................9 CUSTOMER CARE .................. -
Page 3: Safety Warnings
SAFETY WARNINGS This tennis ball machine is designed and tested to offer safe playing conditions, provided it is operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in serious personal injury or property damage. WARNING! •... - Page 4 ELECTROCUTION! • Always use and store the machine in a dry environment. • Do not spray with water. • If the battery charger or AC adaptor is wet, do not pick it up. If the battery charger or AC adaptor is picked up when wet, a person could be exposed to hazardous voltages.
- Page 5 FIRE HAZARD! • Keep your machine clean. Contaminants such as dust & leaves inside your machine could present a burn hazard. Please vacuum out your machine from the mouth on a regular basis. • A multi-purpose/dry chemical extinguisher should be used to extinguish any flames.
-
Page 6: Before First Use
BEFORE FIRST USE When you first open your box, you may notice some cosmetic scratches on your machine, particularly in the ball carousel pit at the top of the machine. This is perfectly normal and part of the manufacturing process. You may also notice some yellow ball fluff inside your machine or on the throwing wheels. -
Page 7: Packaging
You should find this manual, a charger, remote and the carousel in the box. If you have ordered an external battery, AC adaptor or fast charger, they may also be in the box. The carousel is the white 5 fingered device which stirs the balls when they are sitting in the hopper. -
Page 8: External Battery
The external battery cable includes a 32V 15A fuse built into it (note: 32V is correct for our 12V battery). If you are required to replace this, they can be purchased from local electronic stores or your Spinfire distributor. Standard Charger Your machine comes with a standard charger which charges the machine safely in 11 hours. -
Page 9: Optional Fast Charger
Note, if you do have an internal battery, the AC Adaptor can still be used. It will not damage the internal battery. Your AC Adaptor should only be used in a dry environment. The Spinfire AC Adaptor has been tested to work perfectly with our machine and we do not recommend substituting it with a compatible model. -
Page 10: Maintenance
We recommend that your machine is stored inside/under cover in a dry environment and preferably in a Spinfire cover to protect it from debris. Do not leave your machine on court even with the protection of a cover as heavy rain may damage your machine. -
Page 11: Usage
(above the control panel). To assist with transporting your machine, you can purchase a Spinfire Carry Case which has handles and pockets for storing your charger, remote control and accessories. -
Page 12: Control Panel
CONTROL PANEL Power: Press this button to start the machine (hold it for 3 seconds). Please note that there is a main power switch underneath the machine. Please make sure this is on before operating your machine (I = internal battery, II = external battery or AC Adaptor). - Page 13 being the fastest (approximately 1 ball every 2-3 seconds). The maximum interval during the “2 line drill - wide” setting is 17. Note that the balls will not start ejecting from the machine until you press the feed (start/stop) button. Ball Speed: This sets the speed at which the balls are propelled.
- Page 14 Vertical Oscillation: Once pressed, the machine will internally oscillate up and down approximately 4 degrees causing the depth of each ball to vary. At the highest and lowest points of the oscillation, a random pause length of up to 2 seconds ensures balls are fired out at varying depths.
-
Page 15: Remote Control
off the 2 line drill. Note that the maximum interval setting when using the “2 line drill – wide” is 17, it can be set up to 20 for the “2 line drill – narrow and medium”. You can also turn on “Vertical Oscillation”... -
Page 16: Tennis Balls
Please choose carefully when determining which balls to use in your machine. We recommend the use of Spinfire Juice balls or a brand thoroughly tested and recommended by your distributor (we do not recommend mixing brands). -
Page 17: Hidden Features
The above steps can be seen in this video: https://goo.gl/C6zB3J If this resolves your problem, then you can continue to use your machine this way until a permanent solution can be obtained from your Spinfire dealer. Please note that this solution relies on you performing step 2 above correctly. -
Page 18: Warranty
WARRANTY Should any part fail due to defective workmanship or faulty materials within the warranty period, Fry Developments Pty Ltd (trading as Spinfire) or its distributor will repair or, (at distributor’s option), replace the defective part free of charge. The warranty period is country specific, please contact the Spinfire distributor in your country or the place of purchase for details. -
Page 19: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY We confirm that as at the 7 November 2018, the Spinfire Pro 1 and Pro 2 machines both conform with the Low Voltage Directive 2014/35/EU, Machinery Directive 2006/42/EC and the Radio Equipment Directive 2014/53/EU. All essential products test suites have been carried out by Shenzhen LCS Compliance Testing Laboratory Ltd. -
Page 20: Manufacturer Details
(2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURER DETAILS The Spinfire Pro series of ball machines are manufactured in Nantong, China for and on behalf of: Fry Developments Pty Ltd 319 Plummer St, Port Melbourne, VIC 3207...
