Summary of Contents for Spinfire Pro 2

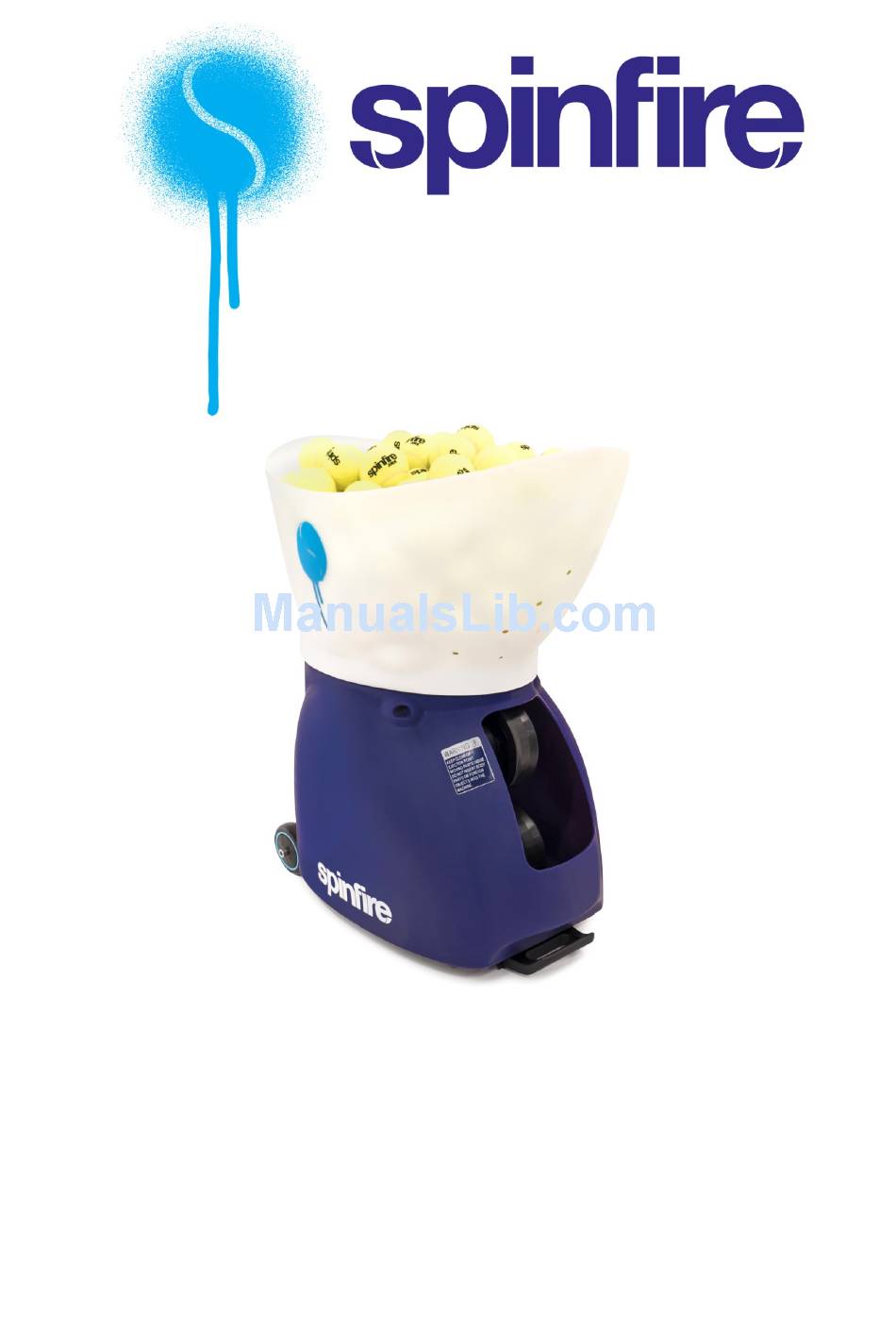

- Page 1 Pro 2 Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS BEFORE FIRST USE ..................3 ASSEMBLY...................... 3 Packaging ......................... 4 BATTERY AND CHARGING................4 Internal Battery ......................4 External Battery ......................4 Standard Charger ..................... 4 Optional Fast Charger ....................5 AC ADAPTOR ....................5 CUSTOMER CARE ..................5 Caution ........................ -
Page 3: Before First Use
BEFORE FIRST USE To protect the machine in transport, the internal pivot plate may have been secured to prevent it from moving. Please remove any cable ties prior to turning the machine on. You can locate these by following the ribbons tied to the transport handle back to their locations. -
Page 4: Packaging
Packaging We recommend you keep your box in case you need to ship your machine back to the supplier at a future point in time. BATTERY AND CHARGING Your machine should last between 3-8 hours, depending on the settings you are using. -
Page 5: Optional Fast Charger
please disconnect the charger and turn on your machine. If the battery bar indicator shows 4 bars, then your machine is charged and ready to play. You do not need to worry about the light on the charger. Optional Fast Charger The fast charger can charge your machine in 4 hours and also has the added benefit of allowing you to charge your battery while playing with the machine on court. -
Page 6: Storage
We recommend that your machine is stored inside/under cover and preferably in a Spinfire cover to protect it from debris. Do not leave your machine on court even with the protection of a cover as heavy rain may damage your machine. -
Page 7: Usage
USAGE The machine should be placed on the baseline of the court, preferably in the center, however you can place it in varying locations if you wish (note features like oscillation may not work as well when the machine is not positioned in the center). - Page 8 switched off when transporting or storing the machine. To adjust the interval, ball speed, or spin you need Menu: to press the menu button. Once pressed, a menu option will begin to flash (it will stop flashing after 30 seconds if no selection is made). You can move between the 3 top menu items by using the up and down buttons.
- Page 9 Note: to use this properly, you must set your machine to fire short balls first (eg, service line), and then activate vertical oscillation. Balls will then oscillate deeper into the court and then back to their original short position. If you try to activate this setting when balls are already firing deep into the court, you will find that the balls will fire outside the baseline.
-
Page 10: Remote Control
REMOTE CONTROL The remote control has been designed to be as small as possible to fit easily into your pocket. FEED Feed on/off SLEEP Sleep mode to conserve battery while collecting balls Elevation Up DOWN Elevation Down LEFT Swivel Left RIGHT Swivel Right Cancels oscillations (horizontal, vertical &... -
Page 11: Example Settings
Please choose carefully when determining which balls to use in your machine. We recommend the use of Spinfire Juice balls or a brand thoroughly tested and recommended by your distributor (we do not recommend mixing brands). -
Page 12: Hidden Features
“manual mode”. If this resolves your problem, then you can continue to use your machine this way until a permanent solution can be obtained from your Spinfire dealer. Please note that this solution relies on you performing step 2 above correctly. -
Page 13: Slower Interval Mode
5. To save the new setting, simply press "menu". 6. Once saved, you can turn off the machine with the power button (then turn it back on again). Warning, if you increase this base speed too much, the throwing wheels will not be able to recover quickly enough before a 2nd ball is fired when the interval is at 20. -
Page 14: Clearing Ball Jams
If this is not the issue, then please consider the tennis balls that you are using. We strongly recommend the use of Spinfire Juice which we know are trouble free. Old balls and inexpensive balls are more prone to jamming and could be the cause of your problem. -
Page 15: Balls Don't Feed Fast Enough
Balls don’t feed fast enough It is possible to adjust the feed speed of this machine. If you are finding that interval “20” is not fast enough to suit your practice sessions, please see the “feeder speed calibration” heading earlier in this manual. Battery does not last 3 hours If the battery is fully charged, your machine should last a minimum of 3 hours (and can last up to 8 hours on basic settings). -
Page 16: The Two Line Drill Will Only Fire To One Side
If it is not present, you may find it loose at the bottom of your machine. Please see if you can locate it and then plug it back on to the motherboard. The two line drill will only fire to one side In order for the two line drill to move from side to side, it needs to detect that a ball has been fired. -
Page 17: Example Settings In This Manual Don't Work Well For Me
Example settings in this manual don’t work well for me All of our machines are slightly different due to manufacturing tolerances and therefore the correct settings on one machine may be slightly different on another. Please try adjusting your settings a little bit until the balls are landing where you want them to. -
Page 18: Submitting A Support Request
• Use on power voltages other than that specified for your machine. Servicing of this nature is chargeable. Under no circumstances will Spinfire be liable to the Customer or any other person for incidental or Page 18 Manual Revision 3.5.0... -
Page 19: Conditions Of Warranty
The machine must b e delivered to Spinfire and freight charges both ways must be paid by the owner. No liability is accepted for loss or damage during transit. Please secure insurance value shipment from carrier.
