Summary of Contents for Spinfire Pickleball

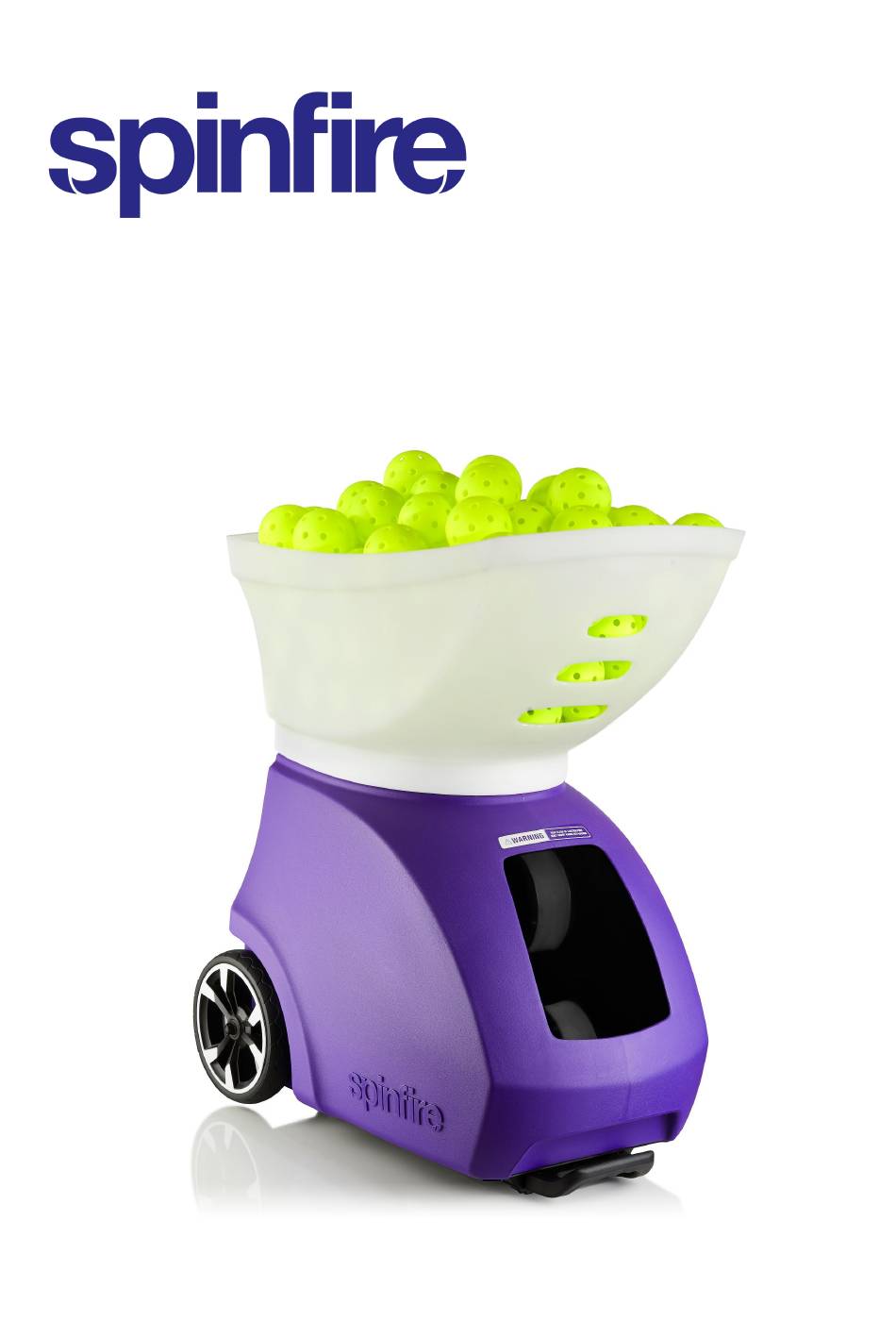

- Page 1 Spinfire Pickleball Ball Machine Manual...
-
Page 3: Table Of Contents
Troubleshooting_________________________________________________________ 19 Submitting a Support Request_____________________________________________ 19 Warranty________________________________________________________________20 Warranty Administration_________________________________________________ 20 Not Covered__________________________________________________________ 20 Conditions of Warranty__________________________________________________ 20 EC Declaration of Conformity______________________________________________ 21 FCC & ISED RSS Warning:_________________________________________________ 21 RF exposure statement:_________________________________________________ 22 Manufacturer Details______________________________________________________23 Spinfire Pickleball Ball Machine |... -
Page 4: Safety Warnings
Safety Warnings This pickleball ball machine is designed and tested to offer safe playing conditions, provided it is operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in serious personal injury or property damage. - Page 5 The machine weighs up to 24 kg / 54 lbs (2 person lift) with an internal battery or 18 kg / 40 lbs (1 person lift) with an external battery. The gross weight of the packing box is 29 kg / 64 lbs (2 person lift). Spinfire Pickleball Ball Machine |...
-
Page 6: Before First Use
This is also normal as each machine is tested with pickleballs as part of our quality control process (wheels are wiped down afterwards, but it’s difficult to remove all traces of this testing process). | Spinfire Pickleball Ball Machine... -
Page 7: Assembly
You can attach the hopper either upright for play mode, or upside down for portability/storage. To attach the hopper, simply align it correctly and then push down on it until it locks into place. Spinfire Pickleball Ball Machine |... -
Page 8: Packaging
(male) and the other is for connecting to the charger (female). Please do not connect these together and always disconnect the battery from the machine when not in use. There is no need to remove the battery from the bag while charging. | Spinfire Pickleball Ball Machine... -
Page 9: Standard Charger
The external battery cable includes a 32V 15A fuse built into it (note: 32V is correct for our 12V battery). If you are required to replace this, they can be purchased from local electronic stores or your Spinfire distributor. We also include one spare inside the battery bag’s pocket. Standard Charger If you ordered a Lithium LiFePO4 battery, please ensure you use our standard lithium charger. -
Page 10: Optional Fast Charger
Note, if you do have an internal battery, the AC Adaptor can still be used. It will not damage the internal battery. Your AC Adaptor should only be used in a dry environment. The Spinfire AC Adaptor has been tested to work perfectly with our machine and we do not recommend substituting it with a compatible model. -
Page 11: Customer Care
Customer Care Caution This machine was designed to be used on a pickleball court and in no other circumstances. Only pickleballs should be ejected from the machine. Never stand in front of the machine unless you are on the other side of the net (more than 2 meters (2.5 yards) away). Even when the machine is paused, never stand in front of it as pickleballs can eject at any time. -
Page 12: Transportation
Usage The machine should be placed on the baseline of the pickleball court, preferably in the center, however you can place it in varying locations if you wish (note features like oscillation may not work as well when the machine is not positioned in the center). Please add the pickleballs into the hopper before you begin, do not add them while the carousel is turning as this can cause ball jams. -
Page 13: Control Panel
Position it to the right if you have an external battery or AC adaptor and wish to power it from this source. This switch should be returned to the off (middle O) position when transporting or storing the machine. Spinfire Pickleball Ball Machine |... - Page 14 RANDOM row flash, then press LEFT or RIGHT to change the value to ON. Here we have increased the speed to 15 and turned random on: Now we can move down to the <Back row and press OK to return to | Spinfire Pickleball Ball Machine...
- Page 15 -10 to +10. When set to -10 you will achieve the highest level of slice. When set to 0 you will have flat pickleballs while +10 represents the highest level of topspin. You can also set mild levels of Spinfire Pickleball Ball Machine |...
- Page 16 2 line drill or moving left or right. To exit this menu, press OK on back or press the menu button. | Spinfire Pickleball Ball Machine...
-
Page 17: Remote Control
Your remote should sit in the pocket in landscape position rather than portrait. By default, your remote control will control your machine and any other Spinfire ball machine in its proximity. If this is an issue, you can pair your remote to only control your machine and no other. - Page 18 2 line drill. Drill 2 Line Drill (1 = narrow, 2 = medium, 3 = wide, 4 = off). You can also turn on vertical random (both will be turned on) to achieve random depth too. | Spinfire Pickleball Ball Machine...
-
Page 19: Pickleballs
The remote control uses a radio frequency of 433Mhz to communicate with the machine. It has been designed to work from a range that easily extends the length of a pickleball court. If you are experiencing issues with the range of your remote, please try replacing the battery (battery size is a CR 2025 3V). -
Page 20: Sbf - Single Ball Fire
● Feeder Jam - The detection of pickleball jams within the carousel / ball feeding mechanism. The range is -17 to 20, where 20 is the most sensitive (it will easily detect ball jams and most likely give false positives). -
Page 21: Ball Count
Any videos you can provide us are considered very helpful. If you can hear any unusual noises, please be sure to notify us of these and where you believe they are originating from. Spinfire Pickleball Ball Machine |... -
Page 22: Warranty
Should any part fail due to defective workmanship or faulty materials within the warranty period, Fry Developments Pty Ltd (trading as Spinfire) or its distributor will repair or, (at distributor’s option), replace the defective part free of charge. The warranty period is country specific, please contact the Spinfire distributor in your country or the place of purchase for details. -
Page 23: Ec Declaration Of Conformity
7. Parts installed from other manufacturers’ products will void this warranty. EC Declaration of Conformity We confirm that as at the 26th march, 2024, the Spinfire ball machines both conform with the Low Voltage Directive 2014/35/EU, Machinery Directive 2006/42/EC and the Radio Equipment Directive 2014/53/EU. -
Page 24: Rf Exposure Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. | Spinfire Pickleball Ball Machine... -
Page 25: Manufacturer Details
Manufacturer Details The Spinfire series of ball machines are manufactured in China for and on behalf of: Fry Developments Pty Ltd 122 Dougharty Road, Heidelberg West, VIC 3081 Australia +61 3 8578 4743 info@spinfiresport.com Spinfire Pickleball Ball Machine |... - Page 26 Manual Revision 6.1.7...
