Summary of Contents for Spinfire Pro 1

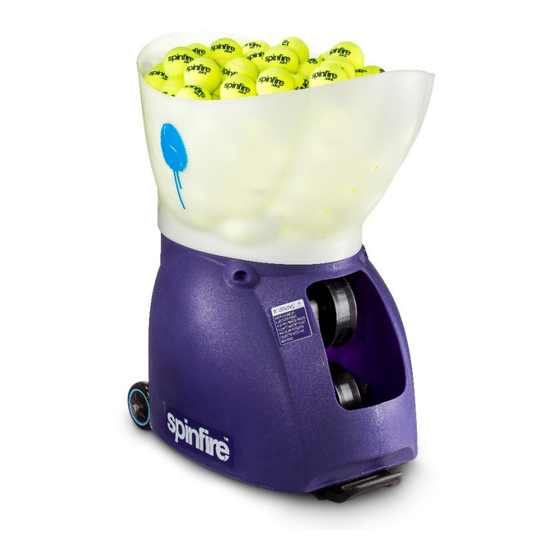

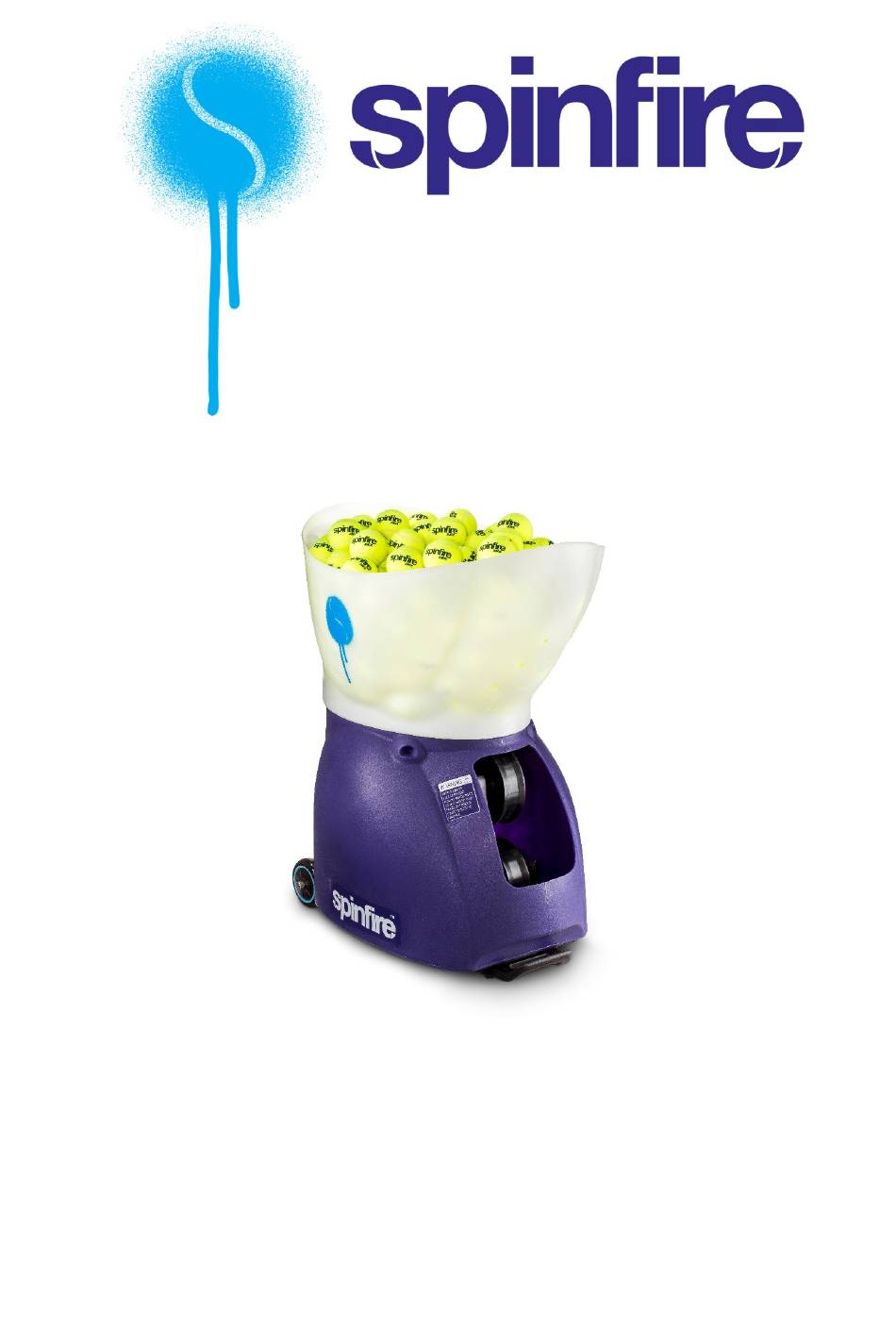

- Page 1 Pro 1 Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS BEFORE FIRST USE ..................3 ASSEMBLY...................... 3 Packaging ......................... 4 BATTERY AND CHARGING................4 Internal Battery ......................4 External Battery ......................4 Standard Charger ..................... 5 Optional Fast Charger ....................6 AC ADAPTOR ....................6 CUSTOMER CARE ..................6 Caution ........................ -
Page 3: Before First Use
BEFORE FIRST USE To protect the machine in transport, the internal pivot plate may have been secured to prevent it from moving. Please remove any bolt(s) or cable tie(s) prior to turning the machine on. You will normally find indicators (tags, stickers or ribbons) helping you locate these before use, although sometimes they are removed by the distributor during testing. -
Page 4: Packaging
Hopper upside down for portability/storage Packaging We recommend you keep your box in case you need to ship your machine back to the supplier at a future point in time. BATTERY AND CHARGING Your machine should last between 3-8 hours, depending on the settings you are using. -
Page 5: Standard Charger
The external battery cable includes a 32V 15A fuse built into it (note: 32V is correct for our 12V battery). If you are required to replace this, they can be purchased from local electronic stores or your Spinfire distributor. Standard Charger Your machine comes with a standard charger which charges the machine safely in 11 hours. -
Page 6: Optional Fast Charger
Note, if you do have an internal battery, the AC Adaptor can still be used. It will not damage the internal battery. Your AC Adaptor should only be used in a dry environment. The Spinfire AC Adaptor has been tested to work perfectly with our machine and we do not recommend substituting it with a compatible model. -
Page 7: Maintenance
We recommend that your machine is stored inside/under cover in a dry environment and preferably in a Spinfire cover to protect it from debris. Do not leave your machine on court even with the protection of a cover as heavy rain may damage your machine. -
Page 8: Usage
(above the control panel). To assist with transporting your machine, you can purchase a Spinfire Carry Case which has handles and pockets for storing your charger and accessories. -
Page 9: Control Panel
CONTROL PANEL Power: Press this button to start the machine (hold it for 3 seconds). Please note that there is a main power switch underneath the machine. Please make sure this is on before operating your machine (I = internal battery, II = external battery or AC Adaptor). - Page 10 machine. It can be adjusted from 0 – 20 with 20 being the fastest (approximately 1 ball every 2-3 seconds). Note that the balls will not start ejecting from the machine until you press the feed (start/stop) button. Ball Speed: This sets the speed at which the balls are propelled.
-
Page 11: Example Settings
horizontal oscillation and the machine will automatically return to the center of the court. Once you press this button, a message will display on the LCD to let you know whether you are in wide, medium or off mode. To achieve random deliveries, a varying pause length of up to 2 seconds is included in the horizontal oscillation motion. -
Page 12: Tennis Balls
Please choose carefully when determining which balls to use in your machine. We recommend the use of Spinfire Juice balls or a brand thoroughly tested and recommended by your distributor (we do not recommend mixing brands). -
Page 13: Second Safety (Feeder)
need to turn the machine off to try again, or physically point your machine in a direction that will achieve the desired results. 45 Second Safety (Feeder) By default, your feeder is designed to turn off automatically after approximately 25 seconds (can be up to 45 seconds) if no balls are fired. This is to prevent balls firing unexpectedly at the user. -
Page 14: Ball Counter
We do not recommend changing to Interval Mode 1 unless you’ve consulted with Spinfire support (your local distributor) and been advised to do so. It can be useful to overcome issues when ball ejections are not being detected. Ball Counter The machine has a counter (similar to a car's odometer) which can tell you how many balls have been fired. -
Page 15: Machine Fails To Initialize (Vcal Or Hcal Error)
If you are using an external battery, you should also check if the fuse in the external battery cable has blown. For further trouble shooting, please contact your local distributor. Machine fails to initialize (VCAL or HCAL error) If you experience a failure when turning on your machine, please check for a ball jam (remove if one exists) and then try pressing the “reset”... -
Page 16: Clearing Ball Jams
If this is not the issue, then please consider the tennis balls that you are using. We strongly recommend the use of Spinfire Juice which we know are trouble free. Old balls and inexpensive balls are more prone to jamming and could be the cause of your problem. -
Page 17: Balls Inside The Machine
Please see the heading “Clearing Ball Jams” for information on how to resolve this. Balls inside the machine If you find balls inside your machine, please do not attempt to retrieve them while the machine is on. Turn your machine off at the control panel and then at the master switch under the machine. -
Page 18: Top Or Bottom Wheel Spins At High Speed When The Machine Is Off
Top or bottom wheel spins at high speed when the machine is off If either your top or bottom wheel is spinning at high speed when your machine is turned off, you will be able to stop it by turning off the master switch under the machine. -
Page 19: Example Settings In This Manual Don't Work Well For Me
Example settings in this manual don’t work well for me All of our machines are slightly different due to manufacturing tolerances and therefore the correct settings on one machine may be slightly different on another. Please try adjusting your settings a little bit until the balls are landing where you want them to. -
Page 20: The Feeder Motor Turns On As Soon As The Machine Starts
WARRANTY Should any part fail due to defective workmanship or faulty materials within the warranty period, Fry Developments Pty Ltd (trading as Spinfire) or its distributor will repair or, (at distributor’s option), replace the defective part free of charge. The warranty period is country specific, please contact the Spinfire distributor in your country or the place of purchase for details. -
Page 21: Conditions Of Warranty
Servicing of this nature is chargeable. Under no circumstances will Fry Developments Pty Ltd (trading as Spinfire) or their authorized distributors be liable to the Customer or any other person for incidental or consequential damages of any nature, including but not limited to, damage for personal injury or damages to property.
