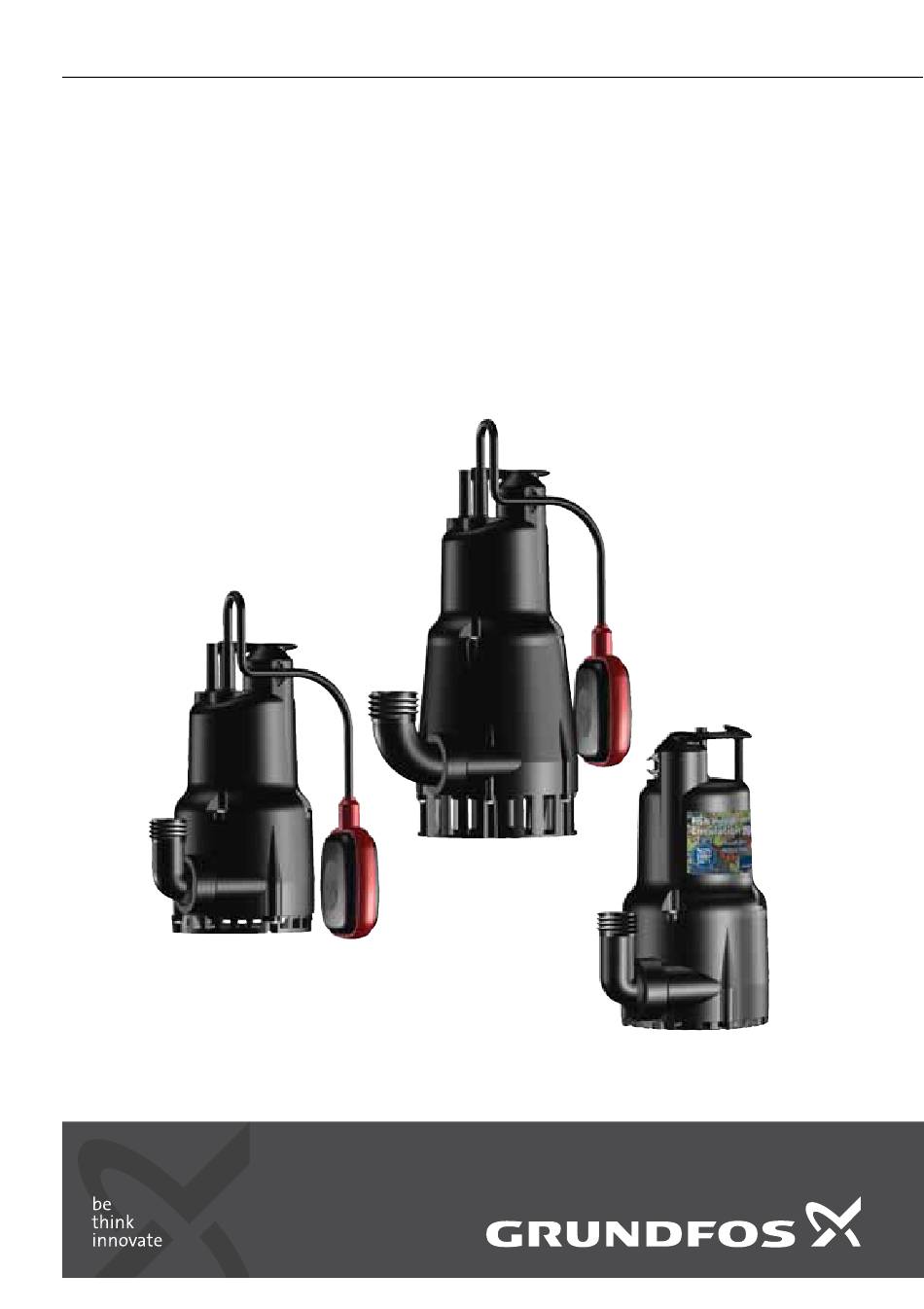

- Page 1 GRUNDFOS INSTRUCTIONS KPC, KPC 24/7 Installation and operating instructions...
-
Page 2: Table Of Contents
Make sure that the system in which the These installation and operating instructions pump is incorporated is designed for the describe Grundfos KPC and KPC 24/7. maximum pump pressure. Sections 1-3 give the information necessary to be able to unpack, install and start up the product in a safe way. -
Page 3: Installing The Product
1.1.2 Other important notes 2.1.1 Minimum space for the float switch The pumps require 5 cm free space between the A blue or grey circle with a white graphical float switch and the wall. The free space ensures symbol indicates that an action must be free movability of the float switch. -
Page 4: Mechanical Installation
2.2 Mechanical installation 2.2.4 Connecting the outlet pipe The outlet pipe can be connected to the pump outlet 2.2.1 Foundation port by means of the 90 ° adapter. Place the pump on a plate or on bricks so that the inlet strainer is free of silt, mud or similar materials. -
Page 5: Electrical Connection
3. Starting up the product 2.3 Electrical connection WARNING Carry out the electrical connection Flammable material according to local regulations. Death or serious personal injury - Do not use the pump for flammable DANGER liquids, such as diesel oil, petrol or similar liquids. -
Page 6: Product Introduction
DANGER 4.2 Intended use Electric shock 4.2.1 KPC series Death or serious personal injury - Switch off the power supply before The KPC pumps are designed for manual or starting any work on the product. Make... -
Page 7: Fault Finding The Product
6. Fault finding the product DANGER Electric shock Death or serious personal injury - Switch off the power supply before starting any work on the product. Make sure that the power supply cannot be accidentally switched on. Fault Cause Remedy The pump does The power supply is switched off. -
Page 8: Technical Data
KPC 600 A 1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Grundfos company or service workshop. Maximum installation depth: The crossed-out wheelie bin symbol on Cable length:... - Page 9 Appendix Dimensions and weights KPC 24/7 210 and 270 Dimensions of KPC 24/7 210 and 270 KPC 300 A, KPC 600 A Dimensions of KPC 300 A and 600 A Dimensions [mm] Weight Pump type [kg] Height Width Width Dimensions [mm] KPC 300 A Weight Pump type...
