FXLED INSTALLATION INSTRUCTIONS
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding
is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.

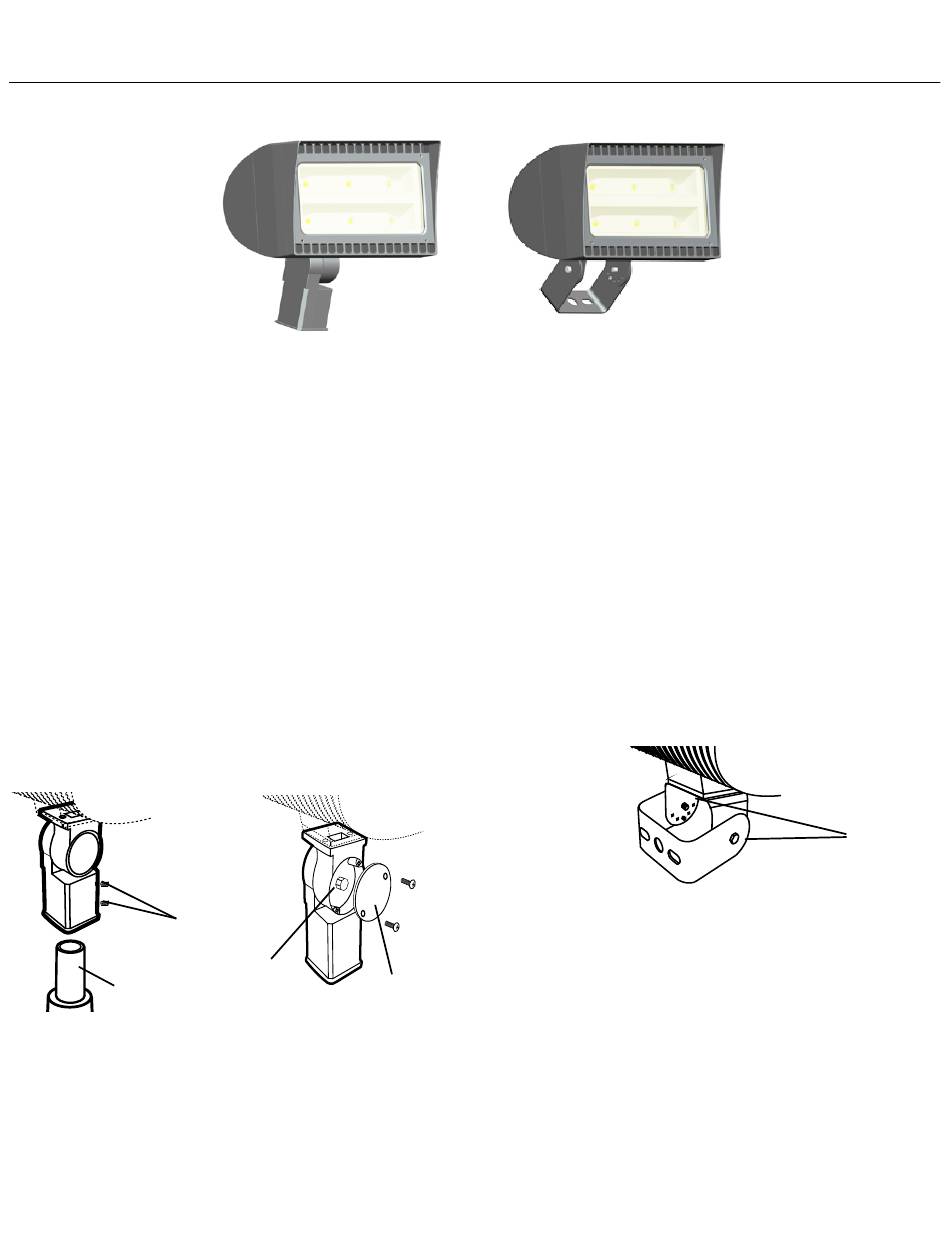

SLIPFITTER MOUNTING
1. The slipfitter mounting fits a 2 3 /8" O.D. Tenon. Place the
slipfitter over the Tenon and secure the fixture with the
Set Screws (2) on the side of the slipfitter.
2. Remove two screws on side of Round Cover Plate.
Remove the Round Cover Plate and adjust the angle of
the fixture.
3. Loosen the Locking Bolt and swivel fixture to desired
angle.
4. Tighten the Locking Bolt and re-attach Round Cover
Plate.
Set Screws
Tenon
TROUBLESHOOTING
1. Check that the line voltage at the fixture is correct. Refer
to wiring directions.
2. Be sure the fixture is grounded properly.
3. Is the photocell, if used, functioning properly?
Locking Bolt
Round
Cover
Plate
TRUNNION MOUNTING
CAUTION: UL and C-UL listed or CSA certified liquid tight
cord grip suitable for use with three conductor type STW
flexible cord shall be used for connection to a wet location
outlet box provided by others.
To adjust the angle of the fixture using the trunnion:
1. Loosen the Pivot Bolts & angle locking screw.
2. Adjust fixture to desired angle.
3. Tighten Pivot Bolts & angle locking screw.
ACCESSORIES
Chrome Wire Guard:
Poly Shield:
Lens & Door Replacement:
CLEANING & MAINTENANCE
CAUTION: Be sure fixture temperature is cool enough
to touch. Do not clean or maintain while fixture is
energized.
1. Clean glass lens with non-abrasive glass cleaning
solution.
2. Do not open the fixture to clean the LED. Do not touch
the LED.
Pivot Bolts
GDFXLED78W
GDFXLED78P
LFXLED78 (bronze)
LFXLED78W (white)
