RAB Lighting ANGSHARK Quick Start Manual

ANGSHARK ACCESSORY INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
CAUTION:
•
For proper weatherproof function all gaskets must be seated properly and all screws and plugs inserted and
tightened firmly.
•
Apply weatherproof silicone sealant around the edge of the Housing. This is especially important with an uneven
ceiling surface.
•
Silicone all plugs and unused conduit entries and USE SHARK WITH CONDUIT ONLY.
•
FOLLOW ALL SHARK ™ (sold separately) INSTALLATION INSTRUCTIONS

ANGSHARK INSTALLATION

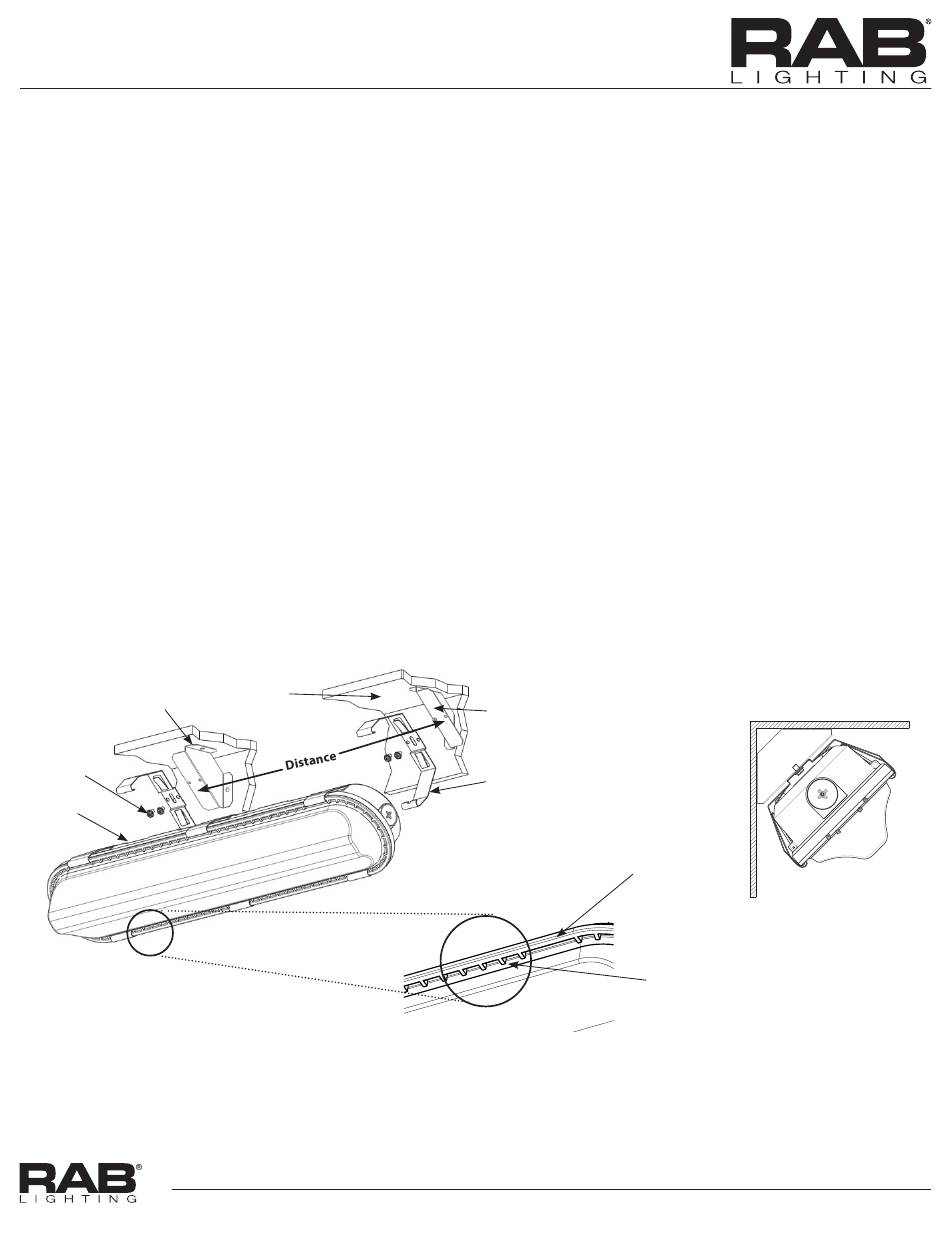

1. Use appropriate mounting hardware (not supplied) to secure the Corner Bracket (2) to mounting surface as shown in Fig. 1.
Bracket Tabs must face towards each other. Recommended Corner Bracket Distance center to center is 13-5/16" (for 2 feet)
and 35-23/32" (for 4 feet).
2. Secure Snap On Bracket (2) (supplied standard with Housing) to Corner Bracket (2) with Screws provided as shown in Fig. 1.
3. Snap Housing on Snap On Brackets (2). Snap On Brackets (2) latch onto the Grooves on Lens as shown in Fig. 1 to secure
Housing. Fixture installation should look like Fig. 2 upon completion.
Bracket Tab
Screw
Housing
Fig. 1

TROUBLESHOOTING

1. Check that line voltage at the fixture is correct. Be sure the fixture is grounded properly.
2. Refer to wiring, cleaning and maintenance directions on SHARK ™ (sold separately) Installation Instructions.
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation operation
or maintenance.
Easy Installation & Product Help
Tech Help Line
©2015 RAB LIGHTING Inc.
Call our experts 888 RAB-1000
Northvale, New Jersey 07647 USA
ANGSHARK IN 1015
Mounting
Surface
rabweb.com
Visit our website for product info
Corner
Bracket (2)
Snap On
Bracket (2)
(supplied
standard w/
Housing)
Lens
Groove
email
Answered promptly sales@rabweb.com
.
Fig. 2
