RAB Lighting FFLED Slipfitter Installation Instructions Manual

FFLED 120W INSTALLATION INSTRUCTIONS
®
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding
is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
WARNING: RISK OF SERIOUS INJURY OR DEATH!
DO NOT MOUNT THE SLIPFITTER TO A TENON OR BRACKET THAT IS MORE THAN 20 DEGREES FROM VERTICAL. MOUNTING
AT ANY ANGLE OTHER THAN 0-20 DEGREES INCREASES THE RISK OF DISENGAGEMENT AND/OR FAILURE OF THE
SLIPFITTER. INSTALL THE POLE ON A SECURE BASE OR INSTALL THE BRACKET TO A WALL FIRST. THEN PLACE LUMINAIRE
ONTO THE POLE OR BRACKET. DO NOT LIFT LUMINAIRE ASSEMBLED TO POLE OR BRACKET. LUMINAIRE MAY DISENGAGE.

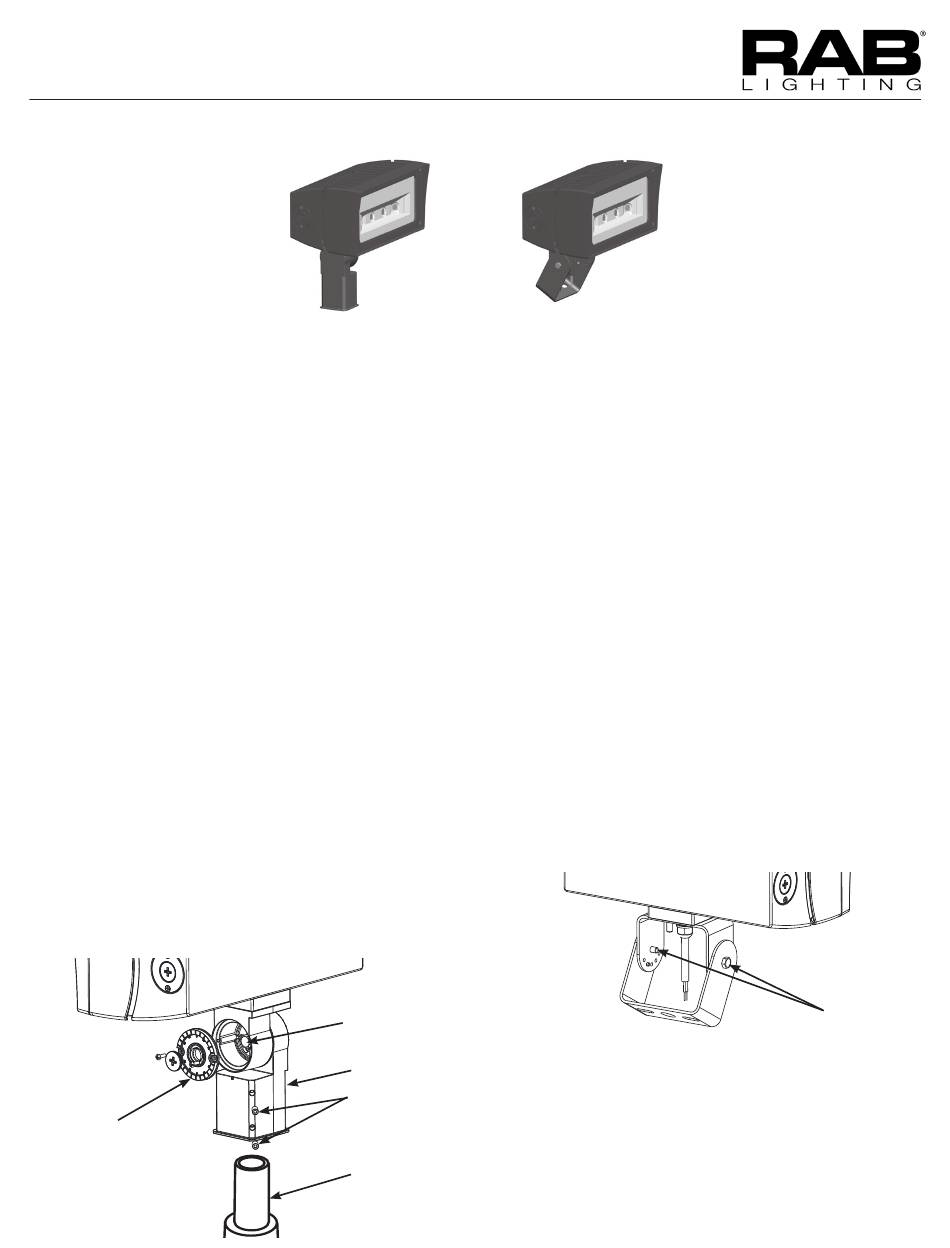

SLIPFITTER MOUNTING
1. The slipfitter mounting fits a 2 3 /8" O.D. Tenon. Place the
slipfitter over the Tenon and secure the fixture with the
Set Screws on the side of the Slipfitter.
2. To adjust the angle of the Slipfitter, remove screws and
plug on Round Cover Plate. Remove the Round Cover
Plate. Loosen the Locking Bolt and adjust the angle of
the fixture as desired.
3. Feed supply wires from Tenon to Slipfitter and make
necessary connections in the Slipfitter and knot wires for
strain relief.
4. Tighten the Locking Bolt and re-attach Round Cover
Plate. Seal plug on side of Round Cover plate with
Teflon Tape or silicone sealant.
Round Cover Plate
FFLED Slipfitter
Locking
Bolt
Slipfitter
Set Screws
Tenon
FFLED Trunnion
TRUNNION MOUNTING
CAUTION: UL and C-UL listed or CSA certified liquid tight
cord grip suitable for use with STW flexible cord shall be
used for connection to a wet location outlet box provided
by others.
To adjust the angle of the fixture using the trunnion:
1. Loosen the Pivot Bolts & angle locking screw.
2. Adjust fixture to desired angle.
3. Tighten Pivot Bolts & angle locking screw.
Pivot Bolts
