PIP XL 70W 100W INSTALLATION INSTRUCTIONS
TM
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
WARNING: RISK OF SERIOUS INJURY OR DEATH!
DO NOT MOUNT THE SLIPFITTER TO A TENON OR BRACKET THAT IS MORE THAN 20 DEGREES FROM VERTICAL. MOUNTING
AT ANY ANGLE OTHER THAN 0-20 DEGREES INCREASES THE RISK OF DISENGAGEMENT AND/OR FAILURE OF THE
SLIPFITTER. INSTALL THE POLE ON A SECURE BASE OR INSTALL THE BRACKET TO A WALL FIRST. THEN PLACE LUMINAIRE
ONTO THE POLE OR BRACKET. DO NOT LIFT ASSEMBLED LUMINAIRE OR POLE OR LUMINAIRE & BRACKET. LUMINAIRE OR
POLE/BRACKET'MAY DISENGAGE.

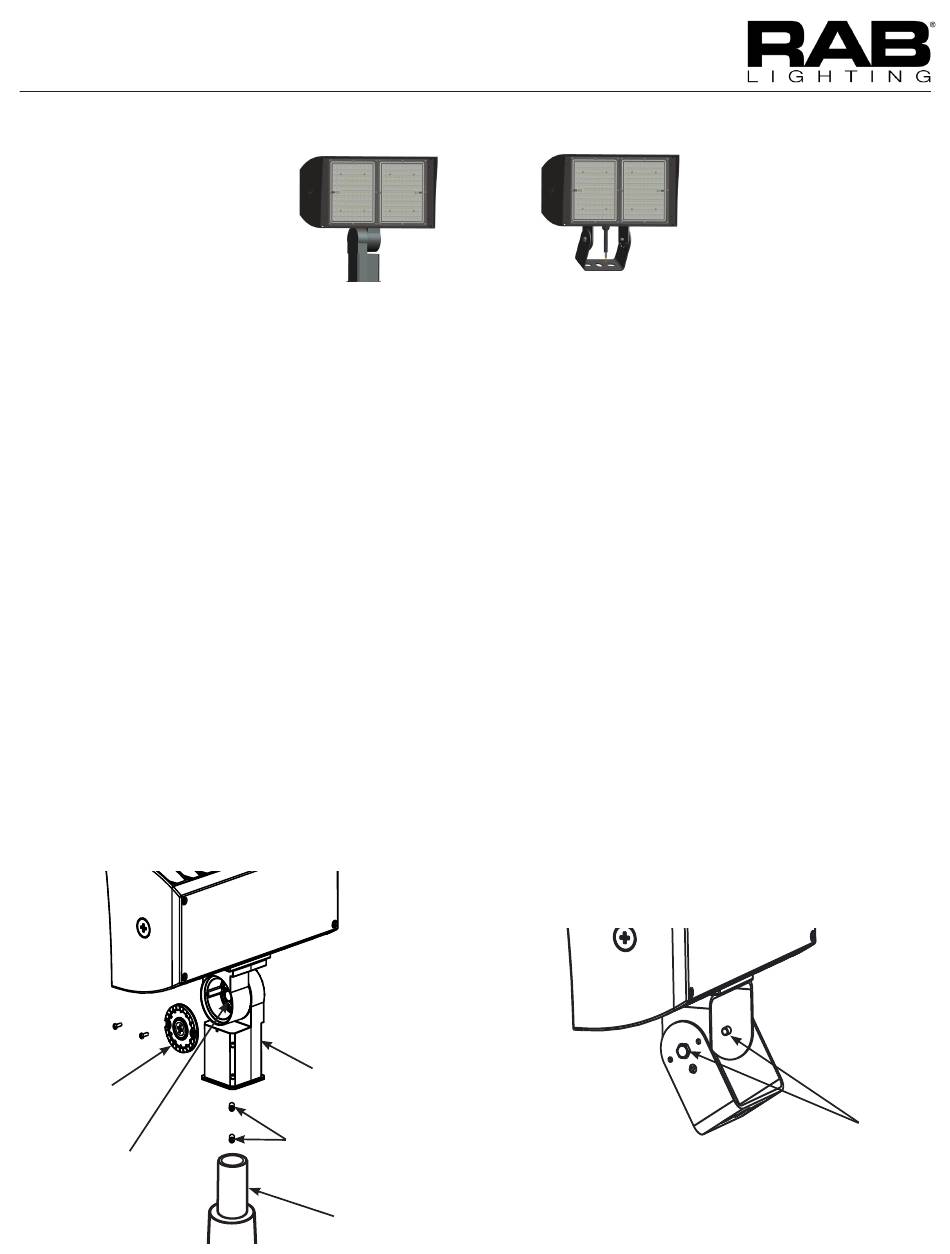

SLIPFITTER MOUNTING
1. The slipfitter mounting fits a 2 3 /8" O.D. Tenon. Place the
slipfitter over the Tenon and secure the fixture with the
Set Screws (2) on the side of the slipfitter.
2. Remove two screws on side of Cover Plate. Remove the
Cover Plate and adjust the angle of the fixture.
3. Loosen the Locking Bolt and swivel fixture to desired
angle.
4. Tighten the Locking Bolt and re-attach Cover Plate.
Cover Plate
Locking Bolt
PIP XL with SLIPFITTER
Slipfitter
Set Screws (2)
Tenon
PIP XL with TRUNNION
TRUNNION MOUNTING
CAUTION: UL and C-UL listed or CSA certified liquid tight
cord grip suitable for use with STW flexible cord shall be
used for connection to a wet location outlet box provided
by others.
To adjust the angle of the fixture using the trunnion:
1. Loosen the Pivot Bolts & angle locking screw.
2. Adjust fixture to desired angle.
3. Tighten Pivot Bolts & angle locking screw.
Pivot Bolts
