User's Manual of X-COP 8700
[ X-COP 8700 Introduction]
-

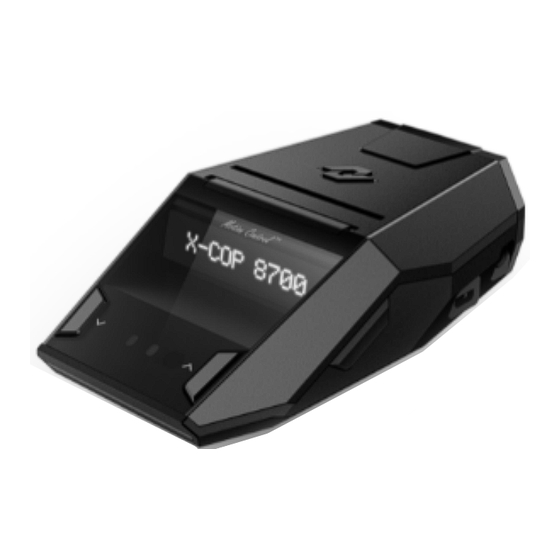

X-COP 8700 is high performance GPS Radar Detector specially designed and optimized for European
and Russian markets, which receives the signals of X, K, Ka, M, Laser, Strelka bands and GPS signal
effectively.
-
The GPS module is equipped so that it catches the radar signals and the fixed and moved speed
cameras as well and gives a warning to driver effectively.
-
Full color OLED display with 16bit-Color(160*32 pixels) provides more various information to driver.
-
X-COP 8700 have a special feature "Motion Control" which is controlled mute on/off by gesture of
hand.
-
USB OTG is more powerful feature to update that the device can be updated by using PC, as well as
USB memory.
-
Before using X-COP 8700, please read the method of use as follows.
Contents
[ Features ] ..................................................................................................................................................................................................................... 2
[ Specifications ] .......................................................................................................................................................................................................... 3
[ Devices & Accessories ] ....................................................................................................................................................................................... 4
[ Installation ] ............................................................................................................................................................................................................... 5
[ Operation ] .................................................................................................................................................................................................................. 6
1.
Power On and Off. ................................................................................................................................................................................... 6
2.
BUTTON operation .................................................................................................................................................................................. 6
3.
SET mode ...................................................................................................................................................................................................... 8
5.
Display operation ...................................................................................................................................................................................20
6.
Motion control operation..................................................................................................................................................................21
7.
Automute operation .............................................................................................................................................................................22
1

Advertisement

Table of Contents
loading

Related Manuals for Neoline X-COP 8700

Summary of Contents for Neoline X-COP 8700

  • Page 1: Table Of Contents

    Full color OLED display with 16bit-Color(160*32 pixels) provides more various information to driver. X-COP 8700 have a special feature “Motion Control” which is controlled mute on/off by gesture of hand.

  • Page 2: [ Features ]

    Radar Alert........................................22 GPS Alert ........................................23 [ Update ] ............................................24 By using PC .........................................24 By using USB memory (OTG feature) .............................27 [ Features ] Radar & Laser detection and GPS POI Alert 16bit-Color Display (160*32 pixels) Mute on/off by motion control feature. 4-buttons : PWR/MENU, DOWN, UP, CITY/Mode Motion Control Illumination LED (7 Color)

  • Page 3: [ Specifications ]

    Radar band detection On/Off Voice/Beep On and Off Voice Alert Type Silence mode Silence zone Filter Z signature Radius setting for GPS POI alerting GPS POI Detection distance setting Legal overspeeding setting Maximum overspeed Detectable X/M/K/Ka/Laser/Strelka Undetectable by VG-2 Strelka signal strength level display : 5-Levels Language : Russian, English, Lithuania, German, Spain Updateable Firmware/Voice/Database by using PC or Micro OTG USB memory Input voltage : DC 12V ~ 24V...

  • Page 4: [ Devices & Accessories ]

    Dimension : 127(L) * 75(W) * 36(H) Operating Temperature : -20°C ~ 70°C [ Devices & Accessories ] The following items are included in the box. ① X-COP 8700 Radar unit ② 3M tape for holder (2pcs) ③ Windshield mounting bracket and suction cups...

  • Page 5: [ Installation ]

    3. Insert X-COP 8700 into bracket as like the following picture. 4. Adjust the X-COP 8700 to be horizontal by bending the bracket. Insert the 12V/24V DC Cord into the Cigarette lighter cord in car and the jack into X-COP 8700.

  • Page 6: [ Operation ]

    [ Operation ] 1. Power On and Off. 1.1. When you start an engine at the condition of the power cord is connected, X-COP 8700 will be power on and start the self-test and then become a Stand-by mode. (Logo Animation Display for 2 seconds) (Stand-by display) Current car speed and time are showing on the display.
  • Page 7 2.2.2. During radar alert : silence zone addition/deletion When radar is alert, press UP or DOWN button for 1.5 sec then the area will be added on silence zone. When car is within silence zone, press UP or DOWN button for 1.5 sec then the area will be deleted from silence zone.

  • Page 8: Set Mode

    2.3.2. Long Press : User location addition/deletion 2.3.2.1. User location addition Press the button during normal mode, the user point will be added “User area is added” will be announced and display text message. 2.3.2.2. User location deletion Press the button during User area alerting, the user point will be deleted “User area is deleted”...
  • Page 9 (Filter Z-signature OFF) 3.3.2. Auto Turbo (change by DOWN/UP) Set range : OFF/40Km/50Km/60Km…140Km 3.3.3. AutoMute ON/OFF (change by DOWN/UP) At AutoMute On, the volume level will be decreased 50% in 6 seconds after starting Radar Alert. (AutoMute On) (AutoMute Off) 3.3.4.
  • Page 10 (After pass beep Off) 3.3.8. GPS alarm (change by DOWN/UP) (GPS alarm On) (GPS alarm Off) 3.3.9. Radar alarm (change by DOWN/UP) (Radar alarm On) (Radar alarm Off) 3.3.10. GPS Mute till (change by DOWN/UP) Set range : OFF/10Km/20Km/30Km…130Km 3.3.11. RD Mute till (change by DOWN/UP) Set range : OFF/10Km/20Km/30Km…130Km 3.3.12.
  • Page 11 GPS POI detection distance can be adjusted by setting range. When distance is set by car speed, detection distance is as below. Car Speed Distance 0Km ~ 60Km 600 meters 61Km ~ 70Km 650 meters 71Km ~ 80Km 700 meters 81Km ~ 90Km 750 meters 91Km ~ 100Km...
  • Page 12 Police posts(On) Police posts(On) 3.3.21. Dummies (change by DOWN/UP) FAKE Signal On/Off. (Dummies On) (Dummies Off) 3.3.22. X-Band (change by DOWN/UP) (X-Band On) (X-Band Off) 3.3.23. K-Band (change by DOWN/UP) Wide : 23.900 – 24.250 GHz Narrow : 24.055 – 24.190 GHz Super narrow : 24.075 –...
  • Page 13 (K-Band POP On) (K-Band POP Off) 3.3.25. K-Band in City (change by DOWN/UP) (K-Band in City On) (K-Band in City Off) 3.3.26. M-Band (change by DOWN/UP) (M-Band On) (M-Band Off) 3.3.27. Ka-Band (change by DOWN/UP) (Ka-Band On) (Ka-Band Off) 3.3.28. Ka-Band POP (change by DOWN/UP) (Ka-Band POP On) (Ka-Band POP Off) 3.3.29.
  • Page 14 (Laser On) (Laser Off) 3.3.31. Strelka (change by DOWN/UP) (Strelka On) (Strelka Off) 3.3.32. Band Selection (change by DOWN/UP) Off / World / Europe / Baltic / Russia / CIS / PRO * World / Europe / Baltic / Russia / CIS – Automatic Band setting for each Selections * PRO –...
  • Page 15 Filter Z signature All On KA filter All On X Band All Off K Band Narrow Wide Wide Wide Wide K Band POP K Band in the city All On M Band All On KA Band Narrow Wide Wide 33.400 ~ 33.700 GHz 33.700 ~ 33.900 GHz 33.900 ~ 34.200 GHz 34.200 ~ 34.600 GHz...
  • Page 16 (Language Deutsch) 3.3.37. Low Battery Warning (change by DOWN/UP) In case the voltage of Car battery is lower than 12.3V, X-COP 8700 gives Low battery warning and then turn off by itself so as to prevent from being discharged. When Low voltage warning On...
  • Page 17 When Low voltage warning Off 3.3.38. Motion Control (change by DOWN/UP) (Motion Control Beep) (Motion Control Mute) (Motion Control Off) 3.3.39. Backlight (change by DOWN/UP) Bright : Full brightness, “Bright” will be announced. Dim : 50% brightness, “Dim” will be announced. Dark : Display OFF, “Dark”...
  • Page 18 (LED Green) (LED Red) (LED Off) 3.3.41. Backlight LED mode (Backlight LED mode GPS&RD) (Backlight LED mode GPS) (Backlight LED mode RD) (Backlight LED mode Off) 3.3.42. Display color (Display Color White) (Display Color Light blue) (Display Color Blue) (Display Color Yellow) (Display Color Green) (Display Color Red) 3.3.43.
  • Page 19 (LCD Display Normal) (LCD Display Reverse) 3.3.44. Settings reset Factory reset values are restored Default Values Mode X-COP X-Band Filter Z-signature K-Band Wide Auto Turbo 90 km/h K-Band POP Automute K-Band in City Voice M-Band Beep Ka-Band Mute Ka-Band POP After pass beep Ka Filter GPS alarm...

  • Page 20: Display Operation

    Speed : Current car speed Timer : 0 ~ 99.9 sec. 0~60km/h : Time from 0 to 60km/h 0~100km/h : Time from 0 to 100km/h. 1/4 Mile : Time from 0 to 1/4 Mile 100~150km/h : Time from 100km/h to 150km/h 100~200km/h : Time from 100km/h to 200km/h 4.1.

  • Page 21: Motion Control Operation

    When Highway Mode, Highway text will display When Turbo Mode, Turbo text will display When City Mode, City text will display When X-COP Mode, X-COP text will display 5.2. GPS alert display When the current speed is over the limit, the display will show the speed limit and the distance from the point.

  • Page 22: Automute Operation

    7. Automute operation 7.1. If the Automute is On, the alert volume level will be decreased automatically by 50% in 6 seconds from the start of alert. 7.2. The decreased alert volume will be returned to normal in 10 seconds after finishing the alert. If the alert is started again within 10 seconds, the decreased alert volume by Automute function will be continued.

  • Page 23: Gps Alert

    Redspeed, Amata, Oscon, Vocord, Gatso, Traffipax, Multaradar, Odissey, Sova, Autohuricane, Kordon, Azimuth, Roadscan, Autodoria, Integra, Autopatrol, Police patrol, Scat 9.2. Detection distance The GPS detection distance of X-COP 8700 are different by set in the menu. 9.2.1. When distance is set by car speed, detection distance is as below.

  • Page 24: [ Update ]

    The update method of X-COP 8700 is as follows. 1.1. Run “X-COP_Updater.exe” file. 1.2. Connect PC and X-COP 8700 by using USB mini B cable and “X-COP 8700 is connected” will be displayed on the Status log as like the following picture.
  • Page 25 1.3. Check the items to update and choose the latest file receiving from the web. At this moment, please choose only the items to update. 1.4. After checking the files, please click “DOWNLOAD”. At this moment, there will be show the status of download.
  • Page 26 1.5. After the DOWNLOAD process is completed, the updated items are shown as like the following picture. Please click “OK” once the Download is completed.

  • Page 27: By Using Usb Memory (Otg Feature)

    1.6. Disconnect the X-COP 8700 from the PC once the Update has been completed. By using USB memory (OTG feature) X-COP 8700 can update the Firmware/voice/database, by using the USB memory. Please note, supported file system on USB memory is FAT16 and FAT32. Other file system does not supported.
  • Page 28 2.4. After updating complete, X-COP8700 will power on normally.
