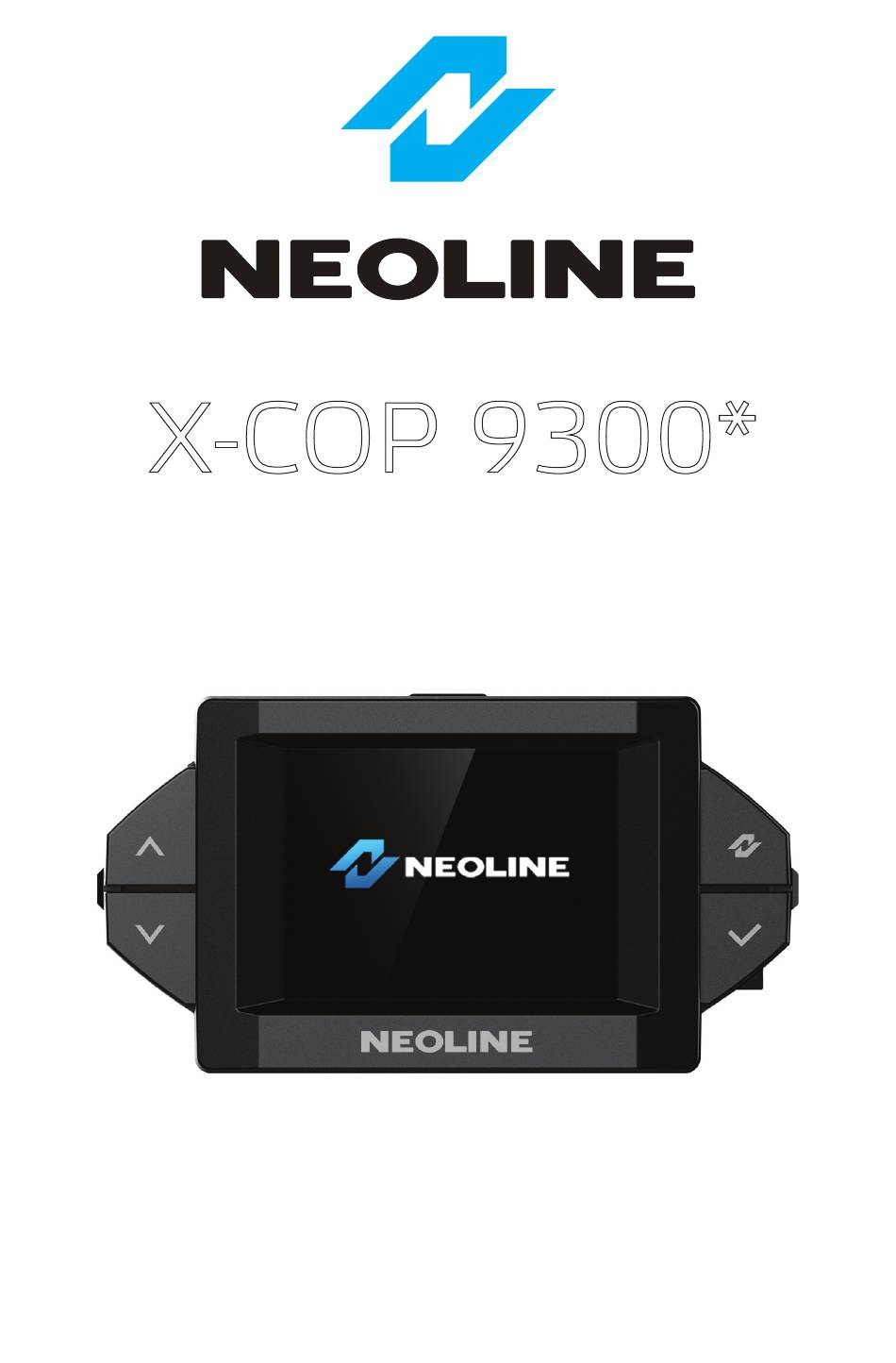

- Page 1 X-COP 9300* RADAR DETECTOR AND DVR HYBRID Quick Start Guide *For all Neoline Х-СОР 93ххх models...
-
Page 2: Installation Procedure
4. Fix the hybrid in a horizontal plane so that it makes no obstruction to radar signals or road view. 5. To get the best record, the DVR frame should capture 30% sky and 70% road. 6. Take the 12-24 V Neoline Power Cord Hybrid (supplied) and connect it to the car socket and to the hybrid power socket. - Page 3 3M tape mount with an active charger (supplied with Neoline Х-СОР 9300 only. Not supplied with other Neoline Х-СОР 93ххх* models) The device's mount connector has special terminals for this mount. The power cord is connected directly to the mount, which makes removing the hybrid from the mount and placing it back quick and easy.
-
Page 4: Controls And Functions
2. Neoline Fuse Cord 3 pin (supplied with Neoline Х-СОР 9300 only. Not supplied with other Neoline Х-СОР 93ххх* models) Connect the power cord to the fuse box as the diagram shows. Connect the power cord to the fuse box in accordance with the instructions: - Connect the BATT (+) power cord to the source providing stable 12V voltage. - Page 5 Menu 1. Press to enter Menu 2. Press and hold for 2 seconds to enter the Quick Settings mode where you can: - turn the radar module on/off (where necessary); - turn the microphone to record audio inside the car on/off; - turn the video recorder on/off;...
- Page 6 Menu + Select Press and hold both keys for 2 seconds to enable/disable the Z-signature filter. Hot Key Press and hold for 2 seconds to assign one of the Hot Key functions below: - pressing the Hot Key adjusts the display brightness. It is useful at night when the display brightness is excessive.
- Page 7 Restart Press to restart the device. Description of main screen icons ‘’Record audio (to record audio in the car)’’ ‘’Display brightness’’ ‘’Z-signature filter’’ ‘’Record video’’ ‘’Volume’’ ‘’Detection ‘’Current speed sensitivity mode Note: where there (X-COP, City, is no satellite Motorway, communication, Turbo).’’...
-
Page 8: Z-Signature Filter
Z-signature filter A Z-signature filter is a know-how developed by Neoline to reduce the number of false warnings. It recognizes and blocks most false warnings caused by other cars' blind zone sensors. The key feature of our filter is that it blocks no true warnings (unlike many other similar filters). - Page 9 GPS time correction: auto time correction according to the time zone. Date/time: setting date and time in case the GPS time correction is off. Date and time OSD: (de)activating the video date and time OSD. Speed OSD: (de)activating the car speed OSD. <100 km/h speed OSD: (de)activating the car speed OSD ONLY shown when the speed is less than 100 km/h.
-
Page 10: Updating The Firmware
• Matrix: Sony • Display: 2.0" TFT (240*320) • Resolution: 1920*1080 (Full HD) 30 fps, 1280*720 (HD) 30 fps • FOV angle, Neoline Х-СОР 9300: 135° (5 lanes) • FOV angle, Neoline Х-СОР 93ххх: 130° (4 lanes) • 6 glass lenses •... -
Page 11: Operation Conditions
Operation Conditions 1. Install the hybrid in accordance with the manual. 2. Only use the supplied power cord. Using a third-party charger may compromise the device performance. 3. Observe the storage and operation temperature conditions. Avoid extra sunlight exposure. 4. When leaving the car, make sure the device is turned off; avoid leaving a powered device unattended for too long, as this can cause excessive car battery consumption and reduce the device life. - Page 12 DVRs and radar detectors. The manufacturer shall bear no responsibility for its equipment being used in violation of any legal regulations. In case of any inadequate operation of your Neoline device, please be sure to have the device software updated before contacting your service center/vendor/other authorized body. The latest SW version is available at: https://neoline.com/update/.
