User's Manual of X-COP 9000
[ X-COP 9000 Introduction]
-

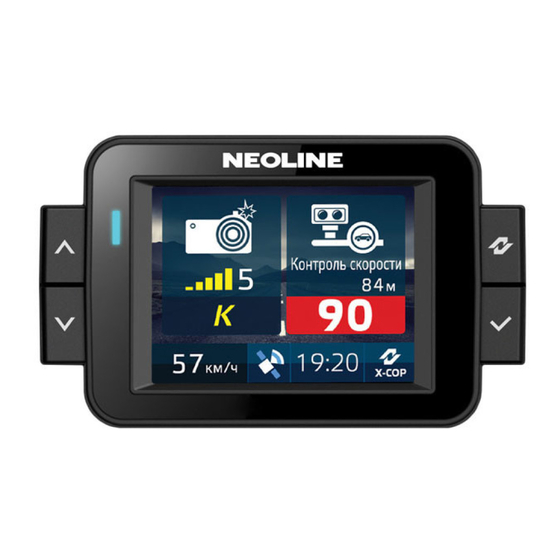

X-COP 9000 is high performance GPS Radar Detector with Full HD Black Box specially designed and
optimized for Russian market, which receives the signals of X, K, Ka, Laser, Strelka bands and GPS signal
effectively.
-
X-COP 9000 uses the Ambarella A7 Chip for Black box which is the up to date technology so that a high
resolution video recording is always available.
-
X-COP9000 uses IMX322 which is an image sensor with high quality made by SONY; especially it shows very
good quality at nighttime video.
-
2.0 inch MVA TFT LCD helps user to see the video easily and the Radar and GPS alert screen effectively.
-
The GPS module is equipped so that it catches the fixed and moving speed cameras in addition to Radar
signal detection and gives an exact warning to driver effectively.
-
Before using X-COP 9000, please read the method of use as follows.
Contents
[ Features ] ...................................................................................................................................................................................................................... 3
[ Specifications ] .......................................................................................................................................................................................................... 4
1.
Car Blackbox specifications ................................................................................................................................................................ 4
2.
Radar specifications ................................................................................................................................................................................ 4
3.
GPS specifications .................................................................................................................................................................................... 5
4.
Characteristics ............................................................................................................................................................................................ 5
[ Devices & Accessories ] ....................................................................................................................................................................................... 6
[ Installation ] ................................................................................................................................................................................................................ 7
1.
Mounting ....................................................................................................................................................................................................... 7
2.
Power cable installation ........................................................................................................................................................................ 8
[ Operation ] .................................................................................................................................................................................................................. 9
1.
Buttons ........................................................................................................................................................................................................... 9
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Neoline X-COP 9000
Summary of Contents for Neoline X-COP 9000
-
Page 1: Table Of Contents
Russian market, which receives the signals of X, K, Ka, Laser, Strelka bands and GPS signal effectively. X-COP 9000 uses the Ambarella A7 Chip for Black box which is the up to date technology so that a high resolution video recording is always available. - Page 2 Power On and Off....................................10 All times display (Normal Screen) ............................... 11 Parking mode......................................14 Mute ..........................................15 Auto mute ........................................16 Voice On/Off......................................16 Beep On/Off ......................................16 Radar band On/Off ....................................16 Firmware upgrade .................................... 16 SD card format ....................................18 Radar alert ......................................
-
Page 3: [ Features ]
[ Features ] Full HD Car Black-box with Radar & Laser detection and GPS Alert 2.0inch MVA TFT LCD display Blue LED indication for recording status Full HD Image recording Audio recording 3 Recording modes(Driving/Event/Manual) Support recording at parking mode Support Image capture at battery mode Support Micro SD Card(SDHC : 2GB ~ 32GB) 5 Buttons (Power On/Off Button, Up, Down, Menu, Select Button) -
Page 4: [ Specifications ]
[ Specifications ] 1. Car Blackbox specifications Processor : Ambarella A7LA30 Resolution : 1920*1080 (real Full HD) / 1280*720(HD) Image Sensor : IMX322LQJ (Sony) Optical Lens : 57.4º(V) * 108.5º(H) * 129.7º(D), All glass Display : 2.0 inch MVA TFT LCD (240 * 320 resolution) Back-up battery : Li-polymer battery (220mA, 5C, 3.7V) Video format : MP4 Recording frame : 30fps... -
Page 5: Gps Specifications
3. GPS specifications GPS Module : MK-100C (SirF StarIV) Patch antenna (13mm * 13mm) Hot start time : < 1 second Cold start time : < 35 seconds 4. Characteristics Input voltage : DC 11V ~ 24V Current consumption : 350mA ~ 450mA Dimension : (L) * 73(W) * 46(H) Operating Temperature : -20°C ~ 70°C... -
Page 6: [ Devices & Accessories ]
[ Devices & Accessories ] The following items are included in the packaging. ① X-COP 9000 unit ② Wind-shield mounting holder with suction-cup ③ Wind-shield mounting holder with 3M Tape - Optional ④ Cigarette power cord (DC12V ~ 24V) ⑤... -
Page 7: [ Installation ]
[ Installation ] Mounting 1.1. Recommended location The location at the following picture is recommended for the best video recording. The location is the almost of the center of windshield and just behind of room mirror but the display needs to be visible as like the following picture. -
Page 8: Power Cable Installation
Power cable installation 2.1. Cigarette power cord The following installation of Cigarette power cord is recommended for the cable not to disturb driver’s vision. It is helpful to use the cord clips to fix the cable during installation. All times power cable 2.2. -
Page 9: [ Operation ]
[ Operation ] 1. Buttons 1.1. Power Button 1.1.1. Press and hold Power button for two seconds at power off condition and it becomes power on. 1.1.2. Press and hold Power button for two seconds at power on condition and it becomes power off. 1.2. -
Page 10: Power On And Off
In this case, you can Re-booting by pressing the RESET button. 2. Power On and Off. 2.1. X-COP 9000 will power On when user starts car engine or presses the power button for two seconds and will show the following start-up image and then become a normal screen as follows. -
Page 11: All Times Display (Normal Screen)
2.2. X-COP 9000 will power Off when user turns off the car engine or presses the power button for two seconds. 2.3. When user does the power off by pressing Power button, the display will show LOGO and then be off. - Page 12 3.4. No. ○ : City/Highway/Turbo/X-COP mode (operation by Select Button) ( X-COP Icon ) ( City Icon ) (Highway Icon) (Turbo Icon) 3.4.1.1. Turbo mode : Fullest sensitivity 3.4.1.2. Highway mode : Full sensitivity 3.4.1.3. City mode : Sensitivity 20dBm down from Highway mode 3.4.1.4.
- Page 13 3.6. Quick Menu (Press and hold “Menu” button for two seconds) (○ (○ (○ (○ ※ Move to each mode (icon) by Up / Down Button 3.6.1. No ○ : User location Add / Delete 3.6.1.1. User location Add Press select button and pop up message “Пользовательская зона будет добавлена. Вы уверены?”...
-
Page 14: Parking Mode
3.6.3. MIC On / Off (Mic On) (Mic Off) 3.6.3.1. Mic On - Audio recording On 3.6.3.2. Mic Off - Audio recording Off 3.6.4. Recording ON/OFF (Recording ON) (Recording OFF) 3.6.4.1. Recording On – Video recording On 3.6.4.2. Recording Off - Video recording Off 3.7. -
Page 15: Mute
Resolution to be able to set : 1920*1080 (real Full HD) / 1280*720(HD) Recording frames: 15fps 4.4. Power saving at Parking mode When the voltage of car battery becomes lower than 10.8V, X-COP 9000 will be power off even at parking mode to prevent the car battery from being discharged. 5. Mute During the Radar or GPS alert, press power button and mute on/off function is operated. -
Page 16: Auto Mute
(For example: “X-COP9000(RevM23).bin”) If the file name and format are not correct, the upgrade is not available. Radar The file name of radar firmware must start with ”X-COP 9000” and finish with ”xxxxxxxx.rd0”. (For example: “X-COP9000_RD(RevM01).rd0” ) Database The file name of the Database file must be “xxxxxx.db.”... - Page 17 ④ Remove the updated SD card from the PC and then insert it into the SD slot 1 of X-COP 9000 unit. ⑤ Power On X-COP 9000. ⑥ Press Menu Button Firmware upgrade Upgrade order (Automatic process): Radar Database BlackBox Although there is one firmware file among Radar, Database, and BlackBox, Upgrade will be done.
-
Page 18: Sd Card Format
11. SD card format If you do the SD card format, all data in the SD card memory will be deleted. So, please back-up important data before formatting. SD card format process is as follows. ① Press Menu Button Video Settings SD card format and “Карта памяти будет отформатирована. Вы... -
Page 19: Gps Alert
Fixed camera, Redlight camera, Redlight speed camera, Speed camera, Police post, Speed restriction, Ramp, Dangerous change of the movement direction, Dangerous cross road 13.1. Detection distance The GPS detection distance of X-COP 9000 is different according to car speed as follows. Car Speed Distance... - Page 20 13.2. Alert operation 13.2.1. X-COP 9000 will give the voice announcement for the detected GPS POI and display the alert on LCD screen at once. The Alert display on the LCD screen is composed of the image for each POI, the remaining distance to the POI, and the speed limit of the road as like the following picture.
-
Page 21: Setting Mode
Video surveillance area start "Video surveillance area is started" Video surveillance area end "Video surveillance area is ended" Strelka FAKE " Radar Strelka " Strelka (Only video module) "Traffic video control 1" Strelka video module controls "Video control of the public public transport transport line"... - Page 22 14.2. Video Settings Select button – choose the sub settings Up, Down button – move between the settings Menu button – back to the main menu The explanation about each setting of Black box is as follows. 14.2.1.
- Page 23 14.2.8. Recording Brightness Setting the brightness of recording videol. Setting value : 1 ~ 5 (5 is brightest) 14.2.9. WDR (Wide Dynamic Range) Automatic brightness setting for the display to be seen better by controlling the background and objective brightness. Setting value : On/Off 14.2.10.
- Page 24 Setting value : On/Off 14.2.16. GPS satellite announce When GPS satellite has been fixed, voice will be announced. Setting value : On/Off 14.2.17. GPS based time Setting time display by GPS based time or not. Time will be displayed according to GMT time setting. (Moscow : GMT + 3) Setting value : GMT-12/GMT-11…GMT-1/ Off /GMT+1…GMT+12/GMT+13 14.2.18.
- Page 25 14.2.23. Input Car Number User can move between texts and numbers by using Up and Down buttons and can select specific text or number by pressing Select button. If user selects text or number, the cursor moves the next column automatically. If you enter car number, the number will be indicated on the recording screen.
- Page 26 Recording time (Driving) : 3min Loop recording (Event) : On GPS connection announcement : On GPS based time : GMT+3 Time stamp : On Speed stamp : On Speed stamp under 100Km/h : On Screen saver : On Language : Russian Auto mute : On Speed limit for Radar Alert : 60Km Voice : On...
- Page 27 Each settings of Detection are as follows. 14.3.1. Auto mute At AutoMute On, the volume level will be decreased 50% in 6 seconds after starting Radar Alert. Setting value : On/Off 14.3.2. Speed limit for radar alert In case car speed is lower than set speed, there will be no radar alert or Voice but just display. Setting value : Off/10km/20Km…../130Km 14.3.3.
- Page 28 14.4. PLAY X-COP 9000 can see the recorded videos on the high-definition LCD directly by this PLAY function. Select PLAY icon at the Menu and the following screen will be appeared. - Select “Event” and you can see the videos of Event.
- Page 29 Unlock : Press the Up button for 2 sec. (In case of locked video file) - “Do you want to unlock the file? (Yes or No)” 14.4.2 Deleting the locked file If user wants to remove the file (Press the Down button) the warning message would be shown as follows - “This video file is locked.
-
Page 30: X-Cop Player
15. X-COP Player X-COP 9000 can play the recorded videos at PC by using a PC Player program and can change the setting value as well. 15.1. X-COP Player installation 15.1.1. Install the file “X-COP Player.exe” after downloading it from web. - Page 31 20.1.2.2. the installation processes are as follows. ○ ○ ○ ○ ○ ○ ○ ○...
- Page 32 ○ ○ ○ ○ 15.2. X-COP Player screen Please click the X-COP Player ICON at the basic screen for the program start. The basic screen of PC Player is as follows.
- Page 33 X-COP Player’s each screen is as follows. ① Current playing video. ② G-Sensor value & Latitude, Longitude, Heading angle during driving. ③ The status of PLAY. ④ Controlling the PLAY. Click icon and then choose the SD Card Drive and then the video list inside of SD card will be appeared at right top side.
- Page 34 15.3. Screen setting Click the icon at the right top side and the setting screen will be appeared. At the setting screen, you can change each setting value. Click “OK” button after changing to the value that you want and the setting value will be saved. The end.
