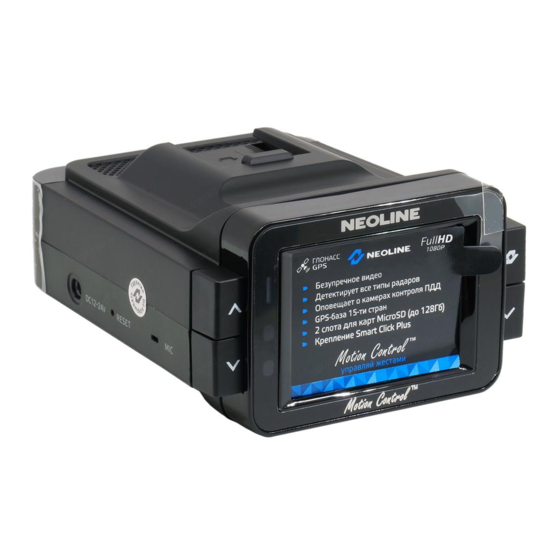

Neoline X-COP 9100s User Manual

Radar detector and dvr hybrid

Hide thumbs

Table of Contents

Quick Links

Dear customer!

Thank you for purchasing Neoline X-COP 9100s radar detector and

DVR Hybrid. Please read this manual carefully and all through to

ensure proper use and longer service life of the device. Please keep

the manual for future reference.

[ Content ]

[ Operation Conditions ] ...................................................................... 2

[ Brief description ] ................................................................................. 4

[ Features ] .................................................................................................. 6

[ Specifications ] ....................................................................................... 8

1. DVR Specifications ............................................................................ 8

2. Radar detector specifications ....................................................... 8

3. GPS specifications............................................................................. 8

4. General characteristics.................................................................... 9

[ Equipment ] ...........................................................................................10

[ Installation ] ..........................................................................................11

1. Mounting .........................................................................................11

2. Connecting the power cable ....................................................13

[ Main functions ] ..................................................................................16

1. Buttons and keys description ...................................................16

2. Turning the device on/off ..........................................................18

3. Display ..............................................................................................20

4. Z-signature filter ............................................................................27

5. Parking Mode .................................................................................28

6. Motion Control

7. Firmware Updating ......................................................................32

8. Formatting micro SD memory card .......................................35

9. Radio module operation ............................................................36

10. Operation of GPS/GLONASS modules .................................38

11. Emergency recording mode ...................................................43

12. Setting .............................................................................................43

13. Configuring the Setup File .......................................................66

...........................................................................31

Table of Contents

Need help?

Do you have a question about the X-COP 9100s and is the answer not in the manual?

Questions and answers

Summary of Contents for Neoline X-COP 9100s

Page 1: Table Of Contents
Dear customer! [ Content ] [ Operation Conditions ] ..............2 Thank you for purchasing Neoline X-COP 9100s radar detector and [ Brief description ] ................. 4 DVR Hybrid. Please read this manual carefully and all through to ensure proper use and longer service life of the device. Please keep [ Features ] ....................
Page 2: [ Operation Conditions ]
6. Handle the device with due car; avoid dropping/crushing the device. 7. To avoid accidents, please, never do anything to the device while driving. 8. Before cleaning the car interior, remove X-COP 9100s to avoid a cleaner on it, as this can change its appearance or even impair its performance.
Page 3 19. Please, format the micro SD card every two months to avoid damages to the file system. 20. Recharge the battery every two months when the X-COP 9100s is not used for a long time. 21. The built-in battery is designed for the correct completion of video recording. Recording video when in parking or in a normal mode is only possible when there is an external power source.
Page 4: [ Brief Description ]
[ Brief description ] Neoline X-COP 9100s is the world’s first hybrid adjusted for the radars used in Worldwide. The device is intended to ensure your driving safety. Most of the police radars and police posts equipped with radar systems are located on busy city roads or country highways where speed limits usually apply;...
Page 5 Neoline X-COP 9100s is the world’s first hybrid able to detect even the “phantom” Multa Radar CD and CT system. This type of radar is widespread in Europe and starts spreading in Russia now in 2018. These radars show a unique signal structure, so their detection requires special tools.
Page 6: [ Features ]
[ Features ] Easy operation • Motion Control ™ • Neoline Easy Touch interface • Ergonomics • Smart Click Plus mounts allowing active charge • Backup video files copy to a secondary SD card • Quick access to main settings and functions through the main screen menu •...
Page 7 • Global GPS database of police radars (Russia, Europe, USA, Israel, CIS, Turkey, Middle East, Australia etc.); see the complete list at neoline.com. • Notification on nearby traffic cameras orientation (bus lane, “following”, intersection, roadside, crosswalk) • Smart processing instant and medium speed control cameras (Cordon-Temp, Skat-Rif, Strelka Plus, Avtouragan -VSM, Vocord Cyclop) •...
Page 8: Radar Detector Specifications
• Demo mode • Made in Korea Clear and natural looking video: • Realistic and clear video as detailed as possible in the day or at night. • Smart anti glaring • Bright and contrast image on the Hybrid screen •...
Page 9: [Specifications]
• Protection of the car battery: hybrid is disabled when the battery voltage drops below the set threshold • Voice prompts in Russian, English, Lithuanian • Memory card formatting • Software version [Specifications] 2. DVR Specifications 3. GPS specifications - GPS module: MK-120G (U-BLOX8) - Ultra-X and Ultra-K bands - Antenna (18mm*8mm) - K band (24.150GHz +/- 100MHz)
Page 10: [ Equipment ]
2) Mounted with 3M adhesive tape on the Smart Click Plus rack with active charger 3) Power cable to car outlet (DC12V ~ 24V) 4) Power cable to the Neoline Fuse Cord 3 pin on-board network (DC12V ~ 24V) 5) Fasteners for power cable (8 pcs)
Page 11: [ Installation ]
[ Installation ] 1. Mounting 1.1. Recommended position Position the device so that it is in the center of the windshield and slightly below the rear view mirror (so that the display is not covered). See example at the picture. So installed, the device takes up a minimum of the windshield space, does not obstruct the road view and locates close to the driver.
Page 12 - Take the Smart Click Plus windshield mount on 3M scotch tape from the box. - Insert the free end of the fastener into a special opening on the top of the X-COP 9100s. - Select the mounting location on the windshield.
Page 13: Connecting The Power Cable
2. Connecting the power cable 2.1. Cigarette lighter power cable An installation example for the power cable shown on the picture is as the safest, since the driver’s view is unob- structed. The special fastening elements for the power cable that are included in the kit will help to fix the cable in this way. Car outlet (cigar socket)
Page 14 2.2. On-board network power cable Route the power cable to the fuse block as the diagram below shows. Connect the power cable to the fuse box in accordance with the instructions: - Connect the BATT (+) power cable to the circuit providing stable 12V voltage. - Connect the ACC cable to the power circuit (ignition).
Page 15 2.3. Power cable to on-board network connection example...
Page 16: [ Main Functions ]
1.1. On/Off key «Reset» - When you start the car engine, the X-COP 9100s turns on automatically, provided it is connected to the on-board lighter. To turn the device on/off manually, press and hold the ON/OFF key for 2 seconds.
Page 17 1.2. Up and Down keys - Press the Up or Down key to adjust the volume while the device is turned on. - Press the Up or Down key when in Menu mode to switch between the parameters. - Press and hold the button for 2 seconds in Menu mode to move to a new page or return to the previous page. - Press and hold both the Up and Down keys for 2 seconds to turn the radar module on or off completely (in case the RD component needs to be removed).
Page 18: Turning The Device On/Off
2. Turning the device on/off. When you start the car engine, X-COP 9100s turns on automatically. For manual switch, press and hold the On/Off key for 2 seconds. When the device is turned on, the Neoline logo appears on the display.
Page 19 (Standard mode) (Display with logo) X-COP 9100s turns off when the user turns off the car engine or holds the ON/ OFF key for 2 seconds.
Page 20: Display
3. Display 3.1. Description of Standard mode icons The display shows the status of the device and the active settings. Standard mode 1) Current speed Displays the current vehicle speed 2) GPS/GLONASS indicator Displays connection to satellites status (GPS/GLONASS (GPS / GLONASS connected) disabled) 3) Time...
Page 21 Description of the modes: - CITY MODE Lower sensitivity when detecting police radars. Significant reduction in false signals from such sources as: • dead zones sensors • sliding doors with motion sensors • base stations of cellular networks • traffic sensors, •...
Page 22 (used in Russia, CIS, and Europe) and KA –band radars (widely distributed in Europe, Israel) at the maximum possible distance. Perfect combination with Turbo mode; longest detection range; detects even low-capacity “followers”. Neoline’s knowledge. Common detector “face-to-face”, Ka and K...
Page 23 Common detector K and Ka “followers “ EXD Plus +130 % detection range *Possible maximum distance gain in comparison with a conventional detector. X-COP MODE Automatic selection of frequency bands, sensitivity modes (City/Motorway) and false positive filters based on the vehicle speed.
Page 24 5) Video recording and battery charge indicator Indicates current recording status and battery charge level. When video is recording at the moment, the icon flashes. In case no Micro SD memory card is inserted, the icon is not displayed. 3.2 Quick Menu (hold down Menu button for 2 seconds) (Danger Zone) (False Zone) (Microphone)
Page 25 Danger Zone and Silent Zone A Dangerous Zone is a zone that requires your special attention. For example, a section of bumps, a school, a busy intersection, a quick ambush, etc. Adding a Danger Zone Press Select; when a confirmation message appears, press Select again. A Danger Zone is now added. (You can add no more than 400 Danger Zones).
Page 26 Silence Zone A Silence Zone is a zone where broadband signals (so-called false signals) are detected, but where there are no police radars. Such zones are found at gas stations and shops with automatic doors. ATTENTION: When you are in Silence Zone, there are no incoming signals, except for GPS notification. Adding a Silent Zone When a signal is detected, press Select;...
Page 27: Z-Signature Filter
A warning note on no memory card appears followed by two beeps. 4. Z-signature filter A unique technology developed by Neoline to reduce the number of false positives. It timely recognizes and blocks false positives from such dead zone sensors as: “Blind Spot Monitoring”, “Side Assist”, “Blind Spot Detection”, etc.
Page 28: Parking Mode
The essential difference of this technology from other signature technologies is that using a Z-Signature Filter affects NO real police radars, such as: KRIS-S and KRIS-P stationary and mobile complex ARENA stationary and mobile complex KRECHET complex registering violations of the traffic rules Cordon Photoradar Complex We recommend you to activate this mode when driving in densely populated areas.
Page 29 When connected via a cigarette lighter socket: - The power cable must be connected to a Smart Click Plus mount or to an X-COP 9100s device and to the car outlet. - The cigarette lighter socket must have a constant voltage, even after the engine is turned off.
Page 30 Connection via Fuse Cord 3 pin cable. - The cable must be connected according to the diagram in Section 1.4 hereof; besides, it must be connected to an X-COP 9100s device. - Set G-sensor and/or motion sensor sensitivity in Parking mode.
Page 31: Motion Control
6. Motion Control Motion Control is a patented technology of gesture recognition to turn off the voice and sound warning while approaching the police radar. You can simply hold a hand in 10-15 centimeters from the device and the sound will be turned off with a special sound signal.
Page 32: Firmware Updating
1) Go to www.neoline.com. 2) Go to the “Updates” section 3) Select NEOLINE X-COP 9100s in the Hybrids category. 4) Select the latest GPS database and firmware to download from the drop-down list (if applicable). 5) Connect the memory card to the computer.
Page 33 The GPS Database file format must be: .db. - For example: “X-COP9100s Baza_GPS_Neoline_20.04.18.db” 7) Disconnect the updated memory card and insert it into the X-COP 9100s memory card Slot 1. 8) Turn on the X-COP 9100s. 9) Open the menu and go the “Firmware Upgrade” section...
Page 34 10) The screensaver appears and updating begins. 11) If no firmware file is found, the proper message appears: “Firmware file not found”. 12) Hybrid X-COP 9100s shut downs automatically as soon as the update is complete.
Page 35: Formatting Micro Sd Memory Card
8. Formatting micro SD memory card When the memory card is formatted, all its data are deleted. Make sure that you have saved your important data elsewhere. We recommend you to format the memory card once in 2 months to ensure stable operation. Please, follow the instructions below: 1) Press Menu –...
Page 36: Radio Module Operation
Standard police radars operate within the X, K, Ka, Laser frequency bands. Besides, X-COP 9100s distinguishes the following bands: - Strelka (or Arrow in Eng.) for the detection of nearby police Strelka radars - M-band for the detection of Multa Radar CD, CT, CD moving ra...
Page 37 9.2. Display shows as follows: The detected radar signals are distributed by strength/power; the stronger the signal, the more intensive the audio. Neoline X-COP 9100s notifies of any detected radars with voice announcement and message on the screen. Level Notification 0.15...
Page 38: Operation Of Gps/Glonass Modules
X-OP 9100s is equipped with GPS / GLONASS modules and a database of police radars and cameras all over the world (Russia, Europe, USA, Israel, CIS, Turkey, Middle East, Australia etc.). Please, see the complete list at www.neoline.ru. Since the database is constantly developed, you may look for details at www.neoline.com.
Page 39 10.2. Information on the detected police radars X-COP 9100s makes an audio and voice notifications of the police radar, and displays the information to indicate: - Type of the radar or camera - Type of traffic control, if any - Distance to the radar/camera...
Page 40 FINE IS COLLECTED. Examples of such cameras are Avtodoria, Strelka-PLUS X-COP 9100s detects such camera; it processes this system as follows: Displaying the distance to the 1st camera and voice notification After passing camera 2, the distance to camera 2 is displayed.
Page 41 When you pass the camera 2, a voice announcement will be made about the end of video monitoring When you leave the section of the road between two cameras, X-COP 9100s will send you the warning about the camera of average speed...
Page 42 10.4. Types of control cameras Many police cameras can be configured to control traffic rules. Type of traffic control Display notification Control of the bus-only lane The OT lane Traffic lights or intersection Intersection control Control of the passage of a Crosswalk pedestrian crossing Roadside control...
Page 43: Emergency Recording Mode
11. Emergency recording mode Set the sensitivity value for the G sensor. When the G-sensor triggers (sudden acceleration, impact, flipping, tossing on road irregularities, etc.) in the recording mode of 10 sec. video before the event and 50 seconds after it, this will be automatically saved in the “EVENT”...
Page 44 12.2. Video Settings Functionality: • Select Button is used to select or confirm any setting • Up / Down buttons mean go to another setting / mode • Menu means go back to menu...
Page 45 Sets the video resolution Values: 1920*1080 (Full HD)/1280*720 (HD) Audio Records sound during X-COP 9100s operation Values: On/Off Video quality Sets the quality settings (bit transfer rate). The higher the bitrate, the better the quality; yet, the video size also increases.
Page 46 Contrast Sets image contrast. Values: 1 ~ 5 Image brightness Sets the image brightness. Values: -2.0 ~ +2.0 The Wide Dynamic Range (WDR) function provides a balanced image by color and light in difficult conditions - with back- lighting and intensive changing lighting. This is especially important when entering/leaving the tunnel, in bright direct sunlight, etc.
Page 47 Values: OFF, 1, 2, 3, where THE LEAST MEANS THE MOST SENSITIVE Parking mode Sets the period of time after which the X-COP 9100s switches to the Parking mode, if the car does not move (the engine must be ON).
Page 48 Date & Time Sets the current date and time if the GPS Time Sync function is turned off. Date & Time Stamp ON: Date/Time will be recorded to the video file in the lower right corner. OFF: Date/Time will not be recorded Speed Stamp ON: The current speed will be recorded to the video file in the lower right corner.
Page 49 Night mode Night mode sets the time at which the night mode of video shooting will turn on. In the night mode, more noise will be present on the video, but at the same time, more details in unlit sections of the road or roadside are detected. Enter the number of your car that will be displayed on the video.
Page 50 Language: - Movement sensor (parking): 3 Select one language: Russian, English or Lithuanian - Parking mode: 5 min - Recording time: 1 min Default settings - Cyclic recording (Event): ON Reset all values to the factory settings, depending on the - Voice notification on satellites: ON region you select - Time zone: GMT +3...
Page 51 - Voce: ON Frequency response matching: - Sound: ON - World: World - GPS notifications: ON - Europe: Europe - RD notifications: ON - The Baltic: Baltic - GPS Priority: ON - Russia: Russia - Auto turbo: 90 km/h - CIS: CIS - Silence Zone Radius: 100 m - Israel: Israel - Danger Zone Radius: 600 m...
Page 52 - Russia: OFF Strelka Radars: - CIS: OFF - World: OFF - Israel: ON - Europe: OFF - USA: ON - The Baltic: OFF Laser: ON - Russia: ON Strelka: - CIS: ON - World: OFF - Israel: OFF - Europe: OFF - USA: OFF - The Baltic: OFF Permanent radars and cameras: ON...
Page 53 12.3. Detection settings Auto muting When the parameter is turned on, the volume of the sound and voice notification will be reduced by 2 times in 6 seconds after the start of notification. Values: On/Off GPS without sound up to… If the speed of the vehicle is below the set value, the voice and signal alerts about radars on the GPS base will NOT be produced.
Page 54 Sounds Signal alerts for radars and cameras in the GPS database Values: On/Off GPS notifications Enable/disable of the GPS module notifications Values: On/Off RD notifications Enable/disable of the RD module notifications Values: On/Off GPS Priority This function is necessary to escape double signaling when detecting radars by both GPS and RD modules. While in both modules have their own special sounds and voice alerts when they detect smth.
Page 55 Priority GPS OFF When the function is turned off, the priority of the alert is given to points in the RD module. If the RD module detects radar, and at the same time, the device detects this point with the GPS database, the notification from the GPS database will only be on the display.
Page 56 Maximum speed If the vehicle speed is higher than the set value, an overrun warning signal will sound. This function is not bound to the GPS database and functions separately from the detection of police radars. It will help you not to exceed your own set speed threshold. Values: Off / 80 km /h / 90 km/h ...
Page 57 Passing-by notification When you pass the camera a characteristic audio alert will sound from GPS. Values: On/Off Z-signature Filter Timely recognizes and blocks false triggering from the sensors of the dead (Blind) Car Zones and maximizes the number of other false positives in the K-band. Values: On/Off Ka-filter Timely detection and blocking of false alarms in the Ka-band.
Page 58 User settings (by Setup file) ATTENTION: PRO1 and PRO2 settings are recorded in a file “Setup.xml”. This file is located on the micro SD memory card. “Setup.xml” is automatically created on the micro SD memory card when connected to the X-COP 9100s.
Page 59 К Selection of frequencies within the K-band Values: Off / Super Narrow / Narrow / Super Super narrow 24.110 - 24.125 GHz To minimize the most number of false positives. ATTENTION: It is recommended to those who are aware of the frequencies in which police radars operate in a region of the device use.
Page 60 М-band A separate band for notification about the Multa Radar CD and CT radar systems. These radars show a unique signal structure, so their detection requires special tools. For the convenience of the user, we have separately allocated the M-band, so that the user is informed of this radar detection. Values: On/Off Ka-band Frequency 34.70 GHz +/- 1300 MHz...
Page 61 Delete all custom coordinates By clicking OK key-button you will delete all the coordinates that were manually set to the device (the GPS database downloaded from www.neoline.ru will not be affected). Demo mode Starts the demonstration mode of the radar unit and GPS alerts...
Page 62 12.4 Viewing a Record You may view video files directly on the device. Please, go to a Viewing Record section of the X-COP 9100s menu and select the memory card you want to watch the recording on. - In the Emergency Recording section, you will find video files that were recorded while the G-sensor was operating.
Page 63 *The Second Memory Card is the place of important files storage, which you can copy from the First Main Memory Card to ensure the safety of the important information. You can view / pause / scroll forward, backward, and delete a video while viewing the record.
Page 64 Video Files Locking The lock function will save the selected file from overwriting. Please, hold the Up button for 2 seconds You will see the message: “Do you want to lock the file?” (Yes or no)” Unlocking: Press the Up button for 2 seconds (In case the file is locked) You will see the message: ““Do you want to unlock the file?”...
Page 65 Limited number of locked files A restriction on the number of locked files is introduced to ensure the stable operation of the device. If you exceed limit, a warning note will appear: The number of locked files exceeds the limit. Please check the SD Card. Second memory card (Backup copy of video files) You can save backup copies of video files from memory card 1 to memory card 2.
Page 66: Configuring The Setup File
The Setup file is located on a Micro SD Memory Card. The Setup.xml file is automatically created on the micro SD memory card when connected to the X-COP 9100s. The Setup.xml file is hidden; and you need to show hidden files and folders in your operating system for its detection.
Page 67 Setup File These settings allow you to configure the device thoroughly to your requirements. You can set func- tions in the Setup file, namely: • Basic settings (video quality) -  • Time zone settings -  •...
Page 68 • Setting the adjustment for the input voltage measurement and its normal value as 12 V or 24 V (it is necessary in case of incorrect shutdown due to any power supply voltage drop to the pre-set threshold)  •...
Page 69 In the Setup file, this setting looks as follows: <item value=”SET” name=”bandSelection”/>   By selecting the setting of PRO1 or PRO2, the user can customize all the menu functions, including even individual frequencies of K-bands: <item value=”WIDE”...
Page 70 (Freq. 34.800 ~ 35.160GHz) --> <item value=”false” name=”rdKaNarrow7”/>  <item value=”false” name=”rdKaNarrow8”/>  <item value=”false” name=”rdKaNarrow9”/>  <item value=”false” name=”rdKaNarrow10”/> Thank you for choosing Neoline products!
