User's Manual of X-COP 9100
[ X-COP 9100 Introduction]
-

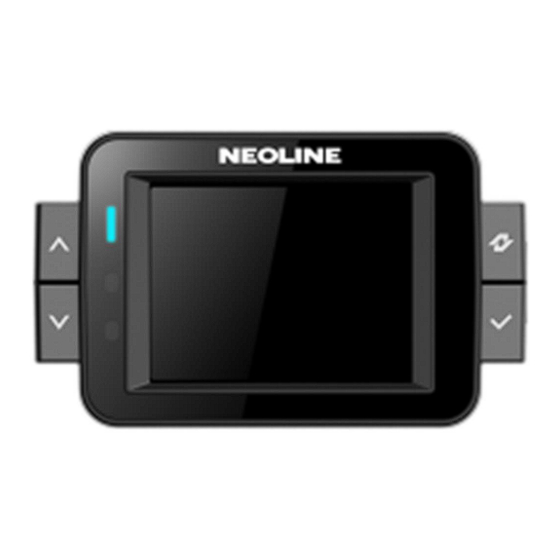

X-COP 9100 is high performance GPS Radar Detector with Full HD Black Box specially designed and optimized
for Russian market, which receives the signals of X, K, Ka, Laser, Strelka bands and GPS & Glonass signal
effectively.
-
X-COP 9100 uses the Ambarella A7 Chip for Black box which is the up to date technology so that a high resolution
video recording is always available.
-
X-COP 9100 uses IMX322 which is an image sensor with high quality made by SONY; especially it shows very
good quality at nighttime video.
-
2.0 inch IPS LCD helps user to see the video easily and the Radar and GPS alert screen effectively.
-
The GPS & Glonass module is equipped so that it catches the fixed and moving speed cameras in addition to
Radar signal detection and gives an exact warning to driver effectively.
-
X-COP 9100 has a special feature as "Motion Control
-
Before using X-COP 9100, please read the method of use as follows.
Contents
[ Features ] ....................................................................................................................................................................... 2
[ Specifications ] ............................................................................................................................................................. 3
1.
Car Blackbox specifications ............................................................................................................................ 3
2.
Radar specifications ......................................................................................................................................... 4
3.
GPS specifications ......................................................................................................................................... 4
4.
Characteristics .................................................................................................................................................. 4
[ Devices & Accessories ]............................................................................................................................................... 5
[ Installation ] ................................................................................................................................................................... 6
1.
Mounting ............................................................................................................................................................ 6
2.
Power cable installation ................................................................................................................................... 7
[ Operation ] ..................................................................................................................................................................... 8
1.
Buttons .............................................................................................................................................................. 8
2.
Power On and Off. ............................................................................................................................................ 9
3.
All time display (Normal Screen) .................................................................................................................. 91
4.
Parking mode ................................................................................................................................................ 134
TM
" which controls mute on/off function by hand gesture.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-COP 9100 and is the answer not in the manual?

Questions and answers

Related Manuals for Neoline X-COP 9100

Summary of Contents for Neoline X-COP 9100

  • Page 1: Table Of Contents

    Russian market, which receives the signals of X, K, Ka, Laser, Strelka bands and GPS & Glonass signal effectively. X-COP 9100 uses the Ambarella A7 Chip for Black box which is the up to date technology so that a high resolution video recording is always available.

  • Page 2: [ Features ]

    Motion Control operation ........................135 Mute ................................146 Auto mute ..............................146 Voice On/Off ..............................146 Beep On/Off ..............................146 10. Radar band On/Off ............................146 Firmware upgrade ..................Error! Bookmark not defined.6 Sd card format ................... Error! Bookmark not defined.8 Radar alert ..............................

  • Page 3: [ Specifications ]

    5 Buttons (Power On/Off Button, Up, Down, Menu, Select Button) Electrical Volume Control(9-Levels) 3-Axis G-sensor & Motion detection sensor Support Russian and English text Support video play on LCD display Updateable Blackbox Firmware / Database and Radar Firmware “Motion Control ”...

  • Page 4: Radar Specifications

    Recording frame : 30fps Driving recording time : recording 1 minute, 2 minute, 3 minute, 5 minute Event recording time : before 10 seconds ~ after 50 seconds, total 1 minutes Storage : Micro SD Card (SDHC 2GB ~ 32GB, SDXC : 128GB) 3-Axis G-Sensor 2.

  • Page 5: [ Devices & Accessories ]

    [ Devices & Accessories ] The following items are included in the packaging. ① X-COP 9100 unit ② Wind-shield mounting holder with suction-cup - Optional ③ Wind-shield mounting Power holder with 3M Tape ④ Cigarette power cord (DC12V ~ 24V) ⑤...

  • Page 6: [ Installation ]

    This Power holder is specially designed to have a power circuit inside the holder. So, user can connect the power jack to the holder directly. That is, user can attach and detach X-COP 9100 unit itself easily.

  • Page 7: Power Cable Installation

    Power cable installation 2.1. Cigarette power cord The following installation of Cigarette power cord is recommended for the cable not to disturb driver’s vision. It is helpful to use the cord clips to fix the cable during installation. All times power cable 2.2.

  • Page 8: [ Operation ]

    [ Operation ] 1. Buttons 1.1. Power Button 1.1.1. Press and hold Power button for two seconds at power off condition and it becomes power on. 1.1.2. Press and hold Power button for two seconds at power on condition and it becomes power off. 1.2.

  • Page 9: Power On And Off

    (LOGO display) (Normal screen) 2.2. X-COP 9100 will power Off when user turns off the car engine or presses the power button for two seconds. 3. All times display (Normal Screen)
  • Page 10 Frequently using icons and the status of GPS and Recording are indicated on Normal Screen. No. ① : Speed display It shows the current car speed. No. ② : GPS status It shows the GPS connection/disconnection status. (GPS Connection) (GPS Disconnection) 3.1.
  • Page 11 3.2.1.1. Turbo mode : Fullest sensitivity 3.2.1.2. Highway mode : Full sensitivity 3.2.1.3. City mode : Sensitivity 20dBm down from Highway mode 3.2.1.4. X-COP mode 0Km ~ 30Km : City Mode & Radar voice and alert sound Off 31Km ~ 60Km : City Mode 61Km ~ 90Km : Highway Mode 91Km ~ : Turbo Mode...
  • Page 12 3.4.1.2. User location Delete During User location alert, press menu button and the pop-up message “Пользовательская зона будет удалена. Вы уверены?” will be appeared. And then press again select button “Yes” and the user location will be deleted. 3.4.2. No (b) : Silence zone (Silence zone) During radar alerts, press Menu button and the pop-up message “Добавить...

  • Page 13: Parking Mode

    Resolution to be able to set : 1920*1080 (real Full HD) / 1280*720(HD) Recording frames: 15fps 4.4. Power saving at Parking mode When the voltage of car battery becomes lower than 11.3V, X-COP 9100 will be power off even at parking...
  • Page 14 mode to prevent the car battery from being discharged. 5. Motion Control operation Motion control is useful feature as user can easily mute on and off by hand gesture. Whenever Radar or GPS is alerting, you can sweep (swing) your hand above front side of unit, and then alerting will be mute (or mute will be released vice versa).
  • Page 15 (For example: “X-COP9100_RD(RevM01).rd0” ) Database The file name of the Database file must be “xxxxxx.db.” (For example: “X-COP Baza_GPS_RU_EU_BY_UA_KZ_AZ_AM_Neoline_08.06.15.db”) ④ Remove the updated SD card from the PC and then insert it into the SD slot 1 of X-COP 9100 unit.
  • Page 16 ⑦ If there is no firmware file, “Файл прошивки не найден” text will be shown on the screen. The power of X-COP 9100 will be Off and then On automatically once the Firmware upgrade is completed. ⑧ 12. SD card format If you do the SD card format, all data in the SD card memory will be deleted.
  • Page 17 уверены?” is displayed. Press Select button and “Attention! Remove all?” will be pop-up. ② Press select “Yes” and the format of SD card is completed. ③ 13. Radar alert The Radar alert display is as follows. 13.1. Band identification The following each radar band is displayed when any of radar band is detected. ( X Band ) (K Band) (KA Band)
  • Page 18 Fixed camera, Redlight camera, Redlight speed camera, Speed camera, Police post, Speed restriction, Ramp, Dangerous change of the movement direction, Dangerous cross road 14.1. Detection distance The GPS detection distance of X-COP 9100 is different according to car speed as follows. Car Speed Distance...
  • Page 19 14.2.1. X-COP 9100 will give the voice announcement for the detected GPS POI and display the alert on LCD screen at once. The Alert display on the LCD screen is composed of the image for each POI, the remaining distance to the POI, and the speed limit of the road as like the following picture.
  • Page 20 Police post “Police post” User area "User area is ahead" 15. Setting mode 15.1. How to enter into the SET mode Press “Menu” button shortly at power On condition and it enters into the Setting mode. At setting mode, settings for Video / Detection / Play / Firmware update are available. The following is the initial screen of setting mode.
  • Page 21 The explanation about each setting of Black box is as follows. 15.2.1. LCD brightness Setting value: 1 ~ 10 (bigger number is brighter) 15.2.2. LCD backlight time Setting the LCD screen to be turned off in some time in order to care for LCD screen and help driver’s view Setting value : Off (LCD is always On) / 10sec / 20sec / 30sec /1min 15.2.3.
  • Page 22 Setting the G-Sensor sensitivity during driving. Setting value : 1 ~ 10(10 is more sensitive) 15.2.11. Sensitivity(Parking) Setting the G-Sensor sensitivity at Parking mode. Setting value : Off/1~3(3 is more sensitive) 15.2.12. Motion detection(Parking) Setting the Motion detection sensitivity at Parking mode. Setting value : Off/1~3 (3 is more sensitive) ※...
  • Page 23 Time will be displayed according to GMT time setting. (Moscow : GMT + 3) Setting value : GMT-12/GMT-11…GMT-1/ Off /GMT+1…GMT+12/GMT+13 15.2.18. User date/time Setting the time display by user. If the GPS based time is Off, User date/time is applied. 15.2.19.
  • Page 24 User can move between texts and numbers by using Up and Down buttons and can select specific text or number by pressing Select button. If user selects text or number, the cursor moves the next column automatically. If you enter car number, the number will be indicated on the recording screen. 15.2.24.
  • Page 25 Speed stamp : On Speed stamp under 100Km/h : On Screen saver : On Language : Russian Auto mute : On Speed limit for Radar Alert : 60Km Voice : On Beep : On GPS alarm : On Radar alarm : On GPS Priority : On Radius of silence zone : 200m Radius of User Area : 600m...
  • Page 26 Each settings of Detection are as follows. 15.3.1. Auto mute At AutoMute On, the volume level will be decreased 50% in 6 seconds after starting Radar Alert. Setting value : On/Off 15.3.2. Speed limit for radar alert In case car speed is lower than set speed, there will be no radar alert or Voice but just display. Setting value : Off/10km/20Km…../130Km 15.3.3.
  • Page 27 15.3.10. Silence mode speed setting If car speed is lower than set level, alert voice and beep of Radar/GPS detections are disabled. (Only GPS alert display is enabled.) If car speed is higher than set level, the alert voice, beep and display are enabled. Setting Values: OFF / 0Km / 10Km / 20Km…130Km 15.3.11.
  • Page 28 Setting value : On/Off 15.4. PLAY X-COP 9100 can see the recorded videos on the high-definition LCD directly by this PLAY function. Select PLAY icon at the Menu and the following screen will be appeared. - Select “Event” and you can see the videos of Event.
  • Page 29 During the video playing, PAUSE/PLAY/FORWARD/REWIND functions are available and you can delete the video on playing. 17.4.1 Locking the Video file LOCK : Press the Up button for 2 sec. - “Do you want to lock the file? (Yes or No)” Unlock : Press the Up button for 2 sec.
  • Page 30 16. X-COP Player X-COP 9100 can play the recorded videos at PC by using a PC Player program and can change the setting value as well. 16.1. X-COP Player installation 16.1.1. Install the file “X-COP Player.exe” after downloading it from web.
  • Page 31 ③ ④ ⑤ ⑥ ⑦ ⑧ ⑩ ⑨ ⑪ ⑫...
  • Page 32 16.2. X-COP Player screen Please click the X-COP Player ICON at the basic screen for the program start. The basic screen of PC Player is as follows. X-COP Player’s each screen is as follows.
  • Page 33 Current playing video. ① G-Sensor value & Latitude, Longitude, Heading angle during driving. ② The status of PLAY. ③ Controlling the PLAY. ④ Click icon and then choose the SD Card Drive and then the video list inside of SD card will be appeared at right top side.
  • Page 34 The end.
