2.1 System Installation Plan
2.1.1System Installation Plan 1（Standard）

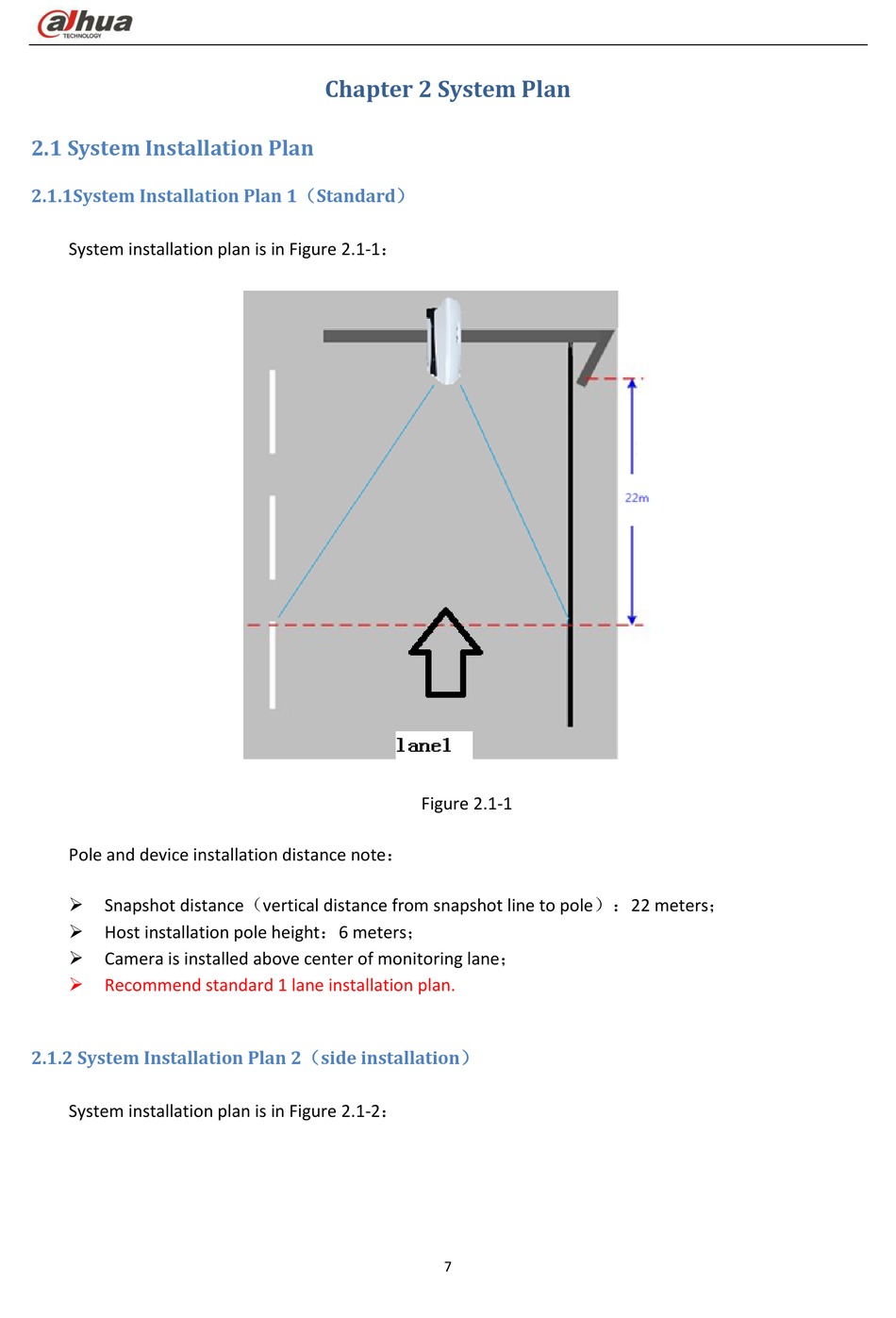

System installation plan is in Figure 2.1-1：
Pole and device installation distance note：
Snapshot distance（vertical distance from snapshot line to pole）：22 meters；
Host installation pole height：6 meters；
Camera is installed above center of monitoring lane；
Recommend standard 1 lane installation plan.
2.1.2 System Installation Plan 2（side installation）
System installation plan is in Figure 2.1-2：
Chapter 2 System Plan
