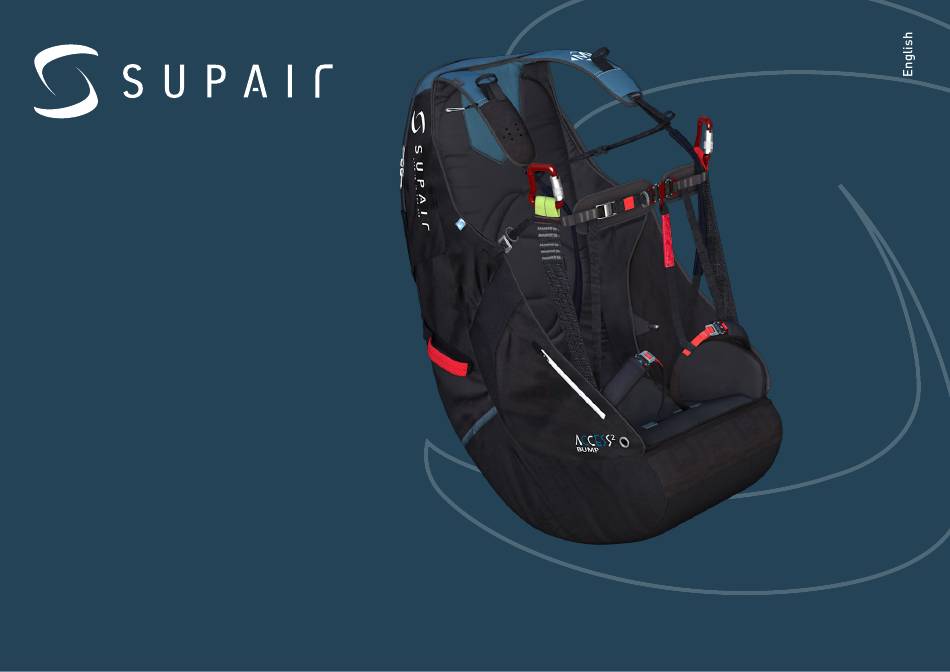

- Page 1 ACCESS 2 BUMP SUPAIR SAS PARC ALTAÏS 34 RUE ADRASTÉE 74650 ANNECY CHAVANOD User’s manual FRANCE RCS 387956790 Revision index : 02/04/2020...
- Page 2 Harness User’s manual | ACCESS 2 BUMP hank you for choosing the ACCESS2 BUMP. We are glad to be able to share our common paragliding passion with you. SUPAIR has been designing, producing and selling free flying equipment since 1984. By...
-
Page 3: Table Of Contents
Harness User’s manual | ACCESS 2 BUMP LIST OF CONTENTS Introduction Flight phases Technical specifications Pre-Flight check Size choice Take-off Nomenclature In flight Harness Overview Speed-bar use Accessories assembly Landing Seat plate Using the reserve parachute Carabiners Towing Mini Bump... -
Page 4: Introduction
Welcome to the world of paragliding according to SUPAIR, a world of shared passion. The ACCESS 2 BUMP harness is designed for all for all flying enthusiasts no matter their level. The well though-out design and choice of materials were guided by the same quality and durability objectives. -
Page 5: Technical Specifications
Harness User’s manual | ACCESS 2 BUMP TECHNICAL SPECIFICATIONS Harness size Pilot size (cm) 155-170 170-185 180-195 190-205 Pilot weight (mini - maxi) (kg) 55 - 75 65 - 85 70 - 100 80 -120 Harness weight (+ carabiners+speedbar)(kg) 4135... -
Page 6: Size Choice
“lying flat” flying position, we advise you to try out the harness under a hanging device at one of our retailers in order to choose the correct size. For a complete list of our retailers, please click here : www.supair.com Size... -
Page 7: Nomenclature
Harness User’s manual | ACCESS 2 BUMP COMPONENTS LIST Harness 2x 45 mm Zicral self-locking cara- biners « AC2 » reserve parachute handle Polypropylene seat plate Bump AB2 Mini Bump 2 Options Adjustable accelerator FREESPEE (ref: ACCELFREESPEE) Solo DYNEEMA risers (réf. -
Page 8: Harness Overview
Harness User’s manual | ACCESS 2 BUMP HARNESS OVERVIEW Chest strap with automatic buckles Safe-T-bar Leg Buckles Chest strap adjustment Backrest angle adjustment Shoulder strap adjustment Reserve parachute pocket Reserve parachute handle Points d’accroche principaux Paragliding main hooking points Pulleys For speedsystem... -
Page 9: Accessories Assembly
Harness User’s manual | ACCESS 2 BUMP ACCESSORIES ASSEMBLY Carabiners Seat plate Polypropylene seat plate : Compatible carabiners : 45 mm Self-locking zicral carabiners Size S Réf. : MPPL030 Réf. : MAILCOMOUS45 Size M Réf. : MPPL031 Size L Réf. : MPPL032 Size XL Réf. -
Page 10: Mini Bump 2
Harness User’s manual | ACCESS 2 BUMP ACCESSORIES ASSEMBLY MINI BUMP 2 Compatible Mini Bump : Mini Bump 2 Ref. : PROMINIBUMP2 Mini bump assembly : Open the back storage pocket. Open the zip located at the bottom of the back storage pocket, then you’ll access to the mini bump’s space... -
Page 11: Bump
Harness User’s manual | ACCESS 2 BUMP ACCESSORIES ASSEMBLY BUMPER AB2 Compatible Bumper : Bumper Réf. : PROBUMPAB2 Bumpair assembly : Open the zip of the storage situated under the seat, then you’ll access to the bumpair space Slide the bumpair in Fasten the zip. -
Page 12: Speed-Bar
Harness User’s manual | ACCESS 2 BUMP ACCESSORIES ASSEMBLY Speed-bar system (option) Compatible speed-bar : STANDARD double stage speed-bar (Réf. : ACCELSOUPLE) Speed-bar 2B light ( ref: ACCELSOUPLELIGHT) Adjustable speed-bar FREESPEE ( ref: ACCELFREESPEE) Speedbar assembly : Regarding either side of the harness: : Pull the line through the speed-bar line guide located at the front corner of the seat plate. -
Page 13: Installing The Reserve Parachute
Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Thank you for reading the following carefully ! We recommend for the initial rescue parachute assembly and installation to be made by a qualified professional. Reserve parachute folding and installation inside the harness must conform to the specific guidelines found in this manual. -
Page 14: Parachute Risers - Harness Connection
Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Riser/Harness connection >> Access to the reserve parachute connection points. We recommend using First, open the riser guiding sleeve all the way from top to bottom to access the reserve parachute connec- “split”... - Page 15 Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Riser/Harness connection Fastening the risers to the harness with a set of 6mm square Maillons Rapides®. - Open the 6mm Mail- - Push the riser con- - Give the toric ring a...
-
Page 16: Place The Risers Inside The Sleeve
Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Place the risers inside the sleeve Push the connection points inside the Place the risers inside their guiding/protec- sleeve tive sleeve connected alongside the harness. - Pull out the folding rod from its groove... -
Page 17: Riser Connection - Reserve Parachute
Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Reserve parachute/risers One (1) square 7mm Maillon Rapide® will be needed + two (2) flexible toric rings. - Open the 7mm square - Push the two riser ends - Give a second twist to Maillon Rapide®... -
Page 18: Installing The Reserve Parachute In The Container
Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Installing the reserve parachute in its container Place the reserve parachute inside the reserve parachute poc- ket with the handle on the right side and the risers on the bot-... - Page 19 Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Installing the reserve parachute in its container - The handle should run between the Flaps 1 and 2 - Using the rod, pass the loop #1 through the gommet #2 - Pass the 2 handle’s cable throught the gommet A...
- Page 20 Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Installing the reserve parachute in its container - Then through the gommet #3 - Fix this closing passing the shorter handle’s cable into the white loop #1 - Remove the folding rod...
- Page 21 Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Installing the reserve parachute in its container - Pass the folding rod through the white lanyard loop number #5 - Using the rod, pass the loop #5 through the gommet #6...
- Page 22 Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Installing the reserve parachute in its container - Then through the gommet #7 - Finalize this closing passing the longer handle’s cable into the white loop #5. Then remove the folding rod.
-
Page 23: Locking The Reserve Parachute Handle
Harness User’s manual | ACCESS 2 BUMP INSTALLING THE RESERVE PARACHUTE Locking the reserve parachute handle Mandatory extraction test procedure Check the completed installation during a hang-test. Have the installation checked by a professional outfit. Conduct an extraction test every six ( 6 ) months to assure proper sys- tem functionality. -
Page 24: Gear Packing And Tips
Harness User’s manual | ACCESS 2 BUMP PACKING AND TIPS Tips : we have color coded the various locking buckles to help with the installation sequence and prevent beginner pilots from making mistake during harness fastening. It will also help the instructor to quickly spot any error made by the student during the pre-flight check procedure. -
Page 25: Adjustments
Harness User’s manual | ACCESS 2 BUMP ADJUSTING THE HARNESS Adjusting the harness prior each takeoff is vital. The various adjustments. Adjusting the chest strap Adjusting the backrest Adjusting the shoulder straps Leg straps adjustment ACCESS 2 BUMP | page 25... -
Page 26: Adjusting The Harness
Harness User’s manual | ACCESS 2 BUMP ADJUSTING THE HARNESS Adjusting the harness Without strap tension, first adjust the backrest incline at the desired angle. - Tightening will bring the backrest at a more vertical angle ( recommended posture for beginners ). -
Page 27: Wing/Harness Connection
Harness User’s manual | ACCESS 2 BUMP CONNECTING THE WING TO THE HARNESS Connecting the wing to the harness Without twisting the risers, connect them to the harness attachment loops using the self-locking carabi- ners. Check for the risers to be properly positioned and untwisted. The «A» risers must be located at the front and facing the flight direction (see diagram). ... -
Page 28: Inflight Behavior
The ACCESS 2 BUMP is aimed at be- ginners, pilots in progression or looking for great passive safety features (upright flying position, easy running and transition). -
Page 29: Flight Phases
Harness User’s manual | ACCESS 2 BUMP FLIGHT PHASES Pre-Flight control • Check that the harness and the carabiners are not damaged.. • Make sure that the reserve parachute safety cables to ride through the closing tabs keeping the reserve rescue pocket flaps closed. -
Page 30: In Flight
Harness User’s manual | ACCESS 2 BUMP FLIGHT PHASES In flight Once up in the air, the ACCESS 2 BUMP behaviour is stable and instinctive. Please set the distance between the two carabiners according to aerology and to the wing manufacturer’s recommendations. Speedbar use We recommend a cautious speed-bar use due to the increased risk of major partial or full frontal collapses. -
Page 31: Using The Reserve Parachute
Harness User’s manual | ACCESS 2 BUMP USING THE RESERVE PARACHUTE Throwing the reserve parachute We strongly advise you to check frequently the location of the reserve parachute handle location. To do this, we recommend that you lower your right hand following the risers. This movement should be done without looking. By doing so, you will maximize your chances of a rapid extraction if something went wrong and throwing the reserve parachute was called for. -
Page 32: In Case Of An Incident
Harness User’s manual | ACCESS 2 BUMP IN CASE OF AN INCIDENT Call for help after an accident Emergency call numbers EUROPE / INDIA Help needed? USA / CANADA CHINA / JAPAN NEPAL IRAN AUSTRALIA NEW ZEALAND Flashlight SOS :... -
Page 33: Maintenance
Harness User’s manual | ACCESS 2 BUMP CARE Harness cleaning and maintenance It is a good idea to clean your harness from time to time. We recommend using a brush and soft solvents only ( soap or mild cleaning agents ). Rinse thoroughly. -
Page 34: Repairs / Spare Parts
SUPAIR now offers an extended warranty period reaching beyond the product standard protection plan against manufacturing defects. Please contact us either by telephone or by e-mail sav@supair.com in order to receive a quotation.. -
Page 35: Warranty
WARRANTY SUPAIR takes the greatest care in its products design and manufacturing and hence offers a five (5) year limited warranty from the date of purchase against manufacturing defects or flaws occurring during normal use. Any damage or degradation resulting from incorrect or abusive use, abnormal exposure to aggressive factors, including, but not limited to;... -
Page 36: Shock Absorber
Entretien / Maintenance : 30°C If your BUMPAIR is damaged, have it inspected and repaired at a professional qualified facility or contact us at sav@supair.com The test results and the EU declaration of conformity can be found at: www.supair.com ACCESS 2 BUMP | page 36... -
Page 37: Service Book
Harness User’s manual | ACCESS 2 BUMP SERVICE BOOK This page will help you keep record of your ACCESS2 BUMP scheduled maintenance. Care Care Purchase date Resale Resale Owner’s name : Date Date Name and stamp of the shop : Workshop’s name/ Buyer’s name... - Page 38 SUPAIR-VLD Parc Altaïs 34 rue Adrastée 74650 Chavanod, Annecy FRANCE info@supair.com +33(0)4 50 45 75 29 RCS 387956790...
