Summary of Contents for SUPAIR ALTIRANDO 3

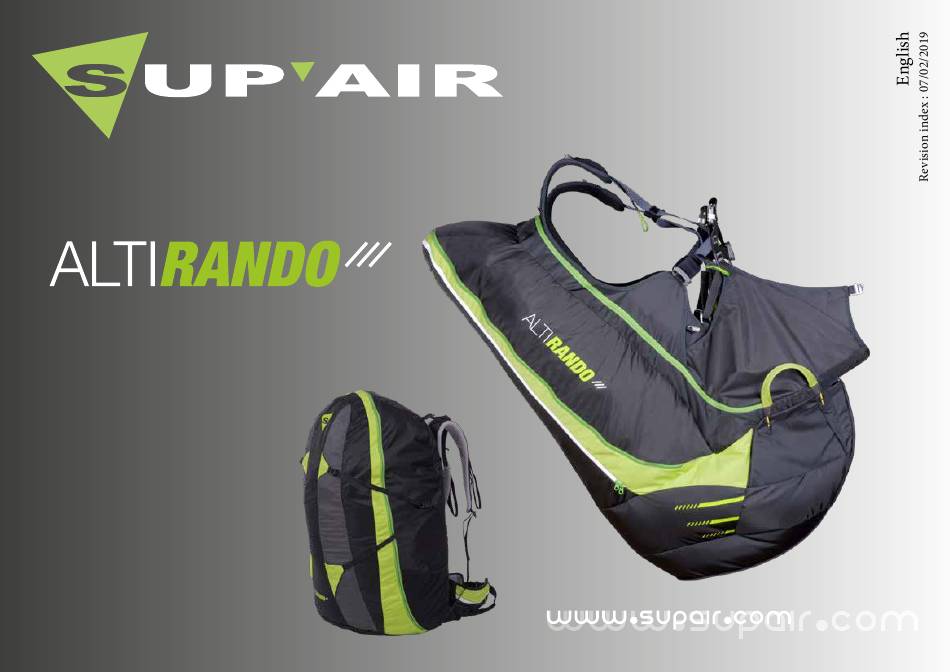

- Page 1 User’s manual Harness SUP’ A IR - VLD 34 rue Adrastée Parc Altaïs 74650 Annecy - Chavanod FRANCE 45°54.024’N / 06°04.725’E...
- Page 2 We advise you to read it carefully. You will find the lastest udated information about this product on our website www.supair. com. If you have further inquiries, feel free to ask one of our retailers for answers. And natu- rally, the entire SUP’...
-
Page 3: Table Of Contents
Harness User’s manual List of contents Introduction Inflight behavior Technical specifications Flight phases Size choice Pre-Flight check Components list Takeoff Equipment overview In flight Accessories assembly Speed-bar use Carabiners Landing Seat-plate Using the reserve parachute Speed-bar system Towing Foot-rest Mandatory thorough checkup Installing the reserve parachute Maintenance Necessary equipment... -
Page 4: Introduction
Harness User’s manual Introduction Welcome to the paragliding world according to SUPAIR; a world of shared passion. The ALTIRANDO3 targets enthused pilots of all levels. It was designed with schooling and fun in mind to provide full comfort and a worry free learning curve. -
Page 5: Technical Specifications
Harness User’s manual Technical specifications Backrest height. Backrest tilt adjustments. Seat depth. Seat length Hooking point height. Length between the hooking points. Harness size Characteristics Pilot size (cm) 155 -175 170 -185 180 -195 190 - 205 Pilot weight (mini - maxi) (kg) 60 - 80 65 - 85 70 - 100... -
Page 6: Size Choice
For a complete list of our retailers list click here : www.supair.com Size... - Page 7 Harness User’s manual Nomenclature Harness Zicral 30 mm carabiners Options « ALT3 » reserve parachute handle carbon fiber seatplate Double stage accelerator/speed-bar (réf. : CA- LEPIEDRETRACT20) elastic cord for speedbar return Standard double stage accelerator/speed-bar (réf. : ACCELSOUPLE) SUP’ A IR _ALTIRANDO3_Page 7...
- Page 8 Harness User’s manual Harness overview AIRBAG Chest strap with quick release buckles Reserve parachute handle AIRBAG air intake Reserve parachute pocket Safe-T-bar Radio and small storage pocket Reserve parachute paragliding main hooking points Leg strap buckle Back storage pocket Reserve parachute hooking points Chest strap adjustment Speed-bar/Accelerator pulleys Volume adjustment zipping panel...
-
Page 9: Accessories Assembly
Harness User’s manual Accessories assembly 1. Carabiners Compatible carabiners : Zicral 30 mm carabiners. Réf. : MAILCOMOUS30 SUP’ A IR _ALTIRANDO3_Page 9... -
Page 10: Seat-Plate
Harness User’s manual Accessories assembly 2. carbon fiber seatplate Seat plate description. Carbon fiber seat-plate Rear Front Size S Réf. : MPPL005 Front view. Size M Réf. : MPPL006 Size L Réf. : MPPL007 Size XL Réf. : MPPL008 Flight direction. Installing the seat plate. -
Page 11: Speed-Bar System
Harness User’s manual Accessories assembly 3. Speed-bar system Compatible speed-bar/accelerator : STANDARD double stage speed-bar/accelerator. Ref. : ACCELSOUPLE Speedbar assembly : Regarding either side of the harness: Push the speed-bar/Accelerator line through the tube located at the front side of the harness Push the speed-bar/Accelerator’s cord through the pul- ley located on the lateral panel. -
Page 12: Foot-Rest
Harness User’s manual Accessories assembly >> 4. Foot-rest (option) Push the foot-rest strap through Push the elastic under the guide. buckle located at the front of the har- Wrap and connect the elastic around the main strap while pushing it through buckle. ness’s side skirt. -
Page 13: Installing The Reserve Parachute
Harness User’s manual Installing the reserve parachute Thank you for reading the following carefully ! We recommend for the initial rescue parachute assembly and installation to be made by a qualified professional. Reserve parachute folding and installation inside the harness must conform to the specific guidelines found in this manual. Necessary equipment needed to install the reserve parachute. - Page 14 Harness User’s manual Installing the reserve parachute Reserve parachute/harness connection. The reserve parachute riser installation will vary with the risers type you use. ALTIRANDO3 riser connection with individual separated risers. - Attach each riser to the Assemble everything cor- shoulder attachment points rectly.
- Page 15 Harness User’s manual Installing the reserve parachute Reserve parachute/harness connection. : >> Position the risers - Place the risers inside their guiding/protec- tive sleeve connected alongside the harness. - Push them through and under the zipper tab. - Bring them out through the reserve para- chute container.
- Page 16 Harness User’s manual Installing the reserve parachute Upper flap Rescue parachute pocket characteristics : Cord (1) - One (big) flap dorsal pocket Grommet (2) - Locking via cables - Handle «ALT3» ( Ref.: ALT3 ) Grommet (3) - 3 - 7,5 liters Cord (4) Grommet (5) Reserve parachute risers.
- Page 17 Harness User’s manual Adjusting the reserve parachute pocket : A panel/flap ( red on the illustration ), is located on the inside of the reserve parachute container ( green on the illustration ), to adapt its volume to your reserve parachute size. The Velcro®...
-
Page 18: Installing The Reserve Parachute In Its Container
Harness User’s manual Installing the reserve parachute Installing the reserve parachute in its container. - Place the reserve parachute inside - Take a small piece of line to help with the installation procedure. the container, with the handle positioned - Push it through loop #1. upward, and parachute risers downward. -
Page 19: Gear Packing And Tips
Harness User’s manual Gear packing and tips >> Harness side : Radio pocket ( with safety Velcro® Mini-Vario Hydration tube opening. >> Fold the foot-rest fastener lanyard ) and storage pocket. support. When flying without a foot-rest, fold the fastening side panel inward, and keep it in place with the snap button located on the inner side of the skirt. -
Page 20: Adjustments
Harness User’s manual Adjusting the harness Adjusting the harness prior each takeoff is vital. >> The various adjustments Adjusting the leg straps Adjusting the chest strap Adjusting the backrest Seat depth adjustment Adjusting the shoulder straps Seat-plate tilt adjustment SUP’ A IR _ALTIRANDO3_Page 20... - Page 21 Harness User’s manual Harness adjustments >> Adjusting the harness. : Without strap tension, first adjust the backrest incline at the desired angle. >> Tightening will bring the backrest at a more vertical angle ( recommended posture for beginners ). >> Loosening the backrest will tilt the back support rearward. tighten loosen Adjusting the chest strap.
- Page 22 Harness User’s manual Connecting the wing to the harness >> Connecting the wing to the harness. Without twisting the risers, connect them to the harness attachment loops using the self-locking carabiners. Check for the risers to be properly positioned and untwisted. The «A» risers must be located at the front and facing the flight direction (see diagram). ...
- Page 23 Harness User’s manual Flight behavior The transition from running to seating is made easy after takeoff due the centered geometry of the harness. Once airborne, weigh-shifting piloting becomes efficient, intuitive and comfor- table while remaining simple to adapt to in all circumstances. To discover your new harness, we will recommend making your first flights on a school training hill in calm weather conditions with low wind speeds.
-
Page 24: Flight Phases
Harness User’s manual Flight phases Pre-Flight control. • Inspect the harness and the carabiners for possible wear and tear. • Be certain for the handle cables to be securely fastened in place inside their respective reserve parachute pocket housings. • Check that your personal settings have not changed. -
Page 25: In Flight
Harness User’s manual Flight phases In flight. Set the distance between the two carabiners according to the aerology of the moment, and the wing manufacturer’s recom- mendations. Speedbar use. We recommend using the speed-bar cautiously due to the increased risk of a partial or full frontal collapses. Use the speed-bar/accelerator ( transitions ) only when far away from the ridge and in calm weather conditions as the wing becomes more sensitive to turbulence when accelerated. -
Page 26: Using The Reserve Parachute
Harness User’s manual Using the reserve parachute Throwing the reserve parachute. It is strongly recommended to frequently check your reserve parachute handle location while in flight. This exercise should be executed instinctively and will increase your chances of a successful parachute extraction in case of an emergency. Estimate your AGL ( Altitude Above Ground Level ) which if high enough may make it worth trying to bring your wing back to a normal flying configuration. -
Page 27: Harness Cleaning And Maintenance
Harness User’s manual Care Harness cleaning and maintenance. It is a good idea to clean your harness from time to time. We recommend using a brush and soft solvents only ( soap or mild cleaning agents ). Rinse thoroughly. Never use aggressive chemicals such as strong solvents which could be harmful to the fabric, webbings, stitching and weaken the overall integrity of the harness. -
Page 28: Repairs
SUP’ A IR offers an extended warranty period reaching beyond the product standard protection plan against manufacturing defects. Contact us either by telephone or by E-mail sav@supair.com to receive a quotation. Hardware & Parts - Zicral 30 mm carabiners. -
Page 29: Warranty
Harness User’s manual Warranty SUP’ A IR takes the greatest care in its products design and manufacturing and hence offers a five (5) year limited warranty from the date of purchase against manufacturing defects or flaws occurring during normal use. Any damage or degradation resulting from incorrect or abusive use, abnormal exposure to aggressive factors, including, but not limited to;... -
Page 30: Service Book
Harness User’s manual Service Book This page will help you keep record of your ALTIRANDO3 scheduled maintenance. Care Care Purchase date Resale Resale Owner’s name P u r c h a s e P u r c h a s e Name and stamp of the shop date date... - Page 31 SUPAIR-VLD Parc Altaïs 34 rue Adrastée 74650 Chavanod, Annecy FRANCE info@supair.com +33(0)4 50 45 75 29 45°54.024’N / 06°04.725’E...
