EVASION BUMP
SUPAIR-VLD
PARC ALTAÏS
34 RUE ADRASTÉE
User's manual
74650 ANNECY CHAVANOD
FRANCE
45°54.024'N / 06°04.725' E
English version
RCS 387956790
Revision Indice: 10/07/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVASION BUMP and is the answer not in the manual?

Questions and answers

Summary of Contents for SUPAIR EVASION BUMP

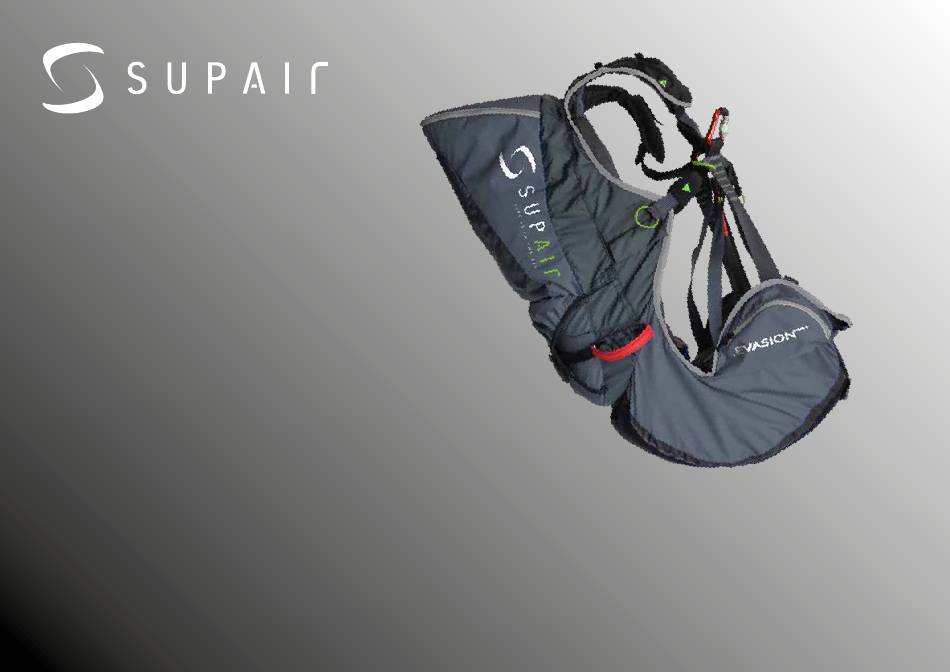

  • Page 1 EVASION BUMP SUPAIR-VLD PARC ALTAÏS 34 RUE ADRASTÉE User’s manual 74650 ANNECY CHAVANOD FRANCE 45°54.024’N / 06°04.725’ E English version RCS 387956790 Revision Indice: 10/07/2018...
  • Page 2 We trust that you will find this user’s manual comprehensive, explicit and hopefully pleasant to read. We advise you to read it carefully ! On our website www.supair.com, you will find the last up to date information about this product. If you have any further questions, feel free to ask one of our retailers.
  • Page 3: Table Of Contents

    Reserve parachute installation in the pocket. Recycling Installing the reserve parachute in its pocket. Environmental friendly practices Position setting Warranty Leaning angle setting Disclaimer Shoulders’ straps adjustments. Pilot’s gear Chest strap adjustment. Service Book Flight behavior Pre-Flight control SUPAIR | EVASION BUMP | page 3...
  • Page 4: Introduction

    Introduction Welcome to the tandem world. With the EVASION BUMP, you are equipped with a tandem harness designed with an integrated reserve parachute pocket and an BUMPAIR pro- tection. This harness is targeting intensive professional use. The ergonomy is classic with a wooden seatplate whose V-shape enables a very ergonomic position with the passenger.
  • Page 5: Technical Specifications

    EN 1651 - LTF Flight : tandem (Pilot- Passenger) Pilot Flight : acrobatic flying Take-off : Winching Quick-out carabiners compatibility This harness is delivered with two 45 mm Biners ( 138 g. for the set ). SUPAIR | EVASION BUMP | page 5...
  • Page 6: Harness Overview

    EVASION Seatplate Wood Bumpair Harness overview This illustration will help you during your reading. Automatic ventral buckle Rectangular push-through leg straps buckles. Ventral width adjustment Leaning setting Shoulders straps adjustment Reserve parachute handle (W2) SUPAIR | EVASION BUMP | page 6...
  • Page 7: Carabiners Assembly

    User manual | EVASION BUMP Carabiners assembly Compatible carabiners : Zicral 30 mm carabiners. Réf. : MAILCOMOUS30 SUPAIR | EVASION BUMP | page 7...
  • Page 8: Bumpair Assembly

    User manual | EVASION BUMP BUMPAIR ASSEMBLY SUPAIR | EVASION BUMP | page 8...
  • Page 9: Rescue Parachute Setup Assembly

    Place the handle inside the middle webbing loop and make a lark’s Fasten tightly the lark’s head knot and verify the solidity of the link. head knot with the handle. The handle must be connected to the central loop. SUPAIR | EVASION BUMP | page 9...
  • Page 10: Adjustable Reserve Parachute Pocket

    Push the risers the grommet. through the guiding sleeves ( the risers must be located behind the parachute ). SUPAIR | EVASION BUMP | page 10...
  • Page 11 Upon setup completion, conduct an extraction sequence during a hang-test to verify that all works properly before duplicating the installation procedure again... SUPAIR | EVASION BUMP | page 11...
  • Page 12 Install the risers inside the lateral guiding sleeve. main hooking location ), with the maillon rapide The risers come out of each strap guide. trapeze stainless steel 6 mm + the flexible elastic rings. Parachute riser. Pilot Passenger. Pilot Passenger. SUPAIR | EVASION BUMP | page 12...
  • Page 13: Position Setting

    Chest strap finger-loop tension tight- ening adjustment. Chest strap finger-loop tension re- lease adjustment. Tightening snapper (leaning setting) Loosening strap (leaning setting) Tightening snapper (shoulder strap) Loosening strap ( shoulder strap) SUPAIR | EVASION BUMP | page 13...
  • Page 14: Leaning Angle Setting

    You must find the correct tension between the side and shoulder straps adjustments. tighten Chest strap adjustment. To adjust correctly during a hang-test. The chest-strap tensioning/loosening as little effect on the wing’s incidence while weight-shifting. SUPAIR | EVASION BUMP | page 14...
  • Page 15: Pre-Flight Control

    • Fully close the leg straps, Safe-T-bar and chest strap buckles.. • Takeoff maintaining a vertical posture and push yourself inside the harness but only once away from the ridge. Do not let go the brakes when close to the terrain. SUPAIR | EVASION BUMP | page 15...
  • Page 16: In Flight

    During high wind speed landings, turnaround and face the wing as soon as ground contact is made and move toward the wing while braking symmetrically to deflate it. Do not land in a seated position as it is dangerous. SUPAIR | EVASION BUMP | page 16...
  • Page 17 - Ascertain parachute deployment functionality by pulling the handle to activate a clean POD extraction sequence. - Inspect the harness for wear and tear. Annual check - An annual deployment and repacking of the reserve parachute must be conducted by competent and certified personnel. SUPAIR | EVASION BUMP | page 17...
  • Page 18: Storage And Transport

    • The AIRBAG’s integrity ( especially after a strong impact ), in other words, no holes, tears or rips. The threads and fabric used to manufacture the EVASION BUMP were specifically selected for their quality and resilient capacities. However in particular instances such as long term UV exposure abrasion, contact with damaging chemicals, general wear and tear, the harness will need to be inspected at a professional certified repair facility.
  • Page 19: Care

    If you estimate that your EVASION BUMP has reached the end of it life-span, you can separate plastics from metals and dispose of them according to your community recycling rules. As for the fabric itself contact your local authorities to find out how to proceed to discard...
  • Page 20: Warranty

    Your harness protection CE conformity labeling is certified by the following laboratory : CRITT Sport Loisirs nr. 0501, Z.A. du Sanital, 21 Rue Albert Einstein, 86100 Chatellerault – FRANCE SUPAIR | EVASION BUMP | page 20...
  • Page 21: Service Book

    User manual | EVASION BUMP Service Book This page will help you to record all the life stages of your EVASION BUMP harness. Serial number : Care Purchase date Care Resale Resale Owner’s name date date Name and stamp of the shop Workshop’s name/ Buyer’s name...
  • Page 22 SUPAIR-VLD Parc Altaïs 34 rue Adrastée 74650 Chavanod, Annecy 45°54.024’N / 06°04.725’E FRANCE info@supair.com +33(0)4 50 45 75 29...
