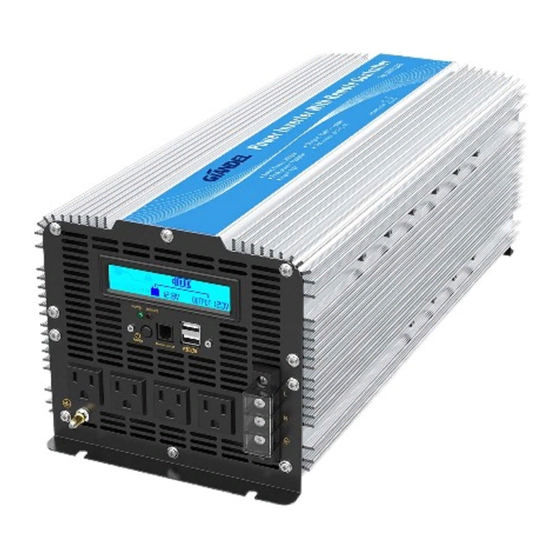

- Page 1 5000Watt 5000Watt Power Inverter USER’S MANUAL MODEL: PM-5000QBR Warning : This manual contains important safety and operating instruction . Please read it carefully before use the unit .
- Page 2 Specifications 1. INSTRUCTION The GIANDEL Power inverter product line is used for back-up power. It converts DC MODEL DATA (direct current/car battery) power into AC (alternating current) power that can be used for running a wide variety of tools and appliances under rating power. This inverter is...
- Page 3 3. Assemble the remote control box Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by operator.
- Page 4 3) Installation of remote control box 6. CONNECTION Fixed on the plane with an opening, then fix two screws directly on the position of two 1) Grounding installation holes of the remote control box. The power inverter has a terminal on the back panel marked "Grounding" or " ".
- Page 5 2. In high current, the input DC wire may produce voltage drop, therefore, the operating Single socket Single socket Output socket AC output voltage max output current max output power voltage should be subject to the value on the terminals. If the voltage drop is too large, 110~120VAC 1500W it can increase the acreage of the section or reduce the length of the lead.
- Page 6 10. OUTPUT VOLTAGE AND WAVE FORM 12. PROTECTION FEATURES The output voltage waveform of the inverter is called "quasi sine wave" or "modified 1) Input under-voltage alarm: When the input DC voltage is lower than 9.8V/19.6V, the sine wave", it is a step waveform similar like household alternating current , this type of buzzer will whistle intermittently to remind that the inverter will go into the under waveform is applicable to most of the load, including linear or switching power supply, voltage protection.
- Page 7 GIANDEL. You have a full 18 months warranty from date of purchase. Overload Reduce the load power.
