DVP LV.25 Operating And Maintenance Instructions Manual
  1. Manuals
  2. Brands
  3. DVP Manuals
  4. Water Pump
  5. LV.25
  6. Operating and maintenance instructions manual

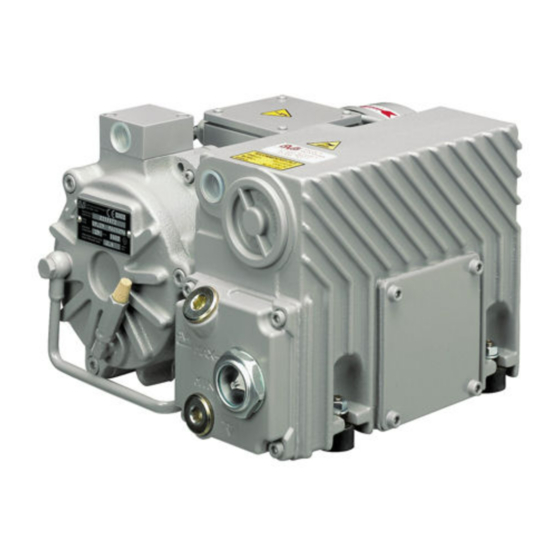

DVP LV.25 Operating And Maintenance Instructions Manual

Vacuum pumps with recirculating lubrication system
Hide thumbs
Table of Contents

Advertisement

Quick Links

8702013 (I, GB, D, E) 17/05/2007 - R.2
MANUALE D'USO E MANUTENZIONE
(I)
OPERATING AND MAINTENANCE INSTRUCTIONS
(GB)
BETRIEBS-UND WARTUNGSANLEITUNG
(D)
MANUAL DE USO Y MANTENIMIENTO
(E)
LV.25
LB.25
POMPE PER VUOTO LUBRIFICATE A RICIRCOLO
VACUUM PUMPS WITH RECIRCULATING LUBRICATION SYSTEM
ÖLUMLAUFGESCHMIERTE VAKUUMPUMPEN
BOMBAS PARA VACIO LUBRIFICADAS A RECIRCULACION
UND FKM-AUFÜHRUNGEN / Y VERSIONES FKM
LB.40 – LB.60
LB.40
LB.60
E VERSIONI IN FKM / AND FKM VERSIONS
LV.25
D.V.P. Vacuum Technology s.r.l.
Via Rubizzano 627, 40018 S. Pietro in Casale (BO) ITALY
Tel +39 051 188.971.11
http://www.dvp.it
LC.105
LC.150
LC.205 – LC.305
Fax +39 051 188.971.70
e-mail:info@dvp.it
LC.205
LC.305
LB.25
LC.105 – LC.150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LV.25 and is the answer not in the manual?

Questions and answers

Related Manuals for DVP LV.25

Summary of Contents for DVP LV.25

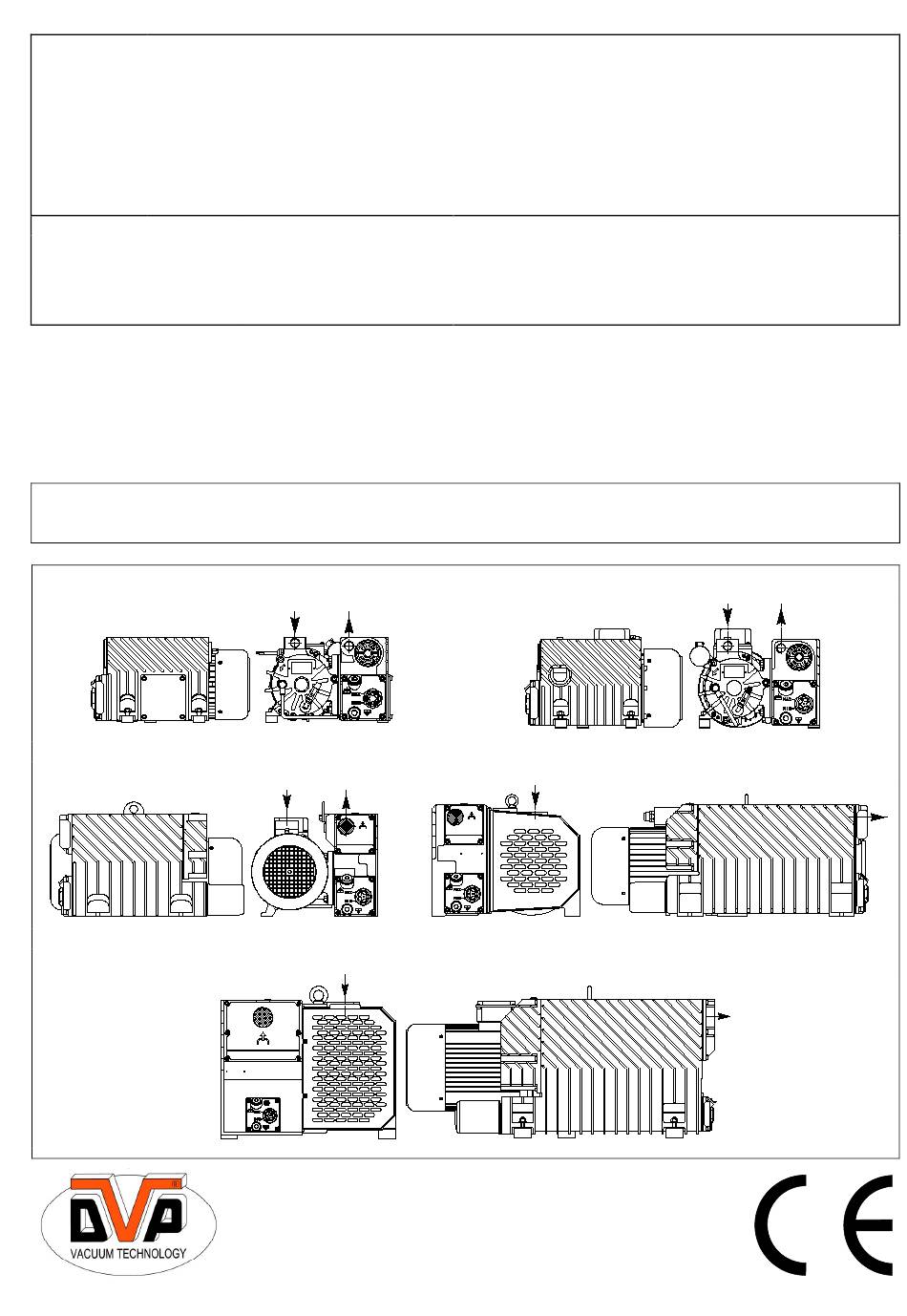

  • Page 1 8702013 (I, GB, D, E) 17/05/2007 - R.2 MANUALE D'USO E MANUTENZIONE OPERATING AND MAINTENANCE INSTRUCTIONS (GB) BETRIEBS-UND WARTUNGSANLEITUNG MANUAL DE USO Y MANTENIMIENTO LV.25 LB.40 LC.105 LC.205 LB.25 LB.60 LC.150 LC.305 POMPE PER VUOTO LUBRIFICATE A RICIRCOLO VACUUM PUMPS WITH RECIRCULATING LUBRICATION SYSTEM ÖLUMLAUFGESCHMIERTE VAKUUMPUMPEN...
