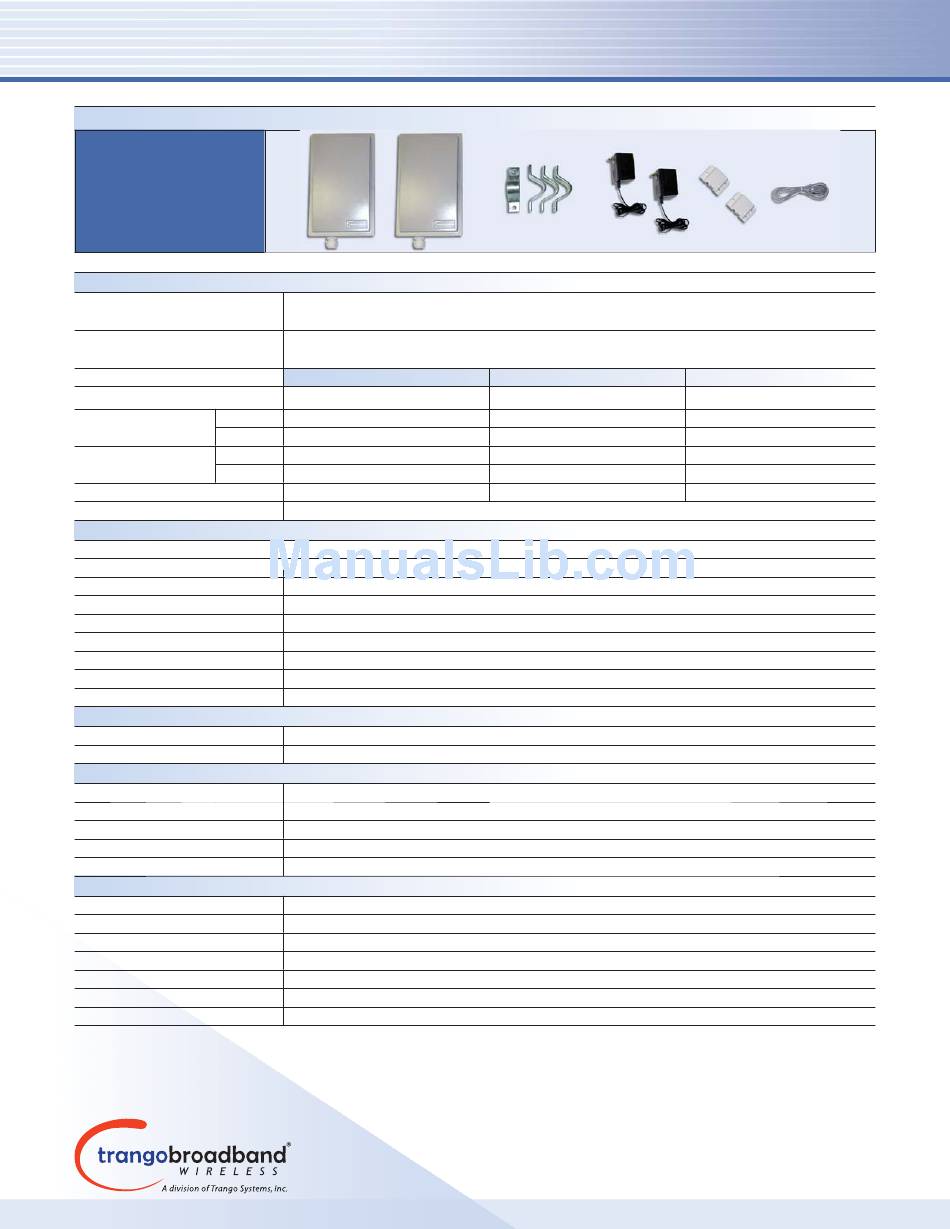

TrangoLINK-10A

KIT INCLUDES

• 1 P583AS-M Master Radio‡
• 1 P5830S-R Remote Radio‡
• 4 Mounting U-Brackets
• 2 24VDC Power Supplies
• 2 PoE J-Boxes
• 1 Serial Programming Cable

RADIO PARAMETERS

Frequency of Operation
Channels
Antenna Type
Antenna Gain
EIRP ‡‡
5.8 GHz ISM Band
Range
EIRP ‡‡
5.3 GHz U-NII Band
Range
Beamwidth (azimuth/elevation)
Antenna Polarity

DATA AND OPERATIONAL PARAMETERS

Modulation Format
Certifi cation/Compliance
Receiver Sensitivity
User Data Throughout
Latency
Network Protocols
Confi guration and Management
Up/Downstream Throughput
Ethernet Packet Size

PHYSICAL INTERFACES

Ethernet (via shielded RJ45)
Serial (via RJ11)

POWER PARAMETERS

Power Method
Voltage Input Limits into Radio
Standard Power Supply
PoE Cat-5 Max Cable Length
Power

PHYSICAL AND ENVIRONMENTAL

Radio Enclosure
Temperature Range
NEMA Rating
Radio Dimensions
Radio Weight
Shipping Weight
User Interfaces
Specifi cations are typical and subject to change without notice.
‡‡ Not licensed for use in the U.S.A. Legal regulations for wireless communications vary from region to region—users are responsible for complying with their region's regulations.
* User throughput 7.2 Mbps max at 64 kilometers
** Available from Radiowaves (www.radiowavesinc.com) and Radiowaves distributors
Specifi cations
™
High Band (ISM Band): 5.725 GHz to 5.850 GHz
Low Band (U-NII Band): 5.250 GHz to 5.350 GHz
High Band (ISM Band): 6 non-overlapping channels
Low Band (U-NII Band): 5 non-overlapping channels
Internal Antenna
18/17 dBi ISM/U-NII band
40 dBm ‡‡
14 kilometers
36 dBm ‡‡
9 kilometers
18°/18°
Horizontal/vertical (software switchable)
Direct Sequence Spread Spectrum (DSSS) with RAKE
FCC Part 15.247
(1E10-6 BER) 1600 byte packets: -83 dBm, 64 byte packets: -87 dBm
Up to 10 Mbps
<2mSec (10 miles or less)
All IEEE 802.3/802.3u compliant protocols
Telnet, SNMP, TFTP, HTTP, Serial
Dynamic, automatically adjusts to suit demand with upstream and downstream MIR
Up to 1600 byte long packets (supports VLAN/VPN pass through)
10/100 BaseT, auto-sense, auto-negotiate
9600 baud 8-N-1
Power-over-Ethernet (PoE) via DC voltage injected at PoE J-box
10.5 VDC – 24 VDC
120 VAC to 24 VDC adapter
100 meters on 24 AWG STP Cat-5 cable
575 mA (13.8 W); 1 Amp when heater is on (24 W)
All-weather, powder coated, cast aluminum with polycarbonate radome
-40° to 60° C (-40° to 140° F)
NEMA 4
12.5" x 8" x 2.75"
4 lbs.
20 lbs. (without external antennas)
RJ45 (shielded) and RJ11
