Dynojet POWER COMMANDER V Installation Instructions page 4

FIG.D
FIG.E
FIG.F
Unplug
17-049 www.powercommander.com

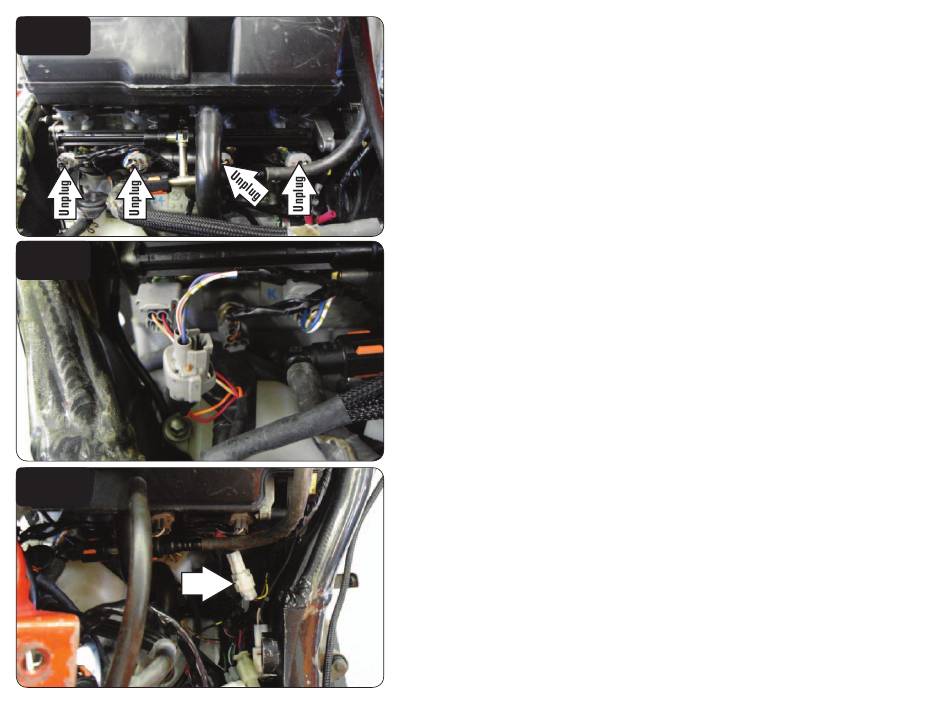

6 Unplug the stock wiring harness from the LOWER fuel injectors at the throttle
bodies (Fig. D).
7 Plug the PCV connectors in-line of the stock wiring harness and the fuel
injectors (Fig. E).
The pair of PCV leads with ORANGE colored wires go in-line of the cylinder
#1 (left-most) fuel injector.
The pair of PCV leads with YELLOW colored wires go in-line of the cylinder
#2 fuel injector.
The pair of PCV leads with GREEN colored wires go in-line of the cylinder #3
fuel injector.
The pair of PCV leads with BLUE colored wires go in-line of the cylinder #4
(right-most) fuel injector.
8 Locate and unplug the pair of stock Throttle Position Sensor connectors
behind the throttle bodies on the right-hand side of the bike (Fig. F).
This is a WHITE 3-pin connector.
2005-2006 Kawasaki ZX-6R & ZX-6RR - PCV - 4
