Summary of Contents for Kogan KAMOP131STMA

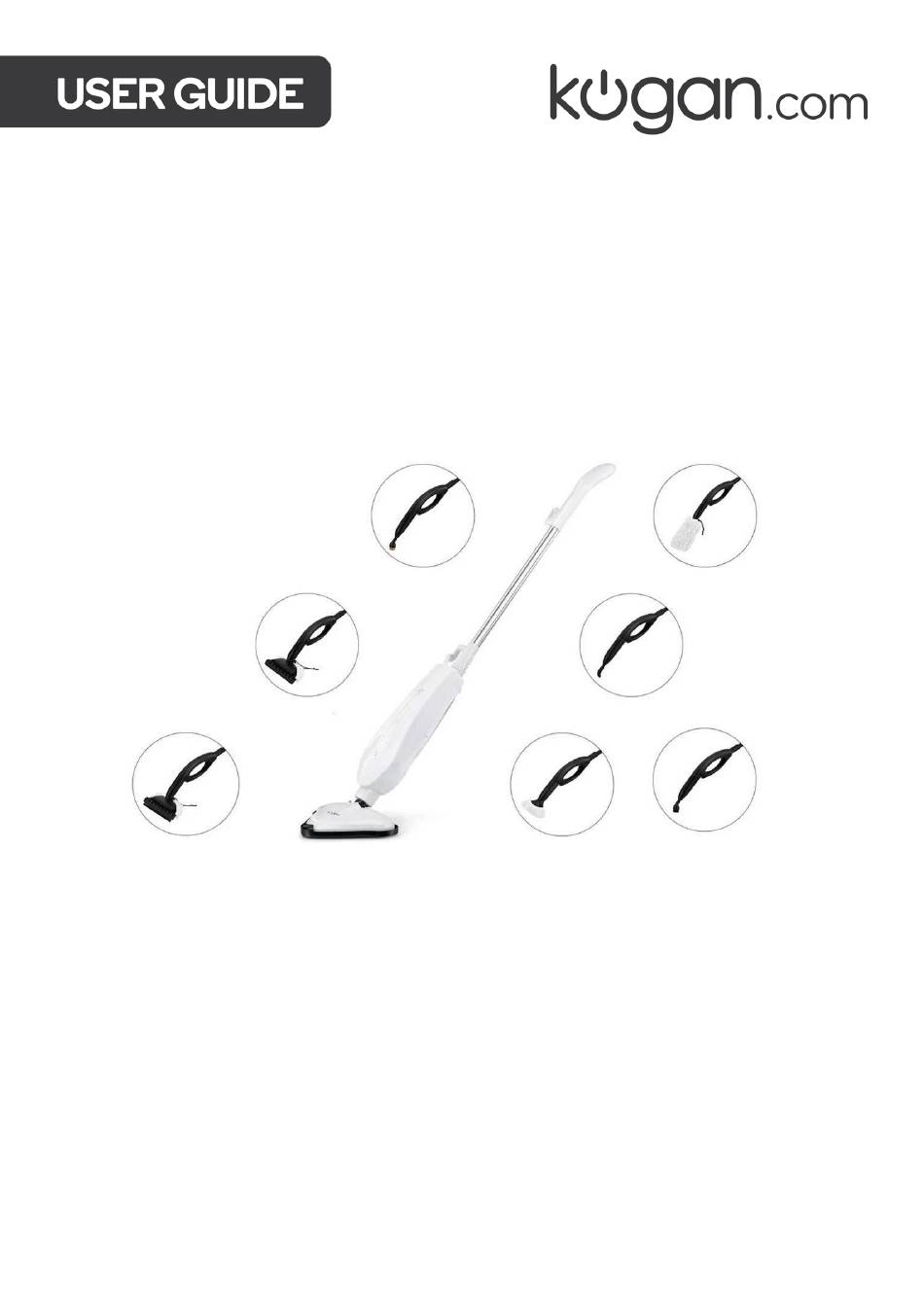

- Page 1 12-IN-1 STEAM MOP KAMOP131STMA...
-
Page 3: Safety And Warnings
Do not use with a damaged cord or plug. If the unit is not working as it should, has been dropped, damaged, left outdoors or immersed in water, contact the kogan.com customer support team for information. • Do not pull or carry the unit by the cord, use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners. - Page 4 • Use only as directed in this manual. The use of attachments not provided by Kogan.com with the unit may cause fire, electric shock or injury. • The liquid or steam should not be directed towards equipment containing electrical components, such as the interior of microwave ovens.
- Page 5 OVERVIEW Curved Handle Upper Cord Warp 4. Steam Volume Button Lower Cord Warp 2. Water Tank Cap 3. Water Tank 1. Main Body Power Indicator Mop Head...
- Page 6 ASSEMBLY WARNING! Please make sure the unit is unplugged from an electrical outlet. Attach the mop head to the main body as follows: insert the swivel joint into the designated hole in the main body and then use the screw to fix it into place. Make sure that the mop head is securely locked into place before use (Fig 1).
- Page 7 Insert the power supply cord into the upper cord wrap as illustrated (Fig 3). Fig. 3 Place the microfibre cloth on the bottom of the mop head, making sure all of the loops on the cloth are aligned with the gripping hooks on the bottom of the mop head (Fig 4) Press the cloth against the mop head so the loops on the cloth catch onto the gripping strips on the mop head, holding the pieces together.
- Page 8 Hand-Held Steamer The hand-held steamer is an ideal portable cleaner. It is there for you to detach and use on work surfaces, kitchen countertops, sinks, bathrooms, windows, mirrors, tiles and spot cleaning on floor carpets and rugs. Use it with an attachment - Jet Nozzle or Nylon Brush to spray away dirt, grease, mould and more.
-
Page 9: Strap Installation
Fig. 3 As illustrated in Fig la, make sure the extension hose is securely locked into place before use. Strap Installation Window Cleaning Tool Loosen the drawstring on the coral cloth, then install the coral cloth onto the designated hooks on the window cleaning tool frame, then pull the drawstrings to secure the cloth in place. - Page 10 Hooks Hooks Fig. 2a Fig. 2b Front Side Fig. 2c Attach the window cleaning tool to the extension hose as follows. Align the lock button to the extension hose with the designated hole on the window cleaning tool frame. Push the extension hose into position until it locks into place (Fig.
- Page 11 Garment Steamer Install the microfibre cloth to the garment steamer tool as shown in Fig 4a & 4b. Black Tag Fig. 4a Fig. 4b Back Side Fig. 4c Attach the garment steaming tool to the extension hose as follows: align the lock button on the extension hose with the designated hole on the garment steaming tool frame, then push the extension hose into position until it locks into place as shown in Fig 5a.
- Page 12 Duster Install the cleaning coral cloth onto the duster frame as shown in Fig 6a & 6b. Fig. 6a Fig. 6b Attach the duster frame to the extension hose as follows: align the lock button on the extension hose with the designated hole on the duster tool frame and then push the extension hose into position until it locks into place as shown in Fig.
- Page 13 Round Brush & Bent Nozzle To attach these accessories, screw them onto the straight nozzle that is connected to the extension hose as shown in Fig. 9a & 9b (round brush) or Fig. 10a & 10b (bent nozzle). Fig. 9a Fig.
-
Page 14: Operation
OPERATION Using the Steam Mop Please read before use: • This unit is designed to thoroughly clean floor surfaces such as marble, ceramic, carpet, stone, linoleum, sealed hardwood floors and parquet. Not all floor types are suitable for steam cleaning. •... - Page 15 Make sure the unit is unplugged and then fill the water tank with water. Turn the water tank cap counter-clockwise to the open “OFF” position then remove the cap as shown in Fig la, 1b, 1c & Id. Hold the mop at a 45° angle as shown in Fig Id and add water to the tank up to the MAX level by using the measuring cup.
-
Page 16: Cleaning And Care
CLEANING & CARE Ensure That the Unit Is Disconnected from Power When Cleaning the Unit Drain the remaining water in the tank and then clean it after each use. Please use detergent to clean the accessories (jet nozzle and round brush) when they are dirty, then rinse them with clean water and allow them to air dry. -
Page 17: Troubleshooting
TROUBLESHOOTING Warning: To reduce the risk of fire, electric shock or injury, unplug the appliance before attempting any adjustments. Problem Possible Cause Possible Solution Make sure the unit is Unit is not plugged in or Unit does not power up plugged into a power outlet turned on and switched on... - Page 18 IN THE BOX Measuring Cup Glider Microfibre Cloth Funnel Round Brush Extension Hose for the Curved nozzle Straight Nozzle hand-held steamer Copper Round Brush Window Cleaning Cloth Cloth Cover Garment Steamer Long Brush Rubber Window Cleaning Tool Duster Strap...
- Page 19 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
