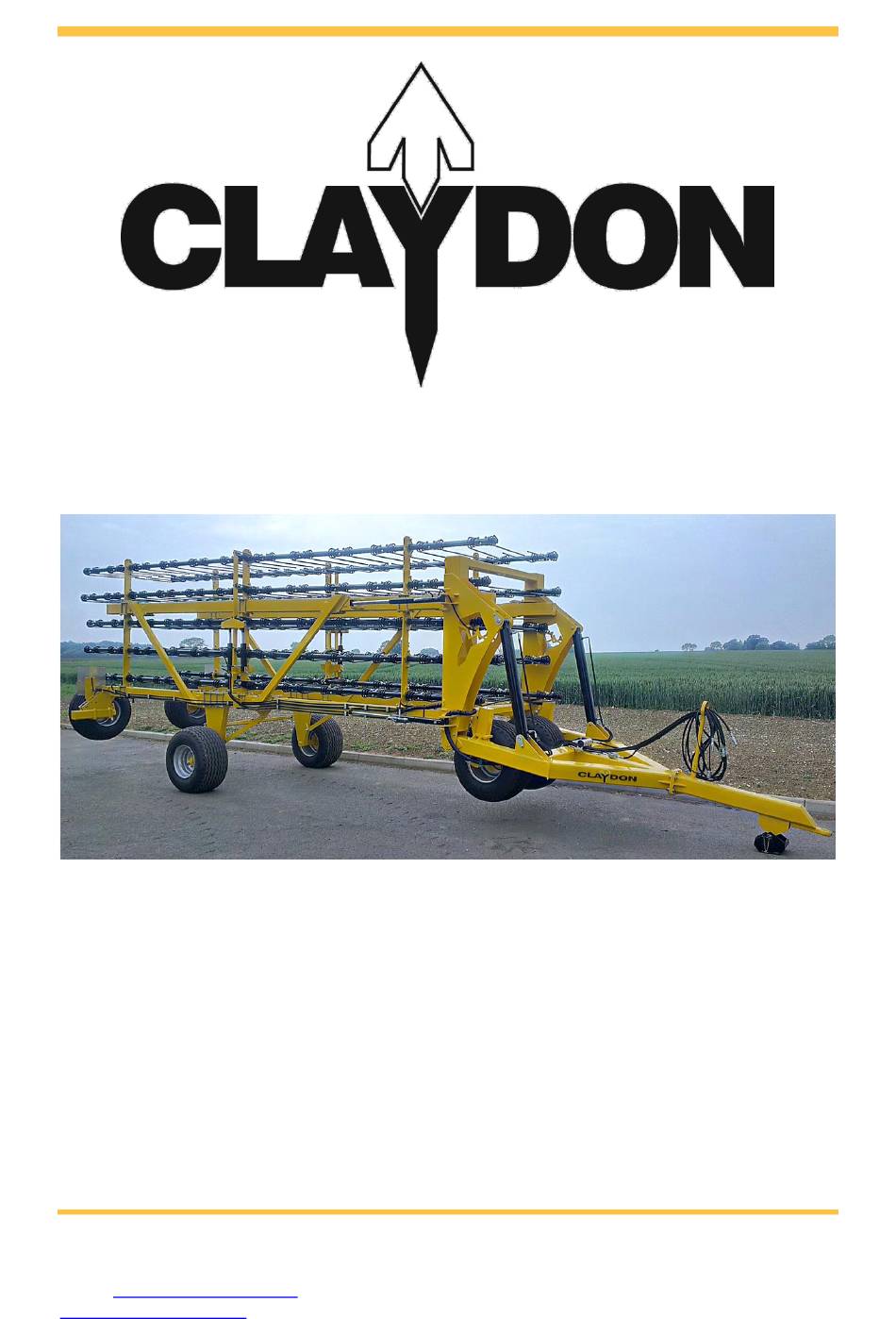

Straw Harrow – 15m
Operator's Manual and
Part's Manual
Original Instructions
Revision 1
Contact Details:
Claydon Yield-O-Meter Ltd
Gaines Hall, Wickhambrook, Newmarket, Suffolk, CB8 8XY
Tel: +44 (0)1440 820 327
Fax +44 (0)1440 820 642
Email:
info@claydondrill.com
www.claydondrill.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15m Straw Harrow and is the answer not in the manual?

Questions and answers

Related Manuals for Claydon 15m Straw Harrow

Summary of Contents for Claydon 15m Straw Harrow

  • Page 1 Straw Harrow – 15m Operator's Manual and Part’s Manual Original Instructions Revision 1 Contact Details: Claydon Yield-O-Meter Ltd Gaines Hall, Wickhambrook, Newmarket, Suffolk, CB8 8XY Tel: +44 (0)1440 820 327 Fax +44 (0)1440 820 642 Email: info@claydondrill.com www.claydondrill.com...

  • Page 2: Table Of Contents

    Appendix A – Straw Harrow Specifications ..............15 Appendix B – Declaration of Conformity ................. 16 Part's Manual 15m Straw Harrow Parts Manual ..................17 Pole Assembly ........................18 Centre Chassis Assembly ....................19 Harrow Wing Assembly - RH .................... 21 Harrow Wing Assembly - LH ....................

  • Page 3: Straw Harrow Warranty Registration

    15m Straw Harrow 1.0 Straw Harrow Warranty Registration In order to activate your Claydon Warranty this page must be completed and returned to: Claydon Yield-O-Meter Ltd Gaines Hall, Wickhambrook, Newmarket, Suffolk, CB8 8YA Tel: +44 (0) 1440 820 327 Fax: +44 (0) 1440 820 642...
  • Page 4 Commissioning Check Sheet and Conformation Form – 15 Straw Harrow All points in this form must be completed on the commissioning of a new Claydon machine with the end user. This form along with a filled in Warranty Card (located in the instruction manual) must be, fully...

  • Page 5: Safety

    15m Straw Harrow 2.0 Safety Safety stickers can be found located on your Claydon Straw Harrow at numerous locations (Figure 1), these stickers must be observed to ensure your safety and that the machine is operated in a safe manner.
  • Page 6 15m Straw Harrow Meaning of warning symbols: Read the operating manual carefully. Prior to operating the machine the manual must be read fully and understood. Special attention should be applied to the Warnings and Cautions section. Do not stand between the tractor and the machine.

  • Page 7: Introduction

    15m Straw Harrow 3.0 Introduction Thank you for your purchase of a new Claydon Straw Harrow. The Claydon Straw Harrow is a fast and low cost operation which can be used numerous times to create a micro-tilth, for fast weed germination, hoeing out weeds, killing slugs and levelling out straw prior to drilling.

  • Page 8: Warnings And Cautions

    15m Straw Harrow 3.2 Warnings and Cautions These warnings and cautions must be observed when operating the Straw Harrow.  Observing the warning signs and other notices will serve the operators safety.  Ensure total weight of tractor/Harrow combination does not exceed permitted limits and the weight of tractor is sufficient for safe field and road use.

  • Page 9: Connecting The Straw Harrow To The Tractor

    15m Straw Harrow 5.0 Connecting the Straw Harrow to the Tractor The Claydon Straw Harrow is attached to the tractors drawbar via the ring hitch or Scharmüller hitch. There are three sets of hydraulic services required to operate the Straw Harrow which should be colour coded in pairs.
  • Page 10 15m Straw Harrow If a mid-mounted drawbar stand and a Scharmüller hitch is fitted to your machine, then the15m Straw Harrow should be attached to the tractor using the following method: Hitch secured 1) Firstly, ensure the wheel chocks are...

  • Page 11: Field Use

    15m Straw Harrow 6.0 Field use Prior to operating the Straw Harrow in the field the machine must first be unfolded; this procedure is displayed bellow: 1) Remove reversing link bar and 2) Once removed start reversing back slowly store it in the rest position.

  • Page 12: Working Height

    Figure 6: Distance between rear tines. 6.1 Working Height The Claydon 15m Straw Harrow has been designed to carry all its weight on four depth wheels. If you find that the Harrow is doing more work than you would like the depth wheels can be lifted and the rake angle decreased.
  • Page 13 If you are using a Claydon Drill after the harrowing operation, it is advisable to travel in the same direction as you are intending to drill.
  • Page 14 15m Straw Harrow You should pull the Claydon Straw Harrow as quickly as you can (up to speeds of 25 km/h). From time to time (very rarely) the Straw Harrow can catch a lump or a tramline and start to bounce, in this scenario you should slow down or stop until the machine has settled and then carry on as normal.

  • Page 15: Care And Maintenance

    7.2 Lubricating Points Lubrication should be performed using multi-purpose grease on a daily basis. An overview of the 15m Straw Harrow can be seen in Figure 9. Identification numbers correspond to the detail of the lubrication points in Figure 10.
  • Page 16 15m Straw Harrow Lubrication Points to be Greased Weekly 1. Rake angle cylinders (rod end) 2. Rake angle cylinders (base end) 3. Depth wheel cylinders 4. Depth wheel cylinder 6. Lower folding assist 5. Depth adjustment unit (base end) (rod end) cylinders (rod end) 7.

  • Page 17: Appendix A - Straw Harrow Specifications

    15m Straw Harrow Appendix A – Straw Harrow Specifications [15]...

  • Page 18: Appendix B - Declaration Of Conformity

    15m Straw Harrow Appendix B – Declaration of Conformity [16]...

  • Page 19: Straw Harrow Parts Manual

    15m Straw Harrow 15m Straw Harrow Parts Manual...
  • Page 20 15m Straw Harrow...

  • Page 21: Pole Assembly

    15m Straw Harrow Pole Assembly VIEW FROM ABOVE WHILE THE HARROW IS IN WORK [18]...

  • Page 22: Centre Chassis Assembly

    15m Straw Harrow Centre Chassis Assembly QTY. ITEM PART NUMBER DESCRIPTION TSH-W-00004 TRAILED CHASSIS TSH-W-00001 Centre Assembly HR650900 SRL Mounted Folding Ram TSHA001000 Big Ram Pin TSH-W-00009 MAIN FOLDING RAM PIN WELDED ASSEM TSH-W-00008 MAIN PIVOT PIN WELDED ASSEMBLY SHA14...
  • Page 23 15m Straw Harrow QTY. ITEM PART NUMBER DESCRIPTION HEX HEAD SCREW M10 x 35 10.9 BZP NYLOC NUT M10 PLAIN WASHER M16 FORM A BZP HEX HEAD BOLT M16 x 55 8.8 BZP HEX HEAD BOLT M12 x 40 10.9 BZP...

  • Page 24: Harrow Wing Assembly - Rh

    15m Straw Harrow Harrow Wing Assembly - RH QTY. ITEM PART NUMBER DESCRIPTION TSH-W-00010 FRONT WING BEAM RH WA POLE PIVIOT AND RAM CARRIER TSH-W-00015 WELD ASSEM TSH-W-00013 POLE PIVOT WELD ASSEM FRONT TSH-W-00014 POLE PIVIOT WELD ASSEMBLY REAR TSH-W-00011...
  • Page 25 15m Straw Harrow QTY. ITEM PART NUMBER DESCRIPTION HEX HEAD BOLT M16 x 50 10.9 BZP HEX HEAD SCREW M16 x 50 10.9 BZP TSH023001 Clamp Plate - Rigidity Beam HEX HEAD BOLT M16 x 150 10.9 BZP HEX HEAD BOLT M16 x 210 10.9 BZP HEX HEAD BOLT M16 x 200 10.9 BZP...

  • Page 26: Harrow Wing Assembly - Lh

    15m Straw Harrow Harrow Wing Assembly - LH QTY. ITEM PART NUMBER DESCRIPTION TSH-W-00012 WING BEAM LH WELD ASSEMBLY TSH-W-00013 POLE PIVOT WELD ASSEM FRONT TSH-P-00046 POLE PIVIOT WELD ASSEM CLAMP PLATE LOGO TSH-W-00015 POLE PIVIOT AND RAM CARRIER WELD ASSEM...
  • Page 27 15m Straw Harrow QTY. ITEM PART NUMBER DESCRIPTION TSH-W-00019 TRANSPORT WHEEL WELD ASSEMBLY LH TSH-P-00050 TRANSPORT WHEEL TIE BAR PLAIN WASHER M20 FORM A BZP HEX HEAD BOLT M20 x 60 10.9 BZP NYLOC NUT M20 HEX HEAD BOLT M16 x 50 10.9 BZP HEX HEAD SCREW M16 x 50 10.9 BZP...

  • Page 28: Scharmüller Hitch - Optional Extra

    15m Straw Harrow Scharmüller Hitch – Optional Extra ITEM PART NUMBER DESCRIPTION QTY. TSH-W-00040 SCHARMÜLLER HITCH WELDED ASSEMBLY TSH-P-00114 Scharmüller K80, 3000kg Spoon Type 00665900 HEX HEAD BOLT M20 x 70 10.9 BZP [25]...

  • Page 29: Stand

    15m Straw Harrow Stand QTY. ITEM PART NUMBER DESCRIPTION TSH-W-00041 TSH JACK BODY ASSEMBLY TSH-W-00042 TSH JACK WELDED BRACKET TSH-W-00043 TSH JACK WELDED FOOT PLATE TSH-P-00129 TSH JACK BRACKET BACKING PLATE HEX HEAD BOLT M16 x 200 10.9 BZP PLAIN WASHER M16 FORM A BZP...

  • Page 30: Hydraulics - Rake Angle Circuit

    15m Straw Harrow Hydraulics – Rake Angle Circuit ITEM PART NUMBER DESCRIPTION QTY. TSH-B-00015 TINE ANGLE CIRCUIT-TRACTOR TO SPLITTER HOSE TSH-B-00023 TINE ANGLE CIRCUIT- RAM LINK HOSE TSH-B-00024 TINE ANGLE CIRCUIT- SPLITTER TO RAM BASE TSH-B-00025 TINE ANGLE CIRCUIT- ‘TEE’ TO RAM ROD TSH-B-00026 TINE ANGLE CIRCUIT- TRACTOR TO ‘TEE’...

  • Page 31: Hydraulics - Depth Control Circuit

    15m Straw Harrow Hydraulics – Depth Control Circuit ITEM PART NUMBER DESCRIPTION QTY. TSH-B-00019 DEPTH CIRUIT- FLOW DIVIDER TO BASE RAM WING TSH-B-00020 DEPTH CICUIT- 'TEE' TO ROD END RAM WING TSH-B-00021 DEPTH CIRCUIT- FLOW DIVIDER TO RAM BASE INNER RAM...
