TL-R4299G Dual-WAN SMB Broadband Router User Guide

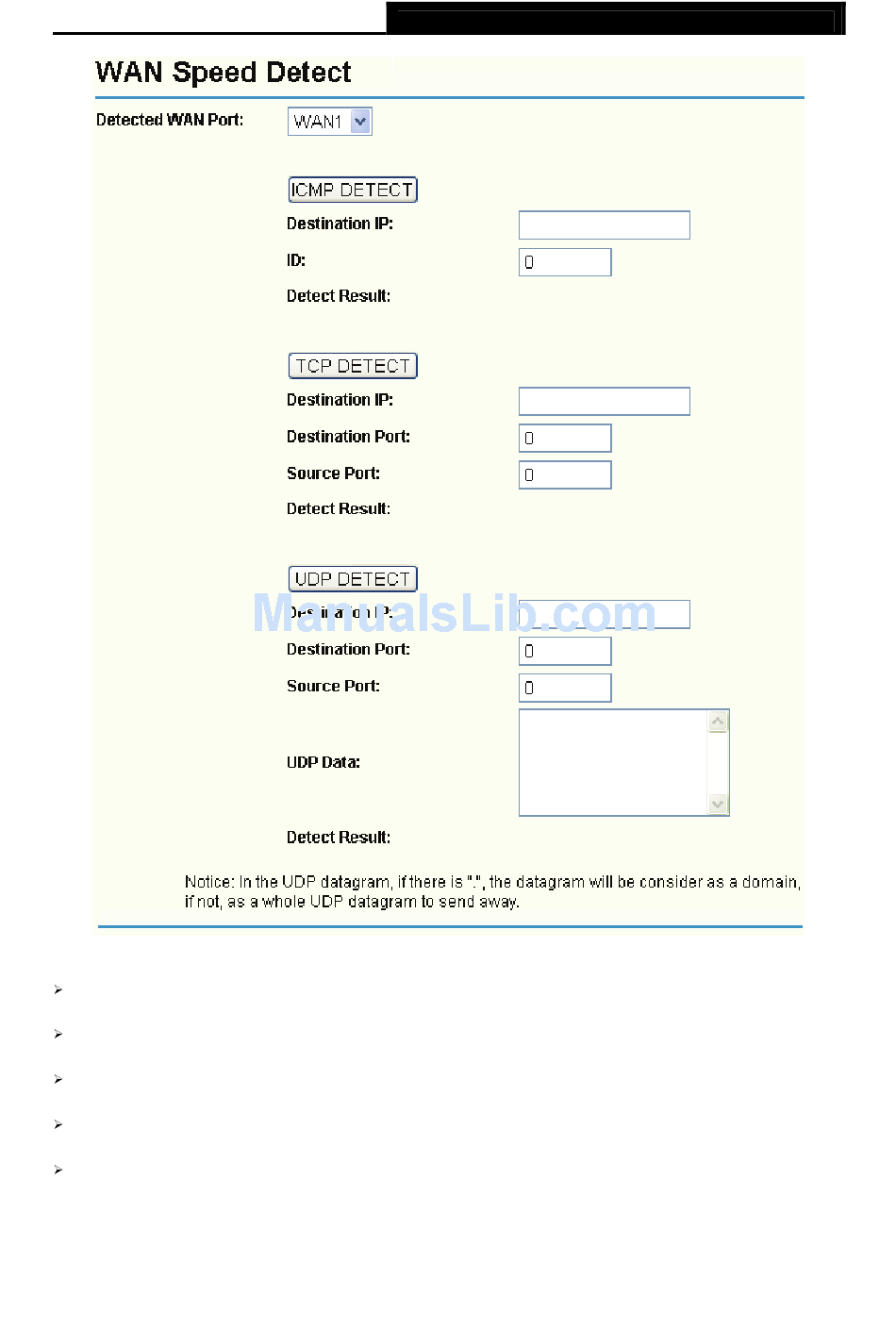

Figure 4-78
Destination IP - the IP address which datagrams are sent to, such as- 202.96.134.188.
ID - The number of ICMP datagrames to be sent.
Source Port - The port where datagrams are sent to, such as- 5000
Destination Port - The datagrams' distination port, such as-6000.
UDP Data - The data carried when sent UDP detect datagram, take care if in the UDP data
exist character ".", for example, 123.456, www.sohu.com, the datagram would be considered
to be a domain name, DNS datagram will be sent, at this time, no matter what the destination
port is, the destination port in the sent datagram is always 53. If not, it will be sent as a whole
74
