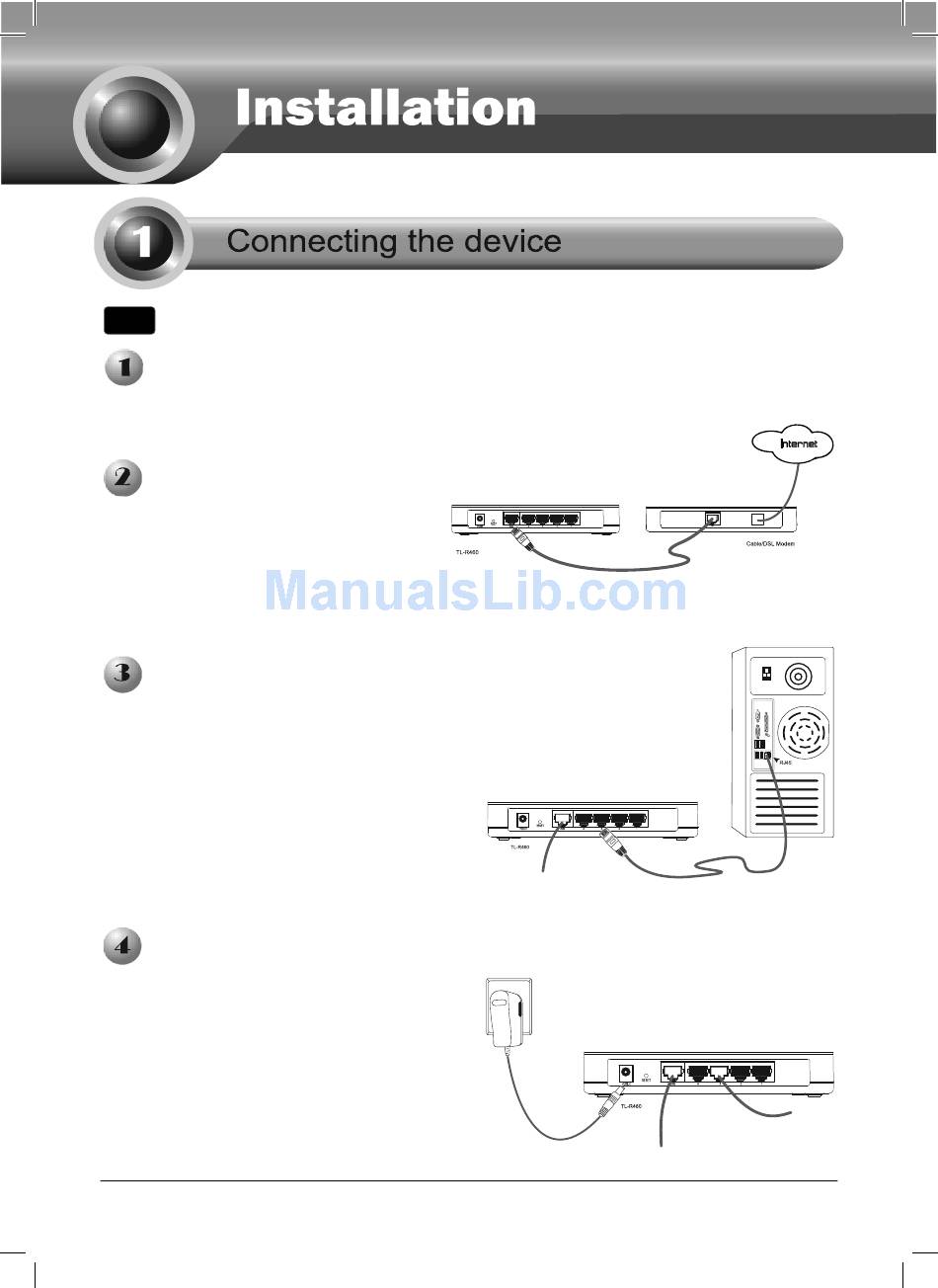

The product model shown in this part is TL-R460, as an example. Note Turn off all of your network devices, including your computer, Modem and the Router. Connect the WAN port on your Router to the Modem’s LAN port with an Ethernet cable.
Page 2
Turn on all of your network devices, including your computer, Modem and the Router then check to see if the LEDs of the Router display normally as the digram below describes. System: Flashing LAN: Flashing or solid light if the corresponding port is connected WAN: Flashing or solid light if the corresponding port is connected...
Page 3
To configure the device, you can either run the Resource CD (Method One), Note or run the Web based Quick Setup Wizard (Method Two). TP-LINK strongly recommends that you run the Resource CD (Method One). TL-R402M only supports Web based Quick Setup Wizard (Method Two).
Page 4
Click START, and then follow the step-by-step instructions until you complete the configuration The configuration has now been completed. Please skip to step 4 Testing the Internet Connection on page 7. Login Open your web browser, type http://192.168.0.1/ in the address field and press Enter If your product is TL-R402M or TL-R860, plesase type http://192.168.1.1/ in Note...
Page 5
If the dialog box does not pop up, please refer to T3 in the Troubleshooting Note guide on page 8. T2 will help you if you forget the password. The web management page will display after a successful login. Click Quick Setup Internet Parameters Configuration This page will then display.
Configuration for Dynamic IP If you select Dynamic IP, you will be prompted to the Quick Setup - Finish page. Configuration for Static IP If you select Static IP, this page will then display. Enter the IP Address, Subnet Mask, Gateway, DNS provided by your ISP manually Click Next...
Page 7
The basic settings for your Router are completed. Please open the web browser and log on to the following websites: http://www.tp-link.com http://www.google.com If the above websites can be accessed, it indicates that your Router has been configured successfully and you can begin to enjoy the Internet. If the website cannot be accessed, please refer to “T4.
Page 8
T1. How do I restore my Router’s configuration to its factory default settings? With the Router powered on, press and hold the Reset/RESET button on the panel for 8 to 10 seconds before releasing it. TL-R402M: TL-R460: TL-R860: Note Once the Router is reset, the current configuration settings will be lost and you will need to re-configure the Router.
Page 9
For Windows XP OS Go to Start > Control Panel, you will then see the following page. Click Network and Internet Connections Click Network Connections Right-click Local Area Connection Click Properties...
Page 10
Double-click Internet Protocol (TCP/IP) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
Page 11
Click OK For Windows Vista OS Go to Start > Settings > Control Panel, and then you will see the following page. Click View network status and tasks...
Page 13
Double-click Internet Protocol Version 4 (TCP/IPv4) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
Page 14
For Windows 7 OS Go to Start > Settings > Control Panel, and then you will see the following page. Click View network status and tasks Click Change adapter settings Right-click Local Area Connection Click Properties...
Page 15
Double-click Internet Protocol Version 4 (TCP/IPv4) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
Page 16
2) Configure your IE browser Open your IE browser, click Tools tab and you will see the following screen. Click Internet Options… Select Never dial a connection Click OK Now, try to log on to the Web-based configuration page again after the above settings have been configured.
Page 17
T3 then try to access the Internet again. If the problem persists, please go to the next step. Make sure that you are connected to the TP-LINK Router with the computer that was originally connected to your modem, then log on to the web-based management page and browse to “Network >...
