TP-Link TL-R4299G User Manual

Dual-wan smb broadband router
Hide thumbs
Table of Contents

Advertisement

Quick Links

TL-R4299G
Dual-WAN SMB Broadband Router
Rev:1.0.1

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TL-R4299G

Summary of Contents for TP-Link TL-R4299G

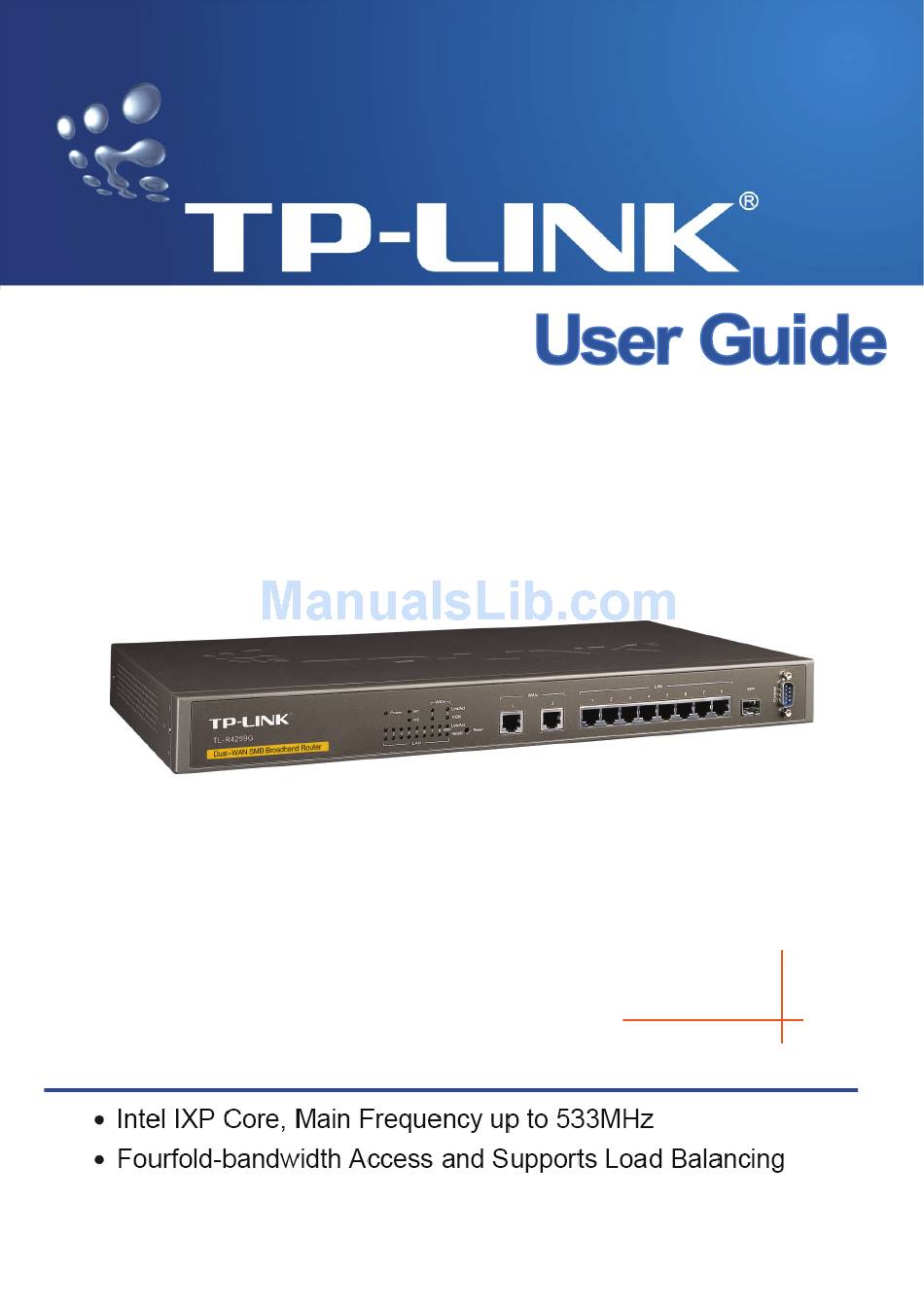

  • Page 1 TL-R4299G Dual-WAN SMB Broadband Router Rev:1.0.1...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Package Contents

    Package contents The following contents should be found in your box: One TL-R4299G Dual-WAN SMB Broadband Router One power cord for TL-R4299G Dual-WAN SMB Broadband Router One Resource CD for TL-R4299G Dual-WAN SMB Broadband Router, including: • This Guide •...

  • Page 5: Table Of Contents

    Chapter 1. Introduction ... 1 Overview of the Router ... 1 Features... 1 Conventions... 2 Chapter 2. Hardware installation ... 2 Panel Layout... 2 2.1.1 The Front Panel...2 2.1.2 The Rear Panel ...3 System Requirements ... 3 Installation Environment Requirements ... 3 Connecting the Router...
  • Page 6 4.6.5 Screen ...47 Static Routing ... 50 Session Limit ... 52 4.8.1 Session Limit ...52 4.8.2 Session List ...53 QoS... 53 4.9.1 QoS Settings ...54 4.9.2 QoS Rules List ...54 4.10 IP & MAC Binding ... 55 4.10.1 Binding Setting ...55 4.10.2 ARP List...57 4.11 Dynamic DNS ...

  • Page 7: Chapter 1. Introduction

    /medium/sizable enterprise with volumes of users, making a more expedite communication. The superior performance will bring you full-new experience of a non-bottle-neck network. TL-R4299G Dual-WAN SMB Broadband Router makes plenty of applications become a reality. It can be used for constructing intranet FTP, WEB, and Mail server, etc. Inaccessibly, it features network game ports opened, MSN audio conversation and special application setting, providing much more additional value to your network.

  • Page 8: Conventions

    2.1 Panel Layout 2.1.1 The Front Panel The front panel of the TL-R4299G consists of several LED indicators, which is designed to indicate connections. Viewed from left, the next table describes the LEDs on the front panel of the router.

  • Page 9: The Rear Panel

    LAN: Eight 10/100/1000Mbps RJ45 port for connecting the router to the local PCs 2.1.2 The Rear Panel The rear panel of the TL-R4299G only features a power receptacle, which is an AC power receptacle. Connect the female of the power cord head here, and the male head to the AC power outlet.

  • Page 10: Connecting The Router

    TL-R4299G Operating Humidity: 10%~90%RH, Non-condensing Note: Do not use this product near water, for example, in a wet basement or near a swimming pool. Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

  • Page 11: Chapter 3. Quick Installation Guide

    TL-R4299G Chapter 3. Quick Installation Guide After connecting the TL-R4299G router into your network, you should configure it. This chapter describes how to configure the basic functions of your TL-R4299G Dual-WAN SMB Broadband Router. These procedures only take you a few minutes. You can access the Internet via the router immediately after it has been successfully configured.
  • Page 12 TL-R4299G Dual-WAN SMB Broadband Router User Guide Figure 3-2 Step 3: In the next screen, select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. Figure 3-3...
  • Page 13 TL-R4299G Step 4: Configure the IP address as shown in Figure 3-4. After that, click OK. Note: You can configure the PC to get an IP address manually, select “Obtain an IP address automatically” and “Obtain DNS server address automatically” in the screen above.

  • Page 14: Login

    TL-R4299G Dual-WAN SMB Broadband Router User Guide If the result displayed is similar to the screen shown below, it means that your PC has not connected to the Router. Figure 3-6 You can check it follow the steps below: Note: Is the connection between your PC and the Router correct? The LEDs of LAN port which you link to the device and the LEDs on your PC's adapter should be lit.
  • Page 15 TL-R4299G Note: If the above screen (Figure 3-7) does not prompt, it means that your web-browser may be set to a proxy. Choose Tools menu→Internet Options→Connections→LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
  • Page 16 TL-R4299G Note: The router supports three popular ways to connect to Internet. Please select one compatible with your ISP, if you are given another way not listed here, refer to Network→ WAN for detailed list. Step 3: If you choose PPPoE, you will see the screen as shown in Figure 3-10, enter the Username and Password provided by your ISP.

  • Page 17: Chapter 4. Configuring The Router

    TL-R4299G Dual-WAN SMB Broadband Router User Guide Chapter 4. Configuring the Router This User Guide recommends using the “Quick Installation Guide” for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, you need to read this chapter and configure advanced settings though the Web-based Utility.
  • Page 18 TL-R4299G LAN - This field displays the current information for the LAN, including the “MAC address”, “IP address” and “Subnet Mask”. WAN 1~2 - This field displays the parameters applied to the WAN ports of the router, including “MAC address”, “IP address”, “Subnet Mask”, “Default Gateway” and so on.

  • Page 19: Quick Setup

    TL-R4299G 4.2 Quick Setup Please refer to chapter 3"Quick Installation 4.3 Network Choose menu “Network”, the next submenus are shown below: Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.

  • Page 20: Wan

    TL-R4299G DHCP sever will not take effect, until they are re-configured. Besides this, the Virtual Server and DMZ Host may change accordingly at the same time, you’d better re-configure it as well. 4.3.2 Choose menu “Network→WAN”, you can configure the IP parameters of the WAN on the screen below.
  • Page 21 TL-R4299G interior network: When the WAN is connecting with a LAN, you can select the option, and enter the LAN IP addresses in the field, then the WAN port will only transmit the traffic whose destination IP address are contained in the field.
  • Page 22 TL-R4299G applications. If you can not get the IP address normally, you can choose this option. (You don’t need select this option generally). Ingress Bandwidth: Enter the bandwidth for ingress traffic. Egress Bandwidth: Enter the bandwidth for egress traffic. Static IP If you are given a fixed IP (static IP), please select Static IP (shown in Figure 4-5), and then fixed IP parameters specified by your ISP.
  • Page 23 TL-R4299G (Optional). Secondary DNS - Type another DNS address in dotted-decimal notation provided by your ISP if provided (Optional). Ingress Bandwidth: Enter the bandwidth for ingress traffic. Egress Bandwidth: Enter the bandwidth for egress traffic. PPPoE If you are given a user name and a password, please select PPPoE (shown in Figure 4-6). If you are not sure which connection type you use currently, please contact your ISP to obtain the correct information.
  • Page 24 TL-R4299G Note: If you want your Internet connection to remain active at all times, enter 0 in the Max Idle Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates. Sometimes the connection can not be disconnected although you specify a time to Max Idle Time.
  • Page 25 TL-R4299G Dual-WAN SMB Broadband Router User Guide Figure 4-7 MTU Size- The default MTU size is 1492 bytes, which is usually fine. For some ISPs, you need modify the MTU. This should not be done unless you are sure it is necessary for your ISP.
  • Page 26 TL-R4299G BigPondCable If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select BigPond Cable option. User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. Auth Server - Enter the authenticating server IP address or host name.
  • Page 27 TL-R4299G after a specified period of the Internet connectivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the router to automatically re-establish your connection as soon as you attempt to access the Internet again.
  • Page 28 TL-R4299G Dual-WAN SMB Broadband Router User Guide Figure 4-9 User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. Connect on Demand - You can configure the router to disconnect your Internet connection after a specified period of the Internet connectivity (Max Idle Time).
  • Page 29 TL-R4299G enter the number of minutes you want to have elapsed before your Internet connection terminates. Connect Automatically - Connect automatically after the router is disconnected. To use this option, click the radio button. Connect Manually - You can configure the router to make it connect or disconnect manually.
  • Page 30 TL-R4299G Dual-WAN SMB Broadband Router User Guide Figure 4-10 User Name/Password - Enter the User Name and Password provided by your ISP. These fields are case-sensitive. Connect on Demand - You can configure the router to disconnect your Internet connection after a specified period of the Internet connectivity (Max Idle Time).

  • Page 31: Network Service Detection

    TL-R4299G enter the number of minutes you want to have elapsed before your Internet connection terminates. Connect Automatically - Connect automatically after the router is disconnected. To use this option, click the radio button. Connect Manually - You can configure the router to make it connect or disconnect manually.

  • Page 32: Mac Clone

    TL-R4299G Destination IP Address for Ping - Enter the correct IP address that really existed on the WAN network. For example: 202.96.134.188. By DNS Query - Detect whether Internet connection is online or not by sending query packet to DNS Server.
  • Page 33 TL-R4299G ISPs. For example, you can specify some packets prior forwarding from WAN port 1, which depend on specified source or destination IP addresses. Enable/Disable WAN - Enable the WAN port you want to use, then click Save to make it effective.

  • Page 34: Balance Policy

    TL-R4299G Dual-WAN SMB Broadband Router User Guide Figure 4-14 Click Save. To add additional rules, repeat steps 1-3. Other configurations for the entries as shown in Figure 4-20: Click the Delete button to delete the entry. Click the Enable All button to enable all the entries.
  • Page 35 TL-R4299G On Fastest-Session - If you select the option, the data will be transmited through one of the WAN ports which connect the WAN much quicker than the other. • Faster Speed-Detect-Table Speed-Detect-Table. • Age for Speed-Detect-Table - Normal timeouts for the entries in speed-Detect-Table.

  • Page 36: Wan Port Parameter

    TL-R4299G • Age for IP-Pairs-Table - Normal timeouts for the entries in Paired-IP-first Table. During the time, if an entry has never been used, the entry will be deleted from the Paired IP Table. • Obliged age for IP-Pairs-Table - The maximal timeouts for the entries in IP-Pairs-Table.

  • Page 37: Dhcp

    TL-R4299G Enabled. Flow Control - This displays whether the Flow Control is Enabled, "Enabled" means the function is enabled, "Disabled" means the function is't enabled. Negotiation Mode - The options are: Auto Negotiation, 10M Half Duplex, 10M Full Duplex,100M Half Duplex,100M Full Duplex.

  • Page 38: Dhcp Clients List

    TL-R4299G DHCP Server - Enable or disable the DHCP server. If you disable the Server, you must have another DHCP server within your network or else you must manually configure the computer. Start IP Address - This field specifies the first address in the IP address pool. The default address is 192.168.1.100.

  • Page 39: Address Reservation

    TL-R4299G update the information. Client Name - This field displays the name of the DHCP client MAC Address - This field displays the MAC address of the DHCP client Assigned IP - This field displays the IP address that the router has allocated to the DHCP client.

  • Page 40: Forwarding

    TL-R4299G Figure 4-21. Step 2: Enter the MAC address, IP address and select Status as shown in the screen below. Step 3: Click the Save button when finished. Note: If you want to add more than one reserved IP, please go to step 1 to continue.
  • Page 41 TL-R4299G Virtual servers can be used for setting up public services on your LAN, such as DNS, Email and FTP. A virtual server is defined as a service port, and all requests from Internet to this service port will be redirected to the computer specified by the server IP. Any PC that was configured as a virtual server must have a static or a reserved IP address because its IP address may change when using the DHCP function.

  • Page 42: Port Triggering

    TL-R4299G Step 3: After that, select Enable to make the entry take effect. Step 4: Click Save button to save the configuration. Note: If you want to add more than one reserved IP, please go to step 1 to continue.
  • Page 43 TL-R4299G Trigger Port - This displays the port for outgoing traffic. An outgoing connection using this port will "Trigger" this rule. Trigger Protocol - This displays the protocol used for Trigger Ports, either TCP,UDP, or All (all protocols supported by the router).

  • Page 44: Dmz

    TL-R4299G Step 3: After that, select Enabled to make the entry take effect. Step 4: Click Save button to save the configuration. Note: If you want to add more than one reserved IP, please go to step 1 to continue.

  • Page 45: Upnp

    TL-R4299G To assign a computer or server to be a DMZ server: Step 1: Click the Enable radio button Step 2: Enter the local host IP address in the DMZ Host IP Address field Step 3: Click the Save button.

  • Page 46: Security

    TL-R4299G Protocol - This displays the protocol for the application. Internal Port - This displays the Internal port, which the router opened for local host. IP Address - The UPnP device that is currently accessing the router. Status - This displays the status. Enabled means that the port is still active, Disabled means that the port is inactive.

  • Page 47: Ip Filtering

    TL-R4299G Enable Firewall - Enable the general firewall switch or not. Enable IP Address Filtering - Enable the IP Address Filtering or not. There are two default filtering rules, please select the rule for your need. Enable Domain Filtering - Enable the Domain Filtering or not.
  • Page 48 TL-R4299G Effective Time - This is the time or the range of time for the entry to take effect. For example, 1800 - 2200, it means that the entry will take effect from 18:00 to 22:00. LAN IP - This is the LAN IP address or the range of LAN IP addresses in dotted-decimal notation format.
  • Page 49 TL-R4299G Step 2: Click Add New…/Modify shown in Figure 4-31, you will see a new screen shown in Figure 4-32. Step 3: Enter the “Effective time” that the rule will take effect as shown in Figure 4-32. Step 4: Enter the “LAN IP Address”, “LAN Port”, “WAN IP Address” and “WAN Port” in the corresponding field as shown in Figure 4-32.

  • Page 50: Domain Filtering

    TL-R4299G 4.6.3 Domain Filtering Choose menu “Security→Domain Filtering”, you can configure the Domain filtering rule in the next screen (shown in Figure 4-34). The Domain Filtering feature allows you to control access to certain websites on the Internet by specifying their domains or key words.

  • Page 51: Mac Filtering

    TL-R4299G Step 5: Finally, click Save to make the rule take effect. Step 6: Go to Step 2 to complete the other rules continually. After you finish the configurations, you will see the rules in the table below: Note: Before adding an IP Address Filtering entry, you should enable the Firewall and the IP Address Filtering function first (shown in Figure 4-30).
  • Page 52 TL-R4299G MAC Address - .This is the PC’S MAC address which is controlled by the rule, its format of is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0E-AE-B0-00-0B. Description - This is the description about the PC, Fox example: John’s PC.

  • Page 53: Screen

    TL-R4299G Step 4: Finally, click Save to make the rule take effect. Step 5: Go to Step 2 to complete the other rules continually. After you finish the configurations, you will see the rules in the table below: Note: Before adding a MAC Address Filtering entry, you should enable the Firewall and the MAC Address Filtering function first (shown in Figure 4-30).
  • Page 54 TL-R4299G Region - This option used to select the specifically area from which the packets will be monitored by the next settings. Scan Attack Defence • IP Scan: During the specific time, if a computer (identified by a particular source IP address) transmits packets to at least ten different computers (identified by different destination IP addresses), then the source IP address will be deemed to make IP Attacks.
  • Page 55 TL-R4299G • Port Scan - During the specific time, if a computer (identified by a particular source IP address) transmits TCP SYN packets to another computer's (identified by a destination IP address) ten different ports, then the source IP address will be deemed to make Port Attacks.

  • Page 56: Static Routing

    TL-R4299G ACK is considered as abnormal. And the Router will start up the blocking function immediately. • Unknow Protocol - In IP head the protocol type field, 135 and the value bigger than 135 is reserved and undefined. Because the protocols are undefined, we can not predict a specifically unknow protocol is well-meaning or baleful.
  • Page 57 TL-R4299G Destination IP Address - The “Destination IP Address” is the address of the network or host that you want to assign to a static route. Subnet Mask - The “Subnet Mask” determines which portion of an IP address is the network portion, and which portion is the host portion.

  • Page 58: Session Limit

    TL-R4299G Click the Delete button to delete the entry. Click the Enable All button to enable all the entries. Click the Disable All button to disable all the entries. Click the Delete All button to delete all the entries. Click the Previous button to view the information in the previous screen, click the Next button to view the information in the next screen.

  • Page 59: Session List

    TL-R4299G Figure 4-45. Step 2: Enter the appropriate LAN IP Address, Max Session and then select the status. Step 3: Click the Save button. 4.8.2 Session List Choose menu “Session Limit→Session List”, you can view the the information about the number of connection.

  • Page 60: Qos Settings

    TL-R4299G 4.9.1 QoS Settings Choose menu “QoS→QoS Settings”, you can configure the Upload Bandwidth and Download Bandwidth in the next screen, their value you configure should be less than 1000000Kbps. 4.9.2 QoS Rules List Choose menu “QoS→QoS Rules List”, you can view and configure the QoS rules in the screen below.

  • Page 61: Ip & Mac Binding

    TL-R4299G Step 3: Click the Save button. 4.10 IP & MAC Binding Choose menu “IP & MAC Binding”, you can see the submenus under the main menu: Binding Setting, ARP List. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.
  • Page 62 TL-R4299G MAC Address - This field displays the MAC address of the controlled computer in the LAN. IP Address - This field displays the assigned IP address of the controlled computer in the LAN. Bind - Select Whether enable the arp binding or not. Only bind the MAC address and IP address can the function take effect.

  • Page 63: Arp List

    TL-R4299G Step 3: Click Find button, then you will see the entry with the specific MAC address or IP address. Step 4: Click Back to return the previous screen. Note: You can click “to page” to edit the entry in the corresponding screen.

  • Page 64: Dynamic Dns

    TL-R4299G Dual-WAN SMB Broadband Router User Guide Click Load to load the specific item to the IP & MAC Binding list (shown in Figure 4-52). Click Delete to load the specific item to the IP & MAC Binding list. Click the Bind All button to bind all the current items, available after enable.

  • Page 65: Peanuthull Ddns

    TL-R4299G Dual-WAN SMB Broadband Router User Guide Step 1: Select the WAN port to configure. Step 2: Type the “User Name” and “Password” for your DDNS account. Step 3: Enter the domain name that your dynamic DNS service provider offers.

  • Page 66: Switch Setting

    TL-R4299G Dual-WAN SMB Broadband Router User Guide Figure 4-58 To set up for Comexe DDNS, follow these instructions: Step 1: Select the WAN port to configure. Step 2: Enter the domain name your dynamic DNS service provider offer. Step 3: Type the “User Name” and “Password” for your DDNS account.

  • Page 67: Port Statistics

    TL-R4299G Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. 4.12.1 Port Statistics Choose menu “Switch Setting→Port statistics”, you can view the statistics information about the LAN port in the next screen (shown in Figure 4-60).

  • Page 68: Port Rate Control

    TL-R4299G Mirror Config - There are three Mirror modes: Disable, Output mirror, Input mirror. The Output/Input mirror is related to the Router. Port Mirror - This is the port linked to the mirror computer. Mirrored Ports List - The option used to select ports to be mirrored.

  • Page 69: Port Parameter

    TL-R4299G Dual-WAN SMB Broadband Router User Guide Figure 4-62 4.12.4 Port Parameter Choose menu “Switch Setting→Port Parameter”, you can configure the parameters for the LAN port in the next screen (shown in Figure 4-63).

  • Page 70: Port Status

    TL-R4299G 4.12.5 Port Status Choose menu “Switch Setting→Port Status”, you can view the status of the LAN port in the next screen (shown in Figure 4-64). Dual-WAN SMB Broadband Router User Guide Figure 4-63 Figure 4-64...

  • Page 71: Port Vlan

    TL-R4299G 4.12.6 Port VLAN Choose menu “Switch Setting→Port VLAN”, you can view and configure the VLAN table. Port - You can select them as the members of VLAN. Enable - This used to enable the corresponding VLAN configuration. Clean - Click this button, you can make all the entries Disabled.

  • Page 72: Time Settings

    TL-R4299G Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below. 4.13.1 Time Settings Choose menu “System Tools→Time Settings”, you can configure the time on the screen (shown in Figure 4-67).

  • Page 73: Firmware

    Router’s current hardware version. To upgrade the router's firmware, follow these instructions below: Step 1: Download a more recent firmware upgrade file from the TP-LINK website (www.tp-link.com). Step 2: Type the path and file name of the update file into the “File” field. Or click the Browse button to locate the update file.

  • Page 74: Backup And Restore

    TL-R4299G Click the Restore button to reset all configuration settings to their default values. Note: The default User Name is admin. The default Password is admin. The default IP Address is 192.168.1.1. The default Subnet Mask is 255.255.255.0. All settings you have saved will be lost when the default settings are restored.

  • Page 75: Reboot

    TL-R4299G Step 2: Save the file as the appointed file (shown in Figure 4-72). To restore the Router’s settings: Step 1: Click the Browse button to locate the update file for the device, or enter the exact path to the Setting file in the text box.

  • Page 76: Password

    TL-R4299G screen. Note: Some settings of the router will take effect only after rebooting, which include: Change LAN IP Address. (System will reboot automatically) MAC Clone (system will reboot automatically) DHCP service function. Static address assignment of DHCP server. Web Service Port of the router.

  • Page 77: System Log

    TL-R4299G The new user name and password must not exceed 14 characters in length and must not include any spaces. Enter the new Password twice to confirm it. You can click the Clean All button to clean all the configurations.

  • Page 78: Statistics

    TL-R4299G entering that number in the box provided. Choose a number between 1024 and 65534, but do not use the number of any common service port. Remote Management IP Address - This is the current address you will use when accessing your router from the Internet.

  • Page 79: Wan Speed Detect

    TL-R4299G Statistics Table - This table displays the statistics information about the traffic. IP Address The IP address whose statistics information are displayed MAC Address Packets The total amount of packets received and transmitted by the router Total Bytes The total amount of bytes received and transmitted by the router The total amount of packets received and transmitted in the last “Packets...
  • Page 80 TL-R4299G Dual-WAN SMB Broadband Router User Guide Figure 4-78 Destination IP - the IP address which datagrams are sent to, such as- 202.96.134.188. ID - The number of ICMP datagrames to be sent. Source Port - The port where datagrams are sent to, such as- 5000 Destination Port - The datagrams' distination port, such as-6000.

  • Page 81: Ip Nat Table

    TL-R4299G UDP datagram. Detect Result - The interval between sending datagram and recving datagram, uint is ms. 4.13.11 IP NAT Table Choose menu “System Tools→IP NAT Table”, you will see the IP NAT in the table below: Out Link - The WAN port which links the router.

  • Page 82: Appendix A: Specifications

    TL-R4299G Appendix A: Specifications IEEE 802.3, 802.3u , 802.3x, 802.1x Standards and Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP,HTTP,DNS Safety & Emission FCC、CE Two 10/100M Auto-Negotiation WAN RJ45 port. Ports Eight 10/100/1000M Auto-Negotiation LAN RJ45 ports (Auto MDI/MDIX) One SFP Module...

  • Page 83: Appendix B: Faq

    TL-R4299G Appendix B: FAQ How do I configure the router to access Internet by ADSL users? Step 1: First, configure the ADSL modem in RFC1483 bridge model. Step 2: Connect the Ethernet cable from your ADSL modem to the WAN port on the router. The telephone cord plugs into the Line port of the ADSL modem.
  • Page 84 TL-R4299G How do I configure the router to access Internet by Ethernet users? Step 1: Login to the router, click the menu Network→WAN on the left of your browser, On the WAN screen, select “Dynamic IP” for "WAN Connection Type", and finish it by clicking Save.
  • Page 85 TL-R4299G Note: Your opposite side should call your WAN IP, which is displayed on the “Status” page. Method two: Use DMZ Host Login to the router, click the menu Forwarding→DMZ. On the DMZ screen, select “Enable”, and enter your IP address into the “DMZ Host IP Address” field (using 192.168.1.102 as an example), then to click the Save button.
  • Page 86 TL-R4299G Note: If the above configuration takes effect, you should login the Router by entrying http://192.168.1.1:88 (the router’s LAN IP address: Web Management Port) in the address field of the web browser. Step 2: To add a WEB Server: Login to the router, click the menu Forwarding→Virtual Servers on the left of your browser, On the Virtual Server screen, add a Virtual Server rule as shown in the next screen: configure “80”...

  • Page 87: Appendix C: Glossary

    TL-R4299G Dual-WAN SMB Broadband Router User Guide Appendix C: Glossary DDNS (Dynamic Domain Name System) - The capability of assigning a fixed host and domain name to a dynamic Internet IP address. DHCP (Dynamic Host Configuration Protocol) - A protocol that automatically configure the TCP/IP parameters for the all the PCs that are connected to a DHCP server.
