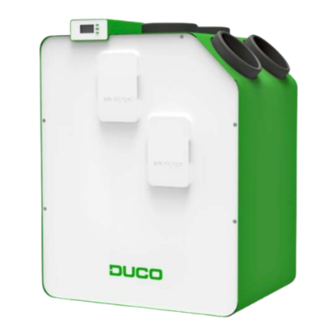

ISO 16890 Coarse 65 % (≈ G4) • Qty� 1 DucoBox Energy Premium Blanking cap 01.A Versions The DucoBox Energy Premium is available in a number of variants� This manual is valid for the following types: Item number Supply and exhaust capacity...
2-zone system DucoBox Energy Premium models with a 2-zone system (2Z types) enable the house to be divided into a day and a night zone� This means that ventilation will only operate in the relevant zone, which means reduced energy demand on the unit, the unit runs quie- ter and increased heat transfer is possible�...
@ duco.eu www.duco.eu This drawing is property of Vero Duco NV and can not be copied, neither shown to This drawing is property of Vero Duco NV and can not be copied, neither shown to Outline kg/m dm²/m...
Ensure that the electrical circuit is not damaged� with comparable qualifications in order to prevent Replace both filters in the unit every 6 months at any hazard� most, this ensures that the unit is always protected L1315004 Installation guide for DucoBox Energy Premium (Revision H | 10.02.2020)
Handelsstraat 19 - 8630 VEURNE tel. 0032-58/330033 - fax.0032-58/330044 A1000811_HANDLEIDING Scale: 0.300 email: info @ duco.eu www.duco.eu This drawing is property of Vero Duco NV and can not be copied, neither shown to kg/m dm²/m mm³ third party/externally without written permission. Tol.: Draftsman: MVR Mat.:...
Communication Print in order to link the Duco Venti- lation App to the DucoBox Energy Premium� The app can Connector for then be paired with the Wi-Fi network� DucoBox L1315004 Installation guide for DucoBox Energy Premium (Revision H | 10.02.2020)
ENGLISH 05 Wiring The DucoBox Energy Premium is able to communicate with slave components via a wireless (RF) or wired link� Both types of com- munication can be combined in one system� Communication with non-Duco components is possible via the Switch Sensor or one of the connections on the optional Communi- cation Print (see page 9)�...
Communication with building management systems is available, for reading out information as well as controlling the ventilation system� This requires the DucoBox Energy Premium to be equipped with an optional Communication Print� Please refer to informa- tion sheet L8000003 ModBus at www�duco�eu for more information�...
STS-P73-1 • Although the DucoBox Energy Premium is a very quiet system, it is advisable to fit a rigid silencer on ducts going into the house in order to obtain maximum acoustic comfort� A silencer may also be needed in order to prevent voices from carrying from one room to another�...
Wall mounting The DucoBox Energy Premium can be fastened to a wall or if there is no wall available that will do, the DucoBox Energy Premium can be installed on an optional mounting plinth� Slide the cardboard packaging off...
MONTAGE_MUUR The DucoBox Energy Premium must always be fitted with a condensate drain at the bottom� The unit is supplied with a standard This drawing is property of Vero Duco NV and can not be copied, neither shown to kg/m dm²/m...
06.E Vents You should preferably use Duco vents, DucoVent Basic or DucoVent Design� See the technical data sheet or fitting instructions for the DucoVent Basic or Design for details� It is best to bear a few rules in mind when fitting vents: •...
If the power supply to the DucoBox Energy Premium fails, it will retain all its settings� Once power has been restored, the DucoBox Energy Premium will start up again and run� The correct time will need to be set again if the DucoBox Energy Premium is without power for more than (around) 8 hours�...
Go to the INSTALLATION menu� Start the WIZARD� The DucoBox Energy Premium will automatically detect whether it is a 1-zone or a 2-zone system� The system now enables control components to be paired with the entire system (step 4), zone 1 (step 5) or zone 2 (step 6)�...
08.C Tips The network can be wiped or a full reset of the DucoBox Energy Premium can be carried out in the event of any problems� To do this, refer to the following functions under the INSTALLATION menu (visible only after activating advanced mode, see page 24)�...
ENGLISH 09 Air-side calibration Calibrating the DucoBox Energy Premium can be split into various steps: 1� Pre-setting supply and exhaust vents 2� Calibrating flow rates The system needs to be configured for it to work correctly. This will ensure its operation is as quiet as possible and energy-efficient.
Page 20
IMPORTANT, BEFORE CALIBRATING Close all windows and doors. Ensure that all duct openings in the DucoBox Energy Premium are fully closed and that the DucoBox Energy Premium cover is closed! Avoid air leaks in the ventilation ducts. Open all interior doors between the various zones.
The calibrated flow rates can be checked at the various vents once adjustment and calibration have been completed� Do this by going into advanced mode (see page 24) and select “CALIBRATION → VERIFY HIGH LEVEL”� The DucoBox Energy Premium ventilate for 30 min at its calibrated ventilation setting�...
10 Display menu The DucoBox Energy Premium features a graphic display which enables all the necessary parameters of the unit to be easily adjus- ted� Settings and calibration can also be carried out using the free-of-charge Duco Ventilation App provided a Communication Print is in place�...
Page 23
100 % Select BACK to go back out of the menu in order to select another period or zone� You can exit the menu completely by pressing simultaneously� Tijd L1315004 Installation guide for DucoBox Energy Premium (Revision H | 10.02.2020)
The menu will exit advanced mode after 30 minutes of inactivity or after restarting the DucoBox Energy Premium� Advanced mode can also be closed down manually using the CLOSE ADVANCED menu command� L1315004 Installation guide for DucoBox Energy Premium (Revision H | 10.02.2020)
Page 25
(including allow imbalance method) What happens if there is a freeze-up? If, despite the built-in frost-protection mechanisms, the DucoBox Energy Premium should freeze up solid in exceptional circumstances, this will be shown on the display� As a result, the DucoBox Energy Premium will shut down all ventilation temporarily for 8 hours, after which it will attempt to start up the ventilation again�...
ENGLISH 10.D Menu structure The chart below contains all the menus in the DucoBox Energy Premium� Menus with a padlock ( ) are only visible to the installer after entering the installer’s code 9876� The chart below may differ depending on the DucoBox Energy Premium software version�...
11 Passive House The DucoBox Energy Premium 325 with heater can be used in a Passive House / low-energy home which is energy-efficient and boasts a comfortable indoor air climate� There are a number of requirements to meet Passive House certification: •...
Page 28
Installed by: L1315004 Document last modified on 10.02.2020 (revision H)
