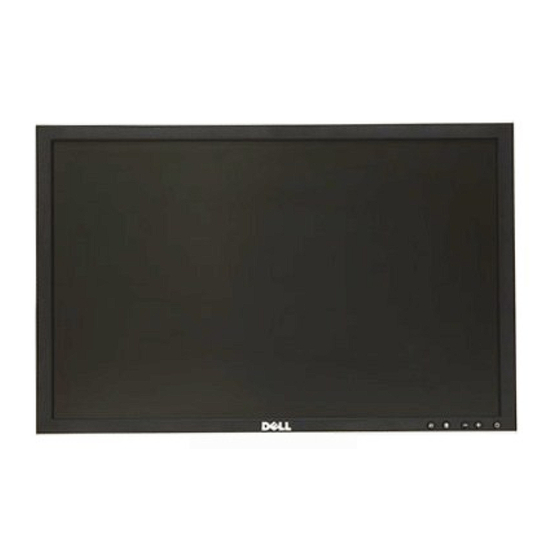

Dell UltraSharp 2208WFP Manual

Aio flat panel monitor for dell optiplex sff computer
Hide thumbs Also See for UltraSharp 2208WFP:
Table of Contents

Advertisement

Quick Links

Download this manual
Dell™ 2208WFP AIO Flat Panel Monitor For Dell OptiPlex™ SFF Computer
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
Notes, Notices, and Cautions

NOTE:
A NOTE indicates important information that helps you make better use of your computer.

NOTICE:
A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION:
A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc;  Microsoft a n d Windows are registered trademarks of Microsoft Corporation in the United
Statesand/or other countries,which may be registered in certain jurisdictions.ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY
STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model 2208WFPf
August 2008  Rev. A00



Advertisement

Table of Contents
loading

Related Manuals for Dell UltraSharp 2208WFP

Summary of Contents for Dell UltraSharp 2208WFP

  • Page 1 STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

  • Page 2: About Your Monitor

    Back to Contents Page   About Your Monitor Dell™ 2208WFP AIO Flat Panel Monitor For Dell OptiPlex™ SFF Computer Package Contents Product Features Identifying Parts and Controls Monitor Specifications Plug and Play Capability Universal Serial Bus (USB) Interface Maintenance Guidelines Package Contents Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

  • Page 3: Product Features

    Cable Cover Power Cable DVI Cable   VGA cable (attached to the monitor) USB up stream cable (enables the USB ports on the monitor) Drivers and Documentation media Quick Setup Guide Safety Information Stand Template sheet   Product Features...
  • Page 4 ■ Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions. ■ Monitor stand integrating a Dell OptiPlex™ Small Form Factor computer, cable cover and monitor in an All-In-One configuration. ■ Tilt, swivel and vertical extension adjustment capabilities.

  • Page 5: Side View

    Stand removeal button Releases stand from monitor. Monitor security lock slot Secures monitor with security lock Dell Soundbar mounting brackets Attaches the optional Dell Soundbar. Barcode serial number label Contact Dell for technical support. Regulatory rating label Lists the regulatory approvals.

  • Page 6: Top View

    Left view   Right view   Label Description USB downstream ports Connect your USB devices  Top View   Top view   Label Description Computer alignment feature Matches the front contour of computer. Chassis hooks Locks computer onto stand. Detects when computer is on stand and engages Hook trigger chassis hooks.
  • Page 7 To mount stand on desktop foradded security Swivel rollers To swivel monitor Power connector Connect the power cable Connect the power cord for the Soundbar Dell Soundbar power connector (optional) DVI connector Connect your computer DVI cable VGA connector Connect your computer VGA cable Connect the USB cable that came with your monitor to the monitor and the computer.

  • Page 8: Resolution Specifications

    Viewing angle 160° (vertical) typical, 160° (horizontal) typical Luminance output 300 CD/m²(typical) Contrast ratio 1000 to 1 (typical) Faceplate coating Antiglare with hard-coating 3H Backlight CCFL (4) edgelight system Response Time 5 ms typical Color Gamut 102%* *[2208W SFF AIO] color gamut (typical) is based on CIE1976 (102%) and CIE1931 (92%) test standards. Resolution Specifications Horizontal scan range 30 kHz to 83 kHz (automatic)

  • Page 9: Supported Video Modes

    Highest preset resolution 1680 x 1050 at 75 Hz  Supported Video Modes 480i/480p/576i/576p/720p/1080i/1080P Video display capabilities (DVI playback) (Supports HDCP) Preset Display Modes Display Mode Horizontal Vertical Frequency Pixel Clock (MHz) Sync Polarity Frequency (kHz) (Hz) (Horizontal/Vertical) VESA, 720 x 400 31.5 70.0 28.3...

  • Page 10: Electrical Specifications

    VESA, 1024 x 768 60.0 75.0 78.8 VESA, 1152 x 864 67.5 75.0 108.0 VESA, 1280 x 1024 64.0 60.0 135.0 VESA, 1280 x 1024 80.0 75.0 135.0 VESA, 1680 x 1050 65.2 60.0 146.3 VESA, 1680 x 1050 64.6 60.0 119.0 Electrical Specifications...
  • Page 11 Signal cable type Analog:Detachable, D-Sub, 15pins, shipped attached to the monitor Dimensions (with stand) Height (Extended) 20.75 inches (527.04mm) Height (Compressed) 17.21 inches (437.04 mm) Width 20.13 inches ( 511.41mm) Depth 10.07 inches (255.75 mm) Dimensions (without stand) Height  13.19 inches (334.94 mm) Width 20.13 inches (511.41 mm) Depth...

  • Page 12: Environmental Characteristics

    Environmental Characteristics Temperature   Operating 5° to 35° C (41° to 95°F) Storage: -20° to 60° C (-4° to 140° F) Non-operating Shipping: -20° to 60° C (-4° to 140° F)

  • Page 13: Fcc Notices (U.s. Only) And Other Regulatory Information

    Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Visit support.dell.com.

  • Page 14: Setting Up Your Monitor

    Back to Contents Page Setting Up Your Monitor Dell™ 2208WFP AIO Flat Panel Monitor For Dell OptiPlex™ SFF Computer If you have a Dell™ desktop or a Dell™ portable computer with internet access 1. Go to http://support.dell.com, enter your service tag, and download the latest driver for your graphics card.  2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1680x1050 again. NOTE: If you are unable to set the resolution to 1680x1050, please contact Dell™ to inquire about a Graphics Adapter that supports these resolutions.   Back to Contents Page...

  • Page 15: If You Have A Non Dell™ Desktop, Portable Computer, Or Graphics Card

    Back to Contents Page Setting Up Your Monitor Dell™ 2208WFP AIO Flat Panel Monitor For Dell OptiPlex™ SFF Computer If you have a non Dell™ desktop, portable computer, or graphics card 1. Right-click on the desktop and click Properties. 2. Select the Settings tab. 3. Select Advanced. 4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).

  • Page 16: Operating The Monitor

     Operating the Monitor Dell™ 2208WFP AIO Flat Panel Monitor For Dell OptiPlex™ SFF Computer   Using the Front Panel Controls   Using the On-Screen Display (OSD) Menu   Using the Dell Soundbar (Optional)   Operating the Adjustable Stand   Using the Front Panel Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls, an OSD shows the numeric values of the characteristics as they change.

  • Page 17: Using The On-Screen Display (Osd) Menu

    tune your monitor by using the Pixel Clock (Coarse) and Phase (Fine) controls under Image Settings. NOTE: Auto Adjust does not occur if you press the button while there are no active video input signals or attached cables. Use the Power button to turn the monitor on and off.  ...
  • Page 18 Brightness adjusts the luminance of the backlight. Brightness Push the button to increase brightness and push the button to decrease brightness (min 0 ~ max 100). Contrast Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary. Push the button to increase contrast and push the button to decrease contrast (min 0 ~ max 100).
  • Page 19 Input Color Choose the RGB option if monitor is connected to a PC or a DVD using a VGA or DVI cable. Choose the YPbPr option if monitor is Format connected to a DVD by a YPbPr to VGA or YPbPr to DVI cable or if the DVD color output setting is not RGB. Gamma To achieve the different color mode for PC and Mac.
  • Page 20 Custom (R, G, B) Preset offers a range of 6500K colors; Choose "Desktop" to utilize the panel native color format; Select Warm preset for a reddish tint. This color setting is used for color-intensive applications (photograph image editing, multimedia, movies, etc.) Select Cool preset for a bluish tint.
  • Page 21 Back Push to go back to the main menu Horizontal P Use the buttons to adjust image left and right. Minimum is '0' (-). Maximum is '100' (+). osition Vertical Posit Use the buttons to adjust image up and down. Minimum is '0' (-). Maximum is '100' (+). Sharpness This feature can make the image look sharper or softer.
  • Page 22 Language Language option to set the OSD display to one of five languages (English, Espanol, Francais, Deutsch, or Japanese). Menu Transp This function is used to adjust the OSD background from opaque to transparent. arency Menu Timer OSD Hold Time: Sets the length of time the OSD will remain active after the last time you pressed a button. Use the buttons to adjust the slider in 1 second increments, from 5 to 60 seconds.
  • Page 24 Back to Contents Page Setting Up Your Monitor Dell™ 2208WFP AIO Flat Panel Monitor For Dell OptiPlex™ SFF Computer Setting the display resolution to 1680X1050 (Optimal) For optimal display performance while using the Microsoft Windows operating systems, set the display resolution to 1680 x 1050 pixels by performing the following steps: 1.
  • Page 25 U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

  • Page 26: Setting Up The Monitor

    Cable Connections on the Back of the Monitor and the Computer  Removing the Cable Cover and the Computer from the Stand Detaching the Monitor from the Stand Attaching the Dell Soundbar (optional) Cable Connections on the Back of the Monitor and the Computer 1.Attach the monitor to the stand a.
  • Page 27   3.Place the computer on the stand with the back of the computer resting on the step 4. Engage the computer to the stand auto locking mechanism. a. Toe-in the computer towards the chassis hooks until it reaches the alignment ramp. b.
  • Page 28 6.Connect the power cables to the monitor and the computer. NOTE: The monitor power cable and the Cable Cover are shipped with the monitor. 7.Connect the keyboard, mouse and other cables to the computer.
  • Page 29 8.To route the cables through the cable cover openings. a. Hold the cable cover close to the computer b. Route the cables connected to the monitor (power, USB and VGA cables) through the cable cover front opening. c. Route the computer power cables, monitor power cables any other cables that connect to the computer (mouse, keyboard, network, printer, external audio, etc.) through the cable cover back opening.
  • Page 30 Dongle route through the new opening     List of video dongles for Optiplex SFF computer Video Dongle Video Card DMS 59 to dual DVI dongle (included) 256MB ATI RADEON HD 3450 DMS 59 to dual VGA dongle (included) DP to DVI dongle (2 included) 256MB ATI RADEONHD3470 DP to DVI dongle (optional) Integrated Display Port...
  • Page 31 11.Use the cable management clip to neatly organize all the cables as shown below. 12. Install security locks to the computer and the monitor (Optional)
  • Page 32 13.Plug the power cables of the computer and the monitor into a nearby outlet.   14. Power on both the monitor and the computer. If your monitor displays an image, installation is complete. If it does not display an image, see Troubleshooting.  ...
  • Page 33     Removing the Cable Cover and the Computer from the Stand 1.Unplug the power cables of the monitor and the computer. 2.Release the cable cover and the computer from the stand. 1. Remove the optional security lock on stand (if used). 2.
  • Page 34   3. Remove the cables from the cable management clip. 4. Lift and remove the cable cover from the computer and the stand.   5. Unplug all cables from the computer. 6. Lift and remove the computer from the stand.
  • Page 35 Detaching the Monitor from the Stand NOTE: This monitor is VESA compliant for wall mounting, and detaching the monitor from the stand is necessary. 1.Press the stand removal button to release the monitor from the stand.   2.Remove the monitor from the stand. a.
  • Page 36 3.  Plug in the power cord from the Soundbar in to the connector on the back of the monitor. Insert the green stereo plug from the Soundbar in to your computer's audio output connector. NOTE: Soundbar Power Connector +12V DC output is optional . NOTICE: Do not use with any device other than Dell Soundbar .     ...
  • Page 37 Back to Contents Page  ...

  • Page 38: Troubleshooting

    Dell™ 2208WFP AIO Flat Panel Monitor For Dell OptiPlex™ SFF Computer   Self-Test   Common Problems   Video Problems   Product Specific Problems   Universal Serial Bus Specific Problems   Dell Soundbar Problems CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions.  Self-Test Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps: 1.

  • Page 39: Product Specific Problems

    Safety Related Issues Visible signs of smoke or Do not perform any troubleshooting steps. sparks Contact Dell immediately. Intermittent Problems Monitor malfunctions on & off Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.

  • Page 40: Universal Serial Bus (Usb) Specific Problems

    Some computers have both USB 2.0 and USB 1.1 ports. Ensure that the correct USB port not working at all is used.   Reconnect the upstream cable to your computer. Reconnect the USB peripherals (downstream connector).  Reboot the computer. Dell™ Soundbar Problems Common Symptoms What You Experience Possible Solutions No Sound No power to Soundbar - the Turn the Power/Volume knob on the Soundbar clockwise to the middle position;...
