5.1.10 Mains connection

Hazards caused by improper mains connection!
An improper mains connection can cause injuries or damage property!
• The connection (mains plug or cable), the repair or voltage adjustment of the device must
be carried out by a qualified electrician in accordance with the respective local laws or nati-
onal regulations!
• The mains voltage indicated on the rating plate must match the supply voltage.
• Only operate machine using a socket that has correctly fitted protective earth.
• Mains plug, socket and lead must be checked by a qualified electrician on a regular basis!
• When operating the generator, always ensure it is earthed as stipulated in the operating
instructions. The network created must be suitable for operating machines according to pro-
tection class I.

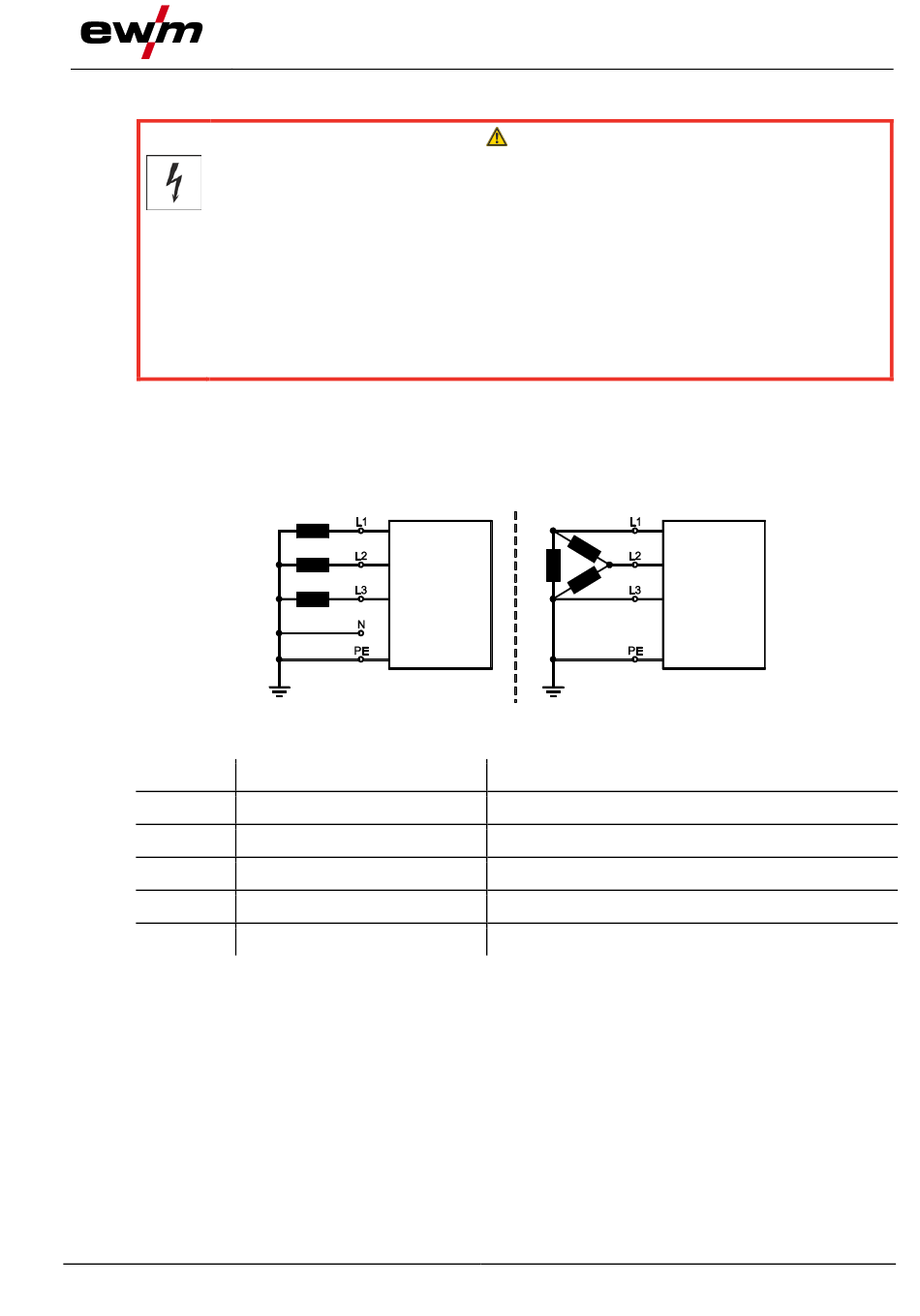

5.1.10.1 Mains configuration

The machine may be connected to:
• a three-phase system with four conductors and an earthed neutral conductor
• a three-phase system with three conductors of which any one can be earthed,
e.g. the outer conductor
Legend
Item Designation
L1 Outer conductor 1
L2 Outer conductor 2
L3 Outer conductor 3
N Neutral conductor
PE Protective conductor
• Insert mains plug of the switched-off machine into the appropriate socket.
5.2

Process data display

The process data display shows the set degaussing current.
Error messages for identifying device malfunctions are also displayed > see 7.2 chapter.
099-002065-EW501
9.9.2019
Design and function
DANGER
Figure 5-6
Colour code
brown
black
grey
blue
green-yellow
Process data display
23
