BMW G07 Technical Training Manual

Product information complete vehicle
Hide thumbs

Advertisement

Table of Contents

Technical￿training.
Product￿information.
G07￿Complete￿Vehicle
BMW￿Service

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G07 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BMW G07

Summary of Contents for BMW G07

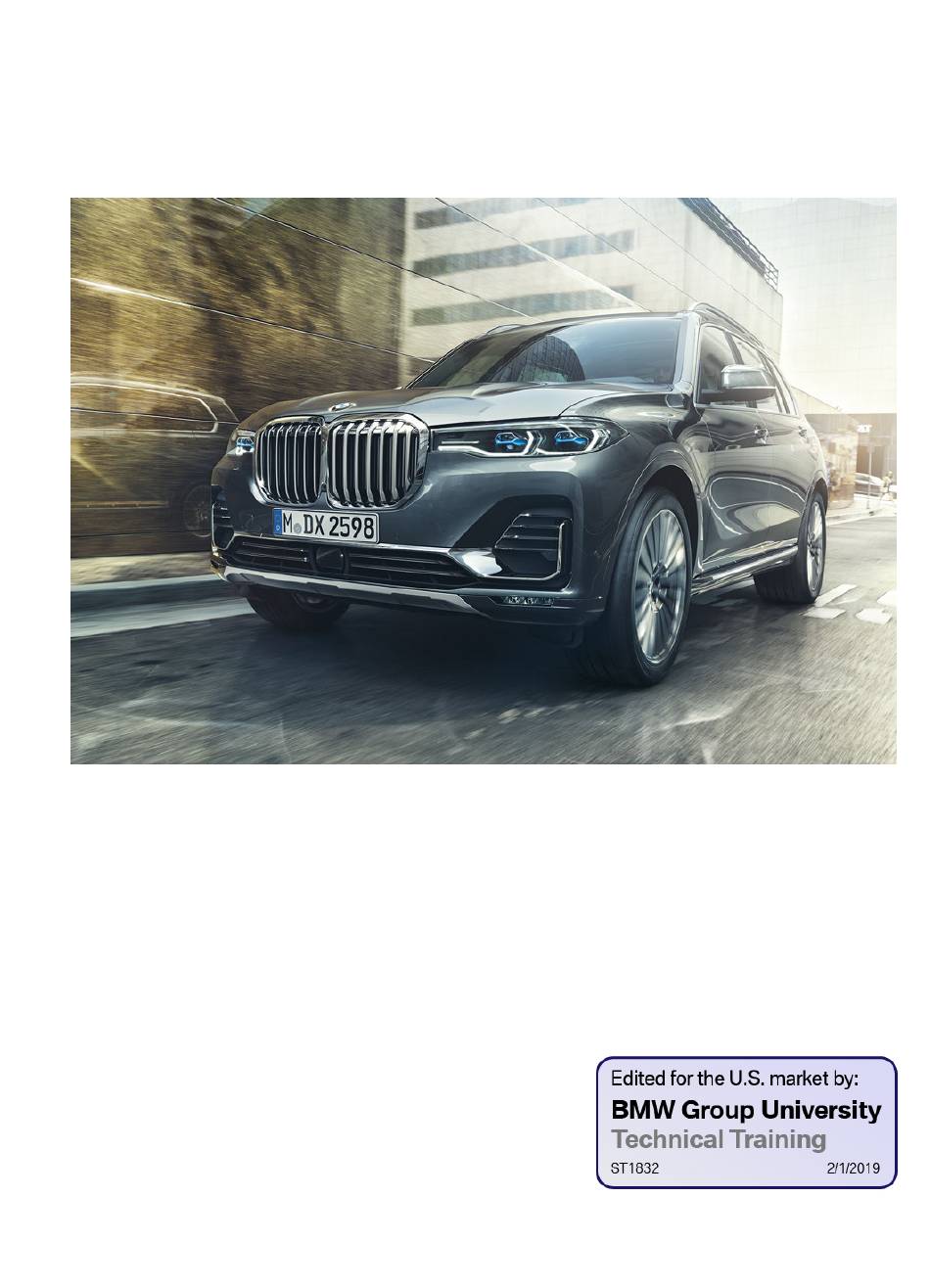

  • Page 1 Technical￿training. Product￿information. G07￿Complete￿Vehicle BMW￿Service...
  • Page 2 General￿information Symbols￿used The￿following￿symbol￿is￿used￿in￿this￿document￿to￿facilitate￿better￿comprehension￿or￿to￿draw￿attention to￿very￿important￿information: Contains￿important￿safety￿information￿and￿information￿that￿needs￿to￿be￿observed￿strictly￿in￿order￿to guarantee￿the￿smooth￿operation￿of￿the￿system. Information￿status:￿July￿2018 BMW￿Group￿vehicles￿meet￿the￿requirements￿of￿the￿highest￿safety￿and￿quality￿standards.￿Changes in￿requirements￿for￿environmental￿protection,￿customer￿benefits￿and￿design￿render￿necessary continuous￿development￿of￿systems￿and￿components.￿Consequently,￿there￿may￿be￿discrepancies between￿the￿contents￿of￿this￿document￿and￿the￿vehicles￿available￿in￿the￿training￿course. The￿information￿contained￿in￿the￿training￿course￿materials￿is￿solely￿intended￿for￿participants￿in￿this training￿course￿conducted￿by￿BMW￿Group￿Technical￿Training￿Centers,￿or￿BMW￿Group￿Contract Training￿Facilities. This￿training￿manual￿or￿any￿attached￿publication￿is￿not￿intended￿to￿be￿a￿complete￿and￿all￿inclusive source￿for￿repair￿and￿maintenance￿data.￿It￿is￿only￿part￿of￿a￿training￿information￿system￿designed￿to assure￿that￿uniform￿procedures￿and￿information￿are￿presented￿to￿all￿participants. For￿changes/additions￿to￿the￿technical￿data,￿repair￿procedures,￿please￿refer￿to￿the￿current￿information issued￿by￿BMW￿of￿North￿America,￿LLC,￿Technical￿Service￿Department. This￿information￿is￿available￿by￿accessing￿TIS￿at￿www.bmwcenternet.com. Additional￿sources￿of￿information Further￿information￿on￿the￿individual￿topics￿can￿be￿found￿in￿the￿following: • Owner's￿Handbook • Integrated￿Service￿Technical￿Application • Aftersales￿Information￿Research￿(AIR) The￿information￿contained￿in￿this￿manual￿is￿not￿to￿be￿resold,￿bartered,￿copied,￿or￿transferred without￿the￿express￿written￿consent￿of￿BMW￿of￿North￿America,￿LLC￿(“BMW￿NA”). ©2019￿BMW￿of￿North￿America,￿LLC The￿BMW￿name￿and￿logo￿are￿registered￿trademarks.￿All￿rights￿reserved.

  • Page 3: Table Of Contents

    G07￿Complete￿Vehicle Contents Introduction ................................................1.1. Further￿information ......................................1.2. Models ..............................................1.2.1. Weights￿and￿payload ..............................1.3. Dimensions ............................................1.4. Silhouette￿comparison ....................................Body ...................................................... 2.1. Exterior￿equipment ......................................2.1.1. Exterior￿design ..................................2.1.2. Outer￿body￿skin￿materials ............................2.1.3. Underbody ....................................... 2.1.4. Panorama￿roof ................................... 2.1.5. Electric￿tailgate ..................................2.2.
  • Page 4 G07￿Complete￿Vehicle Contents 4.4. Rear￿lights ............................................. 4.5. Driver￿Camera￿System ....................................4.6. Rear￿Seat￿Entertainment￿system ............................. 4.6.1. Head￿Unit￿High￿3 ................................4.6.2. Zone￿allocation ..................................Infotainment ............................................... 5.1. Overview ............................................5.2. Bowers￿&￿Wilkins￿high￿end￿audio￿system ........................5.2.1. Component￿overview ..............................5.2.2. LED￿lighting ....................................5.2.3. Wiring￿diagram ..................................Driver￿Assistance￿Systems ....................................6.1. Overview ............................................6.1.1.

  • Page 5: Introduction

    G07￿Complete￿Vehicle 1.￿Introduction The￿new￿G07￿has￿a￿distinctive￿and￿confident￿presence.￿It￿sets￿new￿standards￿in￿elegance￿and￿luxury and￿is￿satisfyingly￿generously￿appointed.￿Based￿on￿the￿concept￿of￿the￿G05,￿the￿G07￿is￿a￿larger￿design and,￿with￿3￿rows￿of￿seats￿as￿standard,￿offers￿comfortable￿seating￿space￿for￿six￿or￿seven￿people. Since￿the￿G05￿forms￿the￿basis￿for￿the￿G07,￿this￿product￿information￿module￿only￿describes￿the particular￿features￿specific￿to￿the￿BMW￿X7.￿Details￿of￿all￿the￿shared￿features￿can￿be￿found￿in￿the product￿information￿modules￿for￿the￿G05. BMW￿G07 1.1.￿Further￿information Detailed￿descriptions￿of￿the￿common￿components￿of￿the￿G05￿and￿G07￿can￿be￿found￿in￿the￿following product￿information￿module: • ST1831￿G05￿Complete￿Vehicle 1.2.￿Models The￿G07￿will￿be￿available￿at￿market￿introduction￿with￿the￿following￿models: Model Engine Cubic￿capacity Power￿in￿kW Torque￿in￿Nm [cm³] (HP) BMW￿X7 N63B44M3 4395 340￿(456) xDrive50i BMW￿X7 B58B30M1 2998 250￿(335) xDrive40i...

  • Page 6: Dimensions

    G07￿Complete￿Vehicle 1.￿Introduction 1.2.1.￿Weights￿and￿payload Models Unit Vehicle￿curb￿weight￿(US) Payload BMW￿X7￿xDrive50i 5617 1202 BMW￿X7￿xDrive40i 5370 1202 1.3.￿Dimensions The￿external￿dimensions￿of￿the￿G07￿are￿listed￿below.￿For￿comparison,￿the￿table￿also￿shows￿the￿external dimensions￿of￿the￿G05. Diagram￿of￿G07 Index Explanation G07￿[mm] G05￿[mm] Vehicle￿height,￿empty 1805 1744 Front￿track￿width, 1684 1666 basic￿wheels Front￿overhang Wheelbase 3105 2975 Rear￿overhang 1172 1073 Rear￿track￿width, 1705 1684 basic￿wheels Vehicle￿width￿with exterior￿rearview...
  • Page 7 G07￿Complete￿Vehicle 1.￿Introduction 1.4.￿Silhouette￿comparison A￿silhouette￿comparison￿with￿the￿G05￿shows￿the￿differences￿in￿the￿dimensions￿of￿the￿two￿vehicles. Silhouette￿comparison￿of￿G07￿and￿G05...

  • Page 8: Body

    G07￿Complete￿Vehicle 2.￿Body 2.1.￿Exterior￿equipment 2.1.1.￿Exterior￿design Even￿though￿the￿G07￿is￿based￿on￿the￿G05,￿the￿exterior￿design￿of￿the￿BMW￿X7￿is￿individually￿styled.￿As a￿result,￿the￿two￿vehicles￿are￿easily￿distinguishable￿from￿one￿another￿by￿their￿visual￿appearance.￿The particular￿features￿of￿the￿exterior￿trim￿include￿the￿larger￿symmetrically￿split￿and￿rounded￿radiator￿grill, the￿distinctively￿styled￿headlights￿and￿the￿full-width￿trim￿strip￿and￿vehicle-specific￿rear￿light￿cluster. G07￿exterior￿design￿highlights...

  • Page 9: Underbody

    G07￿Complete￿Vehicle 2.￿Body Index Explanation Larger￿BMW￿badge Larger￿radiator￿grill,￿one-piece Headlights￿extending￿to￿radiator￿grill Unique￿rear￿light￿cluster Continuous￿rear￿trim￿strip 2.1.2.￿Outer￿body￿skin￿materials In￿keeping￿with￿the￿technological￿basis,￿the￿same￿materials￿are￿used￿for￿the￿body￿outer￿skin￿on￿the G07￿as￿on￿the￿G05. More￿information￿on￿the￿body￿outer￿skin￿materials￿can￿be￿found￿in￿ST1831￿G05￿Complete￿Vehicle. 2.1.3.￿Underbody The￿body￿design￿in￿the￿area￿of￿the￿rear￿axle￿has￿been￿adapted￿to￿the￿demands￿of￿the￿longer￿wheelbase and￿greater￿overall￿length￿of￿the￿vehicle.￿The￿following￿table￿shows￿the￿particular￿features￿of￿the￿G07 compared￿with￿the￿G05￿body: G07￿underbody...
  • Page 10 G07￿Complete￿Vehicle 2.￿Body Index Explanation Larger￿wheel￿arches Rear￿compression￿struts Deeper￿battery￿tray Front￿compression￿struts Front￿compression￿strut￿mount 2.1.4.￿Panorama￿roof The￿panoramic￿sunroof￿is￿standard￿equipment￿on￿the￿G07￿and￿is￿the￿same￿as￿on￿the￿G05.￿The panoramic￿sunroof￿consists￿of￿a￿fixed￿and￿a￿movable￿part.￿In￿addition,￿the￿G07￿has￿a￿permanently bonded￿glass￿roof￿panel￿in￿the￿area￿of￿the￿3rd￿row￿of￿seats. G07￿panoramic￿sunroof Index Explanation Glass￿slide/tilt￿sunroof Fixed￿glass￿roof￿panel Fixed￿glass￿roof￿panel The￿fixed￿glass￿roof￿panel￿for￿the￿3rd￿row￿of￿seats￿is￿fitted￿with￿a￿separate,￿independently￿controllable roller￿blind￿to￿provide￿individual￿protection￿from￿the￿sun.￿The￿roller￿blind￿can￿be￿operated￿by￿the￿driver from￿the￿roof￿function￿center￿control￿panel.￿In￿addition,￿there￿is￿a￿control￿panel￿in￿the￿roof￿with￿a￿button for￿opening￿or￿closing￿the￿panoramic￿sunroof￿roller￿blind￿from￿the￿3rd￿row￿of￿seats.￿The￿position￿of￿the roller￿sunblind￿is￿infinitely￿adjustable￿and￿the￿mechanism￿also￿has￿an￿anti-trap￿function.
  • Page 11 G07￿Complete￿Vehicle 2.￿Body Control￿of￿panoramic￿sunroof￿roller￿blind￿for￿3rd￿row￿of￿seats Index Explanation Open￿panoramic￿sunroof￿roller￿blind Close￿panoramic￿sunroof￿roller￿blind Open/close￿panoramic￿sunroof￿roller￿blind 2.1.5.￿Electric￿tailgate As￿on￿the￿G05,￿the￿tailgate￿of￿the￿G07￿is￿a￿split￿design￿and￿both￿parts￿are￿electrically￿operated￿as standard. Opening￿and￿closing￿of￿the￿tailgate￿sections￿can￿be￿performed￿as￿follows: • Both￿tailgate￿sections￿can￿be￿opened￿or￿closed￿using￿the￿button￿in￿the￿driver's￿door.* • The￿tailgate￿upper￿section￿can￿be￿opened￿or￿closed￿with￿the￿button￿on￿the￿ID￿transmitter. • The￿tailgate￿upper￿section￿can￿be￿opened￿with￿the￿outside￿button￿on￿the￿tailgate. • Both￿tailgate￿sections￿can￿be￿contactlessly￿opened￿or￿closed￿with￿the￿corresponding￿foot movement. • Both￿tailgate￿sections￿close￿automatically￿when￿the￿button￿on￿the￿tailgate￿upper￿section￿is pressed. • When￿the￿button￿on￿the￿tailgate￿lower￿section￿is￿pressed,￿only￿the￿tailgate￿lower￿section￿opens or￿closes￿automatically.
  • Page 12 G07￿Complete￿Vehicle 2.￿Body *￿It￿is￿also￿possible￿to￿change￿the￿setting￿on￿the￿CID￿under￿Tailgate￿Setting￿so￿that￿only￿the￿upper section￿of￿the￿tailgate￿opens￿or￿closes￿when￿the￿button￿in￿the￿driver's￿door￿is￿operated. G07￿electric￿tailgate Index Explanation Button￿for￿closing￿tailgate￿upper￿and￿lower￿sections Lock￿vehicle￿button Button￿for￿opening/closing￿tailgate￿lower￿section Load￿level￿button...

  • Page 13: Overview

    G07￿Complete￿Vehicle 2.￿Body 2.2.￿Interior￿equipment 2.2.1.￿Overview Apart￿from￿a￿few￿minor￿details,￿the￿design￿of￿the￿G07￿interior￿is￿the￿same￿as￿the￿G05￿interior. There￿are￿merely￿a￿few￿minor￿styling￿or￿material￿differences￿on￿some￿of￿the￿decorative￿trims. G07￿interior 2.2.2.￿Center￿console As￿the￿G07￿is￿fitted￿with￿a￿4/3-zone￿integrated￿heating￿and￿air￿conditioning￿system￿as￿standard,￿the center￿console￿incorporates￿the￿heating/air￿conditioning￿control￿panel￿for￿the￿rear￿seats.￿In￿the￿lower part￿of￿the￿center￿console￿there￿is￿also￿a￿power￿socket￿(12 V)￿and￿two￿USB￿connections￿purely￿for charging￿electronic￿devices.￿If￿the￿option￿SA￿6FH￿is￿chosen,￿the￿rear￿seat￿entertainment￿panel￿is￿fitted in￿place￿of￿a￿storage￿compartment.
  • Page 14 G07￿Complete￿Vehicle 2.￿Body Center￿console￿in￿G07￿with￿7￿seats Index Explanation IHKA￿control￿panel Rear￿Seat￿Entertainment￿(RSE) Type￿C￿USB￿ports Power￿socket￿(12 V) If￿the￿G07￿is￿fitted￿with￿6￿seats,￿there￿are￿two￿cupholders￿for￿the￿rear￿seats￿in￿the￿center￿console. Above￿the￿cupholders￿are￿a￿power￿socket￿(12 V)￿and￿two￿USB￿ports.
  • Page 15 G07￿Complete￿Vehicle 2.￿Body Center￿console￿in￿G07￿with￿6￿seats Index Explanation Cupholder Power￿socket￿(12 V) Type￿C￿USB￿ports...

  • Page 16: Doors

    G07￿Complete￿Vehicle 2.￿Body 2.2.3.￿Doors The￿design￿of￿the￿doors￿and￿the￿door￿switch￿panels￿very￿largely￿matches￿those￿on￿the￿G05. Driver's￿door￿switch￿panels Index Explanation Memory￿button Button￿for￿adjusting￿the￿seat￿position Button￿for￿adjusting￿the￿seat￿position Button￿for￿fore/aft￿adjustment￿of￿2nd￿seat￿row Button￿for￿massage￿function Gentleman￿function,￿front￿passenger￿seat Button￿for￿opening/closing￿tailgate￿sections Button￿for￿adjusting￿the￿exterior￿mirror Select￿the￿mirror,￿Automatic￿curb￿monitor Power￿window￿regulator,￿passenger￿side...
  • Page 17 G07￿Complete￿Vehicle 2.￿Body Index Explanation Power￿window￿for￿2nd￿row￿of￿seats￿on￿passenger's￿side Fold￿the￿exterior￿rearview￿mirrors￿in￿and￿out Power￿window￿regulator,￿driver's￿side Power￿window￿for￿2nd￿row￿of￿seats￿on￿driver's￿side Safety￿switch Button￿for￿opening/closing￿roller￿sunblinds￿on￿rear￿door￿windows Button￿for￿locking￿the￿vehicle Button￿for￿unlocking￿the￿vehicle If￿the￿vehicle￿has￿equipment￿option￿SA￿417,￿the￿roller￿sunblinds￿on￿both￿rear￿door￿windows￿are electrically￿operated.￿The￿roller￿sunblinds￿can￿be￿operated￿either￿from￿the￿driver's￿door￿control￿panel or￿the￿control￿panels￿in￿the￿rear￿doors. Rear￿door￿switch￿panels Index Explanation Button￿for￿opening/closing￿roller￿sunblinds￿on￿rear￿door￿windows Button￿for￿opening/closing￿roller￿sunblind￿on￿left￿rear￿door￿window Power￿window,￿2nd￿row￿of￿seats Button￿for￿opening/closing￿roller￿sunblind￿on￿right￿rear￿door￿window Button￿for￿opening/closing￿panoramic￿sunroof￿roller￿blind...
  • Page 18 G07￿Complete￿Vehicle 2.￿Body 2.2.4.￿2nd-row￿seats As￿the￿G07￿always￿has￿3￿rows￿of￿seats,￿the￿adjustment￿of￿the￿2nd￿row￿of￿seats￿is￿fully￿electric￿as standard. Comfort￿seats￿in￿the￿rear As￿standard,￿the￿G07￿has￿comfort￿seats￿in￿the￿rear.￿As￿on￿the￿G05,￿the￿G07￿offers￿the￿usual￿40:20:40 folding￿backrests.￿The￿two￿outer￿backrests￿are￿electrically￿operated,￿whereas￿the￿center￿backrest￿is folded￿manually￿and￿is￿locked￿to￿the￿left-hand￿backrest.￿In￿addition,￿145 mm￿of￿fore/aft￿adjustment￿of the￿individual￿seats￿powered￿by￿two￿electric￿motors￿provides￿extra￿comfort￿or￿more￿load￿space￿in￿the luggage￿compartment.￿Those￿functions￿are￿controlled￿separately￿left￿and￿right￿by￿two￿control￿units. If￿seats￿are￿replaced￿in￿a￿vehicle,￿they￿must￿be￿retaught￿with￿the￿ISTA￿diagnosis￿system. The￿seat￿belts￿on￿the￿2nd￿row￿of￿seats￿are￿vertically￿adjustable￿as￿standard. Comfort￿seats￿in￿the￿rear Index Explanation Cupholder Release￿to￿tilt￿the￿head￿restraint Release￿for￿electrically￿folding￿the￿backrest Button￿for￿electric￿easy￿entry￿function ISOFIX Button￿for￿electric￿seat￿adjustment Seat￿belt￿height￿adjustment...
  • Page 19 G07￿Complete￿Vehicle 2.￿Body Rear￿comfort￿seats With￿the￿equipment￿option￿SA￿4U5,￿the￿comfort￿seats￿in￿the￿rear￿are￿replaced￿by￿two￿individual captains￿chairs.￿The￿rear￿comfort￿seat￿equipment￿is￿virtually￿identical￿to￿the￿1st￿row￿of￿seats￿and￿fully electric.￿The￿electric￿fore/aft￿adjustment￿has￿a￿range￿of￿220 mm.￿Between￿the￿seats￿there￿is￿a￿variably adjustable￿and￿removable￿armrest. Rear￿comfort￿seats Index Explanation Comfort￿head￿restraint Adjustable￿armrest Button￿for￿electric￿backrest￿adjustment Button￿for￿electric￿seat￿adjustment Button￿for￿electric￿comfort￿position￿setting 2.2.5.￿3rd-row￿seats Even￿the￿basic￿version￿of￿the￿G07￿has￿a￿3rd￿row￿of￿seats.￿The￿materials,￿the￿interior￿trim￿and￿the ambient￿lighting￿match￿the￿equipment￿of￿the￿vehicle￿as￿a￿whole.￿There￿are￿cup￿holders￿and￿armrests for￿the￿3rd￿row￿of￿seats￿integrated￿in￿the￿interior￿trim.￿On￿each￿side￿below￿the￿armrests,￿hidden￿by￿a cover,￿there￿is￿a￿USB￿socket￿installed￿if￿the￿Travel￿and￿Comfort￿System￿option￿SA￿4FL￿or￿Rear-seat...
  • Page 20 G07￿Complete￿Vehicle 2.￿Body Entertainment￿Professional￿SA￿6FH￿along￿with￿a￿lashing￿hook.￿Unlocking￿and￿folding￿the￿seats￿is performed￿by￿fully￿electric￿means.￿There￿are￿switch￿clusters￿fitted￿in￿the￿area￿of￿the￿C-pillars￿and￿in￿the luggage￿compartment￿for￿controlling￿the￿3rd￿row￿of￿seats.￿The￿head￿restraints￿can￿be￿folded￿manually. The￿head￿restraints￿are￿folded￿in￿with￿the￿aid￿of￿a￿pull-strap. 3rd-row￿seats Index Explanation Cupholder Mounting￿point￿for￿luggage￿compartment￿roller￿cover Roof￿air￿vent Armrest Release￿loop￿for￿folding￿the￿backrest Button￿for￿electrically￿folding￿the￿right-hand￿seat Button￿for￿electrically￿folding￿the￿left-hand￿seat ISOFIX Footwell￿air￿outlet Type￿C￿USB￿socket￿(option￿SA￿4FL￿or￿SA￿6FH) Lashing￿hook...
  • Page 21 G07￿Complete￿Vehicle 2.￿Body 2.3.￿Heating￿and￿air-conditioning￿systems Two￿versions￿of￿the￿integrated￿automatic￿heating/air￿conditioning￿system￿(IHKA)￿are￿available￿for￿the G07.￿The￿IHKA￿regulated￿on￿the￿air￿side￿is￿based￿in￿part￿on￿the￿G12￿and￿G01.￿More￿in-depth￿topics can￿be￿found￿in￿the￿product￿information￿ST1501￿G12￿Climate￿Control. • 4/3-zone￿IHKA￿(standard￿equipment) • 5/4-zone￿integrated￿heating￿and￿air￿conditioning￿system￿(option￿SA￿4NN). From￿a￿technical￿perspective￿the￿climate￿control￿is￿divided￿into￿zones￿(e.g.￿driver,￿front￿passenger, rear￿passenger￿compartment,￿temperature...).￿The￿1st￿digit￿represents￿the￿number￿of￿individually adjustable￿temperature￿zones,￿while￿the￿2nd￿digit￿represents￿the￿number￿of￿zones￿in￿which￿the￿air volume￿is￿separately￿controllable.￿On￿the￿G05￿and￿G07￿the￿heating/air￿conditioning￿display￿is￿fitted between￿the￿center￿air￿vents￿for￿the￿first￿time. Air￿conditioning￿control￿panel￿for￿driver/front￿passenger Index Explanation Lever￿for￿changing￿the￿airflow￿direction Knurled￿wheel￿for￿steplessly￿opening￿and￿closing￿the￿ventilation￿outlets Hazard￿warning￿switch Display Intelligent￿Safety￿button Active￿seat￿ventilation/seat￿heating,￿right Max.￿cooling￿on/off Air￿recirculation￿function￿on/off Manual￿air￿distribution￿regulation,￿right Automatic￿program,￿right Temperature￿adjustment,￿right...
  • Page 22 G07￿Complete￿Vehicle 2.￿Body Index Explanation Decrease/increase￿amount￿of￿air,￿right Call￿up￿A/C￿menu Decrease/increase￿amount￿of￿air,￿left Temperature￿adjustment,￿left Automatic￿program,￿left Manual￿air￿distribution￿regulation,￿left Rear￿window￿heating￿on/off Windscreen￿defrosting Active￿seat￿ventilation/seat￿heating,￿left 2.3.1.￿4/3-zone￿IHKA A￿4/3-zone￿IHKA￿is￿already￿installed￿as￿basic￿equipment￿in￿the￿G07.￿Four￿different￿temperature￿zones can￿be￿set￿by￿the￿driver,￿front￿passenger￿and￿in￿the￿rear￿passenger￿compartment.￿The￿air￿volume￿and temperature￿in￿the￿1st￿row￿of￿seats￿can￿be￿regulated￿by￿the￿driver￿and￿front￿passenger. For￿the￿rear￿seats,￿there￿is￿a￿2nd￿air￿conditioning￿control￿panel.￿It￿enables￿control￿of￿two temperature zones￿and￿the￿shared￿air￿volume￿and￿air￿distribution￿in￿the￿rear￿passenger￿compartment. Air￿conditioning￿control￿panel￿for￿rear￿passenger￿compartment Index Explanation Seat￿heating,￿left Automatic￿program Temperature￿adjustment,￿left Decrease/increase￿amount￿of￿air Manual￿air￿distribution￿regulation...
  • Page 23 G07￿Complete￿Vehicle 2.￿Body Index Explanation Temperature￿adjustment,￿right Max.￿cooling￿on/off Seat￿heating,￿right Display 2.3.2.￿5/4-zone￿IHKA If￿fitted￿with￿equipment￿option￿SA 4NN,￿the￿G07￿has￿a￿5/4-zone￿integrated￿heating￿and￿air￿conditioning system.￿With￿this￿automatic￿heating/air￿conditioning￿system,￿an￿additional￿air￿conditioning￿control panel￿for￿the￿3rd￿row￿of￿seats￿is￿fitted￿in￿the￿roof.￿That￿means￿that￿a￿separate￿temperature￿zone￿and common￿air￿volume￿can￿be￿set￿for￿the￿3rd￿row￿of￿seats.￿In￿addition,￿individual￿air￿distribution￿and￿an automatic￿programme￿are￿also￿possible.￿With￿the￿5/4-zone￿integrated￿heating￿and￿air￿conditioning system￿for￿the￿3rd￿row￿of￿seats,￿there￿are￿additional￿air￿vents￿in￿the￿footwell￿area￿and￿in￿the￿roof. 5/4-zone￿air￿conditioning￿control￿panel￿for￿3rd￿row￿of￿seats Index Explanation Air￿conditioning￿on/off Seat￿heating,￿left Automatic￿program Set￿temperature Decrease/increase￿amount￿of￿air Manual￿air￿distribution￿regulation Max.￿cooling￿on/off Seat￿heating,￿right OFF￿switch...
  • Page 24 G07￿Complete￿Vehicle 2.￿Body With￿the￿5/4-zone￿integrated￿heating￿and￿air￿conditioning￿option,￿an￿additional￿air￿conditioner￿unit￿is installed￿in￿the￿rear￿of￿the￿vehicle.￿It￿is￿used￿exclusively￿for￿climate￿control￿for￿the￿third￿row￿of￿seats. The￿rear￿air￿conditioner￿is￿connected￿to￿the￿air￿conditioning￿compressor￿along￿with￿the￿heating￿and￿air conditioning￿unit￿for￿the￿first￿and￿second￿seat￿rows.￿The￿rear￿air￿conditioner￿is￿accommodated￿in￿the luggage￿compartment,￿on￿the￿left￿behind￿the￿trim￿panel. Rear￿air￿conditioner Index Explanation Rear￿air￿conditioner...
  • Page 25 G07￿Complete￿Vehicle 2.￿Body 3rd￿row￿climate￿control Index Explanation Rear￿air￿conditioner IHKA￿control￿unit Heater￿circuit￿shutoff￿valve Roof￿air￿vent,￿left Cooling￿circuit￿connection Roof￿air￿vent,￿right Refrigerant￿circuit￿connection Footwell￿air￿outlet Blower...
  • Page 26 G07￿Complete￿Vehicle 2.￿Body 2.4.￿Luggage￿compartment 2.4.1.￿Luggage￿compartment￿volume The￿luggage￿compartment￿capacity￿of￿the￿new￿BMW￿X7￿varies￿according￿to￿the￿position￿of￿the￿3rd￿row of￿seats.￿If￿the￿3rd-row￿seats￿are￿folded￿down,￿the￿luggage￿compartment￿capacity￿is￿750 liters.￿If￿the 3rd-row￿seats￿are￿in￿the￿upright￿position,￿the￿luggage￿compartment￿capacity￿is￿reduced￿to￿300 liters. The￿luggage￿compartment￿roller￿cover￿can￿be￿stowed￿in￿a￿separate￿compartment￿under￿the￿luggage compartment￿floor.￿Due￿to￿the￿length￿of￿the￿luggage￿compartment￿roller￿cover,￿stowage￿or￿removal￿of the￿roller￿cover￿requires￿the￿side￿covers￿in￿the￿luggage￿compartment￿to￿be￿removed. G07￿luggage￿compartment Index Explanation Cover￿for￿rear￿air￿conditioner,￿receiver￿audio￿module￿and￿booster Storage￿for￿luggage￿compartment￿roller￿cover Storage￿compartment￿for￿load￿area￿net Cover￿for￿fuse￿holder The￿following￿table￿shows￿a￿comparison￿with￿the￿luggage￿compartment￿capacity￿of￿the￿G05: Variant G07￿[liters] G05￿[liters] 3rd-row￿seats￿folded￿down 3rd-row￿seats￿in￿upright position 3rd￿and￿2nd-row￿seats￿folded 2120 1861 down...
  • Page 27 G07￿Complete￿Vehicle 2.￿Body 2.4.2.￿Switch￿panels On￿the￿left-hand￿side￿of￿the￿luggage￿compartment￿there￿is￿a￿switch￿cluster￿for￿controlling￿the backrests￿of￿the￿2nd￿and￿3rd￿seat￿rows.￿It￿enables￿the￿backrests￿to￿be￿electrically￿operated￿from￿the luggage￿compartment. As￿well￿as￿the￿buttons￿for￿folding￿the￿individual￿backrests,￿there￿are￿two￿other￿buttons.￿The￿button￿for maximum￿passenger￿convenience￿raises￿all￿the￿2nd￿and￿3rd￿seat￿row￿backrests.￿At￿the￿same￿time,￿the 2nd￿row￿of￿seats￿is￿moved￿forwards￿to￿make￿enough￿space￿for￿the￿3rd￿row￿of￿seats. The￿cargo￿adjuster￿button￿folds￿down￿the￿backrests￿of￿the￿2nd￿and￿3rd￿seat￿rows.￿At￿the￿same￿time, the￿2nd￿row￿of￿seats￿moves￿backwards￿to￿close￿the￿gap￿between￿the￿luggage￿compartment￿floor￿and the￿2nd￿row￿of￿seats.￿That￿creates￿a￿continuous￿load-space￿floor. In￿the￿lower￿tailgate￿switch￿panel￿there￿is￿a￿button￿for￿lowering￿the￿vehicle.￿When￿that￿button￿is pressed,￿the￿height￿of￿the￿vehicle￿is￿lowered￿by￿40 mm￿to￿make￿loading￿and￿unloading￿the￿luggage compartment￿easier. Switch￿panels￿in￿the￿luggage￿compartment Index Explanation Button￿for￿maximum￿passenger￿comfort Button￿for￿electrically￿folding￿the￿3rd-row￿left-hand￿seat Button￿for￿electrically￿folding￿the￿2nd-row￿left-hand￿seat Button￿for￿electrically￿folding￿the￿2nd-row￿right-hand￿seat Button￿for￿electrically￿folding￿the￿3rd-row￿right-hand￿seat...
  • Page 28 G07￿Complete￿Vehicle 2.￿Body Index Explanation Button￿for￿maximum￿cargo￿space Button￿for￿opening/closing￿tailgate￿lower￿section Load￿level￿button Power￿socket￿(12 V) 2.4.3.￿Space-saver￿spare Due￿to￿the￿length￿of￿the￿G07,￿there￿is￿sufficient￿space￿for￿a￿space-saving￿spare￿under￿the￿luggage compartment￿floor.￿Therefore￿there￿is￿a￿space-saving￿spare￿available￿as￿equipment￿option￿SA￿300. Space-saving￿spare￿in￿the￿luggage￿compartment Index Explanation Vehicle￿tool-kit Compact￿spare￿wheel...
  • Page 29 G07￿Complete￿Vehicle 3.￿Chassis￿and￿Suspension 3.1.￿Air￿suspension The￿G07￿already￿has￿front￿and￿rear￿air￿suspension￿as￿standard.￿As￿a￿result,￿even￿the￿basic￿version￿of the￿BMW￿X7￿has￿four-wheel￿ride-height￿adjustment,￿which￿on￿the￿G05￿is￿offered￿as￿an￿option.￿The highlight￿of￿the￿four-wheel￿ride￿height￿adjustment￿is￿the￿design￿of￿the￿sealed￿system￿in￿which￿the￿air pressure￿is￿not￿constantly￿equalized￿between￿the￿external￿atmosphere￿and￿the￿control￿system￿but internally￿within￿the￿control￿system￿between￿the￿pressure￿accumulator￿and￿the￿air￿suspension￿struts. The￿table￿below￿provides￿an￿overview￿of￿the￿components￿of￿the￿four-wheel￿ride-height￿adjustment system: Components Control￿unit￿for￿self-levelling￿suspension Electronic￿ride￿height￿control￿(EHC) (function￿logic) Channels 3-channel￿control Drive￿level Off-road￿level￿(+40 mm) High￿level￿(+20 mm) Normal￿level￿(+/-0 mm) Dynamic￿level￿(-10 mm) Sports￿level￿(-20 mm) Loading￿level￿(-40 mm) Control￿options￿of￿air￿suspension Level-change￿rocker￿button Ride￿style￿button Offroad￿button Offroad￿rocker￿button Loading￿level￿button Display￿key Shock￿absorber EDC￿High￿single-stage...
  • Page 30 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics 4.1.￿Bus￿overview Bus￿overview...
  • Page 31 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics Index Explanation ACSM Advanced￿Crash￿Safety￿Module Trailer￿module Body￿Domain￿Controller Booster Booster Controller Driver￿Camera￿System Digital￿Motor￿Electronics DME2 Digital￿Motor￿Electronics￿2 Dynamic￿Stability￿Control EARSH Electric￿active￿roll￿stabilization￿rear EARSV Front￿electric￿active￿roll￿stabilization Electronic￿transmission￿control Electronic￿ride￿height￿control Electromechanical￿Power￿Steering Remote￿control￿receiver FLEL Frontal￿Light￿Electronics￿Left FLER Frontal￿Light￿Electronics￿Right Front￿Radar￿Sensor FRSF Front￿radar￿sensor￿long￿range Roof￿function￿center GHAS Regulated￿rear￿axle￿differential￿lock Gear￿selector￿switch HU-H Head￿Unit￿High HKFM Tailgate￿function￿module HRSNL Rear￿radar￿sensor￿short￿range￿left...
  • Page 32 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics Index Explanation Rear￿view￿camera Rear￿Seat￿Entertainment Optional￿equipment￿system SMBF Front￿passenger￿seat￿module SMFA Driver's￿seat￿module SMBFH Seat￿module,￿front￿passenger's￿side,￿rear SMFAH Seat￿module,￿driver's￿side,￿rear SPNMVL Seat￿pneumatics￿module￿front￿left SPNMVR Seat￿pneumatics￿module￿front￿right SRSNVL Side￿radar￿sensor￿short￿range￿front￿left SRSNVR Side￿radar￿sensor￿short￿range￿front￿right Telematic￿Communication￿Box TRSVC Top￿Rear￿Side￿View￿Camera Vertical￿Dynamic￿Platform Virtual￿Integration￿Platform Transfer￿box WCA/NFC Wireless￿charging￿station￿with￿control￿electronics￿for￿Near￿Field Communication Central￿Gateway￿Module Start-up￿node￿control￿units￿for￿starting￿and￿synchronizing￿the￿FlexRay￿bus system Control￿units￿authorized￿to￿perform￿wake-up￿function Control￿units￿also￿connected￿at￿terminal￿15WUP...
  • Page 33 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics 4.2.￿Installation￿locations￿of￿control￿units G07￿Installation￿locations￿of￿control￿units Index Explanation Rear￿radar￿sensor￿short￿range￿left￿(HRSNL) Booster Receiver￿Audio￿Module￿(RAM) Remote￿control￿receiver￿(FBD) Telematic￿Communication￿Box￿(TCB) Left￿seat￿module￿for￿3rd￿row￿of￿seats Electric￿active￿roll￿stabilization￿rear￿(EARSH) Rear￿axle￿slip￿angle￿control￿(HSR) Driver's￿seat￿module,￿rear￿(SMFAH) Seat￿pneumatics￿module￿front￿left￿(SPNMVL)
  • Page 34 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics Index Explanation Driver's￿seat￿module (SMFA) Electronic￿ride￿height￿control￿(EHC) Roof￿function￿center￿(FZD) Camera-based￿driver￿support￿systems￿(KAFAS) Instrument￿cluster￿(KOMBI) Optional￿equipment￿system￿(SAS) Dynamic￿Stability￿Control￿(DSC/VIP) Wireless￿charging￿station￿(WCA/NFC) Digital￿Motor￿Electronics￿(DME) Side￿radar￿sensor￿short￿range￿front￿left￿(SRSNVL) Frontal￿Light￿Electronics￿Left￿(FLEL) Electric￿active￿roll￿stabilization￿front￿(EARSV) Front￿radar￿sensor￿(FRS)/Front￿radar￿sensor￿long￿range￿(FRSF) Side￿radar￿sensor￿short￿range￿front￿right￿(SRSNVR) Frontal￿Light￿Electronics￿Right￿(FLER) Digital￿Engine￿Electronics￿2￿(DME2) Electronic￿Power￿Steering￿(EPS) Body￿Domain￿Controller￿(BDC)/Central￿Gateway￿Module￿(ZGM) Night￿Vision￿Electronics￿(NVE) Integrated￿automatic￿heating/air￿conditioning￿(IHKA) Electronic￿transmission￿control￿(EGS) Head￿unit￿(HU-H) Advanced￿Crash￿Safety￿Module￿(ACSM) Front￿passenger￿seat￿module￿(SMBF) Transfer￿box￿(VTG) Seat￿pneumatics￿module￿front￿right￿(SPNMVR) Controller￿(CON)/Gear￿selector￿switch￿(GWS) Rear￿Seat￿Entertainment￿(RSE) Seat￿module,￿passenger's￿side￿rear￿(SMBFH) Regulated￿rear￿axle￿differential￿lock￿(GHAS) Right￿seat￿module￿for￿3rd￿row￿of￿seats Parking￿Manoeuvring￿Assistant￿(PMA) Top￿Rear￿Side￿View￿Camera￿(TRSVC) Selective￿Catalytic￿Reduction￿(SCR)￿(Not￿for￿US) Trailer￿module￿(AHM)

  • Page 35: Headlight

    G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics Index Explanation Tailgate￿function￿module￿(HKFM) Power￿Control￿Unit￿(PCU) Rear￿radar￿sensor￿short￿range￿right￿(HRSNR) Vertical￿Dynamic￿Platform￿(VDP) Rear￿view￿camera￿(RFK) 4.2.1.￿Telematic￿Communication￿Box￿(TCB) The￿G07￿is￿fitted￿with￿the￿TCB￿3.￿Compared￿with￿the￿TCB￿2,￿the￿casing￿dimensions￿have￿been reduced.￿The￿unit￿is￿a￿modular￿design.￿The￿configuration￿can￿be￿adapted￿to￿suit￿the￿basic￿or￿optional equipment,￿which￿simultaneously￿reduces￿the￿number￿of￿variants.￿Equipment￿retrofits￿are￿also possible. 4.2.2.￿Top￿Rear￿Side￿View￿Camera￿(TRSVC) The￿TRSVC￿control￿unit￿on￿the￿G07￿is￿located￿in￿the￿luggage￿compartment￿behind￿the￿right-hand side￿trim￿panel.￿On￿the￿G05,￿the￿control￿unit￿was￿fitted￿at￿the￿front￿on￿the￿left￿in￿the￿instrument￿panel support. 4.3.￿Headlight 4.3.1.￿Overview The￿following￿exterior￿light￿versions￿are￿offered￿for￿the￿G07: • Adaptive￿Full￿LED￿Lights￿(standard) • Icon￿Adaptive￿LED￿Headlights￿with￿Laserlight￿(Option￿SA 5AZ). Like￿the￿G05,￿the￿G07￿no￿longer￿features￿the￿customary￿rotary￿light￿switch.￿The￿new￿light￿switch￿panel only￿has￿buttons. The￿low-beam￿headlight￿is￿automatically￿switched￿on￿when￿the￿system￿recognizes￿that￿it￿is￿dark,￿even in￿the￿OFF￿mode￿and￿when￿driving￿readiness￿is￿activated￿(country-specific).

  • Page 36: Variants

    G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics 4.3.2.￿Variants Headlight￿versions￿for￿the￿G07: Headlight￿versions Index Explanation Adaptive￿Full￿LED￿Lights￿(Standard) Icon￿Adaptive￿LED￿Headlights￿with￿Laserlight￿(SA￿5AZ)
  • Page 37 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics 4.3.3.￿Adaptive￿Full￿LED￿Lights Adaptive￿Full￿LED￿Lights Index Explanation Cornering￿light Low-beam￿headlight Turn￿indicator LED￿high-beam￿headlight Side￿light,￿daytime￿driving￿lights￿and￿low-beam￿headlight...
  • Page 38 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics 4.3.4.￿Icon￿Adaptive￿LED￿Headlights￿with￿Laserlight BMW￿LED￿Headlights￿with￿Laserlight Index Explanation Cornering￿light Low-beam￿headlight Turn￿indicator LED￿high-beam￿headlight￿with￿Laserlight Side￿light,￿daytime￿driving￿lights￿and￿low-beam￿headlight LED￿high-beam￿headlight...
  • Page 39 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics 4.4.￿Rear￿lights The￿rear￿light￿clusters￿of￿the￿G07￿are￿equipped￿entirely￿with￿LED￿modules. Rear￿light Index Explanation Tail￿light￿and￿brake￿light Reversing￿light Tail￿light Brake￿light Turn￿indicator...
  • Page 40 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics 4.5.￿Driver￿Camera￿System The￿DCS￿driver￿camera￿system￿includes￿a￿camera￿on￿the￿instrument￿cluster￿to￿observe￿whether￿the driver's￿eyes￿are￿open￿and￿which￿direction￿the￿driver￿is￿facing.￿The￿DCS￿is￿connected￿to￿the￿electrical system￿via￿OABR￿Ethernet￿and￿has￿a￿separate￿wake-up￿line. Driver￿Camera￿System The￿DCS￿is￿able￿to￿detect￿the￿alertness￿and￿tiredness￿of￿the￿driver.￿The￿system￿also￿detects￿a￿change of￿driver.￿The￿following￿assistance￿systems￿use￿the￿data￿from￿the￿driver￿camera￿system: • Alertness￿assistant • Front￿collision￿mitigation Active￿cruse￿control￿with￿Stop&Go • Steering￿and￿traffic￿jam￿assistant The￿driver￿camera￿system￿processes￿all￿data￿in￿real￿time￿and￿does￿not￿have￿a￿memory￿for￿permanently storing￿the￿data￿recorded. More￿information￿on￿the￿driver￿camera￿system￿can￿be￿found￿in￿ST1858￿Driver￿Assistance￿Systems 2018. 4.6.￿Rear￿Seat￿Entertainment￿system The￿control￿unit￿for￿the￿rear￿seat￿entertainment￿system￿is￿the￿Rear￿Seat￿Entertainment￿(RSE)￿control unit.￿The￿Rear￿Seat￿Entertainment￿(RSE)￿is￿always￿adapted￿to￿the￿installed￿head￿unit. 4.6.1.￿Head￿Unit￿High￿3 The￿G07￿uses￿the￿RSE￿rear￿seat￿entertainment￿system￿in￿conjunction￿with￿the￿Head￿Unit￿High￿3 (HU-H3).
  • Page 41 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics Overview￿of￿Rear￿Seat￿Entertainment￿HU-H3 Index Explanation Left￿rear￿display￿panel Central￿Information￿Display￿(CID) Right￿rear￿display￿panel Head￿Unit￿High￿3￿(HU-H3) Rear￿Seat￿Entertainment￿(RSE) The￿Rear￿Seat￿Entertainment￿system￿has￿the￿following￿features: • DVD/Blu-ray￿drive • 2￿USB￿ports,￿type￿C￿with￿3￿A • HDMI/MHL￿connection • 2￿connections￿for￿headphones￿3.5 mm • 2￿radio￿modules￿for￿wireless￿headphones The￿rear￿compartment￿displays￿are￿integrated￿in￿the￿rear￿seat￿backrests￿of￿the￿front￿seats.￿They￿have touch-screen￿controls￿and￿are￿the￿only￿means￿of￿operating￿the￿rear￿seat￿entertainment￿system.￿The resolution￿is￿1080p.
  • Page 42 G07￿Complete￿Vehicle 4.￿General￿Vehicle￿Electronics 4.6.2.￿Zone￿allocation Zoning￿has￿been￿discontinued￿on￿the￿rear￿seat￿entertainment￿system￿as￿of￿HU-H3.￿All￿media￿sources can￿be￿accessed￿in￿the￿rear￿passenger￿compartment￿as￿well￿as￿in￿the￿front. Common￿zone￿allocation Index Explanation Common￿zone￿for￿the￿use￿of￿media Individual￿or￿theater￿mode￿can￿be￿activated￿so￿that￿the￿occupants￿in￿the￿rear￿passenger￿compartment and￿front￿can￿use￿separate￿media￿sources. Individual￿mode In￿individual￿mode￿every￿passenger￿can￿play￿individual￿content.￿The￿audio￿playback￿in￿the￿rear passenger￿compartment￿is￿effected￿via￿headphones.￿The￿audio￿playback￿in￿the￿front￿is￿effected￿via￿the speakers. Theater￿mode In￿theater￿mode￿the￿audio￿playback￿is￿effected￿via￿the￿speakers.￿Both￿occupants￿in￿the￿rear￿passenger compartment￿use￿the￿same￿content￿in￿the￿Rear￿Seat￿Entertainment.

  • Page 43: Overview

    G07￿Complete￿Vehicle 5.￿Infotainment 5.1.￿Overview In￿the￿G07,￿Three￿sound￿systems￿are￿offered.￿The￿following￿equipment￿options￿are￿available: • Hi-Fi￿system￿(standard￿in￿the￿X7￿xDrive40i) • Harman￿Kardon￿surround￿sound￿system￿(standard￿in￿the￿X7￿xDrive50i) • Bowers￿&￿Wilkins￿Diamond￿surround￿sound￿system￿(option￿SA￿6F1) Hi-Fi￿system Harman￿Kardon Bowers￿&￿Wilkins surround￿sound Diamond￿surround system￿(option￿SA sound￿system 688) (option￿SA￿6F1) Overall￿power 205 W 464 W 1500 W Number￿of￿diamond — — tweeters Number￿of￿tweeters Number￿of￿mid-range speakers Number￿of￿bass speakers 3D￿speakers — — Amplifier Receiver￿Audio Receiver￿audio Receiver￿audio Module module￿and￿booster...
  • Page 44 G07￿Complete￿Vehicle 5.￿Infotainment 5.2.1.￿Component￿overview G07￿Bowers￿&￿Wilkins￿high￿end￿audio￿system￿overview Index Explanation Mid-range￿speaker,￿front￿center Tweeter,￿front￿center Head￿unit Diamond￿tweeters Mid-range￿speaker,￿front Bass￿speakers 3D￿roof￿speakers Mid-range￿speaker,￿rear Tweeter,￿rear Tweeter,￿D-pillar...
  • Page 45 G07￿Complete￿Vehicle 5.￿Infotainment Index Explanation Mid-range￿speaker,￿D-pillar Receiver￿Audio￿Module￿(RAM) Booster Speaker￿for￿outside￿sound 5.2.2.￿LED￿lighting With￿the￿Bowers￿&￿Wilkins￿high￿end￿audio￿system,￿the￿diamond￿tweeters￿in￿the￿mirror￿triangle￿are illuminated.￿The￿illumination￿is￿achieved￿by￿means￿of￿LEDs. Illuminated￿diamond￿tweeters...
  • Page 46 G07￿Complete￿Vehicle 5.￿Infotainment 5.2.3.￿Wiring￿diagram Wiring￿diagram￿for￿Bowers￿&￿Wilkins￿high￿end￿audio￿system￿on￿G07...
  • Page 47 G07￿Complete￿Vehicle 5.￿Infotainment Index Explanation Front￿left￿diamond￿tweeter Front￿left￿3D￿roof￿speaker Front￿center￿speaker￿LED Mid-range￿speaker,￿front￿center Tweeter,￿front￿center Front￿right￿3D￿roof￿speaker Body￿Domain￿Controller Front￿power￿distribution￿box￿fuses Front￿right￿diamond￿tweeter￿LED Front￿right￿diamond￿tweeter Front￿right￿mid-range￿speaker￿LED Mid-range￿speaker,￿front￿right Bass￿speaker,￿right Rear￿right￿3D￿roof￿speaker Tweeter,￿rear￿right Rear￿right￿speaker￿LED Mid-range￿speaker,￿rear￿right Tweeter,￿right￿D-pillar Mid-range￿speaker,￿right￿D-pillar Rear￿power￿distribution￿box￿fuses Booster Receiver￿Audio￿Module￿(RAM) Mid-range￿speaker,￿left￿D-pillar Tweeter,￿left￿D-pillar Speaker￿for￿outside￿sound Mid-range￿speaker,￿rear￿left Rear￿left￿speaker￿LED Tweeter,￿rear￿left Rear￿left￿3D￿roof￿speaker Mid-range￿speaker,￿front￿left Front￿left￿mid-range￿speaker￿LED Front￿left￿diamond￿tweeter￿LED Bass￿speaker,￿left Head￿unit...
  • Page 48 G07￿Complete￿Vehicle 6.￿Driver￿Assistance￿Systems The￿assistance￿systems￿on￿the￿G07￿do￿not￿differ￿from￿those￿on￿the￿G05.￿More￿information￿on￿the assistance￿systems￿can￿be￿found￿in￿the￿following￿product￿information￿modules: Product￿information Information￿on Driver￿Assistance • KAFAS￿Mid-Camera • Intersection￿collision Systems￿2018 warning • KAFAS￿High-Camera (New￿Features) • Active￿cruse￿control￿with • Driver￿Camera￿System Stop&Go￿function (DCS) • Automatic￿Parking • Front￿Collision￿Mitigation • Back-up￿Assistant • Lane￿Departure￿Warning • Evasion￿Assistant • Emergency￿Stop Assistant • Automatic￿Lane￿Change G05￿Driver￿Assistance • Daytime￿Pedestrian •...

  • Page 49: Overview

    G07￿Complete￿Vehicle 6.￿Driver￿Assistance￿Systems 6.1.￿Overview 6.1.1.￿Offer￿structure￿"Driving" The￿purpose￿of￿the￿following￿tables￿is￿to￿provide￿an￿overview￿of￿the￿dependencies￿between￿the￿offer structure￿and￿assistance￿systems￿used￿as￿well￿as￿their￿system￿components.￿Furthermore,￿they￿also￿list all￿assistance￿systems￿available￿in￿the￿G07. Standard￿equipment The￿G07￿always￿has￿the￿KAFAS￿Mid-camera￿and￿the￿front￿radar￿sensor￿(FRS). Active￿Driving￿Assistant￿(SA￿5AS) • Frontal￿Collision￿Warning City￿Collision￿Mitigation￿with￿braking • Pedestrian￿Warning￿with￿braking • Lane￿Departure￿Warning • Speed￿Limit￿Information • Blind￿Spot￿Detection • Automatic￿High￿Beams • Rear￿Cross￿Traffic￿Alert • Rear￿Collision￿Preparation Dynamic￿Cruse￿Control￿(standard) • Speed￿Limiter Optional￿equipment In￿the￿BMW￿X7￿xDrive40i￿the￿customer￿has￿the￿choice￿of￿two￿optional￿equipment￿packages.￿Driving Assistant￿Professional￿Package￿(SA ZDY)￿that￿includes￿(SA￿5AR)￿Extended￿Traffic￿Jam￿Assistant for￿limited￿access￿highways,￿and￿(SA￿5AU)￿Active￿Driving￿Assistant￿Pro￿that￿includes￿Active￿Cruise Control￿with￿Stop&Go,￿Active￿Lane￿Keep￿Assistant￿w/side￿Collision￿Avoidance,￿Steering￿and￿Traffic Jam￿Assistant,￿Automatic￿Lane￿Change￿and￿Evasion￿Assistant￿&￿Cross￿traffic￿alert￿front.￿Parking Assistance￿Package￿(SA￿ZPK)￿that￿includes￿Parking￿Assist￿Plus￿(SA￿5DN)￿and￿Surround￿View￿with 3D￿View￿(SA￿ZX3). These￿packages￿are￿standard￿on￿the￿BMW￿X7￿xDrive50i.
  • Page 50 G07￿Complete￿Vehicle 6.￿Driver￿Assistance￿Systems Driving￿Assistant￿Professional￿Package￿(SA ZDY) • Extended￿Traffic￿Jam Assistant￿for￿limited￿access highways  • Active￿Lane￿Keeping Assistant￿with￿side￿collision avoidance  • Active￿Cruise￿Control￿with Stop&Go￿function￿(up￿to 210 km/h)  • Crossing￿traffic￿alert￿front  • Evasion￿Assistant￿  • Automatic￿lane￿change  6.1.2.￿Offer￿structure￿"Parking" The￿optional￿equipment￿Remote￿Control￿Parking￿(SA 5DV)￿is￿not￿available￿for￿the￿G07. Vehicles￿not￿equipped￿with￿the￿Parking￿Manoeuvre￿Assistant￿(PMA)￿but￿with￿the￿Park￿Distance￿Control (PDC)￿have￿a￿separate￿control￿unit,￿which￿is￿recognized￿as￿the￿PMA￿control￿unit￿by￿the￿diagnosis￿and is￿also￿referred￿to￿by￿this￿name￿in￿the￿bus￿diagram.￿In￿other￿words,￿there￿is￿no￿longer￿a￿difference￿in the￿naming￿of￿the￿PDC￿and￿PMA￿control￿unit￿(there￿are￿however￿differences￿in￿the￿hardware￿design between￿the￿control￿units￿and￿the￿software￿is￿adapted￿to￿the￿equipment￿specification).
  • Page 51 G07￿Complete￿Vehicle 6.￿Driver￿Assistance￿Systems Parking￿Assistant￿Package￿(SA ZPK) • Automatic￿Parking￿with￿parallel￿parking and￿maneuvering￿out￿of￿parking￿space • Back-up￿Assistant • Side￿protection • Rear￿view￿camera • Surround￿View￿with￿3D￿View • Panorama￿View￿(GPS-based) • Remote￿3D￿View Park￿Distance￿Control￿(PDC)￿(standard) • Front￿and￿rear • Auto￿PDC More￿information￿can￿be￿found￿in￿ST1831￿G05￿Driver￿Assistant￿Systems.
