Technical￿training.
Product￿information.
G01￿General￿Vehicle￿Electronics
BMW￿Service

Advertisement

loading
Need help?

Need help?

Do you have a question about the G01 and is the answer not in the manual?

Questions and answers

Related Manuals for BMW G01

Summary of Contents for BMW G01

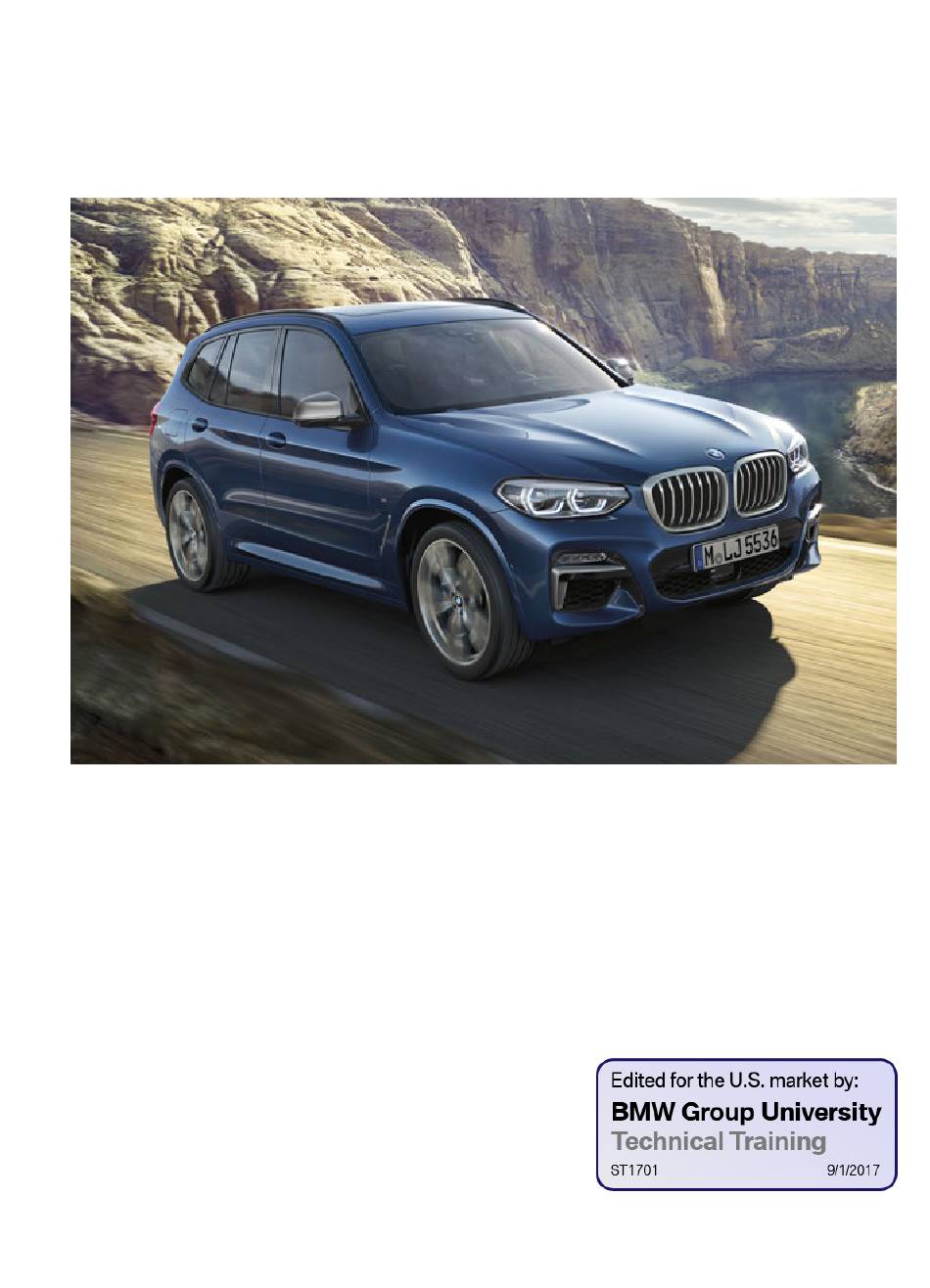

  • Page 1 Technical￿training. Product￿information. G01￿General￿Vehicle￿Electronics BMW￿Service...
  • Page 2 General￿information Symbols￿used The￿following￿symbol￿is￿used￿in￿this￿document￿to￿facilitate￿better￿comprehension￿or￿to￿draw￿attention to￿very￿important￿information: Contains￿important￿safety￿information￿and￿information￿that￿needs￿to￿be￿observed￿strictly￿in￿order￿to guarantee￿the￿smooth￿operation￿of￿the￿system. Information￿status￿and￿national-market￿versions BMW￿Group￿vehicles￿meet￿the￿requirements￿of￿the￿highest￿safety￿and￿quality￿standards.￿Changes in￿requirements￿for￿environmental￿protection,￿customer￿benefits￿and￿design￿render￿necessary continuous￿development￿of￿systems￿and￿components.￿Consequently,￿there￿may￿be￿discrepancies between￿the￿contents￿of￿this￿document￿and￿the￿vehicles￿available￿in￿the￿training￿course. This￿document￿basically￿relates￿to￿the￿European￿version￿of￿left￿hand￿drive￿vehicles.￿Some￿operating elements￿or￿components￿are￿arranged￿differently￿in￿right-hand￿drive￿vehicles￿than￿shown￿in￿the graphics￿in￿this￿document.￿Further￿differences￿may￿arise￿as￿the￿result￿of￿the￿equipment￿specification￿in specific￿markets￿or￿countries. Additional￿sources￿of￿information Further￿information￿on￿the￿individual￿topics￿can￿be￿found￿in￿the￿following: • Owner's￿Handbook • Integrated￿Service￿Technical￿Application. Contact:￿conceptinfo@bmw.de ©2017￿BMW￿AG,￿Munich Reprints￿of￿this￿publication￿or￿its￿parts￿require￿the￿written￿approval￿of￿BMW￿AG,￿Munich. The￿information￿contained￿in￿this￿document￿forms￿an￿integral￿part￿of￿the￿BMW￿Group￿Technical Qualification￿and￿is￿intended￿for￿the￿trainer￿and￿participants￿in￿the￿seminar.￿Refer￿to￿the￿latest￿relevant information￿systems￿of￿the￿BMW￿Group￿for￿any￿changes/additions￿to￿the￿technical￿data. Information￿status:￿June￿2017 Technical￿training.
  • Page 3 G01￿General￿Vehicle￿Electronics Contents Exterior￿Lights ..............................................1.1. Versions ..............................................1.2. Lighting,￿front ..........................................1.2.1. System￿wiring￿diagram￿for￿the￿LED￿headlight ................ 1.2.2. LED￿headlights ..................................1.2.3. LED￿headlights￿with￿cornering￿lights ....................1.2.4. Adaptive￿full￿LED￿headlights ..........................1.3. Lighting,￿rear ..........................................1.3.1. System￿wiring￿diagram ..............................1.3.2. Rear￿light ......................................1.4. Automatic￿high￿beams ....................................1.4.1. System￿wiring￿diagram ............................1.5. Entry￿lights,￿exterior ......................................
  • Page 4 G01￿General￿Vehicle￿Electronics Contents Power￿Windows ............................................6.1. System￿wiring￿diagram ..................................... Panoramic￿Sunroof ..........................................7.1. System￿wiring￿diagram ..................................... Steering￿Column￿Switch￿Cluster ................................. 8.1. System￿wiring￿diagram ..................................... 8.2................................................Door￿ Mirror ................................................9.1. Exterior￿mirror￿ ........................................9.1.1. System￿wiring￿diagram ............................10. Interior￿Mirror ..............................................10.1. System￿wiring￿diagram ..................................... 11. Seats ....................................................11.1. Front￿sport￿seats ........................................

  • Page 5: Versions

    G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights 1.1.￿Versions The￿following￿exterior￿light￿versions￿are￿offered￿for￿the￿G01: • LED￿headlights￿(Standard￿on￿the￿xDrive￿30i) • LED￿headlights￿with￿cornering￿lights￿(OE￿5A4￿optional￿on￿xDrive￿30i) • Adaptive￿full￿LED￿headlights￿(Standard￿on￿the￿M40i)￿(optional￿OE￿552￿on￿xDrive￿30i). The￿low-beam￿headlight￿is￿automatically￿switched￿on￿when￿the￿system￿recognizes￿that￿it￿is￿dark,￿even with￿the￿light￿switch￿in￿position￿0￿and￿when￿driving￿readiness￿is￿activated￿(country-specific). 1.2.￿Lighting,￿front Headlight￿versions￿for￿the￿G01: Headlight￿versions Index Explanation LED￿headlights LED￿headlights￿with￿cornering￿lights Adaptive￿full￿LED￿headlights...
  • Page 6 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights 1.2.1.￿System￿wiring￿diagram￿for￿the￿LED￿headlight Front￿exterior￿lights,￿LED￿headlights...
  • Page 7 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights Index Explanation Left￿fog￿light Right￿fog￿light Left￿headlight￿with￿Frontal￿Light￿Electronics￿Left￿(FLEL) Right￿headlight￿with￿Frontal￿Light￿Electronics￿Right￿(FLER) Fuses￿in￿the￿power￿distribution￿box,￿front￿right Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿Body￿Domain￿Controller Turn￿indicator￿in￿exterior￿mirror,￿right CAN￿terminator Fuse￿for￿rear￿right￿power￿distribution￿box Fuse￿in￿the￿power￿distribution￿box,￿battery Ride-height￿sensor,￿rear￿left Turn￿indicator￿in￿exterior￿mirror,￿left Light￿switch Steering￿column￿switch￿cluster￿(SZL) Hazard￿warning￿switch/Intelligent￿Safety￿button Rain-light-solar-condensation￿sensor￿(RLSBS) Ride￿height￿sensor,￿front￿left The￿system￿wiring￿diagram￿shows￿the￿basic￿version.￿Depending￿on￿the￿headlight￿version,￿different components￿are￿installed￿in￿the￿corresponding￿headlight. The￿wiring￿diagram￿shows￿the￿turn￿indicator￿and￿the￿high￿beam￿headlight￿with￿bulbs.￿Depending￿on the￿headlight￿version,￿the￿turn￿indicator￿is￿designed￿either￿with￿LED￿technology￿or￿a￿bulb.￿A￿halogen bulb￿or￿LED￿is￿used￿for￿the￿high￿beam.
  • Page 8 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights 1.2.2.￿LED￿headlights LED￿headlights Index Explanation High-beam￿headlight Low-beam￿headlight Turn￿indicator Side￿lights￿and￿daytime￿driving￿lights Side￿lights￿and￿daytime￿driving￿lights In￿the￿LED￿headlight,￿the￿low-beam￿headlight￿is￿located￿in￿the￿outer￿reflector. A￿halogen￿bulb￿is￿used￿for￿the￿high￿beam￿in￿the￿inner￿reflector. A￿bulb￿is￿used￿for￿the￿turn￿indicator.
  • Page 9 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights 1.2.3.￿LED￿headlights￿with￿cornering￿lights Adaptive￿cornering￿light Index Explanation Cornering￿light Low-beam￿headlight/High-beam￿headlight Turn￿indicator Side￿lights￿and￿daytime￿driving￿lights Side￿lights￿and￿daytime￿driving￿lights On￿the￿Adaptive￿Headlight￿the￿low-beam￿headlight￿and￿high￿beam￿are￿in￿the￿same￿reflector. A￿bulb￿is￿used￿for￿the￿turn￿indicator.
  • Page 10 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights 1.2.4.￿Adaptive￿full￿LED￿headlights Adaptive￿LED￿Headlights Index Explanation Cornering￿light Low-beam￿headlight Low-beam￿headlight Turn￿indicator High-beam￿headlight Side￿lights￿and￿daytime￿driving￿lights High-beam￿headlight Side￿lights￿and￿daytime￿driving￿lights...
  • Page 11 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights 1.3.￿Lighting,￿rear 1.3.1.￿System￿wiring￿diagram Rear￿exterior￿lights...
  • Page 12 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights Index Explanation Digital￿Motor￿Electronics￿(DME) Electronic￿transmission￿control￿(EGS) Fuses￿in￿the￿power￿distribution￿box,￿front￿right Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿Body￿Domain￿Controller Rear￿light￿cluster,￿right￿outer Rear￿light￿cluster,￿right￿inner License-plate￿light,￿right License-plate￿light,￿left Rear￿light￿cluster,￿left￿inner Rear￿light￿cluster,￿left￿outer Additional￿brake￿light Interference￿suppression￿filter Light￿switch Hazard￿warning￿switch/Intelligent￿Safety￿button Steering￿column￿switch￿cluster￿(SZL) Rain-light-solar-condensation￿sensor￿(RLSBS) Brake￿light￿switch The￿system￿wiring￿diagram￿shows￿the￿basic￿version￿with￿bulbs￿and￿LEDs￿for￿the￿tail￿light. In￿the￿High￿version,￿all￿light￿functions￿are￿realized￿with￿LED￿technology. 1.3.2.￿Rear￿light On￿the￿G01,￿2￿different￿rear￿lights￿are￿installed￿depending￿on￿the￿headlight￿version. The￿Basic￿rear￿light￿is￿used￿on￿vehicles￿with￿the￿following￿equipment: • LED￿headlights • LED￿headlights￿with￿cornering￿lights. The￿High￿rear￿light￿is￿used￿on￿vehicles￿with￿the￿following￿equipment: • Adaptive￿full￿LED￿headlights. In￿the￿Basic￿rear￿light,￿only￿the￿tail￿light￿is￿in￿LED￿technology.￿Bulbs￿are￿used￿for￿all￿other￿light functions. In￿the￿High￿rear￿light,￿all￿light￿functions￿are￿in￿LED￿technology.
  • Page 13 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights Rear￿light Index Explanation High￿rear￿light Rear￿light￿(basic￿version) Brake￿light Turn￿indicator Tail￿light Reversing￿light 1.4.￿Automatic￿high￿beams High-beam￿assistant On￿vehicles￿with￿camera-based￿driver￿assistance￿systems￿KAFAS,￿the￿function￿of￿the￿automatic￿high- beams￿is￿performed￿by￿KAFAS. On￿vehicles￿without￿camera-based￿driver￿assistance￿systems￿KAFAS,￿the￿automatic￿high-beam￿is integrated￿in￿the￿interior￿mirror. Automatic￿high￿beams￿are￿standard￿on￿the￿M40i￿and￿optional￿on￿the￿xDrive￿30i￿(OE￿5AC).
  • Page 14 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights 1.4.1.￿System￿wiring￿diagram Automatic￿high-beams￿without￿KAFAS Index Explanation Automatic￿high-beams￿(FLA) Fuse￿for￿front￿right￿power￿distribution￿box Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿Body￿Domain￿Controller Light￿switch Steering￿column￿switch￿cluster￿(SZL) Instrument￿cluster￿(KOMBI) 1.5.￿Entry￿lights,￿exterior The￿exterior￿light￿staging￿for￿the￿G01￿may￿include￿the￿following￿items,￿depending￿on￿the￿optional equipment: • Ground￿lights • Light￿carpet...
  • Page 15 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights 1.5.1.￿System￿wiring￿diagram Entry￿lights,￿exterior...
  • Page 16 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights Index Explanation Body￿Domain￿Controller￿(BDC) Light￿carpet,￿right Door￿entry￿light￿in￿front￿passenger￿door Door￿entry￿light￿in￿the￿rear￿passenger’s￿side￿door Door￿entry￿light￿in￿the￿rear￿driver's￿side￿door Door￿entry￿light￿in￿the￿driver's￿door Light￿carpet,￿left 1.5.2.￿Ground￿lights The￿ground￿lighting￿is￿integrated￿in￿the￿corresponding￿door￿modules.￿The￿LEDs￿of￿the￿ground￿lighting are￿activated￿by￿the￿Body￿Domain￿Controller￿(BDC). 1.5.3.￿Light￿carpet The￿light￿source￿is￿integrated￿in￿the￿side￿sill￿so￿that￿it￿is￿invisible￿for￿the￿customer.￿The￿function￿can￿be realized￿in￿a￿very￿small￿installation￿space￿through￿the￿use￿of￿a￿multi-lens￿array￿system.￿A￿very￿flat￿angle of￿radiation￿is￿also￿possible.￿The￿graphic￿is￿superposed￿several￿times￿by￿the￿multi-lens￿array￿system and￿is￿therefore￿insensitive￿to￿dirt￿contamination.￿The￿light￿carpet￿is￿activated￿by￿the￿Body￿Domain Controller￿(BDC). LEDs￿in￿the￿side￿sill LEDs￿in￿the￿side￿sill...
  • Page 17 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights Light￿carpet Light￿carpet...
  • Page 18 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights 1.6.￿Trailer￿lighting 1.6.1.￿System￿wiring￿diagram Trailer￿lighting...
  • Page 19 G01￿General￿Vehicle￿Electronics 1.￿Exterior￿Lights Index Explanation Instrument￿cluster￿(KOMBI) Body￿Domain￿Controller￿(BDC) Exterior￿mirror,￿front￿passenger￿side CAN￿terminator Power￿distribution￿box,￿rear Trailer￿module￿(AHM) Additional￿brake￿light Interference￿suppression￿filter Vehicles￿with￿a￿trailer￿coupling￿are￿equipped￿with￿a￿trailer￿module￿AHM.￿The￿trailer￿module￿is responsible￿for￿the￿following￿functions: • Light￿control￿for￿trailer • Monitoring￿the￿trailer￿power￿circuits...

  • Page 20: Version

    G01￿General￿Vehicle￿Electronics 2.￿Interior￿Lighting 2.1.￿Version Depending￿on￿the￿optional￿equipment￿selected￿the￿G01￿has￿different￿light￿elements￿for￿the￿interior lighting.
  • Page 21 G01￿General￿Vehicle￿Electronics 2.￿Interior￿Lighting 2.2.￿Basic￿interior￿light 2.2.1.￿System￿wiring￿diagram Basic￿interior￿light...
  • Page 22 G01￿General￿Vehicle￿Electronics 2.￿Interior￿Lighting Index Explanation Footwell￿light,￿front￿left Advanced￿Crash￿Safety￿Module￿(ACSM) Lighting,￿center￿console Footwell￿light,￿front￿right Glove￿box￿light Glove￿box￿switch Fuses￿in￿the￿power￿distribution￿box,￿front￿right Body￿Domain￿Controller￿(BDC) Door￿entry￿lighting,￿front￿passenger￿side Door￿contact,￿front￿passenger￿side,￿front Door￿entry￿lighting￿passenger's￿side,￿rear Door￿contact￿on￿front￿passenger￿side,￿rear Fuse￿for￿rear￿right￿power￿distribution￿box Luggage￿compartment￿light,￿right Tailgate￿lighting Tailgate￿contact￿switch￿in￿the￿tailgate￿lock Luggage￿compartment￿light,￿left Door￿contact￿on￿driver's￿side,￿rear Door￿entry￿lighting￿driver's￿side,￿rear Door￿contact,￿driver's￿side,￿front Door￿entry￿lighting,￿driver's￿side Front￿interior￿light Interior￿light,￿rear￿right Footwell￿light,￿rear￿right Telematic￿Communication￿Box￿(TCB) Footwell￿light,￿rear￿left Interior￿light,￿rear￿left Make-up￿mirror￿light,￿left Make-up￿mirror￿light,￿right Switch￿for￿make-up￿mirror,￿right Switch￿for￿make-up￿mirror,￿left...
  • Page 23 G01￿General￿Vehicle￿Electronics 2.￿Interior￿Lighting In￿the￿basic￿interior￿lighting￿configuration,￿the￿following￿interior￿lights￿are￿connected￿with￿the￿Body Domain￿Controller￿via￿LIN￿bus: • Interior￿light￿in￿the￿roof￿function￿center￿(FZD) • Interior￿lights￿in￿the￿rear￿passenger￿compartment. The￿glove￿box￿light￿is￿switched￿by￿the￿glove￿box￿switch. The￿luggage￿compartment￿light￿is￿switched￿by￿the￿tailgate￿contact￿switch￿in￿the￿tailgate￿lock. All￿other￿interior￿lights￿are￿activated￿directly￿by￿the￿Body￿Domain￿Controller. 2.3.￿Ambient￿lighting The￿ambient￿lighting￿has￿6￿different￿colors.￿It￿is￿possible￿to￿choose￿11￿different￿light￿designs. Adjust￿the￿lighting￿design￿and￿the￿brightness￿with￿the￿controller.￿The￿selected￿design￿is￿displayed￿on the￿CID.
  • Page 24 G01￿General￿Vehicle￿Electronics 2.￿Interior￿Lighting 2.3.1.￿System￿wiring￿diagram Interior￿lighting,￿ambient￿lighting...
  • Page 25 G01￿General￿Vehicle￿Electronics 2.￿Interior￿Lighting Index Explanation Footwell￿light,￿front￿left Ambient￿lighting,￿instrument￿panel,￿passenger's￿side Footwell￿light,￿front￿right Glove￿box￿switch Glove￿box￿light Fuses￿in￿the￿power￿distribution￿box,￿front￿right Body￿Domain￿Controller￿(BDC) Lighting￿for￿door￿storage￿compartment,￿passenger's￿side Door￿trim￿panel￿lighting,￿passenger's￿side Door￿entry￿light,￿front￿passenger's￿side Door￿contact,￿front￿passenger￿side,￿front Door￿contour￿lighting,￿passenger's￿side Lighting￿for￿door￿storage￿compartment,￿passenger's￿side￿rear Door￿trim￿panel￿lighting,￿passenger's￿side￿rear Door￿entry￿lighting￿passenger's￿side,￿rear Door￿contact￿on￿front￿passenger￿side,￿rear Door￿contour￿lighting,￿passenger's￿side￿rear Fuse￿for￿rear￿right￿power￿distribution￿box Luggage￿compartment￿light,￿right Tailgate￿contact￿switch￿in￿the￿tailgate￿lock Tailgate￿lighting Luggage￿compartment￿light,￿left Door￿contour￿lighting,￿driver's￿side￿rear Door￿contact￿on￿driver's￿side,￿rear Door￿entry￿lighting￿driver's￿side,￿rear Door￿storage￿compartment￿lighting,￿driver’s￿side￿rear Door￿trim￿panel￿lighting,￿driver’s￿side￿rear Door￿contour￿lighting,￿driver's￿side Door￿contact,￿driver's￿side,￿front Door￿entry￿light,￿front￿driver's￿side Door￿trim￿panel￿lighting,￿driver’s￿side Door￿storage￿compartment￿lighting,￿driver’s￿side Lighting,￿center￿stack Lighting,￿center￿console Interior￿light,￿rear￿right￿(on￿vehicles￿with￿panorama￿glass￿roof)
  • Page 26 G01￿General￿Vehicle￿Electronics 2.￿Interior￿Lighting Index Explanation Lighting,￿rear￿left￿seat Footwell￿light,￿rear￿right Footwell￿light,￿rear￿left Lighting,￿rear￿right￿seat Interior￿light,￿rear￿(in￿vehicles￿without￿panorama￿glass￿roof) Interior￿light,￿rear￿left￿(on￿vehicles￿with￿panorama￿glass￿roof) RGB￿(Red,￿Green,￿Blue)￿LED￿modules￿are￿used￿for￿the￿ambient￿lighting. The￿lighting￿for￿the￿ambient￿interior￿lighting￿is￿controlled￿via￿a￿separate￿LIN￿bus.￿The￿individual￿LED modules￿are￿connected￿via￿a￿local￿interconnect￿network￿bus.￿The￿LED￿modules￿are￿connected￿in series￿to￿the￿LIN￿bus￿around￿the￿vehicle. If￿the￿LIN￿bus￿is￿interrupted￿at￿a￿certain￿point￿or￿the￿micro￿controller￿on￿the￿LED￿is￿faulty,￿then￿further light￿transmittance￿is￿interrupted￿at￿this￿point.￿A￿search￿for￿the￿fault￿must￿be￿carried￿out￿at￿the￿location where￿the￿last￿LED￿illuminates.
  • Page 27 G01￿General￿Vehicle￿Electronics 3.￿Wash/Wipe￿System 3.1.￿System￿wiring￿diagram Wash/wipe￿system...
  • Page 28 G01￿General￿Vehicle￿Electronics 3.￿Wash/Wipe￿System Index Explanation Outside￿temperature￿sensor Washer￿fluid￿level￿switch Electric￿motor,￿windshield￿washer￿pump Fuse￿in￿the￿Body￿Domain￿Controller￿(BDC) Relay￿for￿wiper￿motor Body￿Domain￿Controller￿(BDC) Rear￿wiper Steering￿column￿switch￿cluster￿(SZL) Instrument￿cluster￿(KOMBI) Rain‐light‐solar-condensation￿sensor Wiper￿motor Heated￿washer￿jet,￿left Heated￿washer￿jet,￿center Heated￿washer￿jet,￿right The￿relays￿for￿the￿wiper￿motor￿are￿located￿in￿the￿Body￿Domain￿Controller. The￿heated￿washer￿jets￿are￿activated￿by￿the￿Body￿Domain￿Controller. The￿Body￿Domain￿Controller￿is￿also￿responsible￿for￿actuation￿of￿the￿window￿washer￿pumps￿and evaluation￿of￿the￿washer￿fluid￿level￿switch.
  • Page 29 G01￿General￿Vehicle￿Electronics 4.￿Locking￿and￿Security￿Functions 4.1.￿Comfort￿Access 4.1.1.￿System￿wiring￿diagram Comfort￿Access...
  • Page 30 G01￿General￿Vehicle￿Electronics 4.￿Locking￿and￿Security￿Functions Index Explanation Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿Body￿Domain￿Controller Switch￿in￿door￿lock￿of￿front￿passenger￿door Outside￿door￿handle￿electronics￿(TAGE),￿front￿passenger￿door CAN￿terminator Switch￿in￿door￿lock￿of￿rear￿passenger￿door Outside￿door￿handle￿electronics￿(TAGE),￿rear￿passenger￿door Comfort￿Access￿antenna,￿side￿sill,￿right Tailgate￿function￿module￿(HKFM) Fuses￿in￿the￿power￿distribution￿box,￿rear￿right Control￿unit￿for￿contactless￿rear￿lid￿opening Sensor￿at￿bottom￿for￿non-contact￿tailgate￿opening Sensor￿at￿top￿for￿non-contact￿tailgate￿opening Button￿for￿closing￿tailgate Tailgate￿contact￿switch￿in￿the￿tailgate￿lock Button￿for￿tailgate Acoustic￿warning￿device￿for￿tailgate￿activation Luggage￿compartment￿light Comfort￿Access￿antenna,￿luggage￿compartment Remote￿control￿receiver￿(FBD) Comfort￿Access￿antenna,￿side￿sill,￿left Outside￿door￿handle￿electronics￿(TAGE),￿rear￿driver's￿side￿door Switch￿in￿door￿lock￿of￿rear￿driver's￿side￿door Outside￿door￿handle￿electronics￿(TAGE),￿driver's￿door Switch￿in￿door￿lock￿of￿driver's￿door Comfort￿Access￿antenna,￿passenger￿compartment Comfort￿Access￿antenna,￿passenger￿compartment...
  • Page 31 G01￿General￿Vehicle￿Electronics 4.￿Locking￿and￿Security￿Functions 4.2.￿Central￿locking￿system 4.2.1.￿System￿wiring￿diagram Central￿locking￿system...

  • Page 32: Function

    G01￿General￿Vehicle￿Electronics 4.￿Locking￿and￿Security￿Functions Index Explanation Fuse￿for￿front￿right￿power￿distribution￿box Body￿Domain￿Controller￿(BDC) Door￿lock,￿front￿passenger￿door Central￿locking￿button,￿front￿passenger￿door Power￿window￿electronics,￿passenger's￿side￿front Door￿lock,￿passenger's￿side,￿rear Fuse￿in￿the￿rear￿power￿distribution￿box Servodrive￿for￿fuel￿filler￿flap Tailgate￿contact￿switch￿in￿the￿tailgate￿lock Button￿for￿closing￿tailgate Remote￿control￿receiver￿(FBD) Door￿lock,￿driver's￿side,￿rear Power￿window￿electronics,￿driver's￿side￿front Door￿lock,￿driver's￿door Central￿locking￿button,￿driver's￿door Switch￿block,￿driver's￿door 4.2.2.￿Function The￿function￿of￿the￿central￿locking￿system￿of￿the￿G01￿is￿based￿on￿that￿of￿current￿BMW￿models.￿All functions￿relevant￿for￿the￿central￿locking￿system￿are￿controlled￿by￿the￿Body￿Domain￿Controller.￿The function￿is￿as￿follows: • The￿radio￿signal￿from￿the￿ID￿transmitter￿is￿received￿by￿the￿remote￿control￿receiver. • The￿signal￿causes￿the￿BDC￿to￿activate￿the￿central￿locking￿system￿and￿the￿interior￿lighting. • The￿BDC￿evaluates￿the￿status￿of￿all￿door￿contacts￿of￿the￿tailgate￿and￿the￿hotel￿position￿switch. • The￿status￿of￿the￿central￿locking￿system￿button￿is￿also￿evaluated￿by￿the￿BDC.￿The￿BDC activates￿the￿central￿locking￿system,￿depending￿on￿the￿status. • The￿BDC￿is￿responsible￿for￿activation￿of￿the￿central￿locking￿system￿and￿the￿drive￿for￿automatic soft-close￿in￿the￿tailgate. • Activation￿of￿fuel￿filler￿flap￿unlocking￿is￿also￿performed￿by￿the￿BDC.
  • Page 33 G01￿General￿Vehicle￿Electronics 4.￿Locking￿and￿Security￿Functions 4.3.￿Automatic￿operation￿of￿tailgate 4.3.1.￿System￿wiring￿diagram Automatic￿operation￿of￿tailgate...
  • Page 34 G01￿General￿Vehicle￿Electronics 4.￿Locking￿and￿Security￿Functions Index Explanation Fuses￿in￿the￿power￿distribution￿box,￿front￿right Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿Body￿Domain￿Controller CAN￿terminator Fuses￿in￿the￿rear￿power￿distribution￿box Tailgate￿lift￿drive Tailgate￿function￿module￿(HKFM) Tailgate￿contact￿switch￿in￿the￿tailgate￿lock Automatic￿Soft￿Close￿drive Button￿for￿closing￿tailgate￿(inner) Button￿for￿tailgate￿(outer) Acoustic￿warning￿device￿for￿tailgate￿activation Luggage￿compartment￿light,￿left Luggage￿compartment￿light,￿right Remote￿control￿receiver￿(FBD) Switch￿block,￿driver's￿door Button￿for￿opening￿tailgate Power￿window￿motor,￿driver's￿side￿front Instrument￿cluster￿(KOMBI)
  • Page 35 G01￿General￿Vehicle￿Electronics 5.￿Alarm￿System 5.1.￿System￿wiring￿diagram Alarm￿system...
  • Page 36 G01￿General￿Vehicle￿Electronics 5.￿Alarm￿System Index Explanation Hood￿contact￿switch Fuse￿for￿front￿right￿power￿distribution￿box Body￿Domain￿Controller￿(BDC) Door￿contact,￿front￿passenger￿side,￿front CAN￿terminator Door￿contact￿on￿front￿passenger￿side,￿rear Fuse￿for￿rear￿right￿power￿distribution￿box Siren￿with￿tilt￿alarm￿sensor Tailgate￿contact￿switch￿in￿the￿tailgate￿lock Door￿contact￿on￿driver's￿side,￿rear Roof￿function￿center￿(FZD) LED￿in￿the￿interior￿mirror Door￿contact,￿driver's￿side,￿front The￿alarm￿system￿in￿the￿G01￿is￿equipped￿with￿an￿ultrasonic￿interior￿movement￿detector￿for￿monitoring the￿passenger￿compartment.￿The￿ultrasonic￿interior￿movement￿detector￿(USIS)￿is￿fully￿integrated￿in the￿roof￿function￿center￿(FZD). The￿door￿contacts,￿engine￿compartment￿lid￿contact￿switch￿and￿the￿opening￿of￿the￿tailgate￿are monitored￿by￿the￿Body￿Domain￿Controller.￿As￿soon￿as￿a￿status￿changes,￿the￿ultrasonic￿interior movement￿detector￿receives￿this￿information￿via￿the￿K-CAN2.￿If￿the￿alarm￿system￿is￿activated,￿the￿siren with￿tilt￿alarm￿sensor￿is￿activated￿by￿the￿control￿unit￿in￿the￿event￿of￿a￿break-in. The￿siren￿with￿tilt￿alarm￿sensor￿SINE￿is￿connected￿with￿the￿roof￿function￿center￿via￿a￿local￿LIN￿bus. The￿status￿of￿the￿alarm￿system￿is￿displayed￿via￿the￿LED￿at￿the￿interior￿mirror.
  • Page 37 G01￿General￿Vehicle￿Electronics 6.￿Power￿Windows 6.1.￿System￿wiring￿diagram Power￿window￿regulator...
  • Page 38 G01￿General￿Vehicle￿Electronics 6.￿Power￿Windows Index Explanation Body￿Domain￿Controller￿(BDC) Fuses￿in￿the￿power￿distribution￿box,￿front￿right Power￿window￿motor,￿passenger's￿side Central￿locking￿button,￿front￿passenger￿door Power￿window￿switch,￿front￿passenger￿side,￿front Power￿window￿motor,￿passenger's￿side￿rear Power￿window￿switch,￿front￿passenger￿side￿rear Power￿window￿switch￿driver's￿side,￿rear Power￿window￿motor,￿driver's￿side￿rear Switch￿block,￿driver's￿door Power￿window￿motor,￿driver's￿side￿front...
  • Page 39 G01￿General￿Vehicle￿Electronics 7.￿Panoramic￿Sunroof 7.1.￿System￿wiring￿diagram Slide/Tilt￿sunroof Index Explanation Motor,￿slide/tilt￿sunroof Roof￿function￿center￿(FZD) Fuses￿in￿the￿power￿distribution￿box,￿front￿right Body￿Domain￿Controller￿(BDC) CAN￿terminator Sliding￿roofliner￿motor...
  • Page 40 G01￿General￿Vehicle￿Electronics 8.￿Steering￿Column￿Switch￿Cluster 8.1.￿System￿wiring￿diagram Steering￿column￿switch￿cluster...
  • Page 41 G01￿General￿Vehicle￿Electronics 8.￿Steering￿Column￿Switch￿Cluster Index Explanation Body￿Domain￿Controller￿(BDC) Fuse￿in￿the￿Body￿Domain￿Controller Fuse￿for￿front￿right￿power￿distribution￿box Multifunction￿steering￿wheel￿buttons,￿right Horn￿button Touch￿detection￿(Hands-Off￿Detection) Shift￿paddle,￿right Steering￿column￿switch,￿right Advanced￿Crash￿Safety￿Module￿(ACSM) Steering￿column￿switch￿cluster￿(SZL) Steering￿column￿switch,￿left Driver's￿airbag Shift￿paddle,￿left Steering-wheel￿heating￿button Steering￿wheel￿heating Vibration￿motor Steering￿wheel￿module Multifunction￿steering￿wheel￿buttons,￿left Instrument￿cluster￿(KOMBI)

  • Page 42: Szl

    G01￿General￿Vehicle￿Electronics 8.￿Steering￿Column￿Switch￿Cluster 8.2.￿SZL Steering￿column￿switch￿cluster￿(SZL) The￿turn￿signal/high￿beam￿switch￿on￿the￿G01￿engages￿mechanically￿in￿the￿corresponding￿position when￿operated.￿The￿return￿is￿mechanical￿via￿the￿steering￿wheel. All￿signals￿of￿the￿buttons￿and￿switches￿of￿the￿multifunction￿steering￿wheel￿(MFL)￿and￿the￿steering column￿switch￿cluster￿(SZL)￿are￿transmitted￿via￿Local￿Interconnect￿Network￿to￿the￿Body￿Domain Controller￿(BDC).
  • Page 43 G01￿General￿Vehicle￿Electronics 9.￿Door￿Mirror 9.1.￿Exterior￿mirror 9.1.1.￿System￿wiring￿diagram Exterior￿mirror...
  • Page 44 G01￿General￿Vehicle￿Electronics 9.￿Door￿Mirror Index Explanation Outside￿temperature￿sensor Fuses￿in￿the￿power￿distribution￿box,￿front￿right Body￿Domain￿Controller￿(BDC) Exterior￿mirror,￿front￿passenger￿side Switch￿block,￿driver's￿door Exterior￿mirror,￿driver's￿side Instrument￿cluster￿(KOMBI) Inside￿mirror The￿instrument￿cluster￿receives￿the￿value￿of￿the￿ambient￿temperature￿from￿the￿outside￿temperature sensor￿and￿makes￿this￿available￿via￿the￿PT-CAN.￿The￿Body￿Domain￿Controller￿evaluates￿the￿signal and￿triggers￿the￿activation￿of￿the￿mirror￿heating￿via￿the￿local￿interconnect￿network￿bus.￿The￿control of￿the￿heater￿output￿is￿dependent￿on￿the￿ambient￿temperature￿and￿the￿switch￿position￿of￿the￿driving experience￿switch. The￿mirror￿servomotors￿are￿activated￿by￿the￿mirror￿electronics.￿The￿request￿for￿adjusting￿the￿exterior mirror￿is￿received￿by￿the￿mirror￿electronics￿via￿the￿local￿interconnect￿network￿bus.
  • Page 45 G01￿General￿Vehicle￿Electronics 10.￿Interior￿Mirror 10.1.￿System￿wiring￿diagram Inside￿mirror Index Explanation Inside￿mirror Body￿Domain￿Controller Fuse￿for￿front￿right￿power￿distribution￿box Roof￿function￿center￿(FZD) The￿interior￿mirror￿is￿connected￿with￿the￿Body￿Domain￿Controller￿via￿LIN￿bus. The￿LED￿for￿the￿alarm￿system￿is￿located￿at￿the￿interior￿mirror.

  • Page 46: Seats

    G01￿General￿Vehicle￿Electronics 11.￿Seats 11.1.￿Front￿sport￿seats 11.1.1.￿Sport￿seats￿with￿memory,￿front,￿driver's￿side Memory￿memory￿sports￿seat,￿driver's￿side,￿front...
  • Page 47 G01￿General￿Vehicle￿Electronics 11.￿Seats Index Explanation Fuses￿in￿the￿power￿distribution￿box,￿front￿right Exterior￿mirror,￿front￿passenger￿side Body￿Domain￿Controller￿(BDC) CAN￿terminator Motor,￿longitudinal￿seat￿adjustment Motor,￿seat￿angle￿adjustment Motor,￿seat￿height￿adjustment Motor,￿backrest￿angle￿adjustment Motors,￿active￿seat￿ventilation,￿seat￿surface Motors,￿active￿seat￿ventilation,￿backrest Driver's￿seat￿module (SMFA) Valve￿block,￿backrest￿width￿adjustment Seat￿pneumatics￿module￿pump Valve￿block,￿lumbar-support￿adjustment Switch,￿seat￿adjustment Seat￿heating￿pad,￿backrest Seat￿heating￿pad,￿seat￿surface Memory￿switch Switch￿block,￿driver's￿door Exterior￿mirror,￿driver's￿side Integrated￿automatic￿heating￿/￿air￿conditioning￿(IHKA)
  • Page 48 G01￿General￿Vehicle￿Electronics 11.￿Seats 11.1.2.￿Sport￿seat,￿front,￿passenger's￿side Sport-electric￿seat,￿front,￿passenger's￿side...
  • Page 49 G01￿General￿Vehicle￿Electronics 11.￿Seats Index Explanation Integrated￿automatic￿heating￿/￿air￿conditioning￿(IHKA) Body￿Domain￿Controller￿(BDC) Fuses￿in￿the￿power￿distribution￿box,￿front￿right Seat-heating￿electronics￿on￿front￿passenger￿side Seat￿heating￿pad,￿backrest Seat￿heating￿pad,￿seat￿surface Valve￿block,￿lumbar-support￿adjustment Seat￿pneumatics￿module￿pump Valve￿block,￿backrest￿width￿adjustment Motor,￿seat￿height￿adjustment Motor,￿backrest￿angle￿adjustment Motor,￿seat￿angle￿adjustment Motor,￿longitudinal￿seat￿adjustment...
  • Page 50 G01￿General￿Vehicle￿Electronics 11.￿Seats 11.2.￿Rear￿seats 11.2.1.￿Seat￿heating,￿rear￿passenger￿compartment Seat￿heating,￿rear￿passenger￿compartment...
  • Page 51 G01￿General￿Vehicle￿Electronics 11.￿Seats Index Explanation Body￿Domain￿Controller Seat￿heating￿pad,￿seat￿surface,￿passenger’s￿side￿rear Seat￿heating￿pad,￿backrest,￿passenger’s￿side￿rear Seat-heating￿electronics,￿rear￿passenger's￿side Fuse￿in￿the￿rear￿power￿distribution￿box Seat-heating￿electronics,￿rear￿driver's￿side Seat￿heating￿pad,￿backrest,￿driver’s￿side￿rear Seat￿heating￿pad,￿seat￿surface,￿driver’s￿side￿rear Control￿panel,￿rear￿passenger￿compartment Integrated￿automatic￿heating￿/￿air￿conditioning￿(IHKA)

  • Page 52: Horn

    G01￿General￿Vehicle￿Electronics 12.￿Horn 12.1.￿System￿wiring￿diagram Horns Index Explanation Horn,￿left Horn,￿right Relay￿in￿the￿Body￿Domain￿Controller Body￿Domain￿Controller￿(BDC) Steering￿column￿switch￿cluster￿(SZL) Signal￿path￿of￿horn: • The￿horn￿button￿is￿read￿in￿by￿the￿steering￿column￿switch￿cluster￿(SZL). • The￿SZL￿sends￿the￿information￿via￿the￿local￿interconnect￿network￿bus￿to￿the￿Body￿Domain Controller. • The￿Body￿Domain￿Controller￿evaluates￿the￿information￿and￿activates￿the￿relay￿for￿the￿fanfare.
