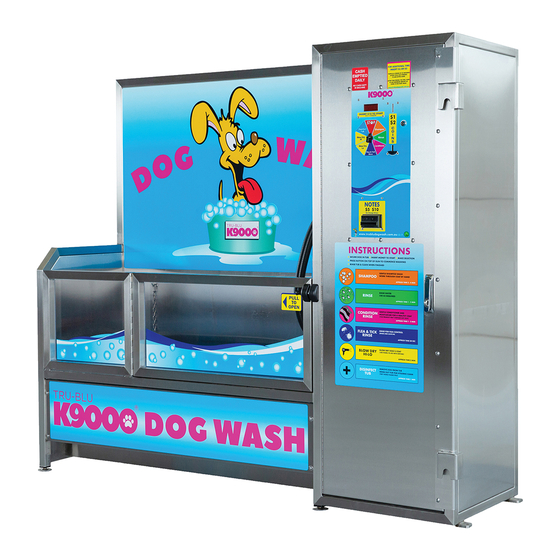

- Page 1 K9000 Mini Operators Manual ® © Copyright 2016, Tru Blu Dog Wash, All rights reserved. K9000 is a registered trademark of Tru Blu Dog Wash. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016...
- Page 2 Factory No. 1 34 Caramut Road Warrnambool Victoria 3280 Australia Tel: +61 (0)3 5562 9088 Fax: +61 (0)3 5562 9022 Email: info@trubludogwash.com.au Website: www.trubludogwash.com.au www.findadogwash.com Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page ii © Tru Blu Dog Wash 2016...
- Page 3 5.1.4, 5.1.5 & 5.1.6 Phil Worrell V3.0 added error codes Version Status Published Date 27/05/2019 Author/s Phil Worrell Build Approver Tim Darmanin Sales Approver Sarah Clausen Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page iii © Tru Blu Dog Wash 2016...
-
Page 4: Table Of Contents
K9000 Mini Inspection and Acceptance on Delivery: ............1 K9000 Mini System Specifications ................2 Installation ........................3 Levelling and Positioning the K9000 Mini ..............3 Connecting the Water Supply and Waste connection to the K9000 Mini....4 2.2.1 Connecting the Water Supply ................4 2.2.2 Hot Water Breaker ................... - Page 5 12.3 Material Safety Data Sheet (MSDS) Fido’s Fre-Itch Rinse Concentrate ....35 12.4 Material Safety Data Sheet (MSDS) Fido’s Hydrobath Flush ........35 Maintenance Record ....................36 Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page v © Tru Blu Dog Wash 2016...
-
Page 6: K9000 Mini Inspection And Acceptance On Delivery
K9000 Mini Inspection and Acceptance on Delivery: Inspect the K9000 Mini Dog Wash (K9000 Mini) on arrival and prior to unwrapping to ensure there is no travel damage. If there is any damage, please contact Tru Blu Dog Wash before accepting delivery. -
Page 7: K9000 Mini System Specifications
Water usage: 8 to 12 litres per minute (40-60 litres per single dog wash) Average power usage per wash cycle is .76kwh (dependent on hot water source) Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 8: Installation
The K9000 Mini needs to be placed in a level horizontal position to operate correctly. There are 8 adjustable feet, place a level along the back of the K9000 Mini and adjust the feet according to get the K9000 Mini Level, place the level along the top of the cabinet running back to front to make sure it is not tilting forward or backwards. -
Page 9: Connecting The Water Supply And Waste Connection To The K9000 Mini
Maximum allowable inlet water pressure is 450kpa. (72 Psi / 0.5 Mpa) The picture at left shows the hot and cold-water entry points for a K9000 Mini without an on- board hot water unit. While the picture on the right shows the water entry point for a K9000 Mini with an on-board hot water unit. -
Page 10: Hot Water Breaker
The power must be isolated prior to removing the cover from the Control Module refer to section 4 Main Board Components. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 11: Connecting The Waste
Before connecting to the waste point or tundish ensure local regulations are considered as some sites may require copper pipe. Waste point If unsure with any of the above steps please phone (03) 5562 9088 for assistance. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 12: Connecting The Power - For Your Electrician
Cold Water Inlet Expansion Valve outlet if hot water system on board Site Hot Water Inlet Electrical Cable Entry Point of Dog Wash 20mm Flex Conduit Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 13: Completing The Installation
2.4 Completing the Installation Now that the K9000 Mini has been installed you can now refit the front kicker plate removed earlier to allow the installation to proceed and peel the protective white film from the unit. You are now ready to commission the K9000 Mini. -
Page 14: Main Board Components
Main Board Components 4.1 K9000 Mini Main Board with Iwaki EJ Series Pumps Product Dosing Pumps (Iwaki) EJ Series x 2 Pressure Switch Product Pressure Gauge Injectors x 2 Rinse Solenoid Dryer Unit Product Dosing Pumps (Iwaki) EJ Control Module... -
Page 15: Control Module
The below picture has the main components of the Control Module labelled. It should be noted that there is a red LED light on each of the 3 fuses and if this is lit then the fuse has blown. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 16: Product Dosing Pump Factory Settings (Iwaki Ej Series Pumps)
This will reset the SPM to 1, you can then increase to the required SPM rate. Once the required rate is reached press the start/stop button twice to save the required rate. ‘Stroke Rate’ ‘Start / Stop’ Button Button Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 17: Bleeding Product Dosing Pumps (Iwaki - Ej Series Pumps)
If there are problems bleeding heavier concentrates rattle the suction line (item C below), and/or squeeze it to assist with shifting the product up into the pump head. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 18: Iwaki Dosing Pump - Ej Series Exploded View
Iwaki Dosing Pump – EJ Series Exploded View The pump in the diagram below is completely dismantled. Do not dismantle the pump beyond the extent shown in this instruction manual. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 19: Approved Products
The use of non-approved products may be harmful to the dog. Damage may also be caused to the Tru Blu dog wash equipment and possible voiding of the units’ warranty. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 20: Cash Box Components
Warning Beeper (time running out, more coins required) Override lock Coin Acceptor Rotary Switch Interface board Warning Beeper Override Coin Rotary Acceptor Switch Interface Board Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 21: Sp Coin Acceptor
5.1 SP Coin Acceptor The K9000 Mini is fitted with a Microcoin SP coin acceptor. The coin acceptor comes programmed at install. The below images are of the coin acceptor and its faceplate. Refer to section 5 for location within the cash box. -
Page 22: Sp On Board Programming (Obp) Instructions
To reset the credit to zero, simply open the SP Reset Credit housing by pressing the reject lever and then Value release, whilst in this mode. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... - Page 23 & scroll x 1 to indicate the addition of that coin value to the total Briefly press button once to complete. Finish “M” LED will go steady GREEN Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016...
-
Page 24: Coin Acceptor Removal
Clean with a damp lint free cloth. In extreme cases, a mild detergent can be used. DO NOT USE SOLVENTS. Once the unit has been cleaned, it is a simple case of re-inserting the unit in the reverse order. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 25: Coin Acceptor Error Messages
Check the coin path is clear and nothing is or trigger opro open circuit blocking the little hole where the opto shines through, refer section 5.1.6 Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 26: Coin Acceptor Error Processes
Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... - Page 27 Closing the coin mech requires the trigger to be engaged as this leavers the pin back into the closed position. Once this is done it will still take a little force to close the coin mech. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016...
-
Page 28: Temperature Valve
DO NOT EXCEED 38 Cap/Adjusting tool, could be blue or yellow Rotate Anti Rotate Clockwise Clockwise for Cold for Hot Undo Lock nut to Adjust Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx © Tru Blu Dog Wash 2016... -
Page 29: Dryer
The K9000 Mini can comes fitted with a non-heated (standard) dryer. Non-Heated Dryer Details The standard K9000 Mini dog wash comes with a fully fitted 2x1100 dryer. It does not require any action as part of the installation process. Standard 2x1100 Dryer Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx... -
Page 30: Override Key (Wash Down Key)
Override Key (Wash down Key) The K9000 Mini is equipped with an “OVERRIDE KEY” The operation of this key enables the owner/attendant to operate the wash down facility without inserting any money. During this wash down function, all selections on the rotary dial are available except the dryer. -
Page 31: Floor Lifting Tool
9 Floor Lifting Tool The following procedure is to be used for the lifting of the floor on the K9000 Mini Dog Wash. Caution should be taken when raising the floor as there are pinch points between the floor and the base of the unit. Ensure tool and gloves are used. -
Page 32: Operator Maintenance
10 Operator Maintenance The K9000 MINI can operate in temperatures from 5-40 degrees Celsius if you experience temperatures outside of this range check with your plumber for appropriate insulation. To gain access to the cabinet, unlock the pad lock and open the door by using the handle. - Page 33 Yearly service to be carried out by authorized Technician At the completion of the yearly maintenance update the maintenance record, section 14 of this manual. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page 28 © Tru Blu Dog Wash 2016...
-
Page 34: External Maintenance Items
The rotary dial should be checked each month to ensure it has not become loose. If it is found to be loose use a screw driver to tighten the screw that holds it in place. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page 29... -
Page 35: Dryer Maintenance
If either connection is found to be loose use a screw driver to tighten the screws that hold it in place. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page 30 © Tru Blu Dog Wash 2016... -
Page 36: Cleaning
Put this filter to one side. Warning the square stainless-steel filter can have sharp edges, gloves need to be worn to protect against injury. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page 31 © Tru Blu Dog Wash 2016... - Page 37 Rinse Tub Set to Jet Place the wash gun in the drain press on button, you don’t need to hold the gun place Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page 32 © Tru Blu Dog Wash 2016...
- Page 38 Clean the stainless steel by wiping down with soft cloth and INOX or WD40 spray. Do not use abrasive cleaning products and wipe down in the direction of the brushed finish. Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page 33 © Tru Blu Dog Wash 2016...
-
Page 39: General Information
How to change a wash gun on the K9000 Dog Wash How to look after the stainless steel on your K9000 Dog Wash How to clean your K9000 Dog Wash Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page 34 © Tru Blu Dog Wash 2016... -
Page 40: Msds Attachments
12.3 Material Safety Data Sheet (MSDS) Fido’s Fre-Itch Rinse Concentrate TB-MSDS-029 Fido's Fre-Itch Rinse Concentrate Summary.pdf 12.4 Material Safety Data Sheet (MSDS) Fido’s Hydrobath Flush TB-MSDS-028 Fido's Hydrobath Flush Summary.pdf Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page 35 © Tru Blu Dog Wash 2016... -
Page 41: Maintenance Record
The following record of maintenance needs to be completed at the time maintenance occurs. This will assist with any warranty claim. Maintenance Date of Initials Comments Schedule Maintenance Z:\Build\K9000 Mini\K9000 Mini Operators Manual May 2019 v3.0.docx Page 36 © Tru Blu Dog Wash 2016...
