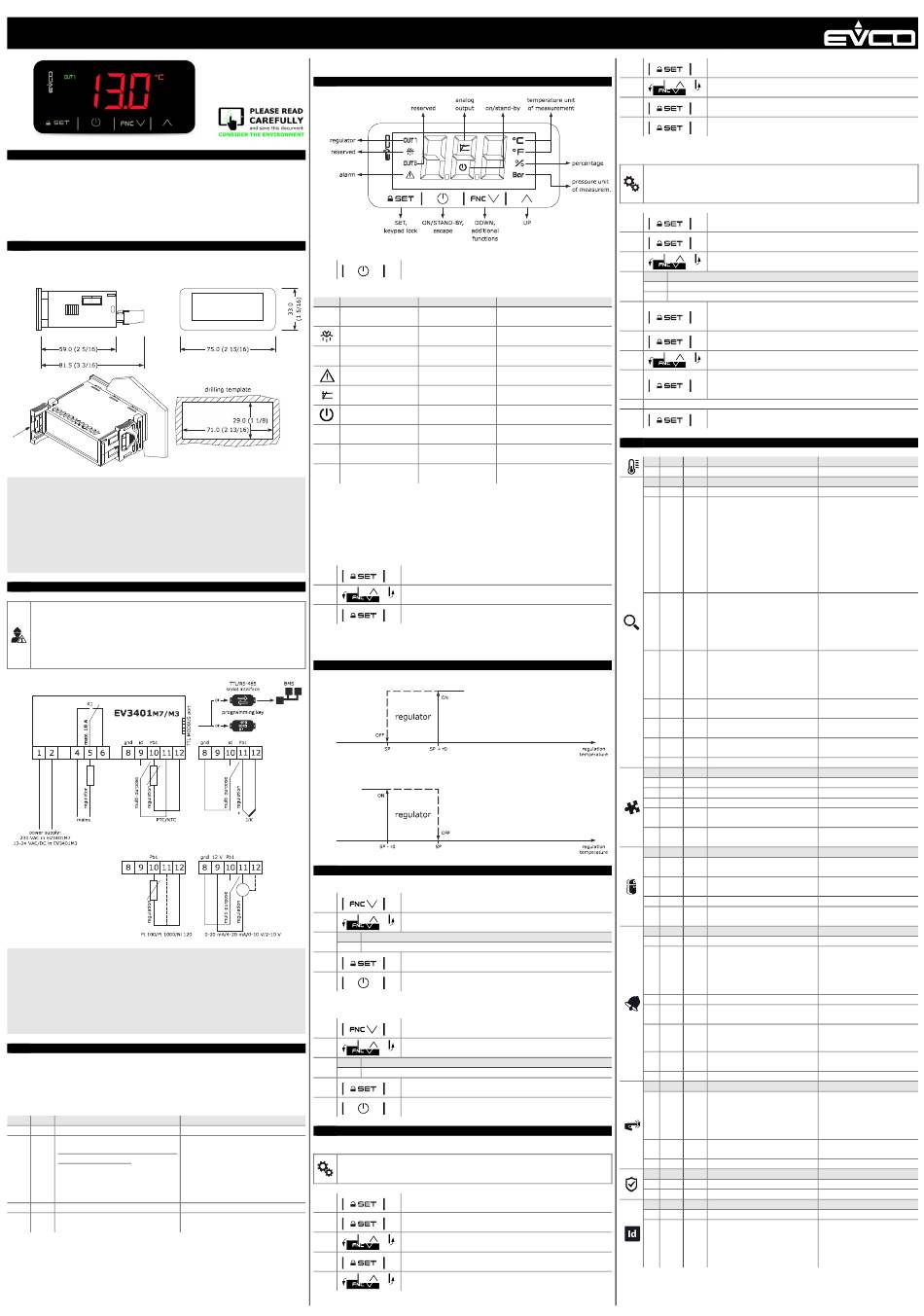

Evco EV3401 Instruction Sheet

EVCO S.p.A. | EV3401M | Instruction sheet ver. 1.0 | Code 1043401ME103 | Page 1 of 2 | PT 46/17

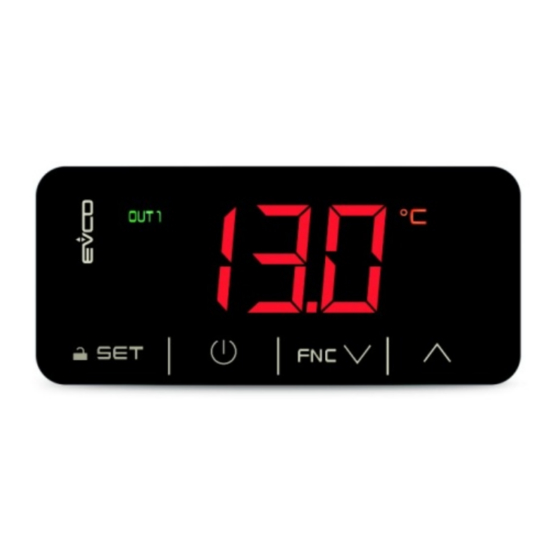

EV3401
Multi-sensor
EN ENGLISH
- power supply 230 VAC or 12-24 VAC/DC (according to the model)
- multi-sensor input (PTC/NTC/J/K/Pt 100/Pt 1000/Ni 120/0-20 mA/4-20 mA/0-10 V/
2-10 V)
- multi-purpose input
- K1 relay 16 A res. @ 250 VAC
- alarm buzzer
- TTL MODBUS slave port for programming key or for TTL/RS-485 (BMS) serial interface
- hot or cold mode regulation.
1

MEASUREMENTS AND INSTALLATION

Measurements in mm (in); 59.0 (2 5/16) depth with fixed screw terminal blocks, 81,5
(3 3/16) depth with plug-in screw terminal blocks.
To be fitted to a panel, snap-in brackets provided.

INSTALLATION PRECAUTIONS

- the thickness of the panel must be between 0.8 and 2.0 mm (1/32 and 1/16 in);
ensure that the working conditions are within the limits stated in the TECHNICAL
-
SPECIFICATIONS section;
- do not install the device close to heat sources, equipment with a strong magnetic field,
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations
or shocks;
in compliance with safety regulations, the device must be installed properly to ensure
-
adequate protection from contact with electrical parts. All protective parts must be
fixed in such a way as to need the aid of a tool to remove them.
2

ELECTRICAL CONNECTION

N.B.
- use cables of an adequate section for the current running through them.
- ensure that the thermocouple is properly insulated from contact with metal parts or
use already insulated thermocouples.
- if necessary, extend the thermocouple cable using a compensating cable.
- to reduce any electromagnetic interference locate the power cables as far away as
possible from the signal cables.

PRECAUTIONS FOR ELECTRICAL CONNECTION

- if using an electrical or pneumatic screwdriver, adjust the tightening torque;
if the device has been moved from a cold to a warm place, humidity may have caused
-
condensation to form inside. Wait about an hour before switching on the power;
make sure that the supply voltage, electrical frequency and power are within the set
-
limits. See the section TECHNICAL SPECIFICATIONS;
- disconnect the power supply before carrying out any type of maintenance;
do not use the device as safety device;
-
for repairs and for further information, contact the EVCO sales network.
-
3

FIRST-TIME USE

1. Install following the instructions given in
INSTALLATION.
2. Power up the device as set out in the section ELECTRICAL CONNECTION: an internal
test will start up.
The test normally takes a few seconds; when it is finished the display will switch off.
3. Configure the device as shown in the section Setting configuration parameters.
Recommended configuration parameters for first-time use.
PAR. DEF. PARAMETER
SP 0.0 setpoint
P0 2 type of probe
set the parameter before
connecting the probe
P2 0 temperature measurement unit
r5 0 hot or cold mode regulation regulator
Then check that the remaining

settings

CONFIGURATION PARAMETERS.

4. Disconnect the device from the mains.
5. Make the electrical connection as shown in the section ELECTRICAL CONNECTION
without powering up the device.
6. When connecting to an RS-485 network, connect the EVIF22TSX interface; see the
relative instruction sheets.
Universal controllers with one regulation output for industrial applications
7. Power up the device.
4

USER INTERFACE AND MAIN FUNCTIONS

4.1

Switching the device on/off

1.
If the device is switched on, the display will show the P5 value ("regulation temperature"
default); if the display shows an alarm code, see the section ALARMS.
LED ON
regulator active
OUT1
unused
unused
OUT2
alarm active
unused
device switched off
temperature display
°C/°F
percentage display
%
pressure display
Bar
When 30s have elapsed without the keys being pressed, the display will show the "Loc" label
and the keypad will lock automatically.
4.2 Unlocking the keypad
Touch a key for 1s: the display will show the label "UnL".
4.3

Setting the setpoint

Check that the keypad is not locked.
1.
2.
3.
4.4 Silencing the buzzer (if A13 = 1)
Touch a key.
5 FUNCTION MODES
Cold mode regulation (r5 = 0).
Hot mode regulation (r5 = 1).
6 ADDITIONAL FUNCTIONS
6.1 Displaying the number of start-ups of the relay
Check that the keypad is not locked.
1.
2.
LAB.
nS1
3.
4.
6.2 Displaying the temperature detected by the regulation probe
Check that the keypad is not locked.
1.
2.
the section MEASUREMENTS AND
LAB.
Pb1
3.
4.
MIN... MAX.
r1... r2 7 SETTINGS
0 = PTC 1 = NTC 7.1

Setting configuration parameters

2 = J 3 = K
4 = Pt 100 3 wires 5 = Pt 100 3 wires N.B.
Changing parameter P2 from °C to °F (and vice versa) causes the value of the
6 = Pt 1000 3 wires 7 = Pt 1000 3 wires
parameters whose unit of measurement is °C or °F to be changed automatically.
8 = 4-20 mA 9 = 0-20 mA
10 = 2-10 V 11= 0-10 V
12 = Ni 120 3 wires 13= Ni 120 2 wires
1.
0 = °C 1 = °F
0 = cold mode
2.
1 = hot mode
3.
are appropriate; see the section
4.
5.
If POF = 1 (default), touch the ON/STAND-BY key for 4s.
OFF FLASHING
-
- regulator protection active
- setpoint being set
- -
- -
- -
- -
device switched on device being switched on/off
- -
- -
- -
Touch the SET key: the display will show the label "SP".
Touch the UP or DOWN key within 15s to set the value within the
limits r1 and r2 (default "0... 350").
Touch the SET key (or take no action for 15s).
Touch the DOWN key for 4s.
Touch the UP or DOWN key within 15s to select a label.
DESCRIPTION
display of the number of start-ups of the K1 relay in thousands
Touch the SET key.
Touch the ON/STAND-BY key (or take no action for 60s) to exit
the procedure.
Touch the DOWN key for 4s.
Touch the UP or DOWN key within 15s to select a label.
DESCRIPTION
regulation temperature
Touch the SET key.
Touch the ON/STAND-BY key (or take no action for 60s) to exit
the procedure.
Touch the SET key for 4s: the display will show the label "PA".
Touch the SET key.
Touch the UP or DOWN key within 15s to set the PAS value
(default "-19").
Touch the SET key (or take no action for 15s): the display will
show the label "SP".
Touch the UP or DOWN key to select a parameter.
6. Touch the SET key.
7. Touch the UP or DOWN key within 15s to set the value.
8. Touch the SET key (or take no action for 15s).
Touch the SET key for 4s (or take no action for 60s) to exit the
9.
procedure.
7.2

Restoring factory settings (default) and saving customised settings

N.B.
- Check that the factory settings are appropriate; see the section CONFIGURATION
PARAMETERS.
- Saving customised settings overwrites the factory settings.
1. Touch the SET key for 4s: the display will show the label "PA".
2. Touch the SET key.
3. Touch the UP or DOWN key within 15s to set the value.
VAL. DESCRIPTION
149 value for restoring the factory information (default)
161 value for saving customised settings
Touch the SET key (or take no action for 15s): the display will
4. show the label "dEF" (for setting the "149" value) or the label
"MAP" (for setting the "161" value)
5. Touch the SET key.
6. Touch the UP or DOWN key within 15s to set "4".
Touch the SET key (or take no action for 15s): the display will
7. show "- - -" flashing for 4s, after which the device will exit the
procedure.
8. Disconnect the device from the power supply.
Touch the SET key for 2s before action 6 to exit the procedure
9.
beforehand.
8 CONFIGURATION PARAMETERS
N. PAR. DEF. SETPOINT
1 SP 0.0 setpoint
N. PAR. DEF. ANALOGUE INPUTS
2 CA1 0.0 regulation probe offset
3 P0 2 type of probe
4 P1 0 enable decimal point °C
5 P2 0 measurement unit
6 P3 0.0 minimum transducer calibration
value
7 P4 100 maximum transducer calibration
value
8 P5 0 value displayed
9 P8 5 display refresh time
N. PAR. DEF. REGULATION
10 r0 2.0 setpoint differential
11 r1 0.0 minimum setpoint
12 r2 350 maximum setpoint
13 r5 0 hot or cold mode regulation
regulator
14 r11 0.0 digital input second setpoint
N. PAR. DEF. REGULATOR PROTECTION
15 C1 0 minimum time between
power-ons of regulator
16 C2 0 minimum time off and delay from
power-on of regulator
17 C3 0 minimum time on regulator
18 C4 0 regulator activity
regulation probe alarm
N. PAR. DEF. Alarms
19 A1 0.0 temperature alarm threshold
20 A2 0 temperature alarm type
21 A3 0 temperature alarm delay
22 A7 0 temperature alarm delay after
modifying setpoint and power-on
23 A8 0 additional alarm signal
after silencing if the condition
persists
24 A11 2.0 temperature alarm switch
differential
25 A13 1 enable alarm buzzer
N. PAR. DEF. DIGITAL INPUTS
26 i5 0 multi-purpose input function
27 i6 0 multi-purpose input activation
28 i7 0 multi-purpose input alarm delay
N. PAR. DEF. SECURITY
29 POF 1 enable ON/STAND-BY key
30 PAS -19 password
N. PAR. DEF. MODBUS
31 LA 247 MODBUS address
32 Lb 3 MODBUS baud rate
MIN... MAX.
r1... r2
MIN... MAX.
-25... 25 °C/°F
0 = PTC 1 = NTC
2 = J 3 = K
4 = Pt 100 3 wires
5 = Pt 100 2 wires
6 = Pt 1000 3 wires
7 = Pt 1000 2 wires
8 = 4-20 mA 9 = 0-20 mA
10 = 2-10 V 11 = 0-10 V
12 = Ni 120 3 wires
13 = Ni 120 2 wires
0 = no 1 = yes
if P0 = 2 or 3, not effective
if P0 = 8... 11, position of
decimal point:
0 = none
1 = tens digit
0 = °C 1 = °F
2 = % 3 = bar
4 = none
options 2... 4 effective only on
LEDs and if P0 = 8... 11
-199... 999 points
-199... 999 points
0 = regulation temperature
1 = setpoint
0... 250 s : 10
MIN... MAX.
1... 99 °C/°F
-199 °C/°F... r2
r1... 999 °C/°F
0 = cold mode
1 = hot mode
-199... 999 °C/°F
setpoint + r11
MIN... MAX.
two 0... 240 min
0... 240 min
0... 240 s
during 0 = off 1 = on
MIN... MAX.
-199... 999 °C/°F
0 = disabled
1 = absolute minimum
2 = absolute maximum
3 = minimum relative to SP
4 = maximum relative to SP
0... 999 min
0... 999 min
delay 0... 999 min
off 1... 99 °C/°F
0 = no 1 = yes
MIN... MAX.
0 = disabled
1 = alarm iA
2 = alarm iA + regulator off
3 = switches device on/off
4 = modifies setpoint
0 = with contact closed
1 = with contact open
0... 999 s
MIN... MAX.
0 = no 1 = yes
-99... 999
MIN... MAX.
1... 247
0 = 2,400 baud
1 = 4,800 baud
2 = 9,600 baud
3 = 19,200 baud
even
