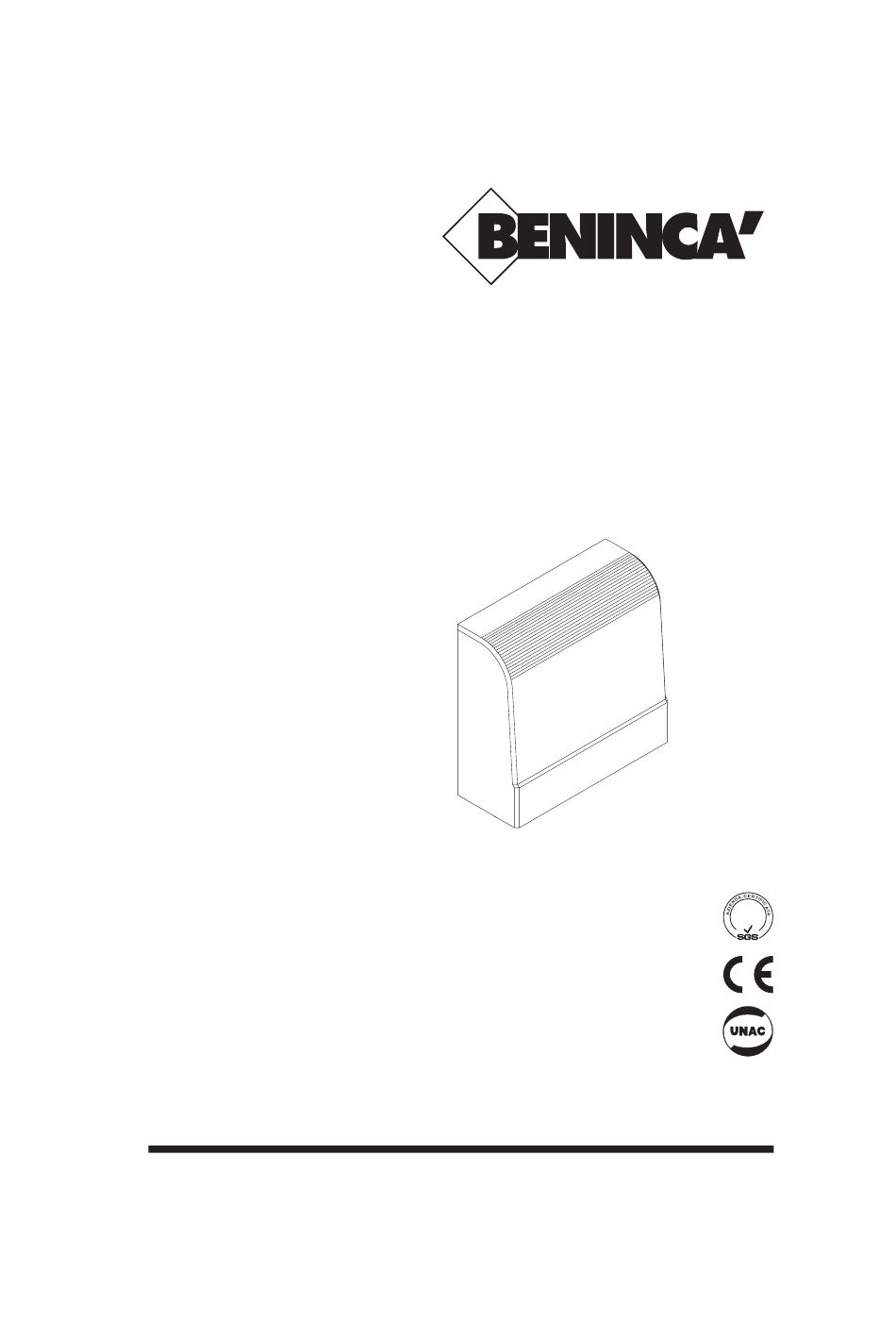

  • Page 1 L8542605 ® Rev. 07/00/01 AUTOMATISMI PER CANCELLI CENTRALINA A MICROPROCESSORE CONTROL UNIT WITH MICROCONTROLLER MIKROCONTROLLER-STEUERUNG CENTRALE A MICROCONTRÔLEUR CENTRALITA A MICROPROCESADOR DA.AX EN ISO 9001 Libro istruzioni Operating instructions Betriebsanleitung UNIONE NAZIONALE COSTRUTTORI Livret d’instructions AUTOMATISMI PER CANCELLI, PORTE, Libro de instrucciones...
  • Page 2 We hereby declare that our product Hiermit erklaren wir, dass unser Produkt Nous déclarons par la présente que notre produit Por la presente declaramos que nuestro producto DA.AX è conforme alle seguenti disposizioni pertinenti: complies with the following relevant provisions: folgenden einschlagigen Bestimmungen entspricht:...
  • Page 3 250mA VDR2 TRF1 1 Funz. P.P. 2 Rich. Aut. 3 Funz. Cond. 4 P.P./Apre COMUNE APRE CHIUDE 6.3A VDR1 VDR3 COM. APRE CHIUDE INPUT ANT. 230VAC...
  • Page 4 DA.AX Control unit with microcontroller The microprocessor control unit “DA.AX” can be used with motors having a power not exceeding 500W. Installation instructions. The electrical installation and functioning logic must comply with current standards. It is advisable to keep the power cables (motor, power supply) detached from the control cables (push-buttons, photocells, radio).
  • Page 5 Off= Apartment building function disabled. On= Apartment building function enabled. DSW4= It selects the operation of the “P.P.” input as push-button “PASSO-PASSO” or push-button “APRE”. Off= “P.P.” push-button On= “APRE” push-button Trimmer functions TCA= This allows the automatic re-closing time to be adjusted when this is enabled by positioning the DSW2 Dip-switch on OFF.
  • Page 6 ® AUTOMATISMI PER CANCELLI AUTOMATISMI BENINCÀ Srl - Via Capitello, 45 - 36066 Sandrigo (VI) - Tel. 0444 751030 r.a. - Fax 0444 759728...
