CENTRALINA A MICROPROCESSORE
CONTROL UNIT WITH MICROCONTROLLER
MIKROCONTROLLER-STEUERUNG
CENTRALE A MICROCONTRÔLEUR
CENTRALITA A MICROPROCESADOR
DA.96AE
UNI
EN ISO
9001
Libro istruzioni
Operating instructions
Betriebsanleitung
UNIONE NAZIONALE COSTRUTTORI
Livret d'instructions
AUTOMATISMI PER CANCELLI, PORTE,
Libro de instrucciones
SERRANDE ED AFFINI
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Beninca DA.96AE
Summary of Contents for Beninca DA.96AE

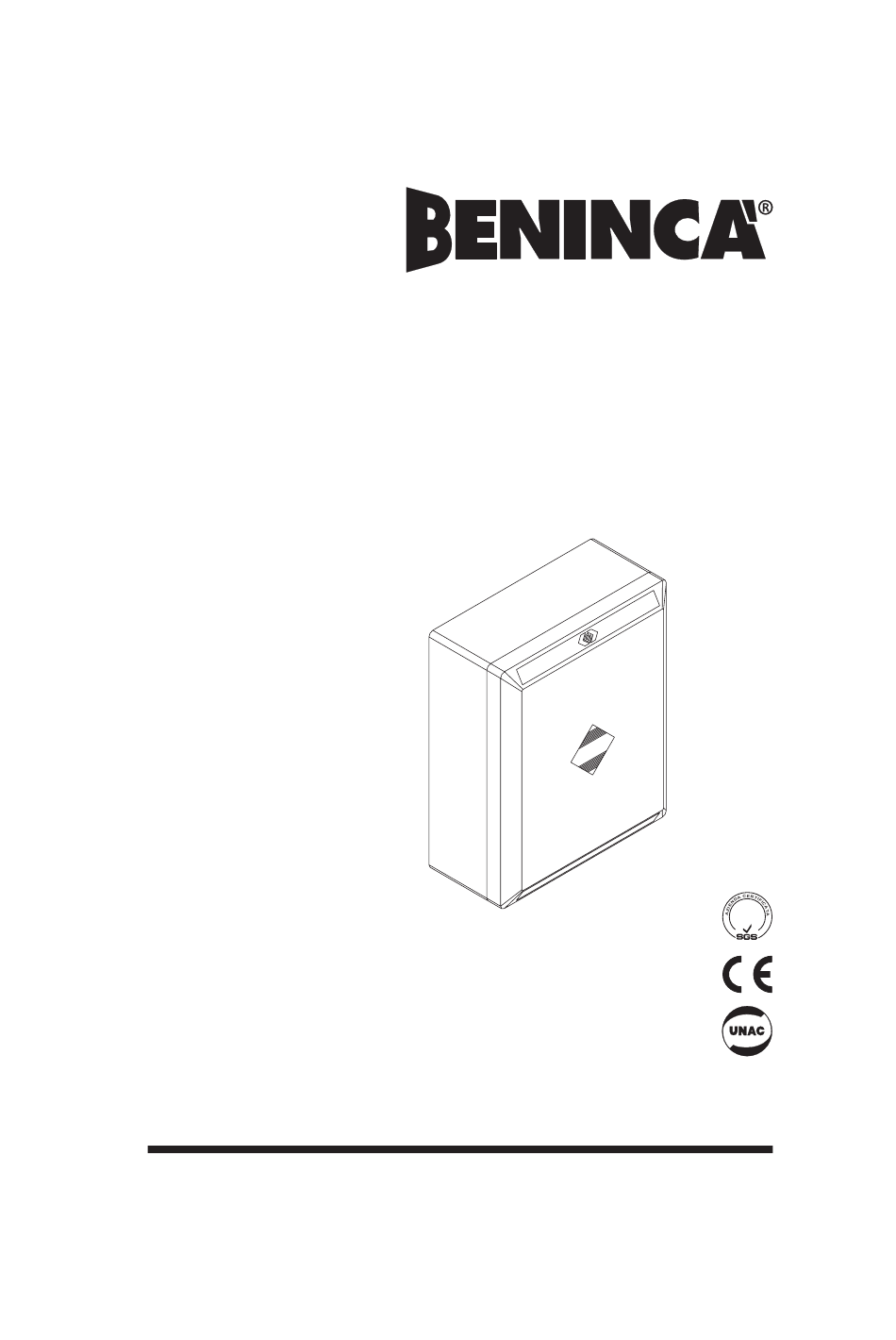

- Page 1 L8542608 Rev. 07/02/02 CENTRALINA A MICROPROCESSORE CONTROL UNIT WITH MICROCONTROLLER MIKROCONTROLLER-STEUERUNG CENTRALE A MICROCONTRÔLEUR CENTRALITA A MICROPROCESADOR DA.96AE EN ISO 9001 Libro istruzioni Operating instructions Betriebsanleitung UNIONE NAZIONALE COSTRUTTORI Livret d’instructions AUTOMATISMI PER CANCELLI, PORTE, Libro de instrucciones SERRANDE ED AFFINI...
- Page 2 We hereby declare that our product Hiermit erklaren wir, dass unser Produkt Nous déclarons par la présente que notre produit Por la presente declaramos que nuestro producto DA.96AE è conforme alle seguenti disposizioni pertinenti: complies with the following relevant provisions: folgenden einschlagigen Bestimmungen entspricht:...
- Page 3 MOTOR POWER POWER DA.96AE MIN. v1.0 VDR2 SELECT TRAC VDR3 VDR4 MAX. TRF1 CHIUDE2 APRE2 CHIUDE1 APRE1 COMUNE VDR1 0.5A 6.3A I_FTC C I_STOP VDR8 VDR6 VDR7 VDR5 I_PP CHIUDE APRE COM. CHIUDE APRE COM. INPUT ANT. 230VAC 24VAC 230VAC 50Hz...

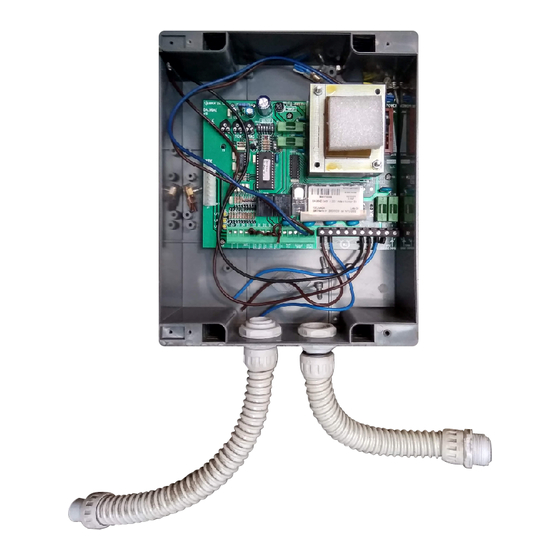

- Page 4 DA.96AE Control unit with microcontroller The ”DA.96AE” control unit with microcontroller is suitable for 2 motors with up to 750W total power. Installation instructions. The electrical installation and functioning logic must comply with current standards. Keep the power cables (for the motor and power supply) away from the control cables (buttons, photocells, radio).
- Page 5 Dip-switch functions N.B.: Every change of functions have to be done without electricity. DSW1= This selects the type of functioning of the P.P. button and Remote control. Off= ”OPEN” - ”STOP” - ”CLOSE” functioning On= ”OPEN” - ”CLOSE” - ”OPEN” functioning. DSW2= This enables or disables the pre-blinking function (4 sec.).
- Page 6 AUTOMATISMI BENINCÀ Srl - Via Capitello, 45 - 36066 Sandrigo (VI) - Tel. 0444 751030 r.a. - Fax 0444 759728...
