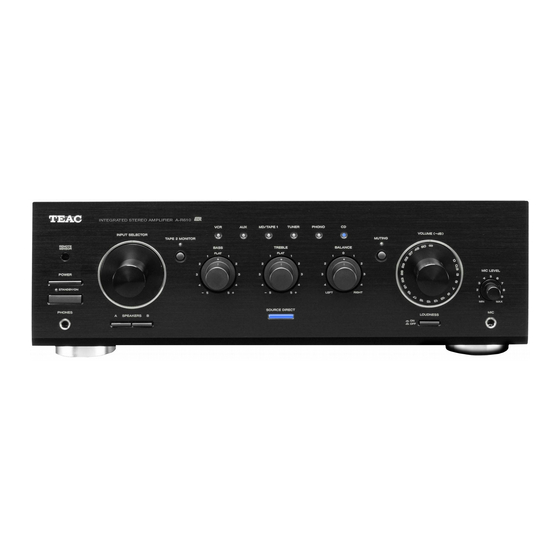

INTEGRATED STEREO AMPLIFIER
CONTENTS
1. SPECIFICATIONS ......................................................... 2
2. EXPLODED VIEWS AND PARTS LISTS ........................... 3
3. PC BOARDS ............................................................... 4
4. INCLUDED ACCESSORIES ............................................. 6
PC boards shown are viewed from parts side.
The parts with no reference number or no parts number in the
exploded views are not supplied.
As regards the resistors and capacitors, refer to the circuit
diagrams supplied pripor to this manual.
Parts marked with this sign are safety critical components.
They must be replaced with designated components.
Destination of product is expressed by [ ] mark and ensure
exact replacement: [EUR] - Europe, [UK] - UK
A-R610
NOTES
G-0905A
Advertisement
Related Manuals for Teac A-R610
Summary of Contents for Teac A-R610
- Page 1 A-R610 INTEGRATED STEREO AMPLIFIER CONTENTS 1. SPECIFICATIONS ………………………………………………… 2 2. EXPLODED VIEWS AND PARTS LISTS ……………………… 3 3. PC BOARDS ……………………………………………………… 4 4. INCLUDED ACCESSORIES ……………………………………… 6 NOTES PC boards shown are viewed from parts side. The parts with no reference number or no parts number in the exploded views are not supplied.
- Page 2 A-R610 1. SPECIFICATIONS Amplifier Section Continuous Power Output …………… 120 W+120 W RMS (1 kHz, 4 ohms, 0.5 %) 90 W+90 W (1 kHz, 8 ohms, 0.5 %) Total Harmonic Distortion …………………………… 0.02% (1 kHz, 8 ohms, 60W) Input Sensitivity/Impedance ……………………………...
- Page 3 A-R610 2. EXPLODED VIEWS AND PARTS LISTS Notes for PCB ASSY: 1. The composition of the PCB assemblies has been as follows that were equal to its supplying unit as well: COP11094E MAIN PCB ASSY CUP11094P MAIN PCB CUP11094-1 PCB, MAIN CUP11094-2 PCB, SP.A...
- Page 4 A-R610 3. PC BOARDS MAIN PCB DIPPING RL03 MONITOR TAPEI AUX2 AUX1 TUNER PHONO C938 J186 SP02 C930 C937 J184 BN05 C931 C512 C511 JK03 R221 JW20 J161 JK02 Q209 R220 R218 C118 C120 R217 R219 D208 D210 Q208 C208...
- Page 5 A-R610 SUB PCB CUP11890-9 CUP11890-8 LOUDNESS SW PCB MIC AMP PCB CUP11890-4 REMOTE/MIC MIX PCB CUP11890-7 HEADPHONE PCB CUP11890-6 POWER SW PCB CUP11890-3 CUP11890-10 MOTOR PCB VOL SEL PCB CUP11890-5 TRANS PCB CUP11890-2 FUSE PCB CUP11890-1 Consult the BOM.xls for detail of individual parts.
- Page 6 A-R610 4. INCLUDED ACCESSORIES REF. NO. PARTS NO. DESCRIPTION REMARKS CQX1A484W OWNER'S MANUAL CABR03PPB BATTERY , AAA 2 PCS IN PACK CARTAR600Y REMOTE CONTROL UNIT UR-592B REMOTE CONTROL UNIT UR-592B – 6 –...
- Page 7 Rio Churubusco 364, Colonia Del Carmen, Delegación Coyoacán, CP 04100, México DF, México Phone: ( 5255 ) 5010-6000 TEAC MEXICO, S.A. De C.V Unit 19 & 20, The Courtyards, Hatters Lane, Watford, Hertfordshire, WD18 8TE, U.K. Phone: ( 0845 ) 130-2511...
- Page 8 SCHEMATIC DIAGRAMS CONTENTS Wiring Diagram ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 2 Block Diagram ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 3 MAIN PCB ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 4 SUB PCB ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 5 A-R610 Integrated Stereo Amplifier 1 st Issue; September 2009...
-
Page 9: Wiring Diagram
A-R610 MAIN PCB & Wiring WIRING DIAGRAM BN05(4P) CUP11094-2 SP.A PCB CN06(6P) CN05(4P) BN43(3P) BN43(3P) CUP11890-4 REMOTE/MIC MIX PCB CUP11094-1 HEATSINK CN43 CN42 BN44 MAIN AMP PCB (6P) (4P) (4P) CUP11890-2 FUSE PCB CN15(2P) CN09(11P) BN01(4P) BN13(3P) JW45 BN21(6P) CN04(4P) -
Page 10: Block Diagram
A-R610 MAIN PCB & Wiring BLOCK DIAGRAM A-R610 Integrated Stereo Amplifier – 3 – 1 st Issue; September 2009... -
Page 11: Main Pcb
A-R610 MAIN PCB SCHEMATIC DIAGRAM A-R610 Integrated Stereo Amplifier – 4 – 1 st Issue; September 2009... -
Page 12: Sub Pcb
A-R610 SUB PCB SCHEMATIC DIAGRAM A-R610 Integrated Stereo Amplifier – 5 – 1 st Issue; September 2009... - Page 13 WASHER COP11890B SUB PCB ASS'Y ...4 CIP11890B SUB PCB AUTO ASS'Y ..5 CUP11890Y PCB , MAIN (A-R610 , 330*247 ,FR-1) A-R610 , 330*247 ,FR-1 ..5 CCEA1VH100T CAP , ELECT 10UF 35V ..5 CCEA1VH100T CAP , ELECT 10UF 35V ..5 CCCT1H050CC CAP , CERAMIC 5PF 50V C ..5...
- Page 14 ..5 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J ..5 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J ..5 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J ..5 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J ..5 CCEA1VH100T CAP , ELECT 10UF 35V ..5 CCEA1VH100T CAP , ELECT...
- Page 15 ..5 CCBS1C222MXTCAP , CERAMIC(2200PF/16V) CH EP025 B222M-A-B J ..5 CCEA1VH100T CAP , ELECT 10UF 35V ..5 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J ..5 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J ..5 CCEA1VH100T CAP , ELECT 10UF 35V ..5 CCEA1VH100T CAP , ELECT 10UF 35V...
- Page 16 ..5 HVTKRC107MT T.R KRC107M ..5 HVTKRA107MT T.R KRA107M ..5 HVTKRC107MT T.R KRC107M ..5 HVTKRA107MT T.R KRA107M ..5 HVTKRA104MT T.R KRA104M ..5 HVTKRA104MT T.R KRA104M ..5 HVTKRA104MT T.R KRA104M ..5 HVTKRA104MT T.R KRA104M ..5 HVTKRC107MT T.R KRC107M ..5 HVTKRC114MT T.R KTC114M ..5 HVTKRC107MT T.R KRC107M...
- Page 17 ..5 CRD20TJ102T RES , CARBON 1K OHM 1/5W J ..5 CRD20TJ102T RES , CARBON 1K OHM 1/5W J ..5 CRD20TJ151T RES , CARBON 150 OHM 1/5W J ..5 CRD20TJ274T RES , CARBON ..5 CRD20TJ273T RES , CARBON 27K OHM 1/5W J ..5 CRD20TJ274T RES , CARBON...
- Page 18 ..5 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J ..5 CRD20TJ223T RES , CARBON 22K OHM 1/5W J ..5 CRD20TJ151T RES , CARBON 150 OHM 1/5W J ..5 CRD20TJ151T RES , CARBON 150 OHM 1/5W J ..5 CRD20TJ224T RES , CARBON 220 KOHM 1/5W J ..5 CRD20TJ473T...
- Page 19 ...4 CWZAM1100BN09 WIRE ASS'Y ...4 CWB1B904200BM WIRE ASS'Y ...4 CWZAR600BN11WIRE ASS'Y ...4 CWB1D006240BM WIRE ASS'Y ...4 CWZAM1100BN21 WIRE ASS'Y ...4 CWZAR600EURBN23 WIRE ASS'Y ...4 CWZAR600BN42WIRE ASS'Y ...4 CWB1B904150BM WIRE ASS'Y ...4 CWZAR600BN93WIRE ASS'Y ...4 CJP04GA01ZY WAFER , STRAIGHT(4PIN) ...4 CJP03GA01ZY WAFER ...4 CJP04GA01ZY WAFER , STRAIGHT(4PIN) ...4...
- Page 20 ...4 HSH2B017Z SW , PUSH SPUL19X1M071 ...4 CSH1A001ZV SWITCH ...4 CLT5J030YE TRANS , SUB ...4 CVV2X04B503Z RES , VARIABLE TONE ...4 CVV2X04B503Z RES , VARIABLE TONE ...4 CVV1U01W104YRES , VARIABLE ...4 CVV1U01B503Y RES , VARIABLE ...4 CVV9Y12B104Z VOLUME , MOTOR ...4 HOX08000E160C CRYSTAL 8MHz CTB3+10GR...
- Page 21 ..5 CCCT1H220JC CAP , CERAMIC 22PF 50V J ..5 CCCT1H220JC CAP , CERAMIC 22PF 50V J ..5 HCQI1H102JZT CAP , MYLAR 1000PF 50V J ..5 HCQI1H102JZT CAP , MYLAR 1000PF 50V J ..5 HCQI1H562JZT CAP , MYLAR 5600PF 50V J ..5 HCQI1H562JZT CAP , MYLAR 5600PF 50V J...
- Page 22 ..5 CCEA1EH470T CAP , ELECT 47UF 25V ..5 CCEA1AH471T CAP , ELECT 470UF 10V ..5 CCFT1H473ZF CAP , CERAMIC 0.047UF 50V Z ..5 CCFT1H103ZF CAP , CERAMIC 0.01UF 50V Z ..5 CCEA1CH101T CAP , ELECT 100UF 16V ..5 CCEA1EH470T CAP , ELECT 47UF 25V ..5 CCEA1HH4R7T CAP , ELECT...
- Page 23 ..5 CCCT1H560JC CAP , CERAMIC 56PF 50V J ..5 CCCT1H560JC CAP , CERAMIC 56PF 50V J ..5 CCCT1H100DC CAP , CERAMIC 10PF 50V D ..5 CCCT1H100DC CAP , CERAMIC 10PF 50V D ..5 CCEA1HH470T CAP , ELECT 47UF 50V ..5 CCEA1HH470T CAP , ELECT 47UF 50V ..5...
- Page 24 ..5 CCBS1H560JT CAP , CERAMIC(56PF/50V) CH UP025SL560J-A-B Z ..5 CCBS1H560JT CAP , CERAMIC(56PF/50V) CH UP025SL560J-A-B Z ..5 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J ..5 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J ..5 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J ..5 CVD1SS133MT DIODE 1SS133...
- Page 25 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133 ..5 CVD1SS133MT DIODE 1SS133...
- Page 26 ..5 HVTKTC3198YT T.R KTC3198Y ..5 HVTKTC2874BT T.R , MUTE KTC2874B ..5 HVTKTC2874BT T.R , MUTE KTC2874B ..5 HVTKTC2874BT T.R , MUTE KTC2874B ..5 HVTKTC2874BT T.R , MUTE KTC2874B ..5 HVT2SK117-BL F.E.T ..5 HVT2SK117-BL F.E.T ..5 HVT2SK117-BL F.E.T ..5 HVT2SK117-BL F.E.T ..5 CVTKTC1027YT T.R ..5...
- Page 27 ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ473T...
- Page 28 ..5 CRD20TJ100T RES , CARBON 10 OHM 1/5W J ..5 CRD20TJ103T RES , CARBON 10K OHM 1/5W J ..5 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ682T RES , CARBON 6.8K OHM 1/5W J ..5 CRD20TJ682T...
- Page 29 ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ473T RES , CARBON 47K OHM 1/5W J ..5 CRD20TJ392T RES , CARBON 3.9K OHM 1/5W J ..5 CRD20TJ392T...
- Page 30 ..5 CRD20TJ103T RES , CARBON 10K OHM 1/5W J ...4 CMY1A122ZA HEATSINK ASS'Y ..5 CDD1A013YA FAN ASS'Y ..6 CDD1A013 ..6 CDMCCM05045R18 MOTOR ..6 CGP3A016 FRAME , FAN ..6 CSN2+4R SCREW ROHS ..6 CWZAV7742 WIRE ASS'Y ..6 C2K86102 SOLDER , FLUX WIRE PB FREE(PIE 1.0) HSE-04 W1.0 ..5 CGP2A015...
- Page 31 ...4 CCEA1HH222E CAP , ELECT ...4 CVDKBPC2504WFA BRIDGE DIODE ASS'Y ..5 CMY1A022 HEATSINK ..5 CTB3+20JR SCREW ..5 HVDKBPC2504WF DIODE , BRIDGE KBPC2504WF ..5 K8AYG6260 COMPOUND , SILICONE ...4 HVINJU7312L NJU7312AL ...4 HVIMC4558S ...4 CVIMC7815CZA I.C ASS'Y ..5 CMY1A025 HEATSINK ..5 CTB3+8JR SCREW ..5...
- Page 32 ...4 HVT2SC3423O T.R 2SC3423O ...4 HVT2SA1360O T.R 2SA1360O ...4 HVT2SA1360O T.R 2SA1360O ...4 HVTKTD2061Y T.R , DRIVE KTD2061Y ...4 HVTKTD2061Y T.R , DRIVE KTD2061Y ...4 HVTKTB1369Y T.R , DRIVE KTB1369Y ...4 HVTKTB1369Y T.R , DRIVE KTB1369Y ...4 HSL1A008ZE RELAY SDT-S-112DMR ...4 HSL1A008ZE RELAY...
- Page 33 BATTERY , AAA 2PCS IN PACK CARTAR600Y REMOCON CPB1061W BAG , POLY(ENGLISH/FRANCH) FRANCE LANGUAGE ADDED CPL0905 STAPLE CQE1A370Y WARRANTY CARD(EUR,UK) CQE1A403Z SHEET , BATTERY TEAC CQX1A484W MANUAL , INSTRUCTION CRE1A037 LOCKER SH08M790BO C4FC240CL TAPE , P.P(24mm*50mm) C4FC500CL TAPE , OPP...
- Page 34 Product of ANAM, China, 09/05/07 REF. No. Q'TY UNIT RREMARKS 1 EA 1 EA 1 EA A-R600EUR 2 EA A-R600EUR 1 EA A-R600EUR 1 EA 3 EA 2 EA A-R600EUR 1 EA A-R600EUR 1 EA A-R600EUR 1 EA 3 EA A-R600EUR 2 EA A-R600EUR...
- Page 35 C319 1 EA CH UP050 F223Z- C320 1 EA CH UP050 F223Z- C321 1 EA CH UP050 F223Z- C322 1 EA CH UP050 F223Z- C323 1 EA 35V 10UF 5*11 C324 1 EA 35V 10UF 5*11 C325 1 EA CH UP050 F223Z- C326 1 EA CH UP050 F223Z-...
- Page 36 C408 1 EA CH EP025 B222M- C409 1 EA 35V 10UF 5*11 C411 1 EA CH UP050 F223Z- C412 1 EA CH UP050 F223Z- C451 1 EA 35V 10UF 5*11 C452 1 EA 35V 10UF 5*11 C453 1 EA CH UP025CH220J- C454 1 EA CH UP025CH220J-...
- Page 37 Q309 1 EA KRC107M-AT/P Q310 1 EA KRA107M-AT/P Q311 1 EA KRC107M-AT/P Q312 1 EA KRA107M-AT/P Q313 1 EA KRA104M-AT/P Q314 1 EA KRA104M-AT/P Q315 1 EA KRA104M-AT/P Q316 1 EA KRA104M-AT/P Q317 1 EA KRC107M-AT/P Q318 1 EA KRC114M-AT/P Q319 1 EA KRC107M-AT/P...
- Page 38 R331 1 EA R332 1 EA R333 1 EA R334 1 EA R335 1 EA R336 1 EA R337 1 EA R338 1 EA R339 1 EA R340 1 EA R341 1 EA R342 1 EA R343 1 EA R344 1 EA R345 1 EA...
- Page 39 R423 1 EA R424 1 EA R426 1 EA R427 1 EA R429 1 EA R451 1 EA R452 1 EA R453 1 EA R454 1 EA R455 1 EA R456 1 EA R457 1 EA R458 1 EA R459 1 EA R460 1 EA...
- Page 40 BN09 1 EA BN10 1 EA BN11 1 EA BN12 1 EA BN21 1 EA BN23 1 EA BN42 1 EA BN44 1 EA BN93 1 EA CN01 1 EA YMW025-04R CN07 1 EA YMW025-03R CN10 1 EA YMW025-04R CN11 1 EA YMW025-03R CN13...
- Page 41 S307 1 EA SPUL19X1M071 S308 1 EA T001 1 EA VR31 1 EA EWCEW6F02B54 VR32 1 EA EWCEW6F02B54 VR33 1 EA VR41 1 EA VR71 1 EA RK16812MG12E X301 1 EA 31 EA 2 EA 00M51260308M0 1 EA 1 EA A-H500&A-R600 0.02 M ALL MODEL...
- Page 42 C105 1 EA CCC 1H 220J 04 C106 1 EA CCC 1H 220J 04 C107 1 EA HPE102J2AP050T C108 1 EA HPE102J2AP050T C109 1 EA HPE562J2AP050T C110 1 EA HPE562J2AP050T C111 1 EA HPE223J2AP050T C112 1 EA HPE223J2AP050T C113 1 EA 00107-1019 C114 1 EA...
- Page 43 C209 1 EA 25V 47UF 5*11 C210 1 EA 00107-1001 C211 1 EA C212 1 EA C213 1 EA 00107-1003 C214 1 EA 25V 47UF 5*11 C401 1 EA 00107-1019 C402 1 EA 00107-1019 C403 1 EA CCC 1H 030C 04 C404 1 EA CCC 1H 030C 04...
- Page 44 C523 1 EA 56PF 50V J C524 1 EA 56PF 50V J C525 1 EA CCC1H 100D 04 F C526 1 EA CCC1H 100D 04 F C527 1 EA 00107-1031 C528 1 EA 00107-1031 C529 1 EA CCC 1H 220J 04 C530 1 EA CCC 1H 220J 04...
- Page 45 C939 1 EA CH UP025SL560J- C940 1 EA CH UP025SL560J- C941 1 EA CH UP050 F223Z- C942 1 EA CH UP050 F223Z- C943 1 EA HPE104J2AP050T D201 1 EA ISS133(T/B) D202 1 EA ISS133(T/B) D203 1 EA ISS133(T/B) D204 1 EA ISS133(T/B) D205 1 EA...
- Page 46 D524 1 EA ISS133(T/B) D525 1 EA ISS133(T/B) D526 1 EA ISS133(T/B) D527 1 EA ISS133(T/B) D528 1 EA ISS133(T/B) D529 1 EA ISS133(T/B) D530 1 EA ISS133(T/B) D531 1 EA ISS133(T/B) D532 1 EA ISS133(T/B) D533 1 EA ISS133(T/B) D534 1 EA ISS133(T/B)
- Page 47 Q410 1 EA KTC3198-Y-AT/PJ Q501 1 EA KTC2874-B-AT/P Q502 1 EA KTC2874-B-AT/P Q503 1 EA KTC2874-B-AT/P Q504 1 EA KTC2874-B-AT/P Q505 1 EA 2SK117-BL(TPE2, Q506 1 EA 2SK117-BL(TPE2, Q507 1 EA 2SK117-BL(TPE2, Q508 1 EA 2SK117-BL(TPE2, Q901 1 EA KTC1027Y Q902 1 EA KSA916-YTA...
- Page 48 R138 1 EA R139 1 EA R140 1 EA R141 1 EA R142 1 EA R143 1 EA R144 1 EA R145 1 EA R146 1 EA R149 1 EA R150 1 EA R151 1 EA R152 1 EA R155 1 EA R156 1 EA...
- Page 49 R227 1 EA R228 1 EA R229 1 EA R230 1 EA R235 1 EA R236 1 EA R401 1 EA R402 1 EA R403 1 EA R404 1 EA R405 1 EA R406 1 EA R407 1 EA R408 1 EA R409 1 EA...
- Page 50 R509 1 EA R510 1 EA R511 1 EA R512 1 EA R513 1 EA R514 1 EA R515 1 EA R516 1 EA R517 1 EA R518 1 EA R519 1 EA R520 1 EA R521 1 EA R522 1 EA R523 1 EA...
- Page 51 R922 1 EA 1 EA 1 EA 1 EA A-R600EUR 1 EA 1 EA 2 EA 1 EA AA-900/AG-V8525 1 EA 1 EA A-R600 8 EA 00M51260308M0 6 EA Q523 1 EA KTD2058-Y-U/PF Q524 1 EA KTD2058-Y-U/PF Q533 1 EA 2SC3519A Q534 1 EA...
- Page 52 C912 1 EA D901 1 EA 1 EA A-R600 1 EA 1 EA KBPC2504WF 0.3 G IC01 1 EA NJU7312AL IC02 1 EA KA4558S IC91 1 EA 1 EA ALL MODEL 1 EA 00M51260308M0 1 EA KA7815ETU IC92 1 EA 1 EA ALL MODEL 1 EA...
- Page 53 Q526 1 EA 2SC3423-0(Q,H) Q527 1 EA 2SA1360-O(Q,H) Q528 1 EA 2SA1360-O(Q,H) Q529 1 EA KTD2061-Y-U/PF Q530 1 EA KTD2061-Y-U/PF Q531 1 EA KTB1369-Y-U/PF Q532 1 EA KTB1369-Y-U/PF RL01 1 EA 9-1419125-8 RL02 1 EA 9-1419125-8 RL03 1 EA 9-1419125-8 RL04 1 EA 9-1419125-8...
- Page 54 1 EA 17 EA 9 EA 8 EA 4 EA 00M51260308M0 4 EA 3 EA 2 EA 7 EA 1 EA A-R600UK 2 EA 1 EA 1 EA F902 1 EA 0.12 M 1 EA STA-3760/50 1 EA 8 EA 1 EA A-R600EURCC 1 EA...
