Connecting

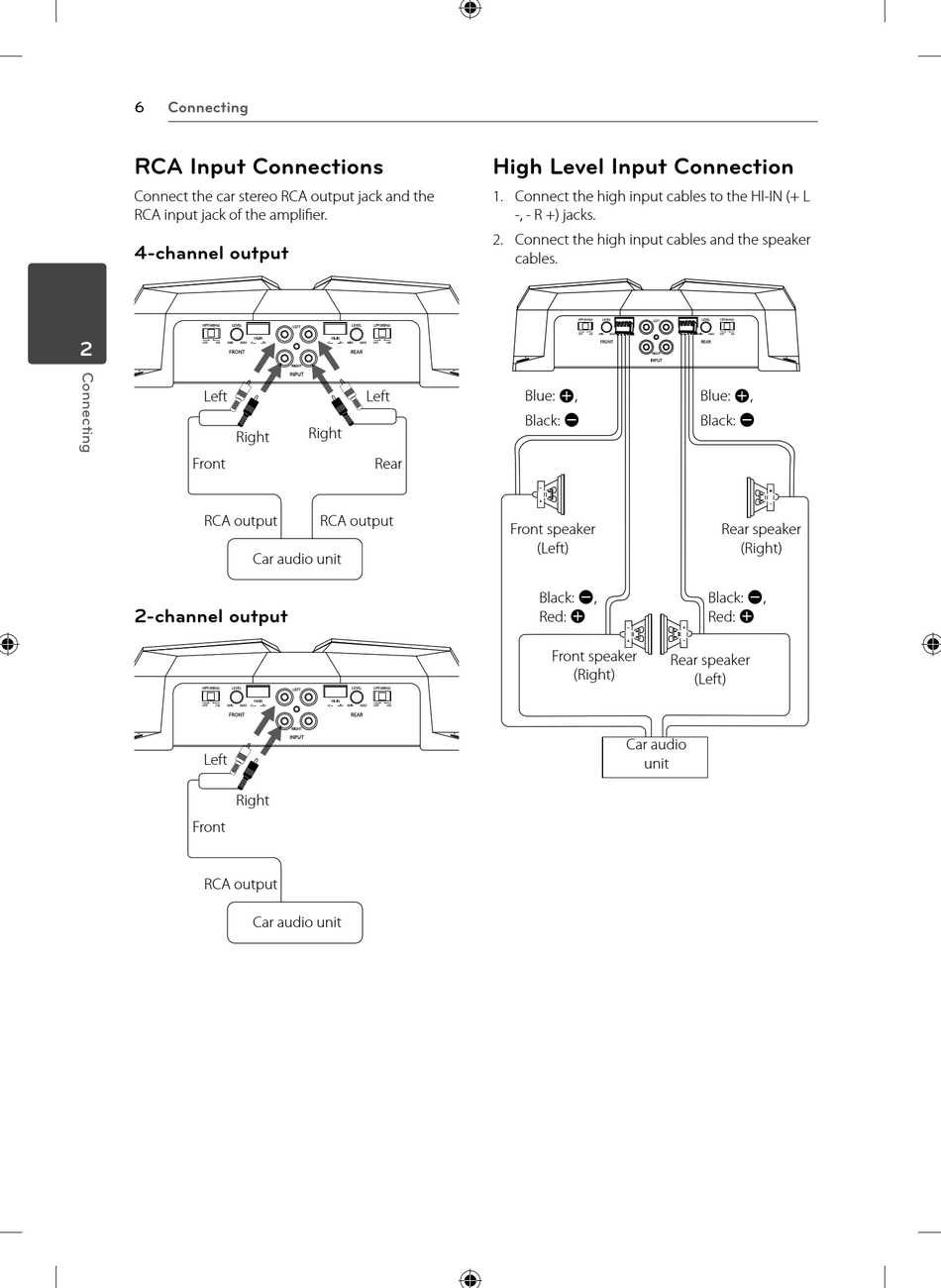

RCA Input Connections

Connect the car stereo RCA output jack and the
RCA input jack of the amplifi er.
4-channel output
2
Left
Right
Front
RCA output
Car audio unit
2-channel output
Left
Right
Front
RCA output
Car audio unit
Left
Right
Rear
RCA output
High Level Input Connection
1. Connect the high input cables to the HI-IN (+ L
-, - R +) jacks.
2. Connect the high input cables and the speaker
cables.
Blue: 4,
Black: 5
Front speaker
(Left)
Black: 5,
Red: 4
Front speaker
(Right)
Car audio
unit
Blue: 4,
Black: 5
Rear speaker
(Right)
Black: 5,
Red: 4
Rear speaker
(Left)
