Summary of Contents for Orion ORB 24974

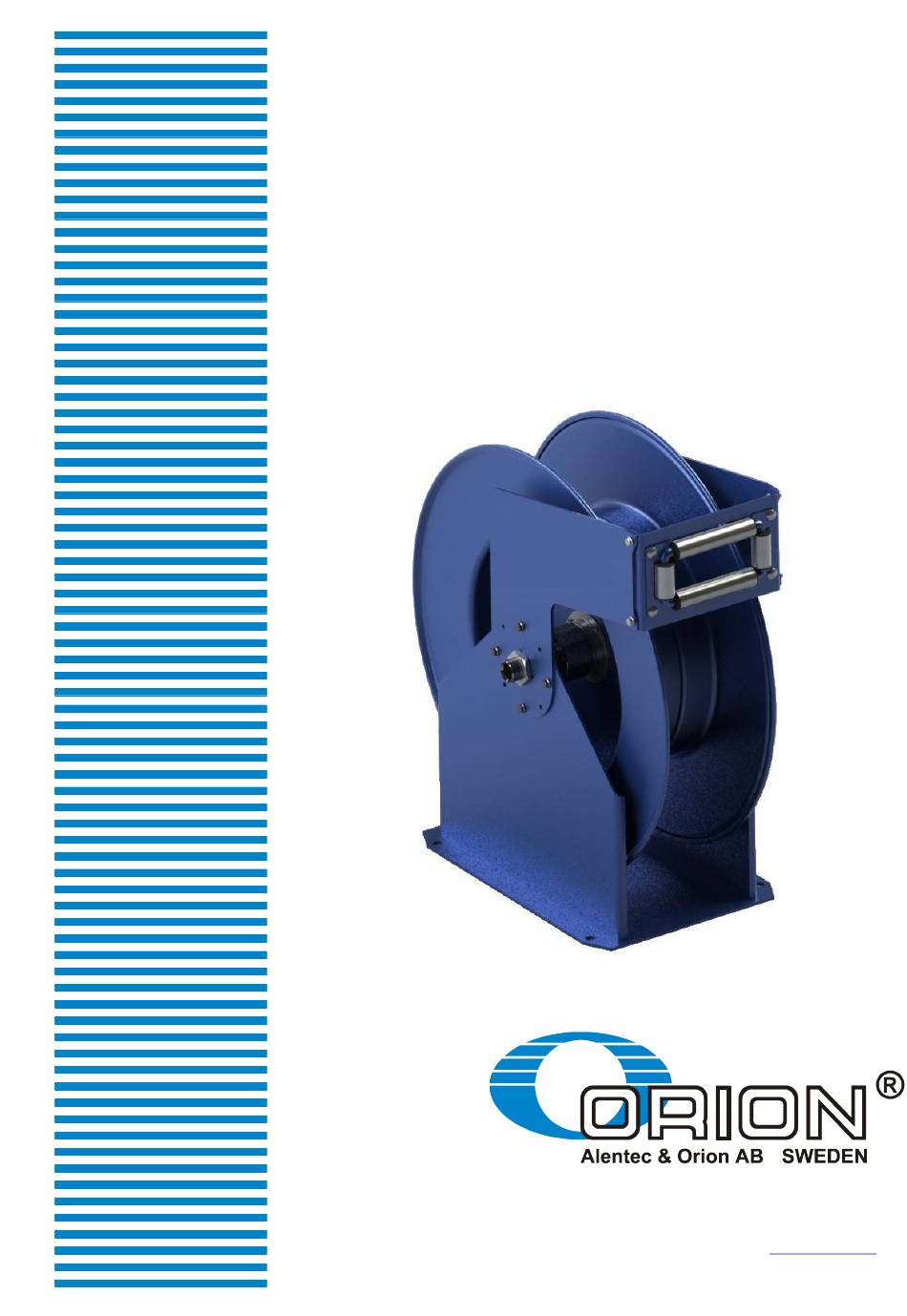

- Page 1 Hose reel ORB Slangrulle ORB 24974, 24975, 24976 24977, 44452, 44453 24978, 24979 Manual Alentec & Orion AB, Box 108, 132 23 Saltsjö-Boo Telefon: +46 8 747 67 00 Fax: +46 8-715 20 74 e-mail: info@alentec.se www.alentec.com Manual Hose Reel ORB,...
-
Page 2: (En) Safety Precautions
Hose Reel ORB Hose Reel ORB Hose Reel ORB Hose Reel ORB (EN) Safety Precautions (SE) Säkerhetsanvisning This equipment is for professional use only. Släpp inte taget om slangen vid upprullning, detta Do not leave the hose to coil unattended. kan skada slangrullen, utrustning och personer i dess Ensure that the pressure does not exceed maximum närhet. -
Page 3: (En) Installation
Hose Reel ORB Hose Reel ORB Hose Reel ORB Hose Reel ORB (EN) Installation (SE) Installation The hose reel can be installed directly on the fixing surface in the ceiling, on the wall or on the floor. Slangrullen kan installeras direkt på monteringsytan både i For optimal operation, the reel outlet guide arms should be tak, på... - Page 4 Hose Reel ORB Hose Reel ORB Hose Reel ORB Hose Reel ORB (SE) Montering av slang (EN) Hose installation Sätt fast slangrullen i en bänk. Clamp the hose reel firmly to a work bench. För slangen genom slangrullens slangstyrning och Introduce the hose end that is to be connected to the sedan genom öppningen i trumman.
- Page 5 (EN) Spring load adjustment (SE) Justering av fjäderns spänning To increase or decrease spring tension För att öka eller minska fjäderns spänning Pull out the hose to the first ratchet locking position. Dra ut slangen till den första låsta positionen. Remove the hose stop.
- Page 6 Hose Reel ORB Hose Reel ORB Hose Reel ORB Hose Reel ORB (EN) Swivel replacement (SE) Byte av svivel Warning! Before removing the damaged swivel, close Viktigt! Innan sviveln byts, stäng den från rullen sett the nearest shut off valve to the reel and open the fluid närmaste ventilen samt öppna handventilen för att släppa control gun to release the pressure inside the hose.
-
Page 7: (En) Troubleshooting
Hose Reel ORB Hose Reel ORB Hose Reel ORB Hose Reel ORB (EN) Ratchet replacement Make sure the hose is completely wound on the spool and the hose stop is resting against the hose guide rollers. • Remove the screws (1). •... - Page 8 Hose Reel ORB Hose Reel ORB Hose Reel ORB Hose Reel ORB (EN) Spare part drawing (SE) Reservdelsritning 8(9)
- Page 9 Hose Reel ORB Hose Reel ORB Hose Reel ORB Hose Reel ORB (EN) Spare parts list For all models Description Art.no Incl. pos Contains For reel Roller outlet 2426460 17-24 17(x4), 18(x1), 19(x2), 20(x2), 21(x2),22(x2), 23(x2), 24(x4) assembly Ratchet 2426461 1,2,3(x2),4,5,6,7 Swivel seals 2326462...
